MSI

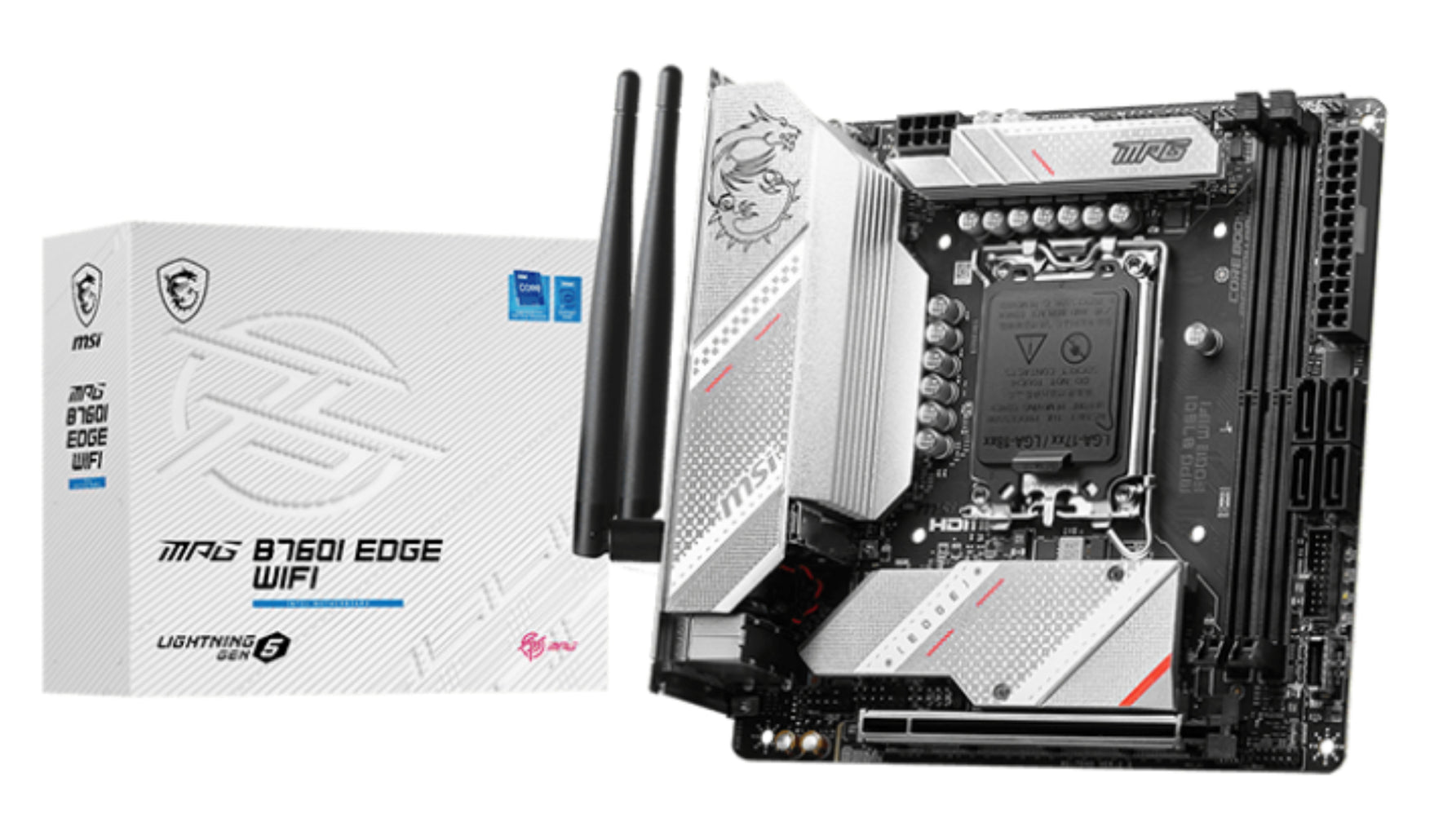

MSI MPG B760I EDGE WIFI motherboard Intel B760 LGA 1700 mini ATX
£189.99
✔ UK-based seller
✔ Tracked delivery on all orders
✔ Genuine products
✔ Fast dispatch within 1–2 business days
Your transaction is protected with advanced security measures to keep your information confidential
Estimated delivery between June 21 and June 23.
Delivery Information
Processing Time
Orders are typically processed and dispatched within 1–2 business days (Monday–Friday).
Orders placed after 3:00 PM (UK time) will be processed the next business day.
Delivery Time
Estimated delivery time within the United Kingdom is 3–5 business days after dispatch.
Delivery times are estimates and may vary depending on courier delays, location, or peak periods.
£189.99
£189.99
MSI MPG B760I EDGE WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Mini ITX)
| Web Address | uk.msi.com |
| Model Number | MPG B760I EDGE WIFI |
| EAN | 4711377069632 |
| UPC | 824142315545 |
| Package Type | Retail |
| Warranty | 3 Years |
Chipset & CPU
| Chipset | Intel B760 |
| CPU Interface | Socket 1700 |
| CPU Support | https://www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI/support#cpu |
Memory
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 2 x 288-pin |
| RAM Speeds | Up to DDR5 7200+ (O.C.) |
| Max. Memory Support | 96GB |
Expansion Slots & Storage
| PCI Express 5.0 x16 | 1 |
| S-ATA 6Gb/s Port(s) | 4 |
| RAID | Raid 0/1/5/10 |
| M.2 Socket(s) | 1 x PCIe Gen 4.0 x4 1 x PCIe Gen 4.0 x4/SATA |
Networking
| On-Board LAN | Realtek RTL8125B 2.5Gbps LAN |
| Wireless NIC | Wi-Fi 6E |
| Wireless Technology | The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | v5.3 |
Audio & Video
| On-Board Audio | Realtek ALC897 Codec 7.1-Channel USB High Performance Audio |
| On-Board Video | Processor with integrated graphics is required |
Back Panel I/O
| Back USB 2.0 Port(s) | 2 |
| Back USB 3.2 Port(s) Type-A Gen 1 | 4 |
| Back USB 3.2 Port(s) Type-A Gen 2 | 1 |
| Back USB 3.2 Port(s) Type-C Gen 2 | 1 |
| Back HDMI Port(s) | 1 |
| Back DisplayPort(s) | 1 |
| Back LAN Port(s) | 1 |
| Back Audio Jack(s) | 3 |
| Back Other Port(s) | Wi-Fi / Bluetooth |
Internal Connectors
| 24-pin ATX Power | 1 |
| 8-pin ATX Power | 1 |
| USB 2.0 Header(s) | 2 |
| USB 3.2 Header(s) Gen 1 | 2 |
| USB 3.2 Header(s) Gen 2 | 1 |
| Front Panel Audio Connector | 1 |
| TPM Header(s) | 1 |
| Internal Other Port(s) | 1 x Addressable V2 RGB LED connector 1 x RGB LED connector 4 x EZ Debug LED |
Physical Details
| Form Factor | Mini ITX |
| Product Width | 170mm |
| Product Length | 170mm |
| Package Width | 19.3cm |
| Package Length | 23cm |
| Package Height | 8.2cm |
| Gross Weight | 1.00Kg |
Special Features
- Supports 13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket.
- Supports DDR5 Memory, up to 7200+(OC) MHz.
- Lightning-Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2.
- Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost.
- Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- High Quality PCB: 8-layer PCB made by server grade level material.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
Package Contents
- Motherboard
- Quick Installation Guide
- M,2 Screw Package
- Wi-Fi Antenna
- Cable Stickers
- 1 x SATA Cable
- Rainbow RGB LED Extension Cable
