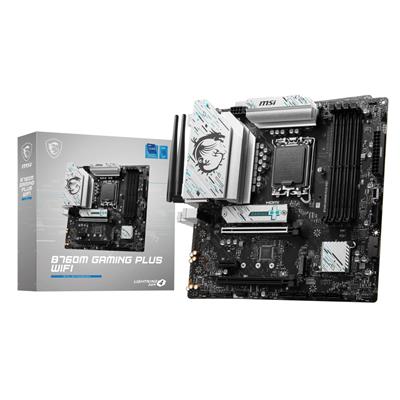

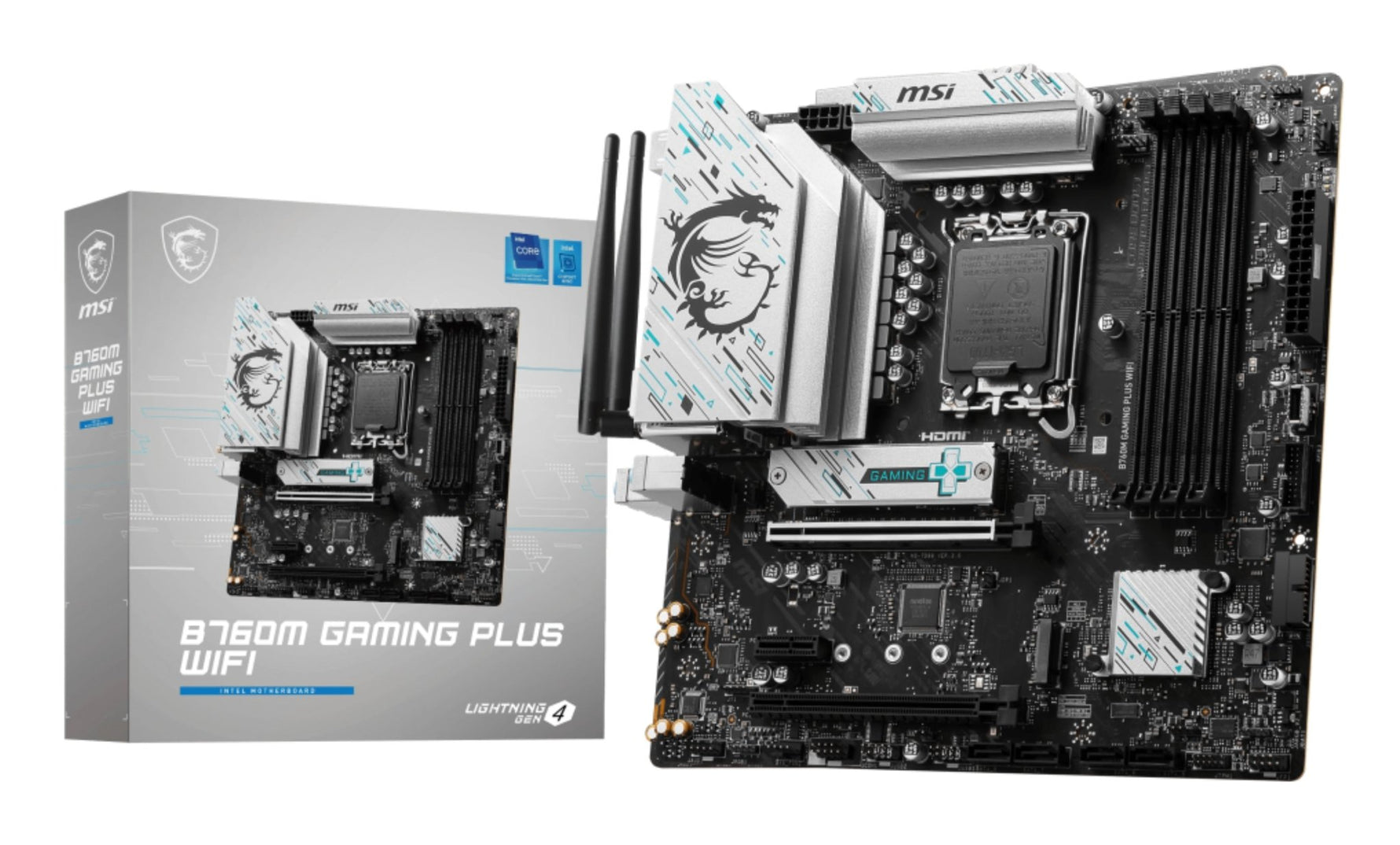

MSI B760M GAMING PLUS WIFI B760 LGA1700 mATX Motherboard

MSI B760M GAMING PLUS WIFI is a Micro ATX motherboard for Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors on the LGA1700 platform. Built on the Intel B760 chipset with four DDR5 slots up to DDR5-6800+ (OC) supporting up to 256GB, two M.2 PCIe 4.0 x4 slots, Realtek 2.5GbE LAN, Intel Wi-Fi 6E, Bluetooth 5.3, and four video outputs including two HDMI 2.1 and two DisplayPort 1.4, it delivers a capable gaming-oriented mATX platform with strong connectivity.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Intel B760 chipset, LGA1700 socket — supports Intel 12th, 13th and 14th Gen Core, Pentium Gold and Celeron processors
• Micro ATX form factor (244 x 244mm)
• DDR5 memory — 4 slots, up to 256GB, up to DDR5-6800+ (OC), XMP 3.0 support
• 1x PCIe 4.0 x16 (CPU) + 1x PCIe 4.0 x4 (Chipset) + 1x PCIe 3.0 x1 slots
• 2x M.2 slots: 1x PCIe 4.0 x4 (CPU), 1x PCIe 4.0 x4/SATA (Chipset)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Realtek RTL8125BG 2.5GbE LAN
• Intel Wi-Fi 6E (802.11ax, 2.4/5/6GHz, 160MHz, up to 2.4Gbps) + Bluetooth 5.3
• Realtek ALC897 7.1-channel HD Audio, 3x rear audio jacks
• 2x USB 5Gbps Type-A + 2x USB 10Gbps Type-A + 2x USB 2.0 on rear panel
• 4x video outputs: 2x HDMI 2.1 + 2x DisplayPort 1.4 (4K 60Hz, iGPU required)
• 1x PS/2 keyboard/mouse port on rear panel
• 1x 8-pin + 1x 4-pin CPU power connectors
• 2x Addressable V2 RGB + 1x RGB LED headers
• EZ Debug LED for POST diagnostics

Product Overview

The MSI B760M GAMING PLUS WIFI is a compact mATX board for 12th, 13th, and 14th Gen Intel builds. Two M.2 slots both operate at PCIe 4.0 x4 — the second also supports SATA M.2 drives. Four SATA ports provide additional storage capacity. The rear panel provides four video outputs simultaneously — two HDMI 2.1 and two DisplayPort 1.4 at up to 4K 60Hz — useful for multi-monitor setups driven by the processor’s integrated graphics. Intel Wi-Fi 6E covers the 6GHz band at 160MHz for up to 2.4Gbps throughput. Front panel headers include four USB 5Gbps Type-A and one USB 5Gbps Type-C. EZ Debug LED assists with POST troubleshooting. The 12+1 Duet Rail Power System with 8+4-pin CPU power provides stable delivery for high-core-count processors.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1-2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1-2 business days
• Pre- and post-purchase support available

Specifications

Box Contents

• Motherboard
• 1x SATA 6Gb/s cable
• 1x Wi-Fi Antenna Set
• 1x M.2 screw and standoff package (2 sets)
• 1x I/O Shield
• Quick Installation Guide

Product Identification

Model: B760M GAMING PLUS WIFI
EAN: 4711377154017
