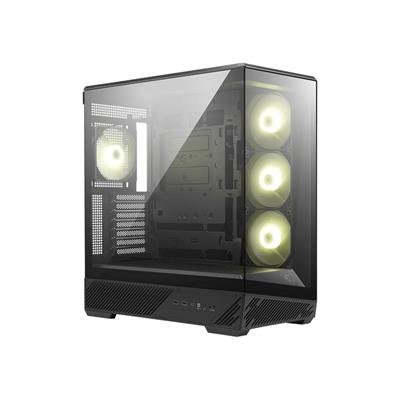

MSI MAG Pano 130R PZ Mid Tower Case - Black

The MSI MAG Pano 130R PZ is a mid-tower PC case designed for back-connect motherboard builds, featuring wraparound tempered glass panels, four pre-installed ARGB fans and a rotatable GPU bracket for horizontal or vertical graphics card installation. Compatible with Mini-ITX, Micro-ATX and ATX motherboards, including MSI PROJECT ZERO back-connect boards.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

Key Features

• Form Factor: Mid Tower — supports Mini-ITX, Micro-ATX and ATX motherboards
• Back Connect Compatible: Yes — supports MSI PROJECT ZERO ATX and Micro-ATX back-connect motherboards
• Pre-installed Fans: 3 x 120mm ARGB Reverse Blade (side), 1 x 120mm ARGB (rear)
• Fan Support: Top 3x 120mm / 2x 140mm | Side 3x 120mm | Bottom 3x 120mm (above PSU shroud) | Rear 1x 120mm
• Radiator Support: Top 120/140/240/280/360mm | Side 120/240/360mm | Rear 120mm
• Rotatable GPU Bracket: 90° rotation for horizontal or vertical GPU installation
• Dust Filters: Magnetic top filter, removable bottom filter
• GPU Clearance: Up to 400mm
• CPU Cooler Clearance: Up to 165mm
• PSU Clearance: Up to 180mm
• Expansion Slots: 7
• Storage: Up to 2x 3.5" HDD, up to 3x 2.5" SSD (max 3 drives simultaneously)
• Front I/O: 2x USB 3.2 Gen1 Type-A (5Gbps), 1x USB 3.2 Gen2x2 Type-C (20Gbps), 1x headphone/mic combo
• Side Panel: Wraparound tempered glass (front + main side)
• Colour: Black

Product Overview

The MAG Pano 130R PZ is built around MSI’s PROJECT ZERO back-connect platform, routing all motherboard cables behind the board for a clean, uncluttered interior. Three reverse-blade 120mm ARGB fans are pre-installed on the side panel, allowing the fan lighting to be viewed without obstruction through the tempered glass. A fourth 120mm ARGB fan handles rear exhaust. The rotatable GPU bracket allows the graphics card to be mounted horizontally or vertically with a simple 90° rotation, without requiring additional hardware. The lower chamber is surrounded by vents for improved heat dissipation, and magnetic and removable dust filters are included at the top and bottom positions.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Case Type: Mid Tower
• Colour: Black
• Motherboard Support: Mini-ITX, Micro-ATX, ATX
• Back Connect Compatible: Yes (MSI PROJECT ZERO)
• Expansion Slots: 7
• Pre-installed Fans: 3 x 120mm ARGB Reverse Blade (side), 1 x 120mm ARGB (rear)
• Fan Support: Top 3x 120mm / 2x 140mm | Side 3x 120mm | Bottom 3x 120mm | Rear 1x 120mm
• Radiator Support: Top 120/140/240/280/360mm | Side 120/240/360mm | Rear 120mm
• Dust Filters: Magnetic top, removable bottom
• Max GPU Length: 400mm
• Max CPU Cooler Height: 165mm
• Max PSU Length: 180mm
• PSU Support: ATX, Bottom Mount
• Drive Bays: Up to 2x 3.5" HDD, up to 3x 2.5" SSD (max 3 drives simultaneously)
• Front I/O: 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2x2 Type-C, 1x headphone/mic combo, Power + Reset buttons
• Side Panel: Wraparound Tempered Glass (front + main side)
• Dimensions (W x H x D): 232mm x 490mm x 460mm
• Net Weight: 5.64 kg
• Gross Weight: 6.68 kg
• Package Dimensions: 43.4cm x 56.4cm x 26.2cm
• Warranty: 2 Years MSI Manufacturer Warranty

Package Contents

• MSI MAG Pano 130R PZ Mid Tower Case

Product Identification

Model: MSI MAG Pano 130R PZ Mid Tower Case - Black
MPN: MAG PANO 130R PZ
EAN: 4711377365758
