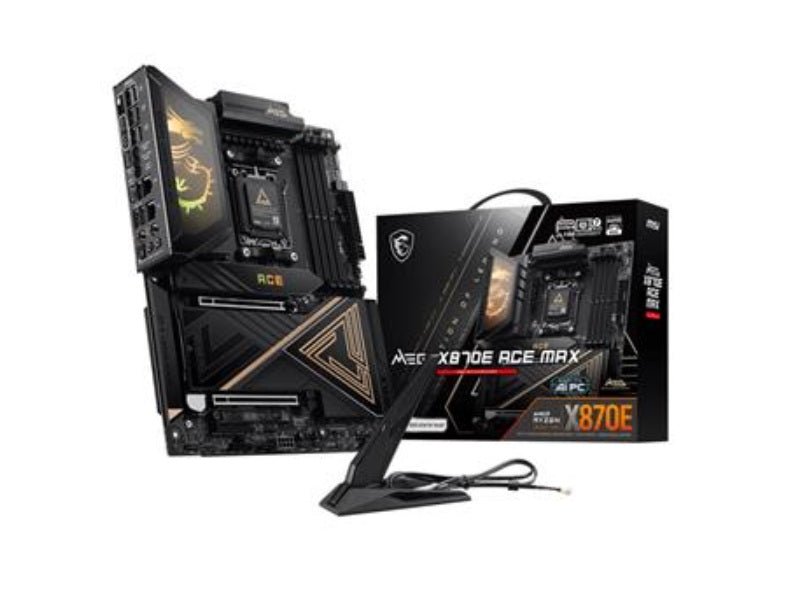

MSI MEG X870E ACE MAX

• Web Address: uk.msi.com

• Model Number: MEG X870E ACE MAX

• EAN: 4711377414968

• Package Type: Retail

• Warranty: 3 Years

Chipset

• Chipset: AMD X870E

CPU Support

• CPU Interface: Socket AM5

• Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

• CPU Support List:
  https://www.msi.com/Motherboard/MEG-X870E-ACE-MAX/support#cpu

Memory

• Memory Technology: DDR5 (Dual Channel)

• Memory Slots: 4 x 288-pin

• Maximum Memory Support: 256GB

• Memory Speeds: Up to DDR5 9000+ MT/s (OC)

Expansion Slots

• 2 x PCI Express 5.0 x16

• 1 x PCI Express 5.0 x4

Storage

• SATA 6Gb/s Ports: 4

• RAID Support: RAID 0 / 1 / 5 / 10

• M.2 Sockets:

  • 2 x PCIe Gen 5.0 x4

  • 3 x PCIe Gen 4.0 x4

Networking

• LAN 1: Marvell AQC113CS 10Gbps LAN

• LAN 2: Realtek 8126 5Gbps LAN

• Wireless NIC: Wi-Fi 7

• Wireless Module: Pre-installed in the M.2 (Key-E) slot

• Wireless Support:

  • MU-MIMO TX/RX

  • 2.4GHz / 5GHz / 6GHz (320MHz)

  • Up to 5.8Gbps

  • 802.11 a/b/g/n/ac/ax/be

• Bluetooth: v5.4

Audio

• Audio Codec: Realtek ALC4082 + ESS9219Q Combo DAC/HPA

• Audio Channels: 7.1-Channel USB High-Performance Audio

• Front Panel Support: Up to 32-Bit / 384 kHz playback

• Digital Output: S/PDIF supported

On-Board Video

• Processor with integrated graphics required

Rear I/O Ports

USB

• 9 x USB 10Gbps Type-A

• 2 x USB 10Gbps Type-C

• 2 x USB 40Gbps Type-C

Video

• 1 x HDMI

Networking

• 2 x LAN Ports

• Wi-Fi / Bluetooth

Audio

• 2 x Audio Jacks

• 1 x S/PDIF Output

Buttons

• 1 x Flash BIOS

• 1 x Clear CMOS

• 1 x Smart Button

Internal Connectors

Power

• 1 x 24-pin ATX Power

• 2 x 8-pin ATX Power

• 1 x 8-pin PCIe Power Connector

USB Headers

• 4 x USB 2.0 Headers

• 4 x USB 5Gbps Headers

• 1 x USB 20Gbps Header

Other Connectors

• 1 x Front Type-C Quick Charge Connector

• 1 x EZ Conn-header

• 2 x Thermal Sensor Connectors

• 1 x Tuning Controller Connector

• 3 x Addressable V2 RGB LED Connectors

• 1 x RGB LED Connector

• V-Check Points

• 1 x TPM Header

• 1 x Front Panel Audio Connector

Physical Specifications

• Form Factor: Standard ATX

• Product Width: 243.84mm

• Product Length: 304.8mm

Package Dimensions

• Width: 28.6cm

• Length: 35.2cm

• Height: 9.1cm

Weight

• Net Weight: 2.04Kg

• Gross Weight: 2.55Kg

Package Contents

• Motherboard

• EZ Wi-Fi Antenna

• Cable Sticker

• 4 x SATA Cables

• EZ Front Panel Cable

• 1 to 3 EZ Conn-Cable (V2)

• 1 to 3 ARGB Gen 2 Extension Cable

• 2 x Thermistor Cables

• USB Drive

• EZ M.2 Clip II Remover

• 3 x M.2 Screws

• Quick Installation Guide
