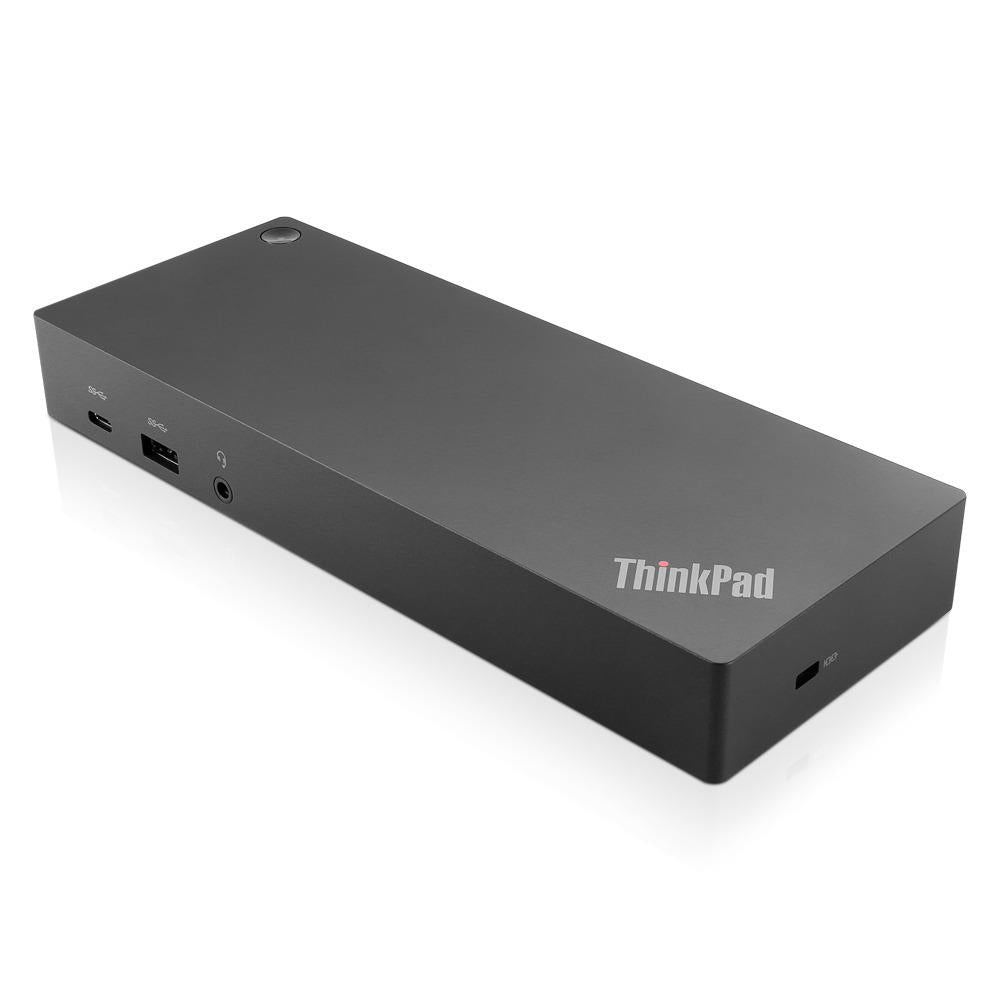

Lenovo ThinkPad Hybrid USB-C Dock 40AF0135UK 2xHDMI 2xDP 90W Black

The Lenovo ThinkPad Hybrid USB-C Dock 40AF0135UK is a versatile docking station designed for ThinkPad laptops and any USB-C or USB 3.0 equipped machine. Supporting dual 4K60 displays via two HDMI and two DisplayPort outputs, 90W laptop charging, and a full complement of USB ports, it transforms a single cable connection into a complete desktop workstation.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Dual 4K60 display support: 2x HDMI + 2x DisplayPort 1.2
• Bundle DP1 + DP2 for 5120x2880 @ 60Hz on a single monitor
• 90W output power for laptop charging via ThinkPad Slim-tip port
• 1x USB-C (data, 5V/3A power)
• 3x USB 3.1 Gen2 (10Gbps, 1x always-on)
• 2x USB 2.0
• 1x 3.5mm stereo/mic combo audio port
• Gigabit Ethernet (10/100/1000Mbps)
• Compatible with USB-C and USB 3.0 machines
• OS support: Windows 11, Windows 10, Windows 7
• Driver preloaded in select ThinkPad laptops
• UK power adapter included (135W input)
• Colour: Black
• 3-year warranty

Product Overview

The 40AF0135UK connects to a host laptop via USB-C or USB 3.0, providing dual 4K60 display output through two HDMI and two DisplayPort 1.2 ports simultaneously. Bundling both DisplayPort outputs to a single compatible monitor enables 5K (5120x2880) resolution at 60Hz. The 90W Slim-tip charging port keeps ThinkPad laptops powered throughout the working day, while three USB 3.1 Gen2 ports (one always-on) and two USB 2.0 ports handle peripherals. A 3.5mm combo audio port and Gigabit Ethernet complete the connectivity. Supplied as Brown Box with UK power adapter and USB cable.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Specifications

• Model: 40AF0135UK
• Brand: ThinkPad (Lenovo)
• Video Ports: 2x HDMI, 2x DisplayPort 1.2
• Max Resolution: 3840x2160 @ 60Hz (HDMI/DP) | 5120x2880 @ 60Hz (DP bundled)
• Max External Monitors: 2
• USB-C: 1x (data, 5V/3A)
• USB 3.1 Gen2: 3x (10Gbps, 1x always-on)
• USB 2.0: 2x
• Audio: 1x 3.5mm stereo/mic combo
• Charging: ThinkPad Slim-tip port, 90W output
• Network: Gigabit Ethernet (10/100/1000Mbps)
• Host Connection: USB-C / USB 3.0
• Input Power: 135W (UK plug, Type G)
• OS Support: Windows 11, Windows 10, Windows 7
• Colour: Black
• Product Weight: 480g
• Package Dimensions: 26.8 x 16.3 x 8.7cm
• Gross Weight: 1.40kg
• Package Type: Brown Box
• Warranty: 3 Years
• Package Contents: 1x Lenovo ThinkPad Hybrid USB-C Dock, 1x UK power adapter, 1x USB cable

Product Identification

Model: 40AF0135UK
UPC: 191999788311
