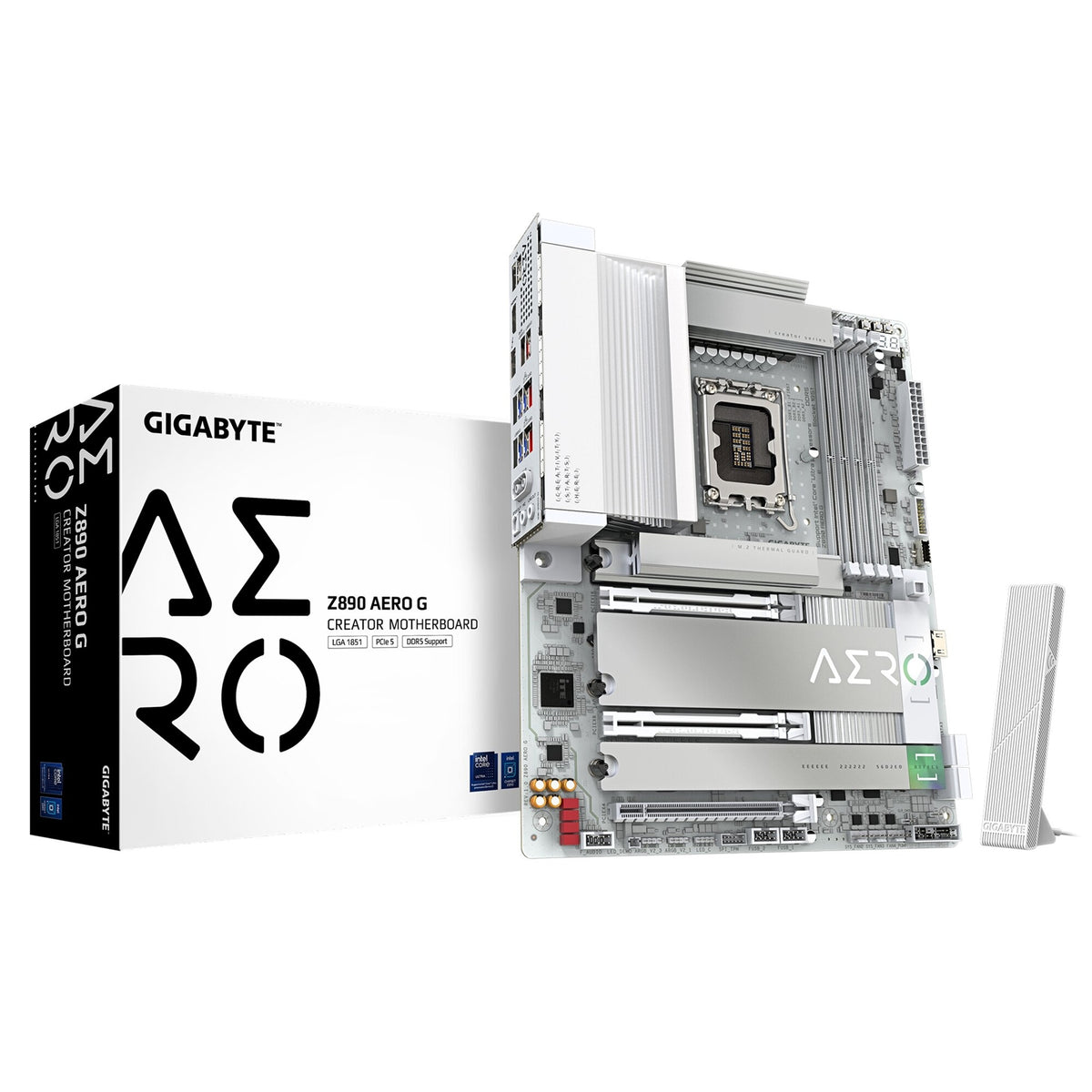

Gigabyte Z890 AERO G, Intel LGA1851 Motherboard, ATX, 4x DDR5 Slots, 5x M.2 Sockets, Dual 2.5GbE LAN, Wi-Fi 7, 1x HDMI, 1x Thunderbolt 4 Type-C, 3 Year Warranty

• Socket: 1851
• CPU Compatibility: Intel Ultra
• Chipset: Intel Z890
• Form Factor: ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

Z890 AERO G

Key Features
Supports Intel Core Ultra processors (Series 2) on LGA1851
Digital twin 16+1+2 phase VRM solution
4x DDR5 DIMM slots with XMP and CUDIMM support, up to DDR5-9200 (O.C.)
5x M.2 slots including 1x PCIe 5.0 x4
Dual Intel 2.5GbE LAN
Intel Wi-Fi 7 (BE202) with Bluetooth 5.4
1x Thunderbolt 4 Type-C (40Gbps, DP-Alt, rear panel)
1x HDMI 2.1 (rear panel)
1x Front HDMI (Sensor Panel Link, HDMI 1.4, up to 1920x1080@30Hz)
2x PCIe 5.0 x16 slots (Multi-GPU capable)
EZ-Latch Plus: PCIe and M.2 slots with quick release and screwless design
VRM Thermal Armour and M.2 Thermal Guard
ALC1220 with WIMA audiophile grade capacitors
PCIe 5.0 x16 UD Slot X with 10x strength reinforcement

Dual 2.5GbE LAN
Two Intel 2.5GbE LAN ports for maximum networking flexibility — ideal for NAS, multi-display streaming, or redundant connections.

Thunderbolt 4 Type-C
The rear Thunderbolt 4 port delivers up to 40Gbps with Thunderbolt devices, DisplayPort Alt Mode support, and backward compatibility with USB4 and USB 3.2 devices.

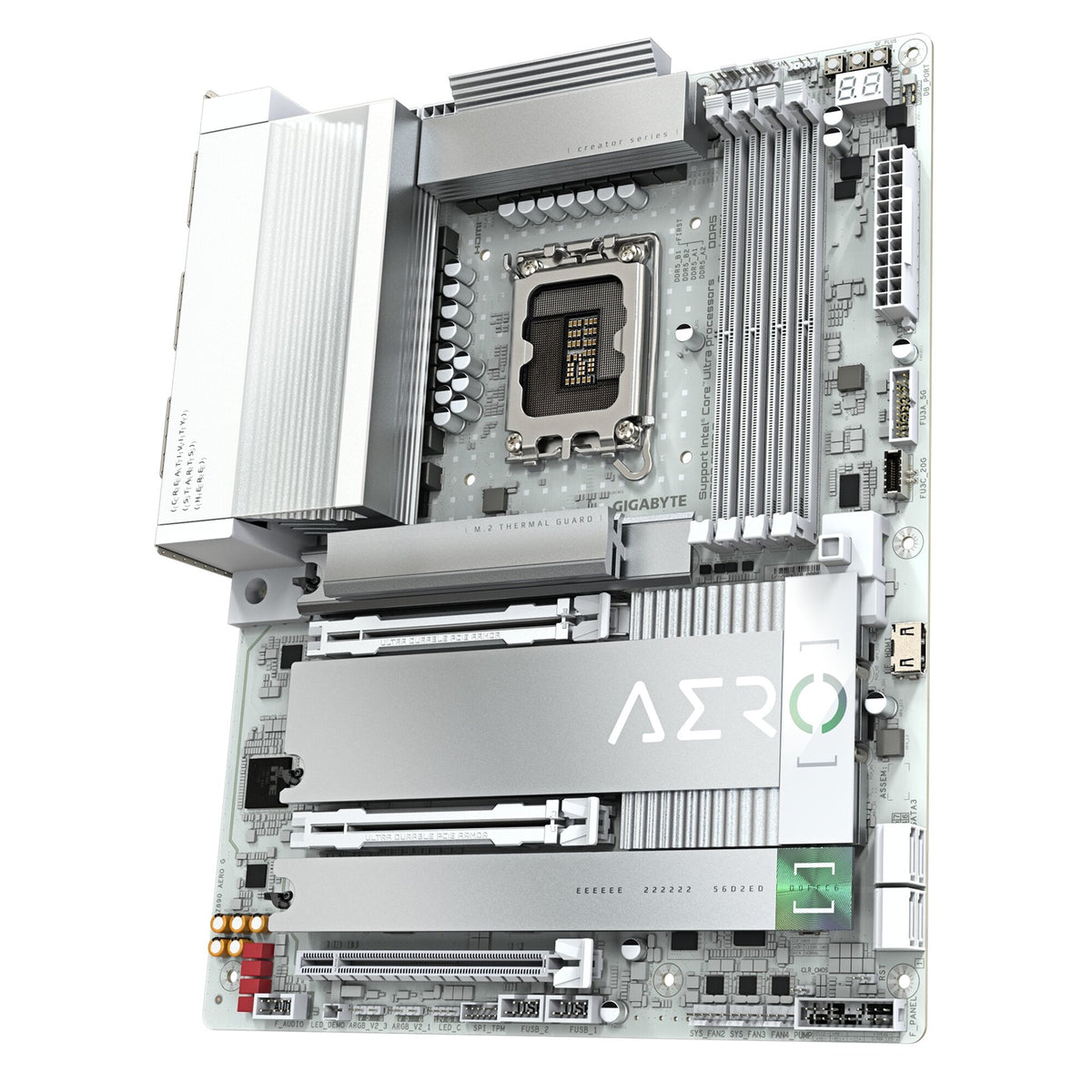

5x M.2 Storage
Five M.2 slots — including one PCIe 5.0 x4 Blazing M.2 (CPU) for next-generation NVMe SSDs — provide exceptional storage expandability.

Specification

CPU
LGA1851 socket: Supports Intel Core Ultra processors (Series 2)

Chipset
Intel Z890 Express

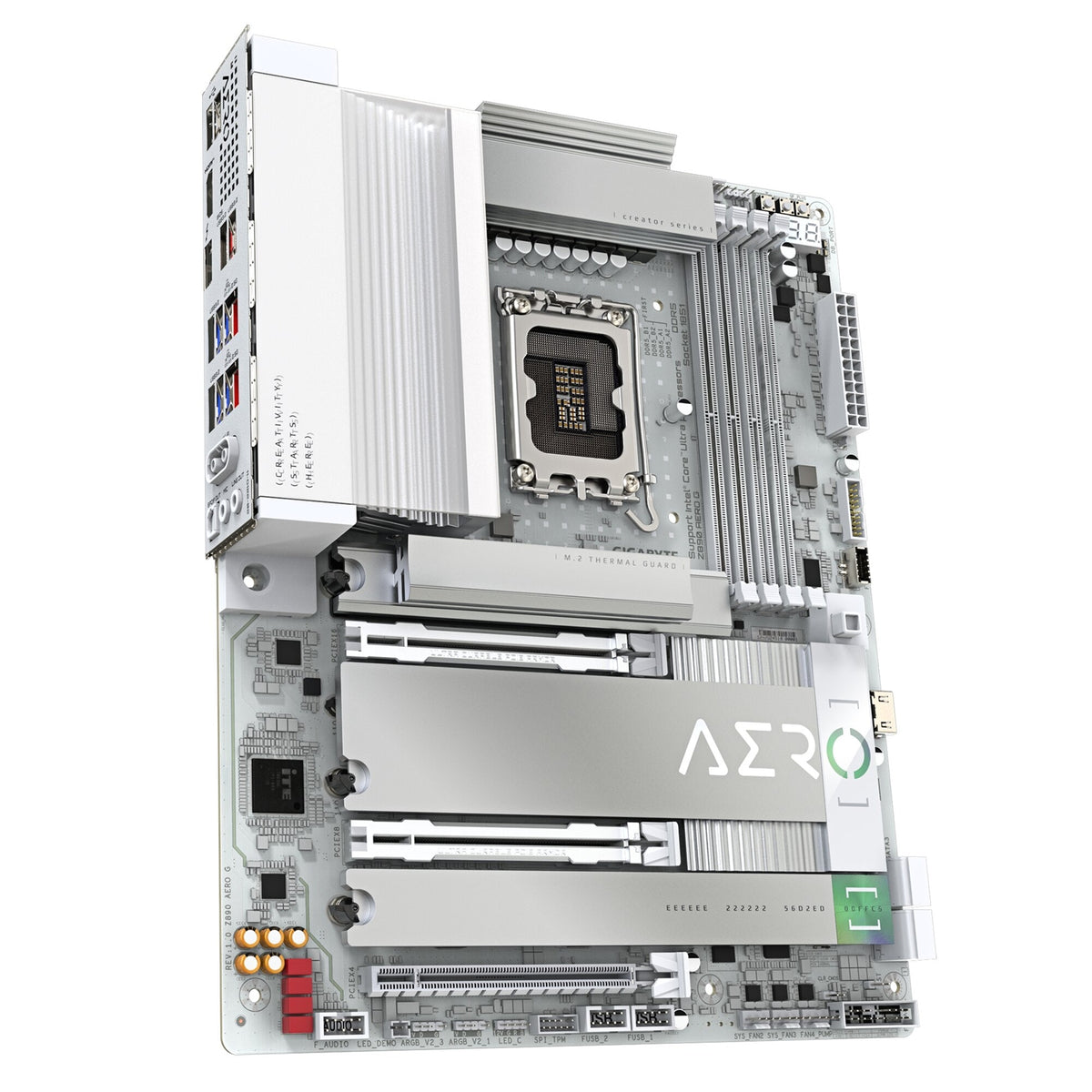

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-5600 native, up to DDR5-9200 (O.C.)
Supports XMP, CUDIMM, ECC Un-buffered (non-ECC mode)

Expansion Slots
1x PCIe 5.0 x16 (CPU, PCIEX16) — UD Slot X reinforced
1x PCIe 5.0 x16 (CPU, PCIEX8, runs at x8 when both populated)
1x PCIe 4.0 x16 (chipset, running at x4, PCIEX4)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, up to 25110)
1x M.2 PCIe 4.0 x4 (M2B_CPU, up to 25110)
1x M.2 PCIe 4.0 x4 (M2Q_SB, chipset, up to 22110)
1x M.2 PCIe 4.0 x4 (M2P_SB, chipset, type 2280)
1x M.2 PCIe 4.0 x4 / SATA (M2M_SB, chipset, type 2280)
4x SATA 6Gb/s
RAID 0/1/5/10 for NVMe and SATA

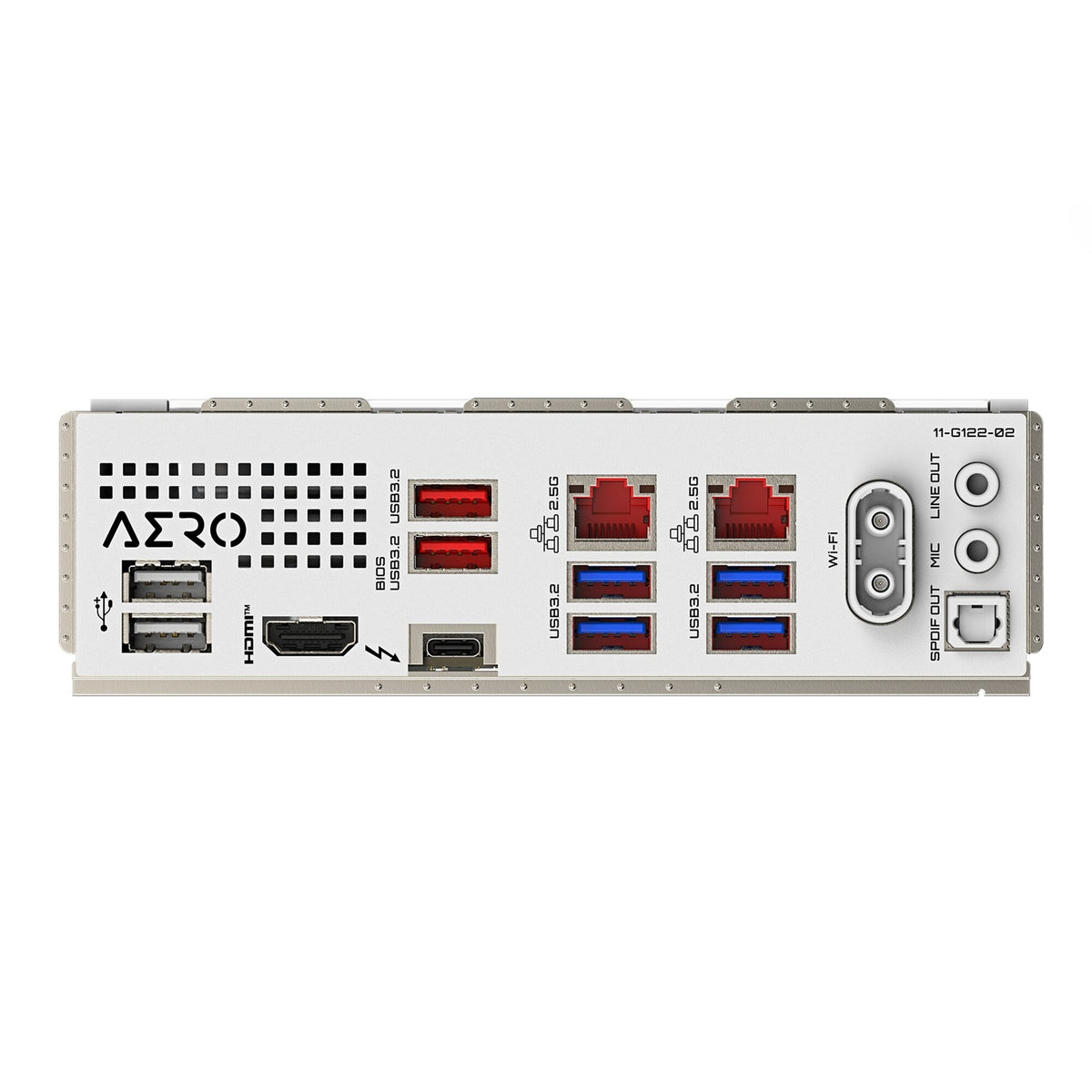

USB (Back Panel)
1x Thunderbolt 4 Type-C (40Gbps TB / 20Gbps USB4 / 10Gbps USB 3.2, DP-Alt)
2x USB 3.2 Gen 2 Type-A (red, 10Gbps)
4x USB 3.2 Gen 1 Type-A (5Gbps)
2x USB 2.0 Type-A

Display Output
1x HDMI 2.1 (rear, up to 4096x2160 @ 60Hz)
1x Thunderbolt 4 Type-C with DP-Alt (rear, up to 3840x2160 @ 240Hz via USB4)
1x Front HDMI 1.4 (Sensor Panel Link, up to 1920x1080 @ 30Hz)

LAN
2x Intel 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
Intel Wi-Fi 7 BE202, 802.11be (2.4 / 5 / 6 GHz, up to 160MHz)
Bluetooth 5.4

Audio
Realtek ALC1220, High Definition Audio, up to 7.1-channel, S/PDIF Out
WIMA audiophile grade capacitors

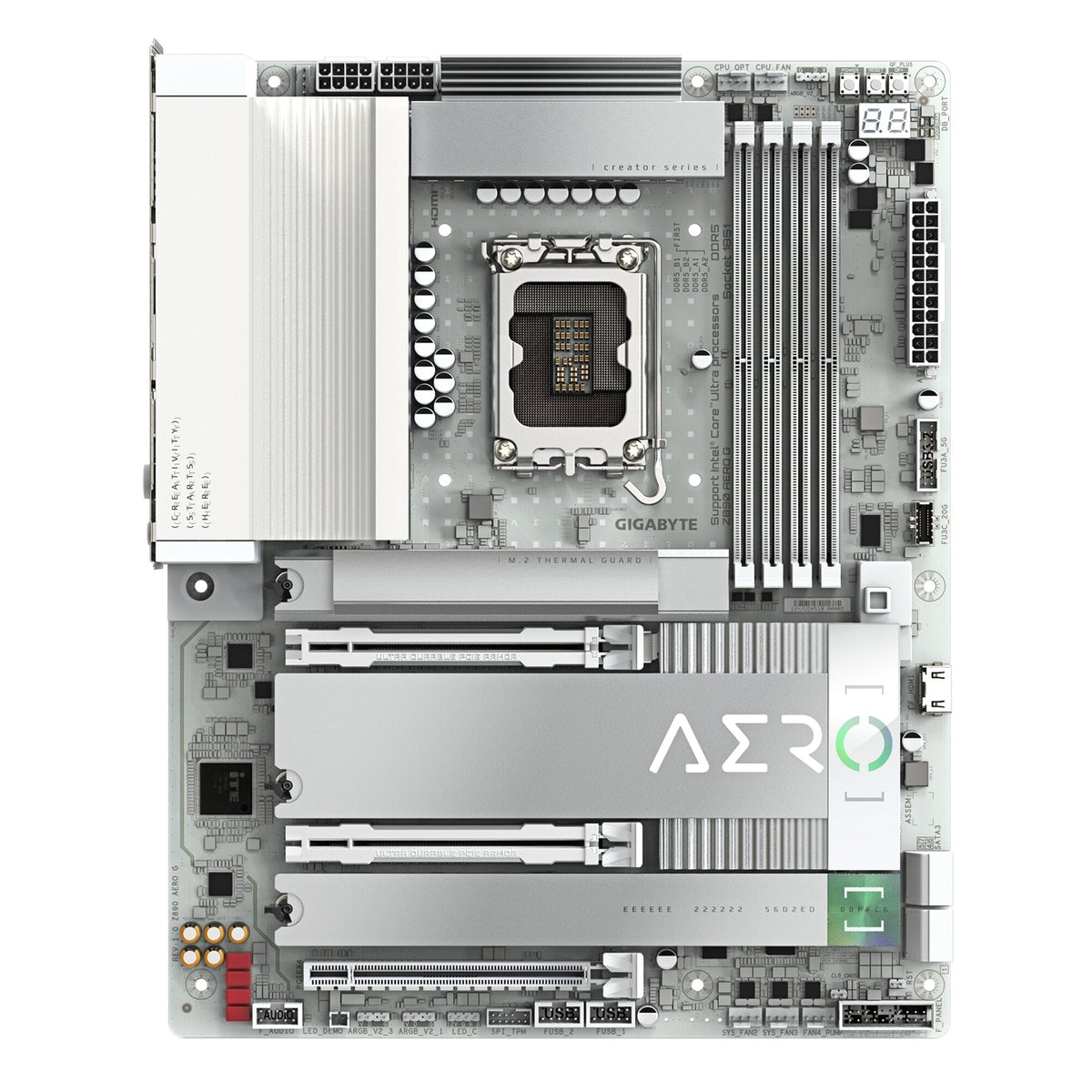

Form Factor
ATX (305mm x 244mm)

OS Support
Windows 11 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
