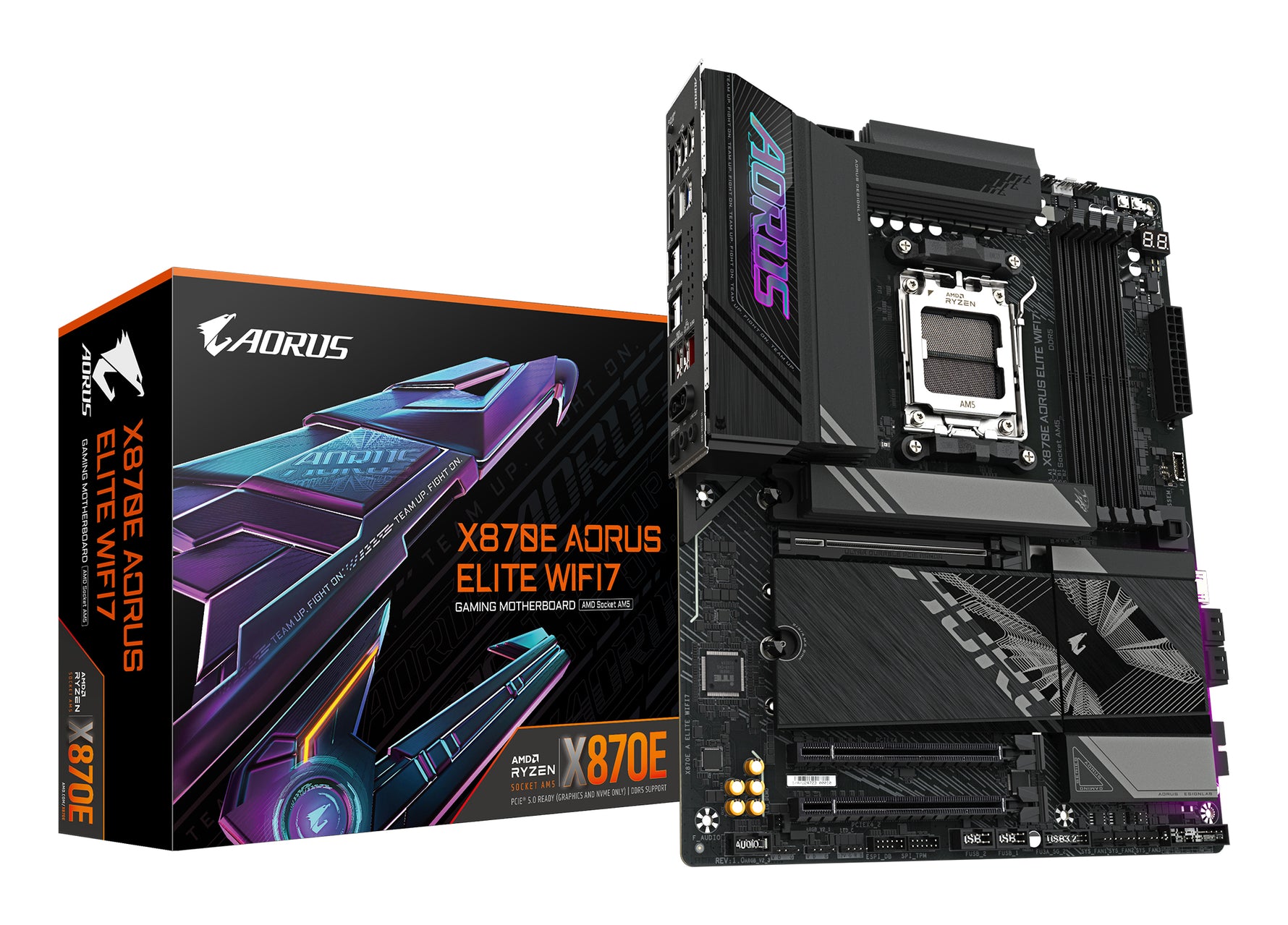

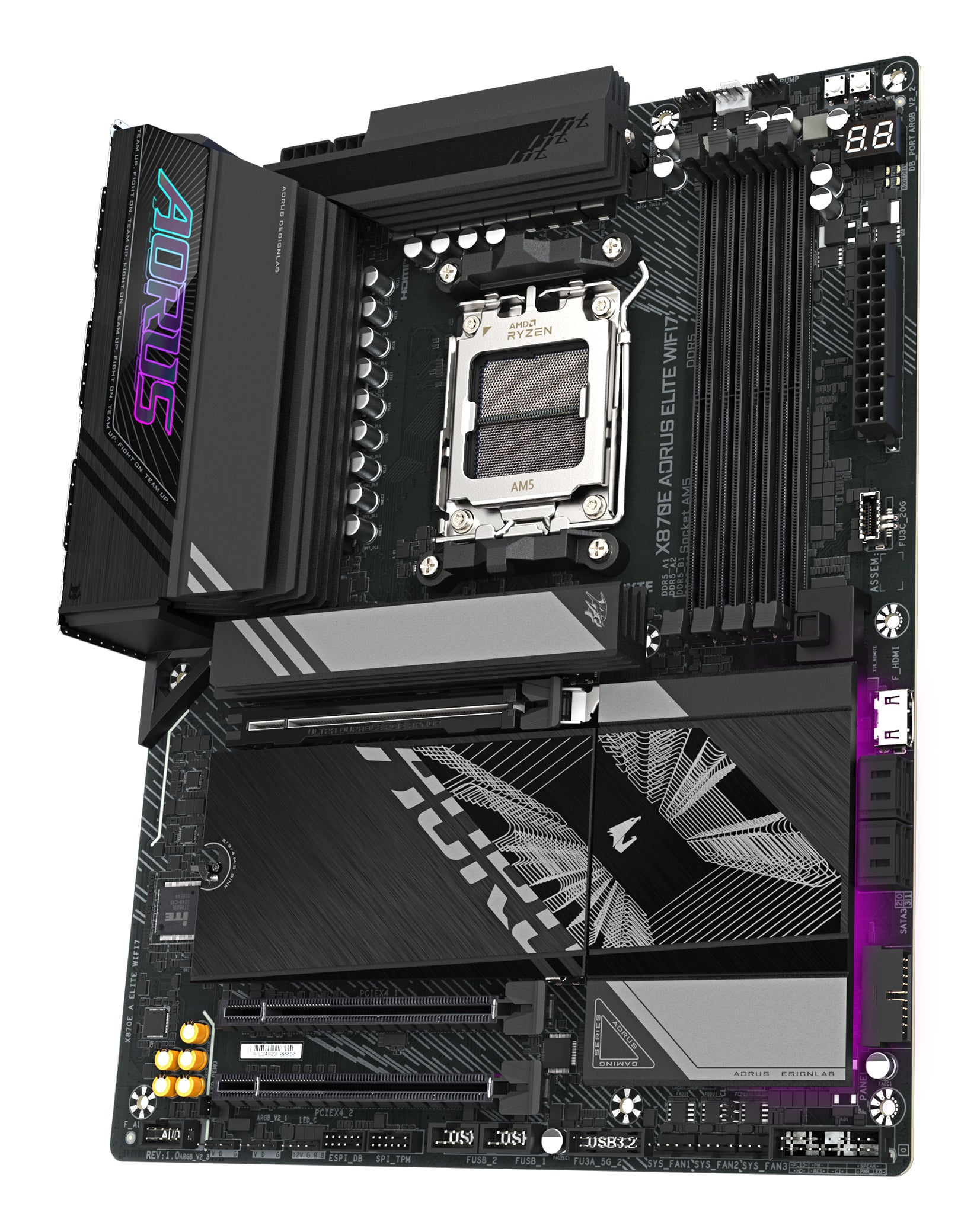

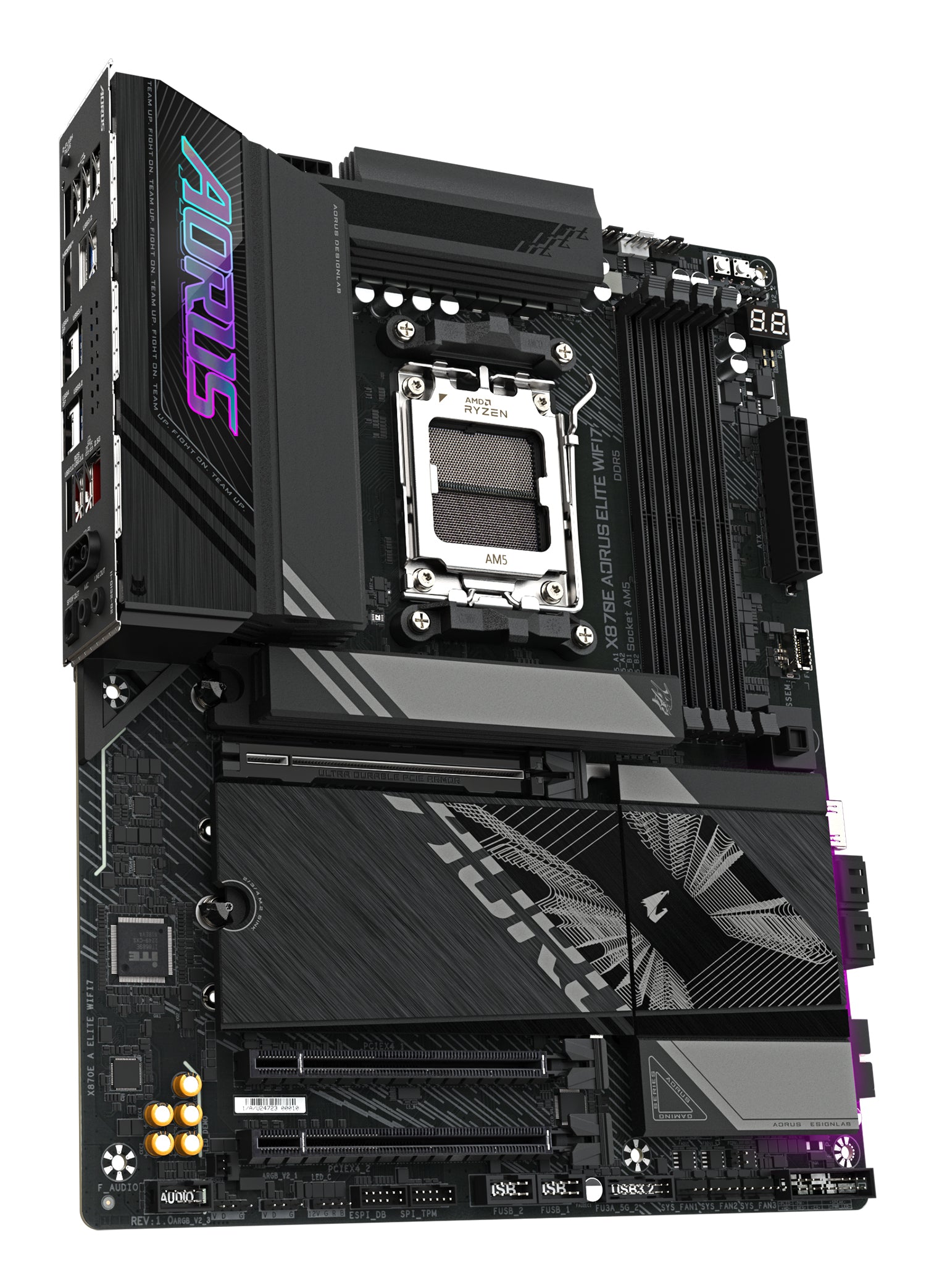

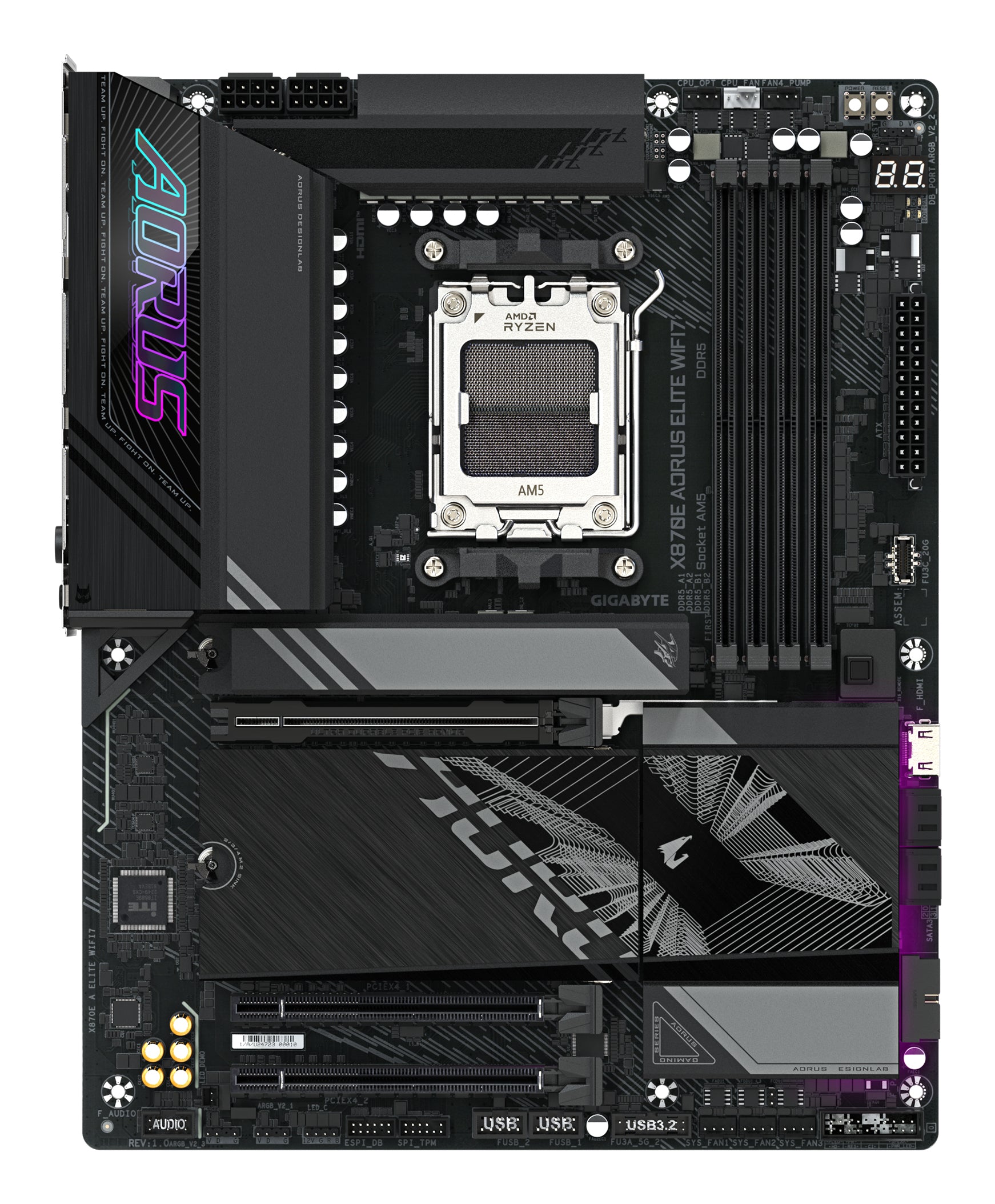

Gigabyte X870E Aorus Elite Wi-Fi 7 ATX Motherboard AM5 DDR5

The Gigabyte X870E Aorus Elite Wi-Fi 7 is an ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. Built on the AMD X870E chipset, it features four M.2 slots including three PCIe Gen5 x4, dual USB4 Type-C ports, Realtek 2.5GbE LAN, Wi-Fi 7, and Realtek ALC1220 audio, with EZ-Latch Plus for tool-free installation.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Socket AM5 - compatible with AMD Ryzen 9000, 8000 and 7000 Series processors
• AMD X870E chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, Non-ECC, up to 256GB, DDR5-8000 (OC), AMD EXPO support
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 bandwidth), 1 x PCIe 3.0 x16 (x4 bandwidth) expansion slots
• 4 x M.2 slots: 3 x PCIe Gen5 x4, 1 x PCIe Gen4 x4 - EZ-Latch Plus screwless design
• 4 x SATA 6Gb/s ports with RAID 0, 1, 10 support
• Realtek 2.5GbE LAN (RTL8125, 2.5 Gbps/1 Gbps/100 Mbps)
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, with Bluetooth 5.4 (MediaTek MT7925)
• 2 x USB4 Type-C (40Gbps) with DisplayPort Alt Mode
• Realtek ALC1220 7.1 HD Audio

Product Overview

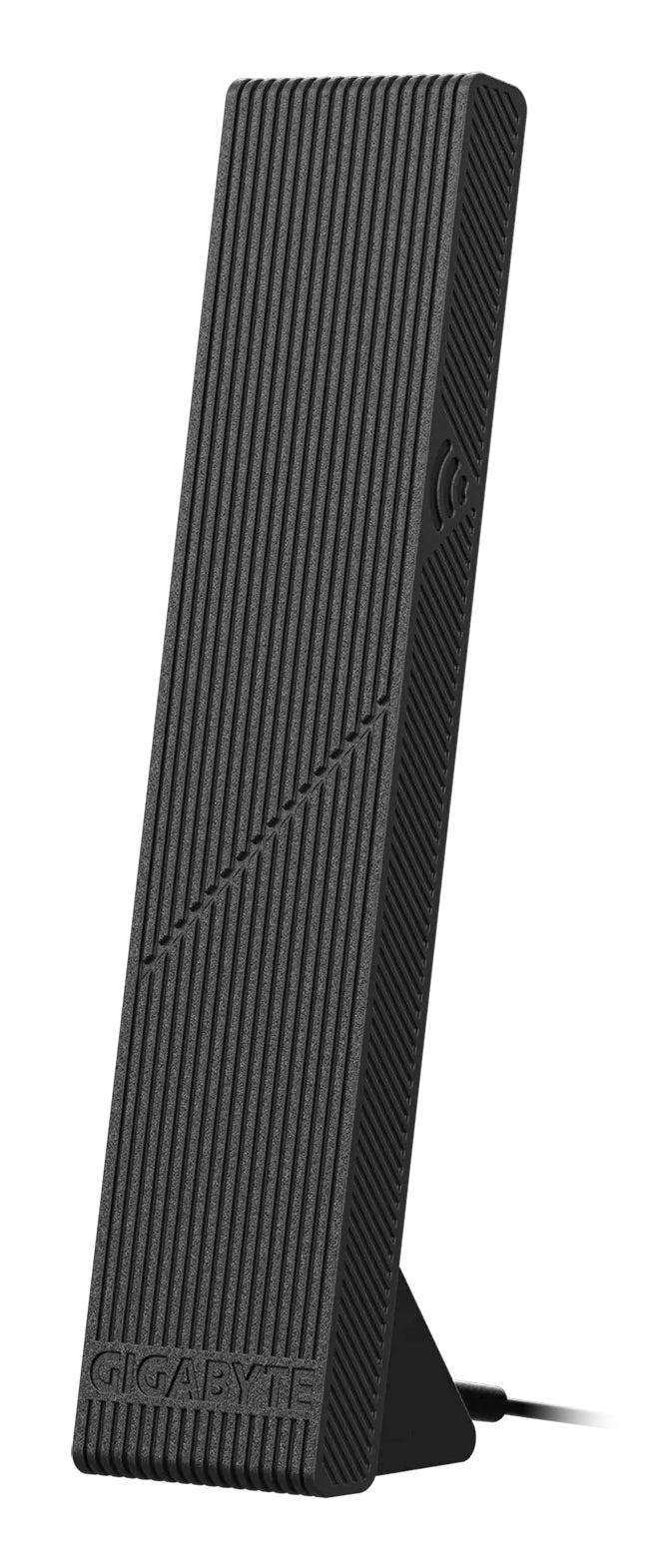

The X870E Aorus Elite Wi-Fi 7 is a well-specified X870E motherboard for AM5 builds. Four M.2 slots, including three PCIe Gen5 x4, provide extensive high-speed storage options, and EZ-Latch Plus enables tool-free M.2 and PCIe card installation. Dual USB4 Type-C rear ports support 40Gbps peripherals and DisplayPort Alt Mode. Wi-Fi 7 with a directional ultra-high gain antenna and Realtek 2.5GbE LAN cover wired and wireless connectivity. The 16+2+2 phase VRM design supports demanding processors, and the Q-Flash Plus button allows BIOS updates without a CPU or memory installed.

Delivery and Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established distribution partners. Orders are processed within 1-2 business days and delivered within 3-5 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery - processed in 1-2 business days, delivered in 3-5 business days
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Compatible Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD X870E
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, Non-ECC, up to 256GB, AMD EXPO support
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 256GB
• Memory Speed: Up to DDR5-8000 (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 bandwidth), 1 x PCIe 3.0 x16 (x4 bandwidth)
• M.2 Slots: 3 x PCIe Gen5 x4 (22-110), 1 x PCIe Gen4 x4 (22-110) - EZ-Latch Plus
• SATA: 4 x SATA 6Gb/s
• RAID: 0, 1, 10
• LAN: Realtek RTL8125 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz (MediaTek MT7925)
• Bluetooth: 5.4
• Audio: Realtek ALC1220 7.1 HD Audio, S/PDIF-Out (Optical)

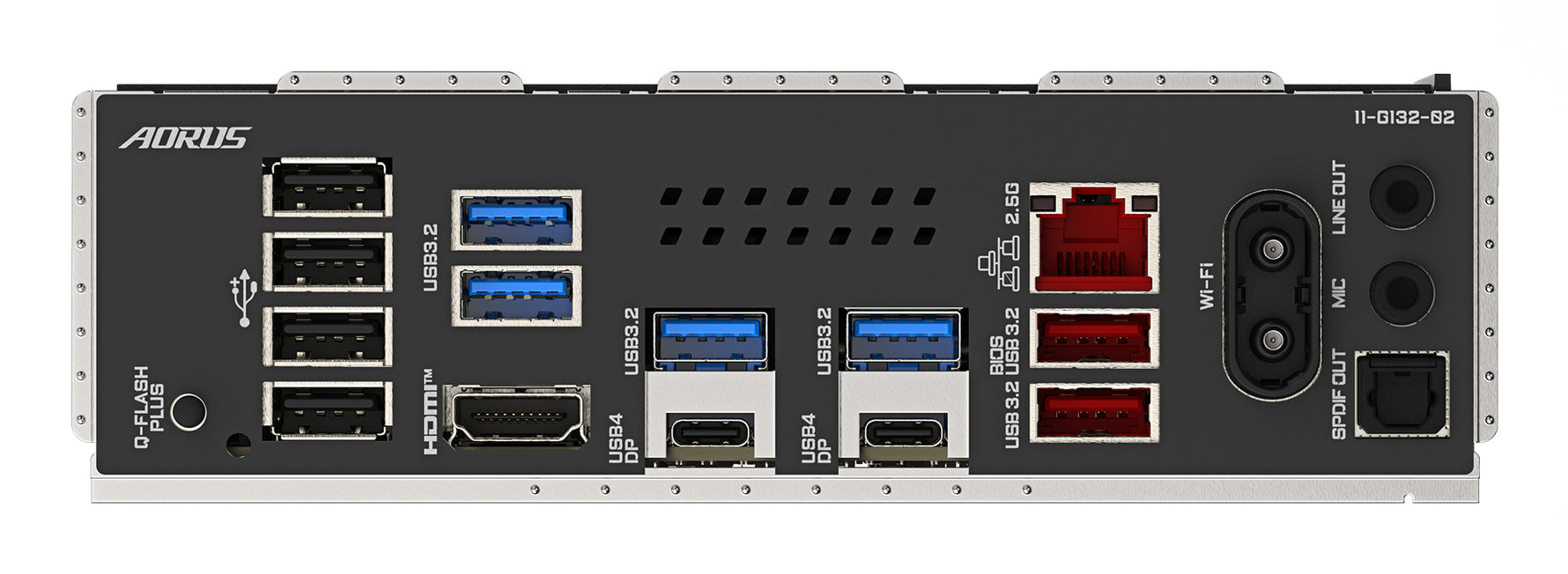

• Rear I/O: 4 x USB 2.0, 4 x USB 3.2 Gen1 Type-A, 2 x USB 3.2 Gen2 Type-A, 2 x USB4 Type-C (40Gbps, DP Alt), 1 x HDMI 2.1, 1 x RJ-45, Line Out/Mic-In, 1 x S/PDIF-Out (Optical), Q-Flash Plus button, 2 x Wi-Fi antenna connectors
• Internal Headers: 2 x USB 2.0, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2x2, 3 x ARGB Gen2, 1 x RGB LED, 3 x System Fan, 1 x System Fan/Water Pump, 2 x CPU Fan/Water Pump, 1 x Front Panel Audio, 1 x TPM 2.0, 1 x Clear CMOS jumper, 1 x Power button, 1 x Reset button
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
• BIOS: 256Mbit Flash, AMI UEFI BIOS, Q-Flash Plus
• Gross Weight: 2.36 kg
• Package Dimensions: 33.5 x 27 x 8 cm
• Warranty: 3 Years Gigabyte Manufacturer Warranty
• Package Contents: Motherboard, 1 x Wi-Fi antenna, 2 x SATA cables, 1 x G Connector, Quick installation guide, Manual

Product Identification

Model: X870E AORUS ELITE WIFI7
MPN: X870E AORUS ELITE WIFI7
EAN: 4719331864613
UPC: 889523045237
