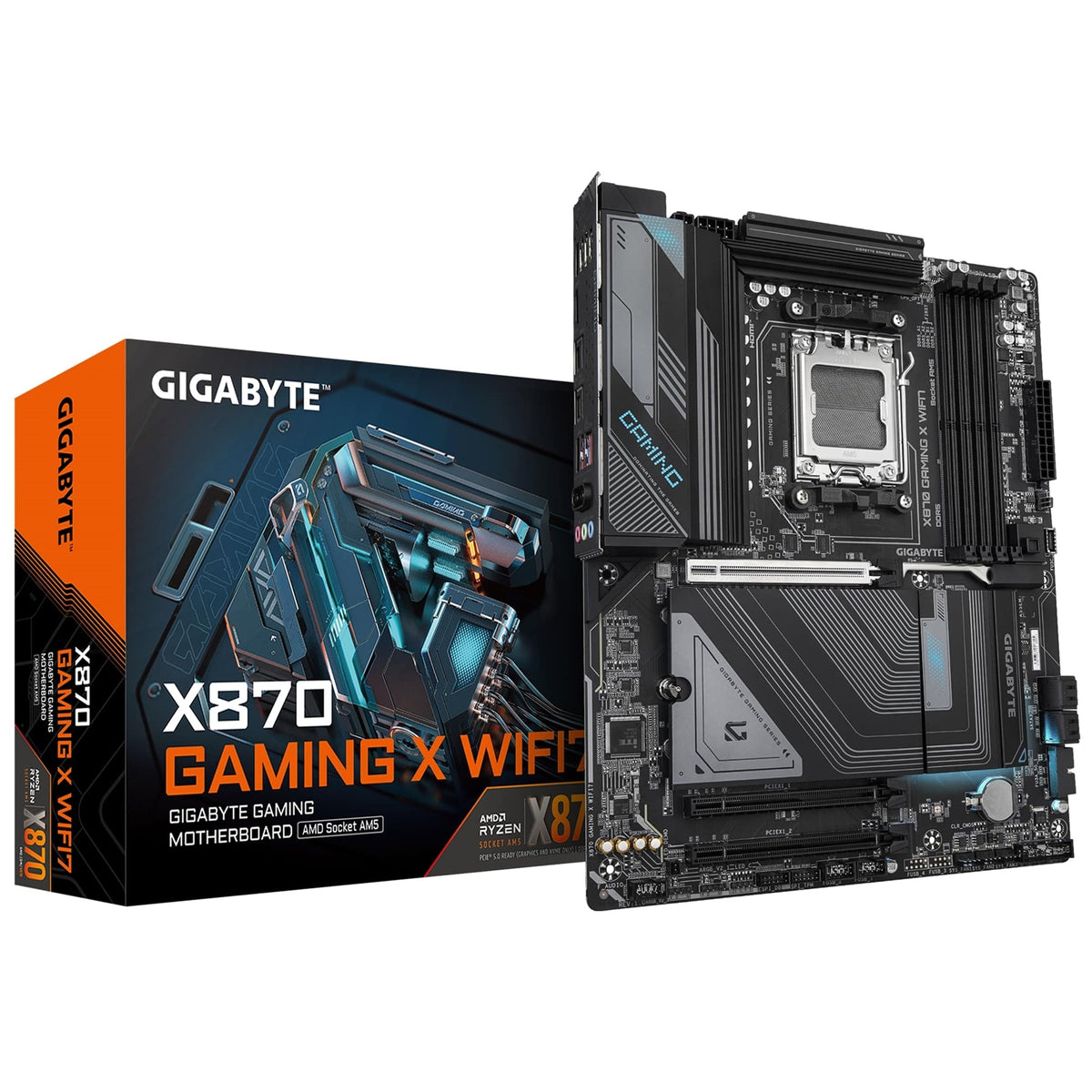

Gigabyte X870 GAMING X WIFI7, AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2.5GbE LAN, Wi-Fi 7, 1x HDMI, 2x USB4 Type-C, 3 Year Warranty

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD X870
• Form Factor: ATX

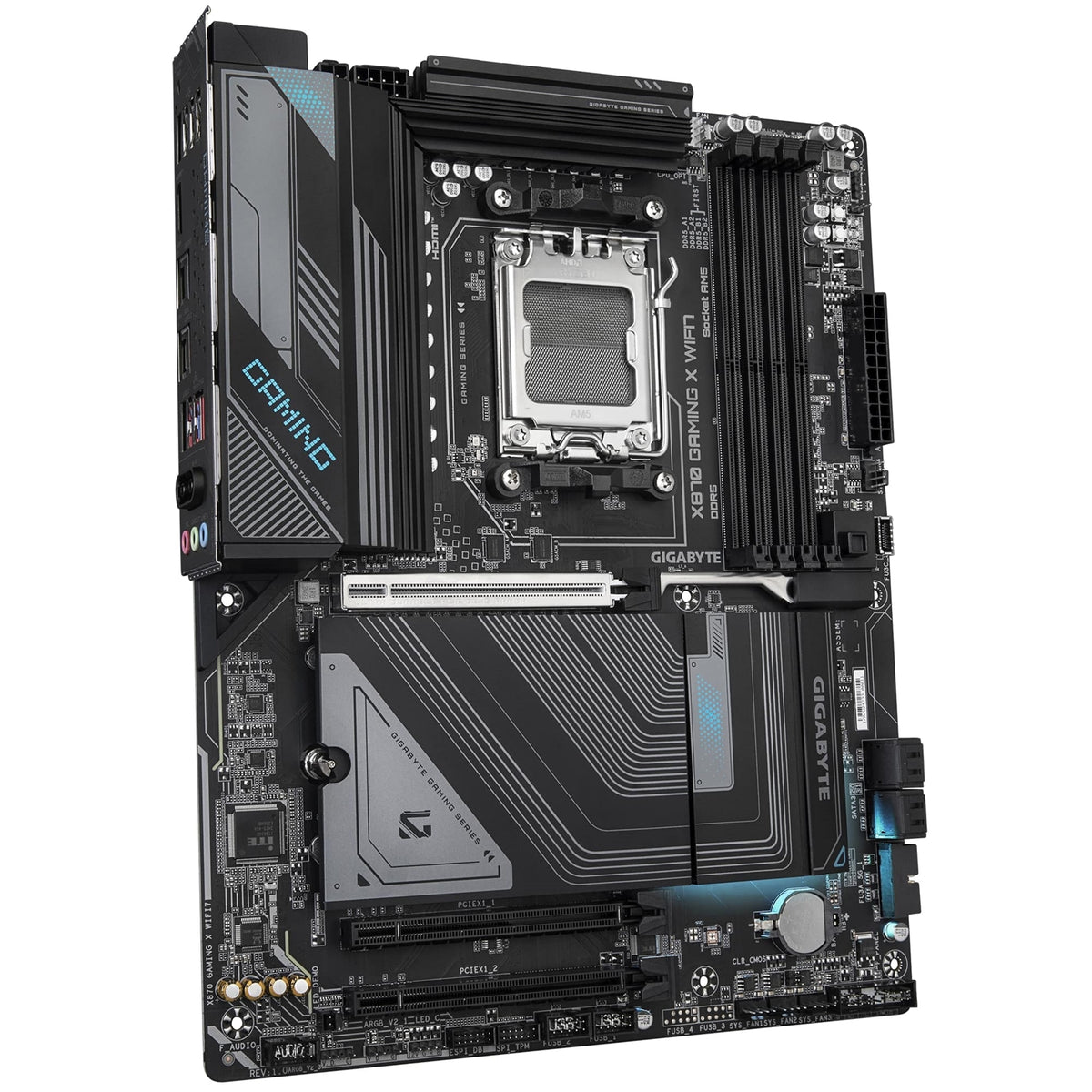

• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

X870 GAMING X WIFI7

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phase VRM solution
4x DDR5 DIMM slots with AMD EXPO and XMP support, up to DDR5-8000 (O.C.)
AORUS AI Snatch: One-click auto-overclocking software
EZ-Latch Plus: PCIe and M.2 slots with quick release and screwless design
EZ-Latch Click: M.2 heatsinks with screwless design
3x M.2 slots including 1x PCIe 5.0 x4
Wi-Fi 7 (802.11be) with Bluetooth 5.4
2.5GbE LAN
2x USB4 Type-C with DP-Alt (40Gbps each)
VRM Thermal Armour and M.2 Thermal Guard

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level with a robust 16+2+2 phase VRM solution.

Dual USB4 Type-C
Two USB4 Type-C ports provide transfer speeds up to 40Gbps each with DisplayPort Alt Mode support, ideal for video editing, large file transfers, and multi-display setups.

Wi-Fi 7 Connectivity
Wi-Fi 7 (802.11be) supports 2.4 / 5 / 6 GHz with Bluetooth 5.4, delivering exceptional bandwidth and minimal latency.

PCIe 5.0 Ready
Featuring a PCIe 5.0 x16 slot and PCIe 5.0 M.2 support, the X870 GAMING X is ready for the next generation of discrete graphics and NVMe storage.

Specification

CPU
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Chipset
AMD X870

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-4800 native, up to DDR5-8000 (O.C.)
Supports AMD EXPO and XMP

Expansion Slots
1x PCIe 5.0 x16 (CPU) — Ryzen 9000/7000
1x PCIe 4.0 x8 (CPU) — Ryzen 8000 Phoenix 1
1x PCIe 4.0 x4 (CPU) — Ryzen 8000 Phoenix 2
2x PCIe 3.0 x1 (chipset)

Storage
1x M.2 PCIe 5.0 x4 (M2A_CPU, up to 25110)
1x M.2 PCIe 4.0 x4 (M2B_SB, chipset, up to 25110)
1x M.2 PCIe 4.0 x2 (M2C_SB, chipset, up to 25110)
4x SATA 6Gb/s
RAID 0/1/5/10 for NVMe; RAID 0/1/10 for SATA

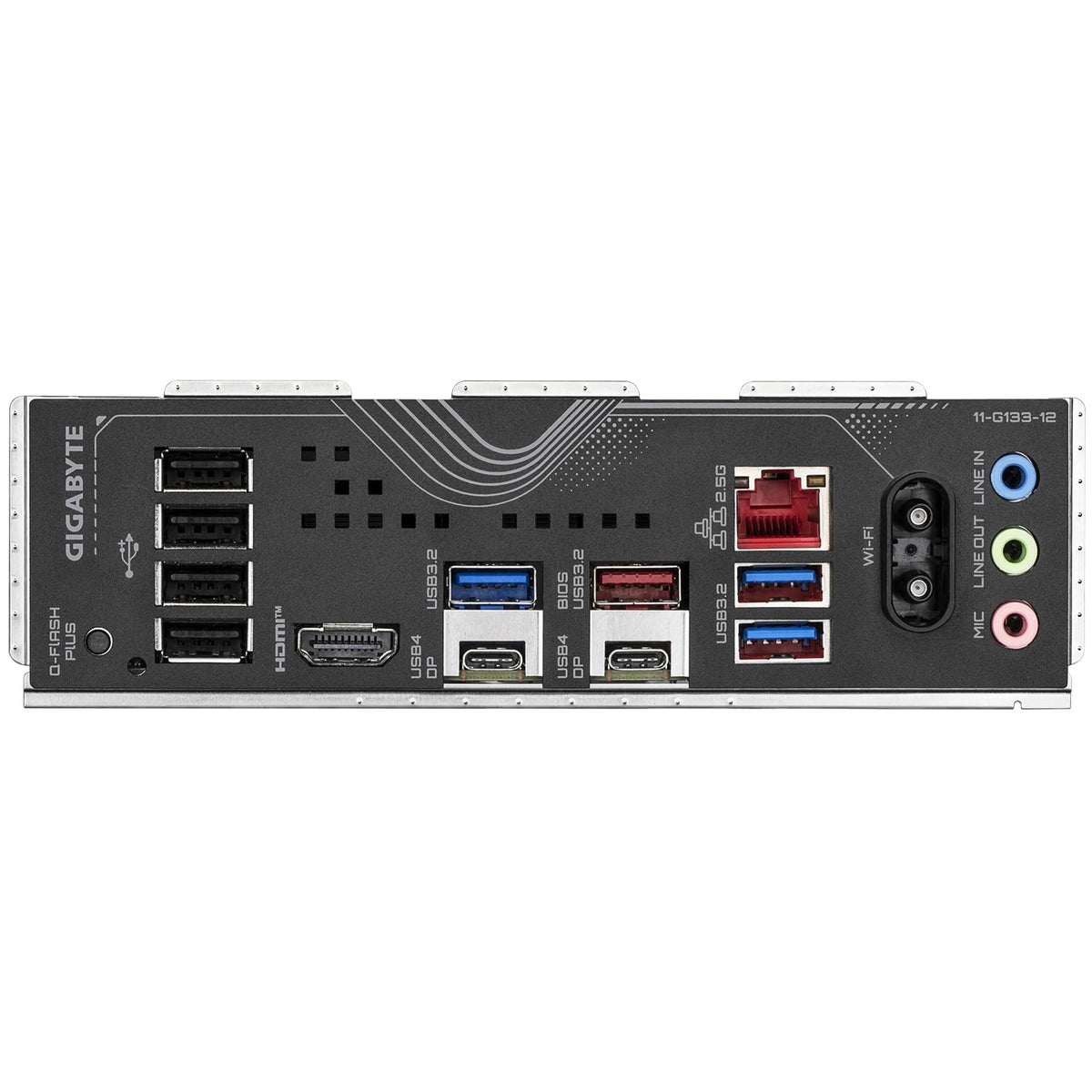

USB (Back Panel)
2x USB4 Type-C (40Gbps, DP-Alt)
1x USB 3.2 Gen 2 Type-A (red, 10Gbps)
3x USB 3.2 Gen 1 Type-A (5Gbps)
4x USB 2.0 Type-A

Display Output
1x HDMI (up to 4096x2160 @ 60Hz)
2x USB4 Type-C with DP-Alt (up to 3840x2160 @ 240Hz)

LAN
Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
Wi-Fi 7 802.11be (2.4 / 5 / 6 GHz, up to 160MHz)
Bluetooth 5.4

Audio
Realtek Audio CODEC, High Definition Audio, up to 7.1-channel

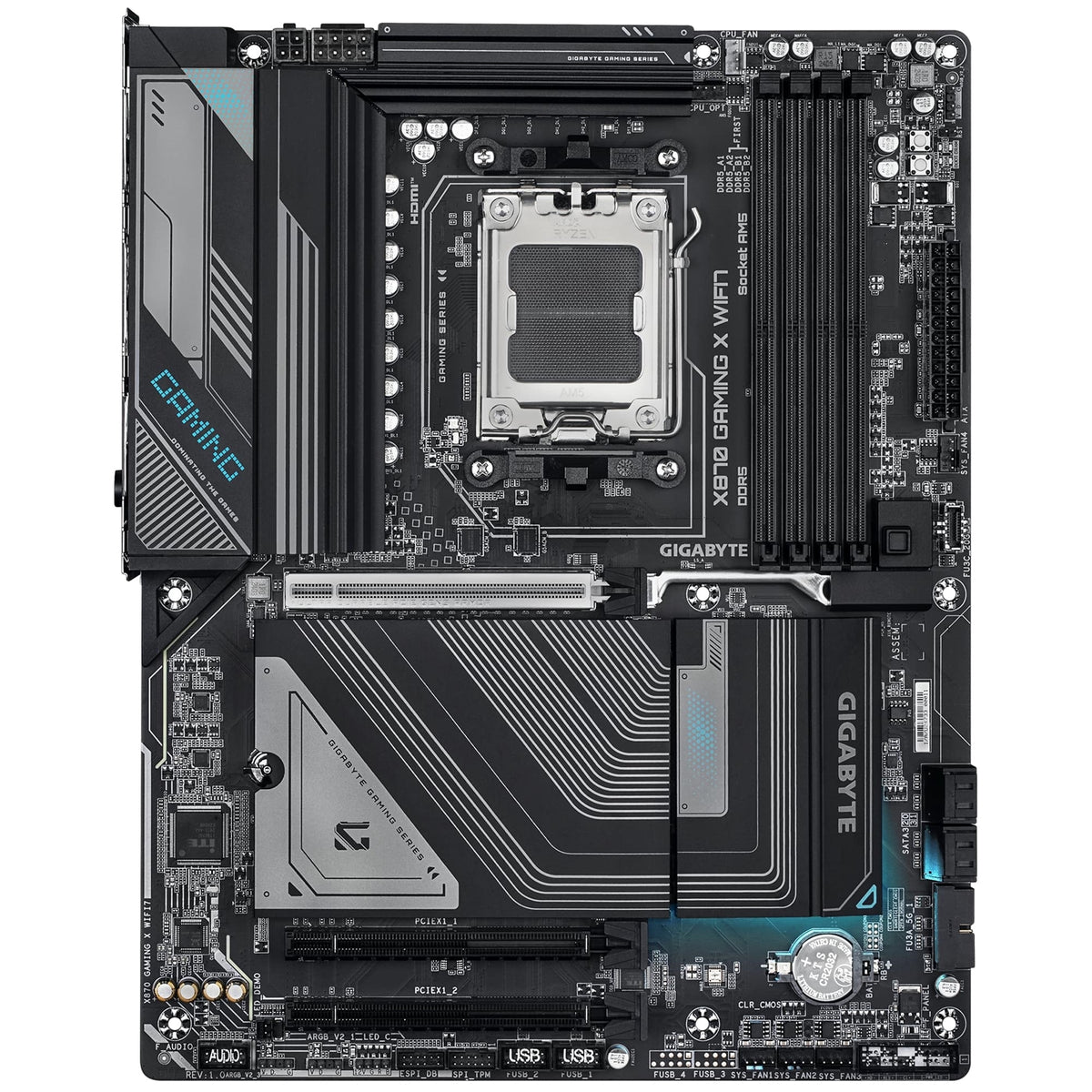

Form Factor
ATX (305mm x 244mm)

OS Support
Windows 11 64-bit

Warranty
3 Years GIGABYTE Manufacturer Warranty
