Name: Gigabyte H610M D3W WIFI6 (Rev. 1.1) LGA1700 Micro-ATX DDR5 Motherboard
Brand: Gigabyte
SKU: TF-MBGIG-H610MDW6
Price: 83.99 GBP
Availability: InStock

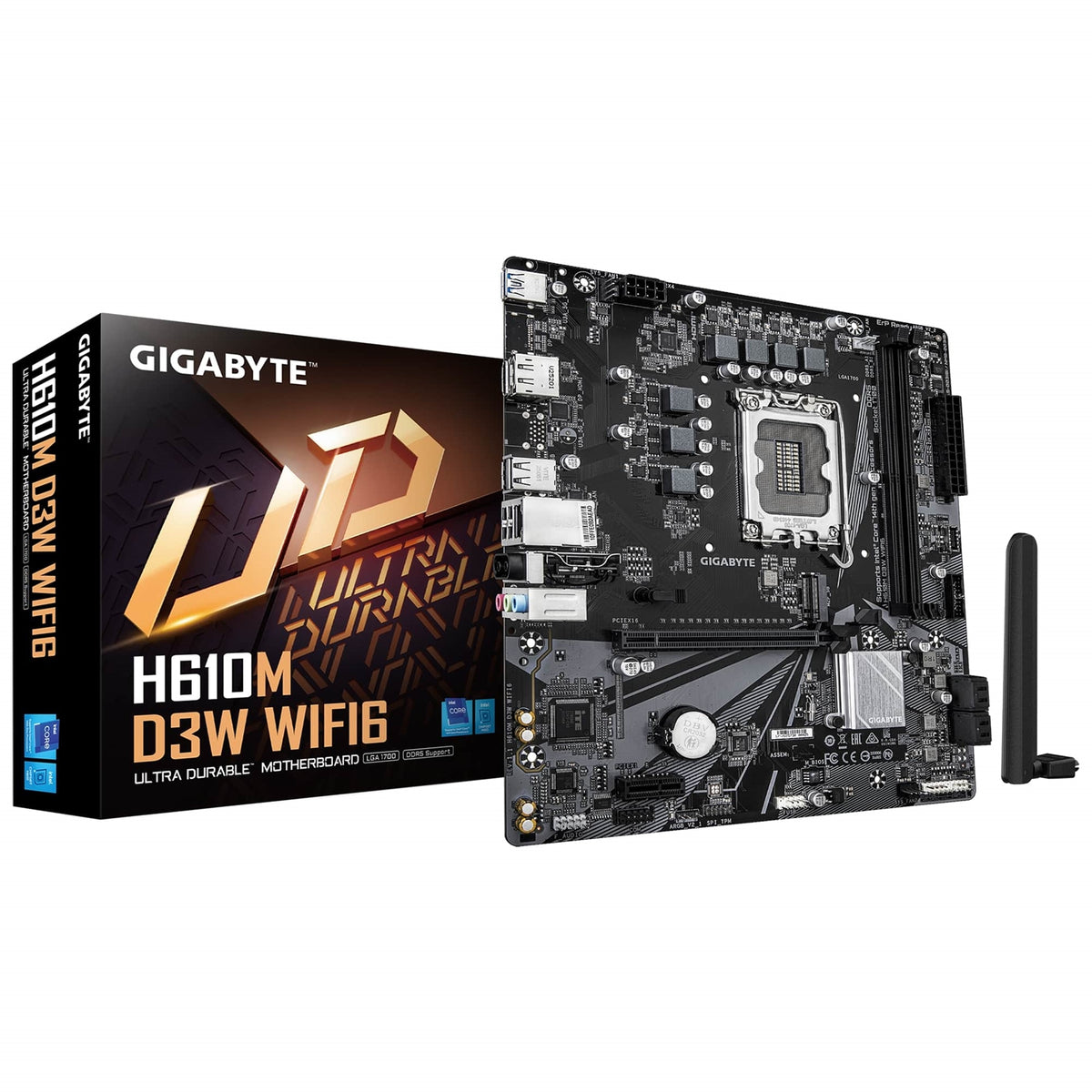

Gigabyte H610M D3W WIFI6 (Rev. 1.1) Intel 1700 Socket Motherboard

Gigabyte H610M D3W WIFI6 (Rev. 1.1) LGA1700 Micro-ATX DDR5 Motherboard

£83.99 Inc. VAT

The Gigabyte H610M D3W WIFI6 is a Micro-ATX motherboard for LGA1700 processors, with DDR5 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model	Gigabyte H610M D3W WIFI6
Chipset	Intel H610 Express Chipset
CPU socket	LGA1700
Supported processors	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

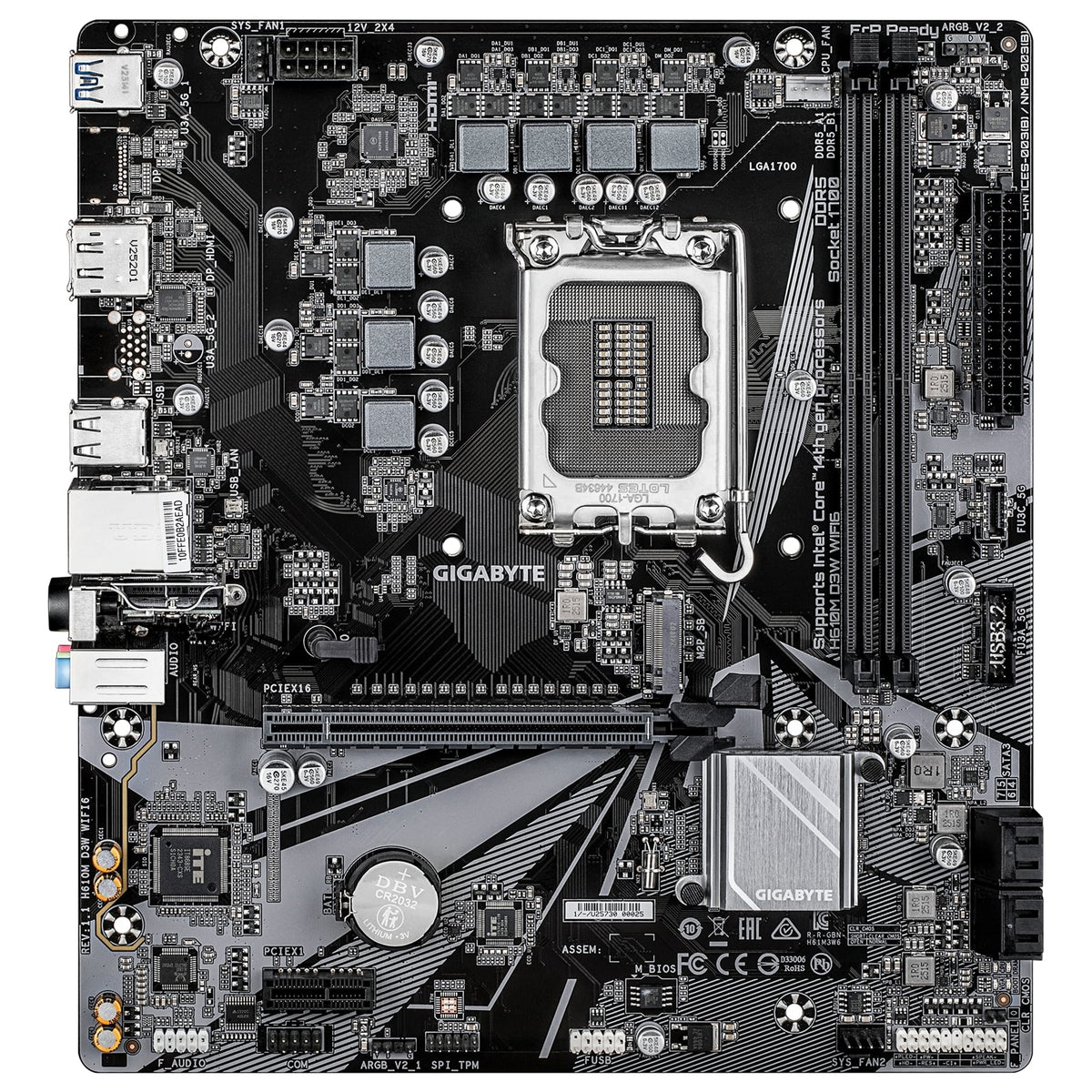

Form factor / dimensions	Micro ATX Form Factor; 24.4cm x 22.0cm

Memory

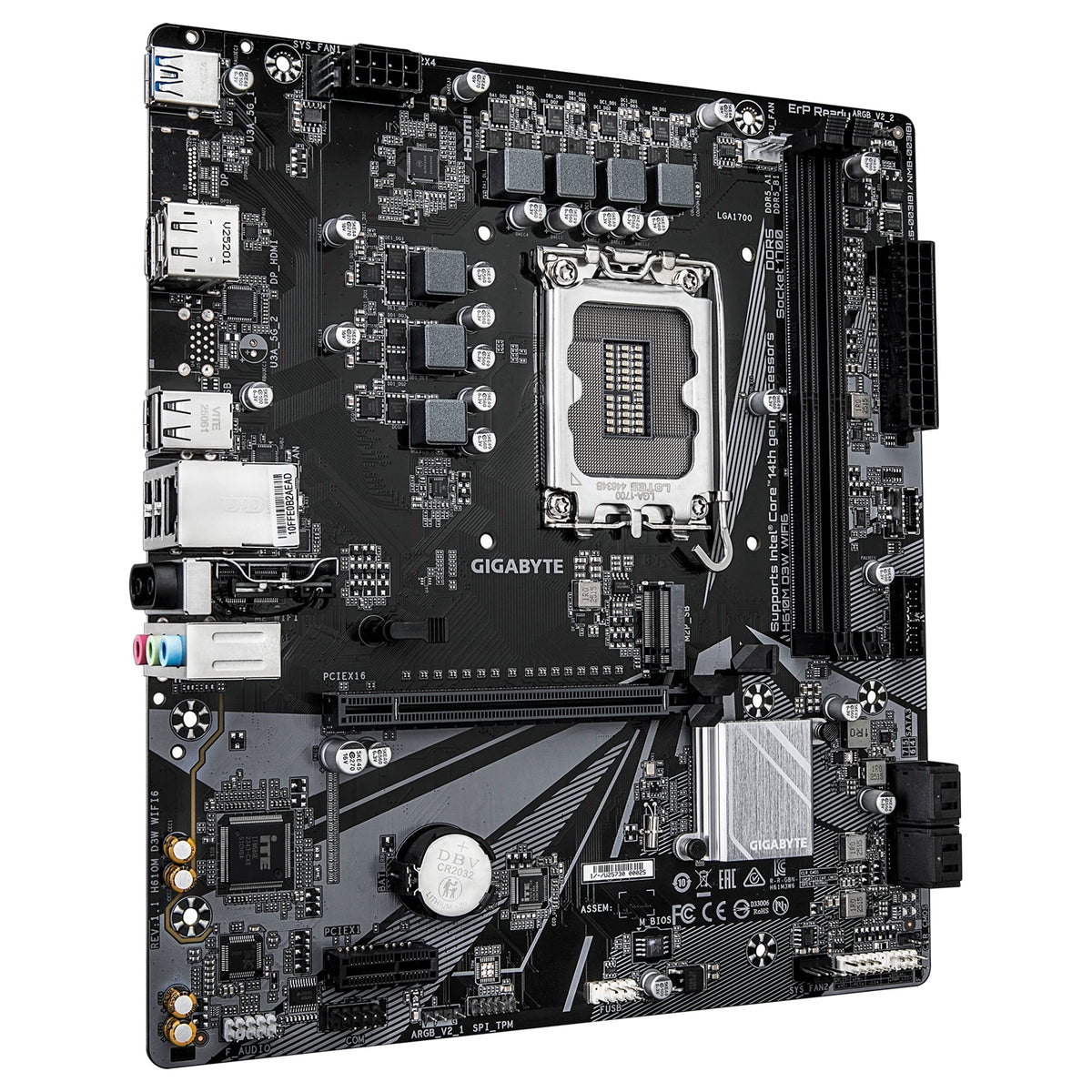

Memory slots	2 × DDR5 DIMM; dual channel
Maximum capacity	128 GB
Memory data rate	Up to DDR5-5600; depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles	Intel XMP

Expansion & Storage

Expansion slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage connections	Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors

Network & Audio

Ethernet	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wi-Fi / Bluetooth	Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Rear Connections

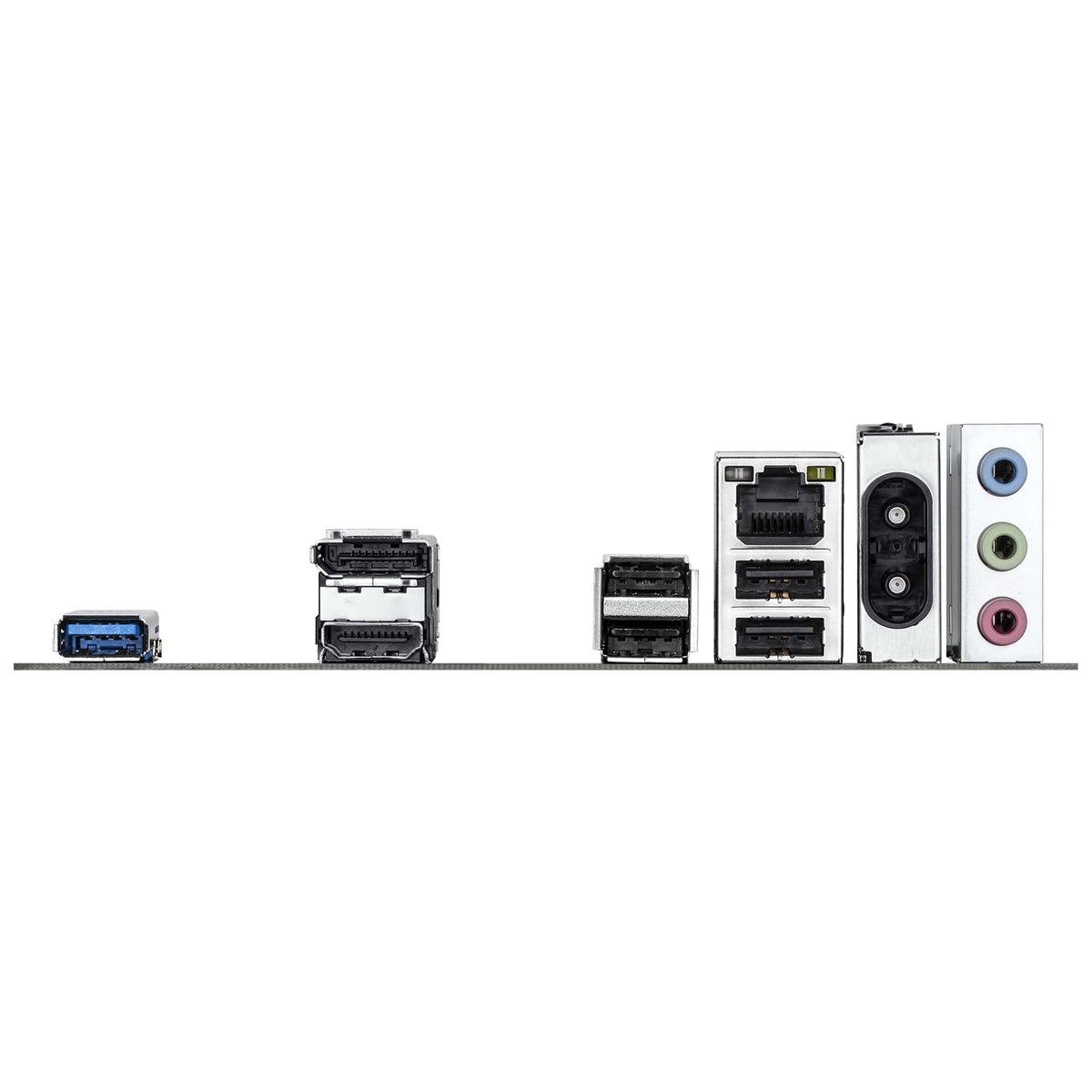

Rear I/O	1 x DisplayPort 1 x HDMI port 1 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks Actual support may vary by CPU.

Internal Connections

Internal USB headers	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Power connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Fan / pump headers	1 x CPU fan header 2 x system fan headers
Lighting headers	2 x addressable RGB Gen2 LED strip headers

Compatibility Notes

CPU and BIOS	Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs	Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion	DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.
Manufacturer restrictions	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Package & Identification

GTIN / EAN	4719331877781
