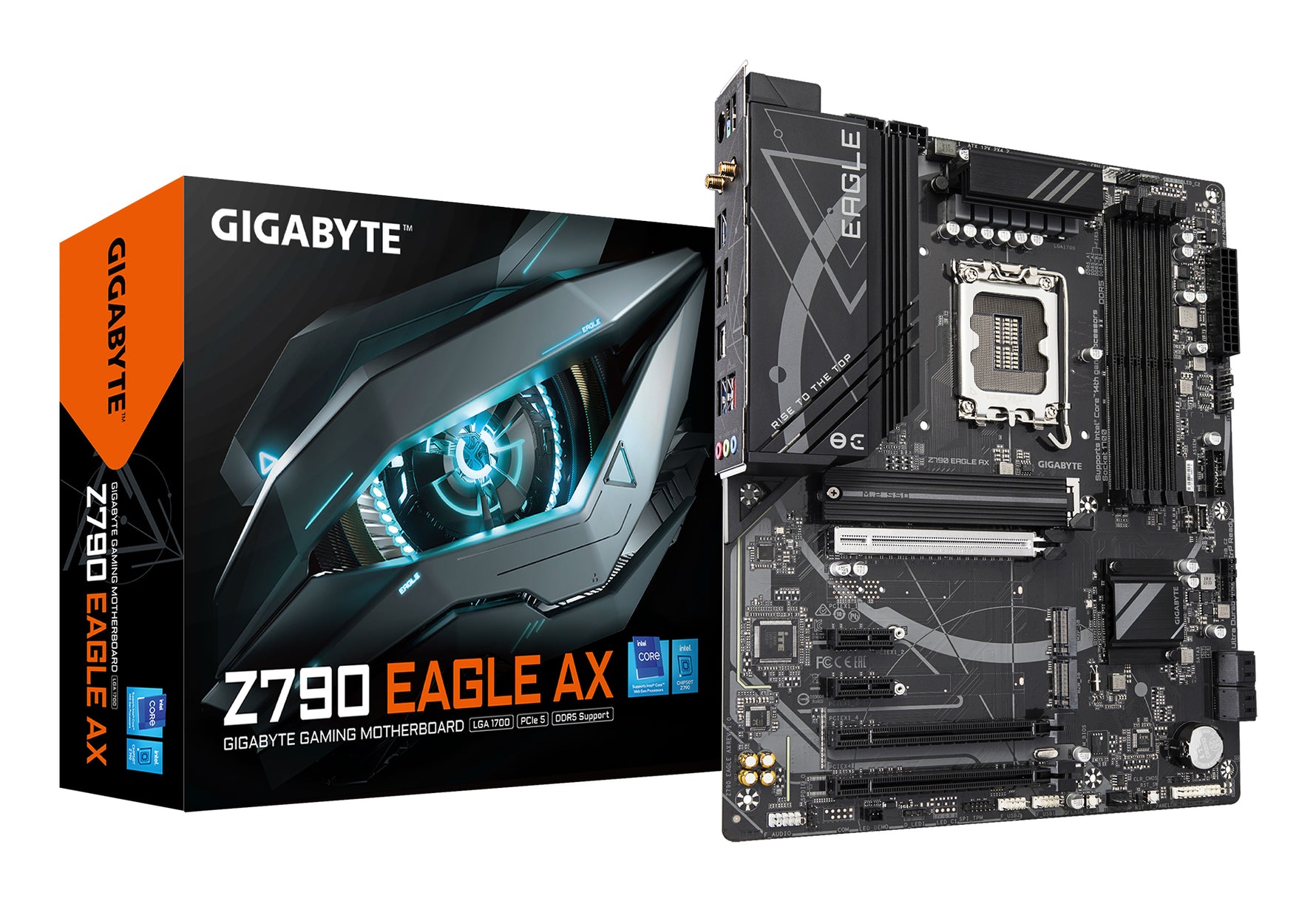

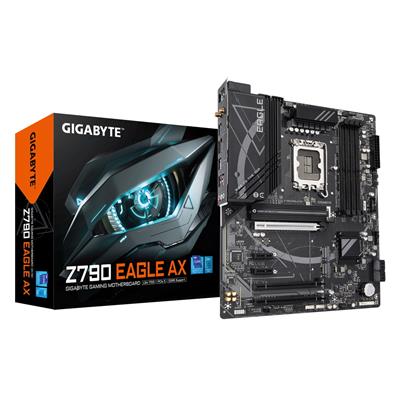

GIGABYTE Z790 EAGLE AX Z790 LGA1700 ATX Motherboard
£181.99
✔ UK-based seller
✔ Tracked delivery on all orders
✔ Genuine products
✔ Fast dispatch within 1–2 business days
Your transaction is protected with advanced security measures to keep your information confidential
Estimated delivery between June 21 and June 23.
Delivery Information
Processing Time
Orders are typically processed and dispatched within 1–2 business days (Monday–Friday).
Orders placed after 3:00 PM (UK time) will be processed the next business day.
Delivery Time
Estimated delivery time within the United Kingdom is 3–5 business days after dispatch.
Delivery times are estimates and may vary depending on courier delays, location, or peak periods.
£181.99
£181.99
GIGABYTE Z790 EAGLE AX is a full-size ATX motherboard for Intel 12th, 13th, and 14th Gen Core processors on the LGA1700 platform. Built on the Intel Z790 Express chipset with four DDR5 slots up to DDR5-7600 (OC) supporting up to 192GB, three M.2 PCIe 4.0 x4 slots, Realtek 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3, and both HDMI and DisplayPort video outputs, it delivers a capable overclocking-ready platform for gaming and productivity builds.
UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors
Key Features
- Intel Z790 Express chipset, LGA1700 socket — supports Intel 12th, 13th and 14th Gen Core processors
- ATX form factor (305 x 244mm)
- DDR5 memory — 4 slots, up to 192GB, up to DDR5-7600 (OC), XMP 3.0 support
- 1x PCIe 5.0 x16 + 1x PCIe 4.0 x16 + 1x PCIe 3.0 x16 + 2x PCIe 3.0 x1 slots
- 3x M.2 slots: 2x PCIe 4.0 x4, 1x PCIe 4.0 x4/SATA
- 4x SATA 6Gb/s ports, RAID 0/1/5/10
- Realtek 2.5GbE LAN
- Wi-Fi 6E (802.11ax, 2.4/5/6GHz) + Bluetooth 5.3
- Realtek HD Audio 7.1-channel, 3x rear audio jacks
- 4x USB 5Gbps Type-A + 1x USB 10Gbps Type-A + 1x USB 10Gbps Type-C + 2x USB 2.0 on rear panel
- 1x HDMI + 1x DisplayPort video outputs
- 1x PS/2 keyboard/mouse port on rear panel
- 2x 8-pin CPU power connectors
- 2x Thunderbolt AIC connectors (internal)
- 2x Addressable RGB LED strip headers
- Q-Flash Plus button (BIOS update without CPU/RAM)
Product Overview
The GIGABYTE Z790 EAGLE AX is a mid-range Z790 ATX board offering overclocking support for 12th, 13th, and 14th Gen Intel processors alongside DDR5-7600 (OC) memory. Three M.2 slots all operate at PCIe 4.0 x4 — the third also supports SATA M.2 drives. Four SATA ports provide additional storage capacity. Wi-Fi 6E covers the 6GHz band for reduced congestion. Both HDMI and DisplayPort outputs are available for iGPU use. Two internal Thunderbolt AIC connectors support add-in Thunderbolt cards. Q-Flash Plus allows BIOS updates without a CPU or RAM installed. Note: the box contains only the motherboard — no SATA cables are included.
Delivery & Fulfilment
This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1-2 business days with tracked delivery across the United Kingdom.
Why Buy from TechFinder UK?
- UK-based sole trader - genuine products, real accountability
- Sourced through established distribution partners
- Secure checkout with buyer protection
- Tracked UK delivery, dispatched within 1-2 business days
- Pre- and post-purchase support available
Specifications
| Chipset | Intel Z790 Express |
| Socket | LGA1700 (Intel 12th / 13th / 14th Gen Core) |
| Form Factor | ATX (305 x 244mm) |
| Memory | 4x DDR5 DIMM (Dual Channel), up to 192GB, up to DDR5-7600 (OC), XMP 3.0 |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1 |
| M.2 Slots | 2x PCIe 4.0 x4, 1x PCIe 4.0 x4/SATA |
| SATA Ports | 4x SATA 6Gb/s (RAID 0/1/5/10) |
| LAN | Realtek 2.5GbE |
| Wireless | Wi-Fi 6E (802.11ax, 2.4/5/6GHz), Bluetooth 5.3 |
| Audio | Realtek HD Audio, 7.1-channel, 3x rear audio jacks |
| Rear I/O | 1x PS/2, 2x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x HDMI, 1x DisplayPort, 1x LAN, 3x Audio jacks, Wi-Fi antenna |
| Internal Headers | 2x USB 2.0, 2x USB 5Gbps, 2x ARGB, 2x Thunderbolt AIC, 1x S/PDIF out, 1x TPM, 1x Front Panel Audio, 1x Reset, 1x Q-Flash Plus |
| VRM | 2x 8-pin CPU power, 12+1+1 phase digital VRM |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, Q-Flash Plus |
Box Contents
- Motherboard only (no SATA cables included)
Product Identification
Model: Z790 EAGLE AX
EAN: 4719331860998
