GIGABYTE

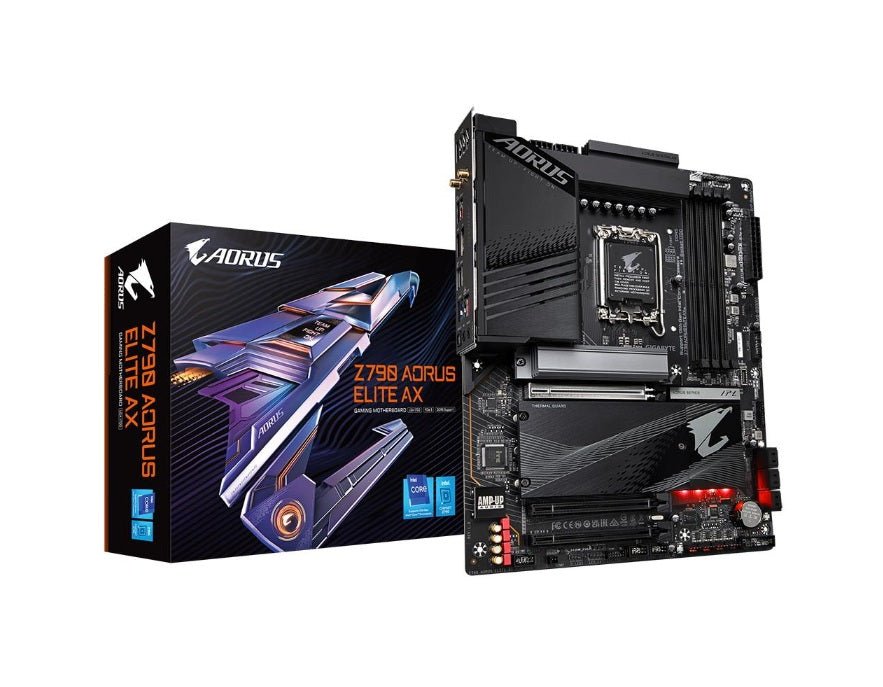

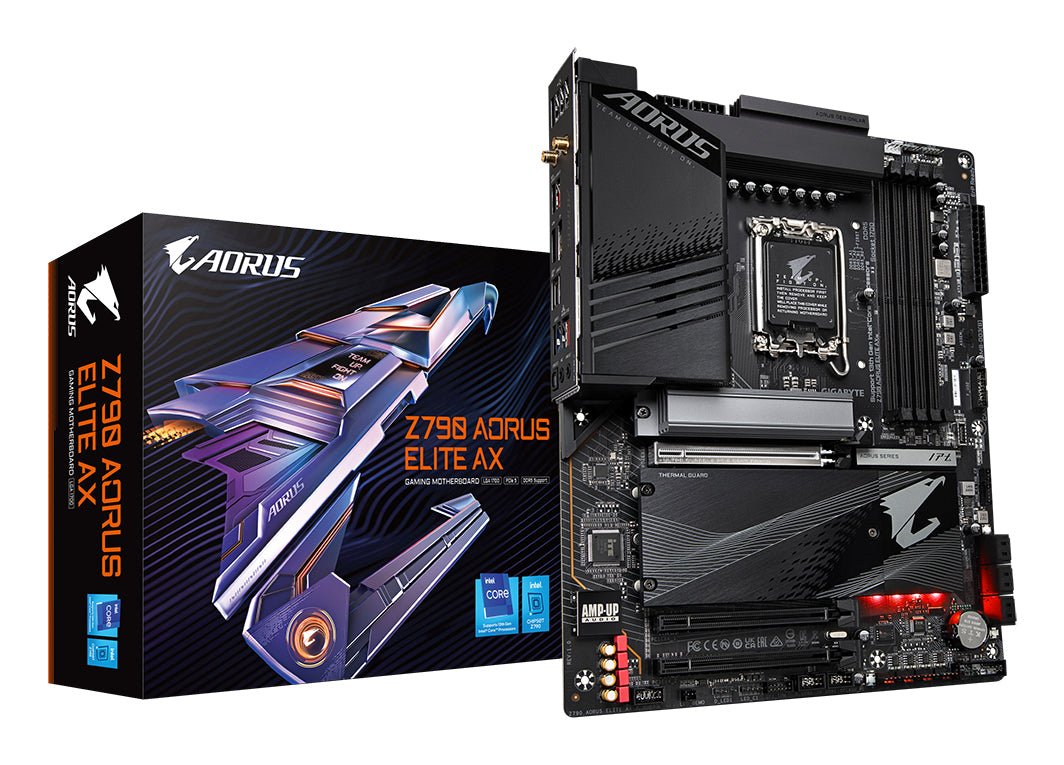

GIGABYTE Z790 AORUS ELITE AX Motherboard
£214.99
✔ UK-based seller
✔ Tracked delivery on all orders
✔ Genuine products
✔ Fast dispatch within 1–2 business days
Your transaction is protected with advanced security measures to keep your information confidential
Estimated delivery between June 21 and June 23.
Delivery Information
Processing Time
Orders are typically processed and dispatched within 1–2 business days (Monday–Friday).
Orders placed after 3:00 PM (UK time) will be processed the next business day.
Delivery Time
Estimated delivery time within the United Kingdom is 3–5 business days after dispatch.
Delivery times are estimates and may vary depending on courier delays, location, or peak periods.
£214.99
£214.99
Aorus Z790 AORUS ELITE AX (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
| Web Address | www.gigabyte.com |
| Model Number | Z790 AORUS ELITE AX |
| EAN | 4719331849467 |
| UPC | 889523034002 |
| Package Type | Retail |
| Warranty | 3 Years |
Chipset & CPU
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel Z790 Express |
| CPU Interface | Socket 1700 |
| CPU Support | https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10/support#support-cpu |
Memory
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 4 x 288-pin |
| RAM Speeds | Up to DDR5 7600 (O.C.) |
| Max. Memory Support | 128GB |
Expansion Slots & Storage
| PCI Express 4.0 x16 | 2 |
| PCI Express 5.0 x16 | 1 |
| S-ATA 6Gb/s Port(s) | 6 |
| RAID | Raid 0/1/5/10 |
| M.2 Socket(s) | 3 x PCIe Gen 4.0 x4 1 x PCIe Gen 4.0 x4/SATA |
Networking
| On-Board LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless NIC | Wi-Fi 6E |
| Wireless Technology | WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Bluetooth | v5.3 |
Audio & Video
| On-Board Audio | Realtek Audio CODEC |
| On-Board Video | Processor with integrated graphics is required |
Back Panel I/O
| Back USB 2.0 Port(s) | 4 |
| Back USB 3.2 Port(s) Type-A Gen 1 | 3 |
| Back USB 3.2 Port(s) Type-A Gen 2 | 2 |
| Back USB 3.2 Port(s) Type-C Gen 2x2 | 1 |
| Back HDMI Port(s) | 1 |
| Back DisplayPort(s) | 1 |
| Back LAN Port(s) | 1 |
| Back Audio Jack(s) | 2 |
| Back S/PDIF Output Port(s) | 1 |
| Back Other Port(s) | 2 x SMA antenna connectors (2T2R) |
Internal Connectors
| 24-pin ATX Power | 1 |
| 8-pin ATX Power | 2 |
| USB 2.0 Header(s) | 2 |
| USB 3.2 Header(s) Gen 1 | 1 |
| USB 3.2 Header(s) Gen 2 | 1 |
| Thunderbolt AIC Connector(s) | 1 |
| Front Panel Audio Connector | 1 |
| TPM Header(s) | 1 |
| Internal Other Port(s) | 2 x Addressable LED Strip Headers 2 x RGB LED Strip Headers |
| Internal Button(s) | 1 x Reset 1 x Q-Flash Plus 1 x Clear CMOS 1 x Reset Jumper 1 x Clear CMOS Jumper |
Physical Details
| Form Factor | Standard ATX |
| Product Width | 244mm |
| Product Length | 305mm |
| Package Width | 27cm |
| Package Length | 34cm |
| Package Height | 8cm |
| Gross Weight | 2.05Kg |
