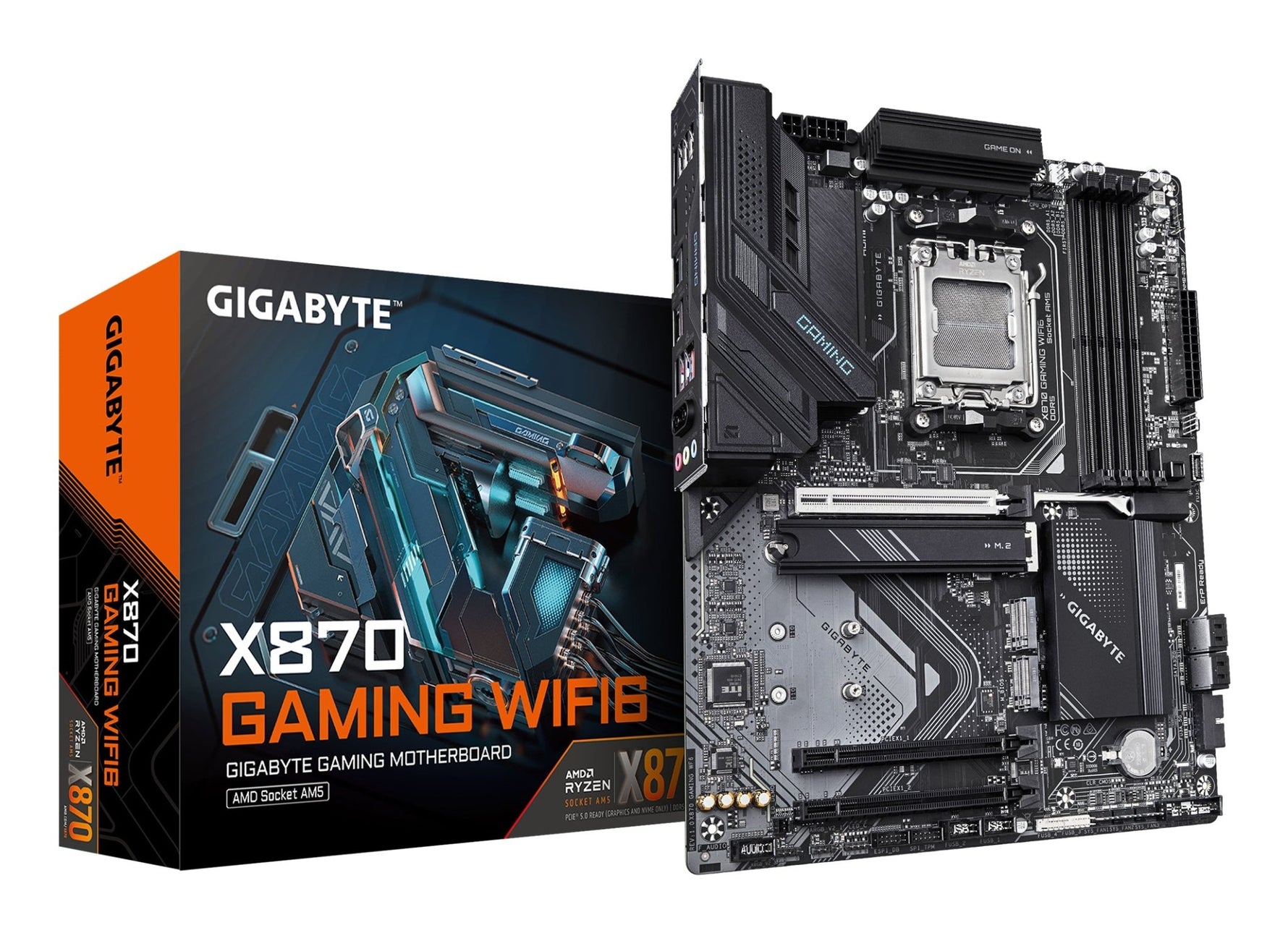

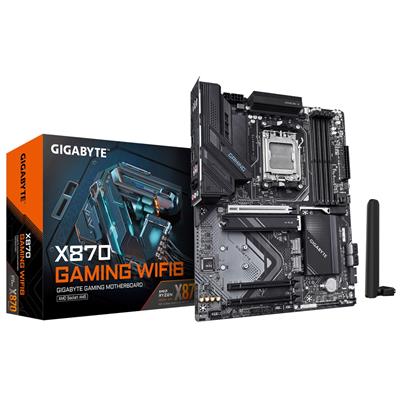

Gigabyte X870 Gaming WiFi6 AM5 ATX Motherboard

Gigabyte X870 Gaming WiFi6 is a full-size ATX gaming motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. Built on the AMD X870 chipset with DDR5 memory up to DDR5-8200 (OC), three M.2 slots including one PCIe 5.0 x4, Wi-Fi 6, 2.5GbE LAN, and dual USB4 40Gbps Type-C with DisplayPort Alt Mode, it delivers capable X870 gaming performance at a competitive price point.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• AMD X870 chipset, AM5 socket - supports Ryzen 7000, 8000 and 9000 Series processors
• ATX form factor (305 x 244mm)
• DDR5 memory - 4 slots, up to 256GB, up to DDR5-8200 (OC), AMD EXPO support
• 1x PCIe 5.0 x16 slot for GPU (EZ-Latch Plus quick release)
• 1x PCIe 3.0 x16 slot
• 1x PCIe 5.0 x4 M.2 + 2x PCIe 4.0 x4 M.2 (EZ-Latch Plus screwless, M.2 Thermal Guard)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Realtek 2.5GbE LAN
• Wi-Fi 6 (802.11ax, 2.4/5GHz, 80MHz) + Bluetooth 5.3
• Realtek HD Audio (7.1-channel)
• 8+2+2 phase VRM, 8-pin + 4-pin CPU power
• 2x USB4 40Gbps Type-C with DisplayPort Alt Mode on rear panel
• 3x Addressable RGB Gen 2 headers
• Q-Flash Plus BIOS update button on rear panel
• EZ-Latch Click M.2 heatsinks (screwless)

Product Overview

The Gigabyte X870 Gaming WiFi6 is a well-priced X870 ATX board for AMD Ryzen AM5 gaming builds. Three M.2 slots — one PCIe 5.0 x4 and two PCIe 4.0 x4 — provide fast NVMe storage with screwless EZ-Latch Plus installation. Dual USB4 40Gbps Type-C ports on the rear panel support both 40Gbps data transfer and DisplayPort Alt Mode for display output. Note that wireless is Wi-Fi 6 (2.4/5GHz, 80MHz) — not Wi-Fi 6E or Wi-Fi 7. Q-Flash Plus enables BIOS updates without a CPU or RAM installed. VRM Thermal Armor Advanced and M.2 Thermal Guard provide efficient thermal management.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1-2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1-2 business days
• Pre- and post-purchase support available

Specifications

Box Contents

• Motherboard
• 2x SATA cables
• 1x Wi-Fi antenna
• 1x G Connector
• M.2 screws and rubber pads
• Manual + Quick Installation Guide

Product Identification

Model: X870 GAMING WIFI6
EAN: 4719331865399
