GIGABYTE

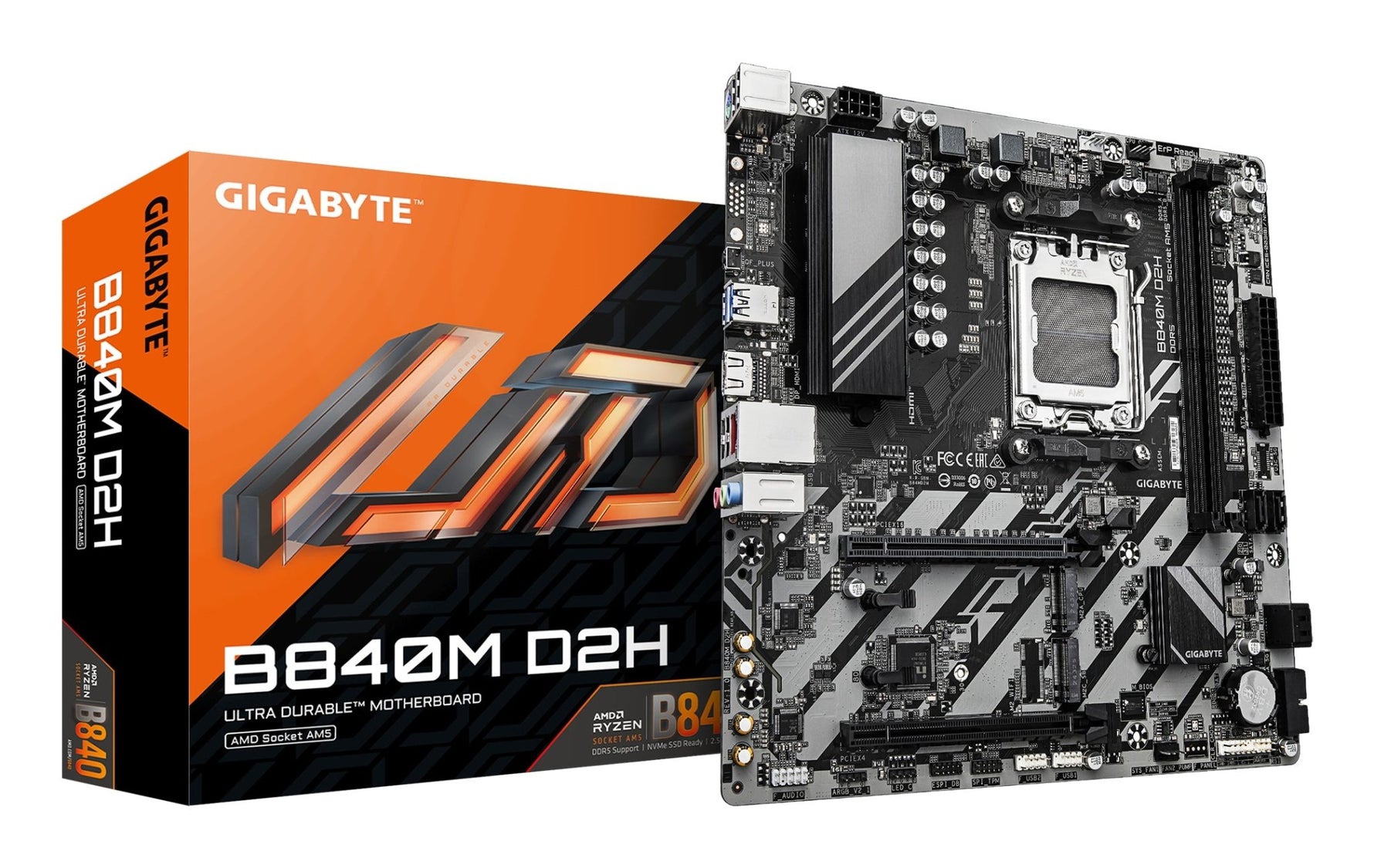

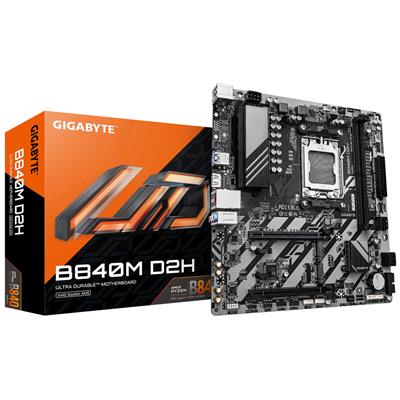

Gigabyte B840M D2H AM5 Micro ATX Motherboard
£96.99
✔ UK-based seller
✔ Tracked delivery on all orders
✔ Genuine products
✔ Fast dispatch within 1–2 business days
Your transaction is protected with advanced security measures to keep your information confidential
Estimated delivery between June 21 and June 23.
Delivery Information
Processing Time
Orders are typically processed and dispatched within 1–2 business days (Monday–Friday).
Orders placed after 3:00 PM (UK time) will be processed the next business day.
Delivery Time
Estimated delivery time within the United Kingdom is 3–5 business days after dispatch.
Delivery times are estimates and may vary depending on courier delays, location, or peak periods.
£96.99
£96.99
Gigabyte B840M D2H is a compact Micro ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. Built on the AMD B840 chipset with 2-slot DDR5 memory up to DDR5-7600 (OC), two M.2 slots (PCIe 4.0 + PCIe 3.0), 2.5GbE LAN, and HDMI output, it offers an affordable AM5 entry point with X3D Turbo Mode support.
UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors
Key Features
- AMD B840 chipset, AM5 socket - supports Ryzen 7000, 8000 and 9000 Series processors
- Micro ATX form factor (244 x 244mm)
- DDR5 memory - 2 slots, up to 128GB, up to DDR5-7600 (OC), AMD EXPO support
- 1x PCIe 4.0 x16 slot for GPU (EZ-Latch quick release)
- 1x PCIe 3.0 x16 slot
- 1x PCIe 4.0 x4 M.2 + 1x PCIe 3.0 x4 M.2 (2 M.2 slots total)
- 4x SATA 6Gb/s ports, RAID 0/1/5/10
- Realtek 2.5GbE LAN (no Wi-Fi)
- Realtek HD Audio (7.1-channel)
- 5+2+2 phase VRM, X3D Turbo Mode support
- 2x Addressable RGB Gen 2 headers + 1x RGB header
- HDMI output (no DisplayPort)
- Q-Flash Plus BIOS update button on rear panel
Product Overview
The Gigabyte B840M D2H is a budget-friendly Micro ATX board for AMD Ryzen AM5 builds on the B840 chipset. Two DDR5 slots support up to 128GB with AMD EXPO memory profiles and DDR5-7600 (OC). Two M.2 slots are available — one PCIe 4.0 x4 and one PCIe 3.0 x4 — note the second slot runs at PCIe 3.0 speed. Display output is HDMI only — no DisplayPort. Note there is no Wi-Fi — LAN is 2.5GbE only. X3D Turbo Mode is supported for AMD Ryzen X3D processors. Q-Flash Plus enables BIOS updates without a CPU or RAM installed.
Delivery & Fulfilment
This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1-2 business days with tracked delivery across the United Kingdom.
Why Buy from TechFinder UK?
- UK-based sole trader - genuine products, real accountability
- Sourced through established distribution partners
- Secure checkout with buyer protection
- Tracked UK delivery, dispatched within 1-2 business days
- Pre- and post-purchase support available
Specifications
| Chipset | AMD B840 |
| Socket | AM5 (Ryzen 7000 / 8000 / 9000 Series) |
| Form Factor | Micro ATX (244 x 244mm) |
| Memory | 2x DDR5 DIMM, up to 128GB, up to DDR5-7600 (OC), AMD EXPO |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 |
| M.2 Slots | 1x PCIe 4.0 x4, 1x PCIe 3.0 x4 |
| SATA Ports | 4x SATA 6Gb/s (RAID 0/1/5/10) |
| LAN | Realtek 2.5GbE |
| Wireless | None |
| Audio | Realtek HD Audio, 7.1-channel |
| Rear I/O | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x HDMI (no DisplayPort), 1x LAN, 3x Audio jacks, 1x Q-Flash Plus |
| Internal Headers | 2x USB 2.0, 1x USB 5Gbps, 2x ARGB Gen 2, 1x RGB, 1x TPM |
| VRM | 5+2+2 phase digital |
| BIOS | 256Mbit Flash, AMI UEFI BIOS, Q-Flash Plus |
Box Contents
- Motherboard
- 2x SATA cables
- I/O Shield
- Manual + Quick Installation Guide
Product Identification
Model: B840M D2H
EAN: 4719331868116
Authenticity Guaranteed
We only sell authentic products from verified brand partners and retail partners globally.
