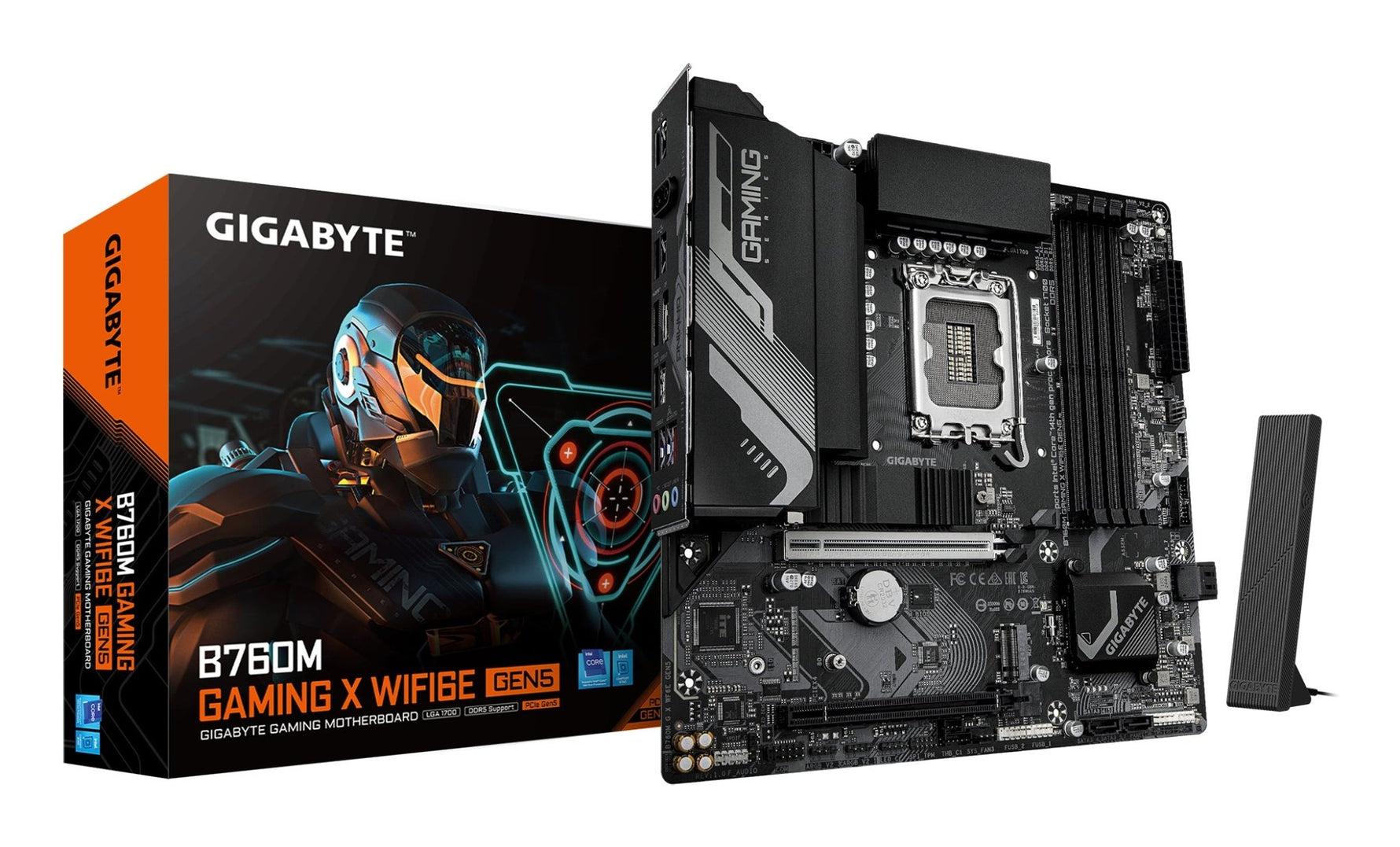

Gigabyte B760M Gaming X WiFi6E Gen5 LGA1700 Micro ATX Motherboard

The Gigabyte B760M Gaming X WiFi6E Gen5 is a Micro ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors on the LGA1700 platform. Built on the Intel B760 chipset with DDR5 memory, Wi-Fi 6E, 2.5GbE LAN, and PCIe 5.0 x16, it delivers strong connectivity and performance for gaming builds in a compact form factor.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Intel B760 chipset, LGA1700 socket — supports 12th, 13th and 14th Gen Intel Core processors
• Micro ATX form factor
• DDR5 memory — 4 slots, up to 256GB, up to DDR5-7600 (OC), XMP support
• 1x PCIe 5.0 x16 slot for GPU (EZ-Latch quick release)
• 1x PCIe 3.0 x16 slot
• 2x M.2 slots (PCIe 4.0 x4)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Wi-Fi 6E (2.4/5/6GHz) + Bluetooth 5.3
• Realtek 2.5GbE LAN
• Realtek HD Audio
• 8+1+1 phase VRM power solution
• 3x Addressable RGB headers + 1x RGB header
• Q-Flash Plus (BIOS update without CPU/RAM/GPU)

Product Overview

The Gigabyte B760M Gaming X WiFi6E Gen5 is a compact Micro ATX board suited for mainstream Intel gaming builds. It supports the full range of 12th, 13th, and 14th Gen Intel Core processors, and offers DDR5 memory with XMP support up to DDR5-7600. The PCIe 5.0 x16 slot with EZ-Latch quick release ensures compatibility with current and future GPUs, while two PCIe 4.0 M.2 slots and four SATA ports provide flexible storage options. Wi-Fi 6E and 2.5GbE LAN cover both wireless and wired connectivity needs.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: Intel B760
• Socket: LGA1700 (12th, 13th, 14th Gen Intel Core)
• Form Factor: Micro ATX
• Memory: 4x DDR5 DIMM, up to 256GB, up to DDR5-7600 (OC), XMP
• PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x16
• M.2 Slots: 2x PCIe 4.0 x4
• SATA Ports: 4x SATA 6Gb/s (RAID 0/1/5/10)
• LAN: Realtek 2.5GbE (2.5/1Gbps/100Mbps)
• Wireless: Wi-Fi 6E (2.4/5/6GHz), Bluetooth 5.3
• Audio: Realtek HD Audio
• Rear I/O: 5x USB 2.0, 3x USB 3.2 Gen 1 Type-A, 1x HDMI, 1x DisplayPort, 1x LAN, 3x Audio jacks
• Internal Headers: 2x USB 2.0, 2x USB 3.2 Gen 2, 2x Thunderbolt AIC, 3x ARGB, 1x RGB, 1x TPM, 1x S/PDIF
• VRM: 8+1+1 phase
• BIOS: 256Mbit Flash, AMI UEFI BIOS, Q-Flash Plus
• Weight: 1.03kg (net)

Box Contents

• Motherboard
• 2x SATA cables
• 1x Wi-Fi antenna
• M.2 screw and rubber pads
• Manual

Product Identification

Model: B760M GAMING X WIFI6E GEN5
EAN: 4719331872953
