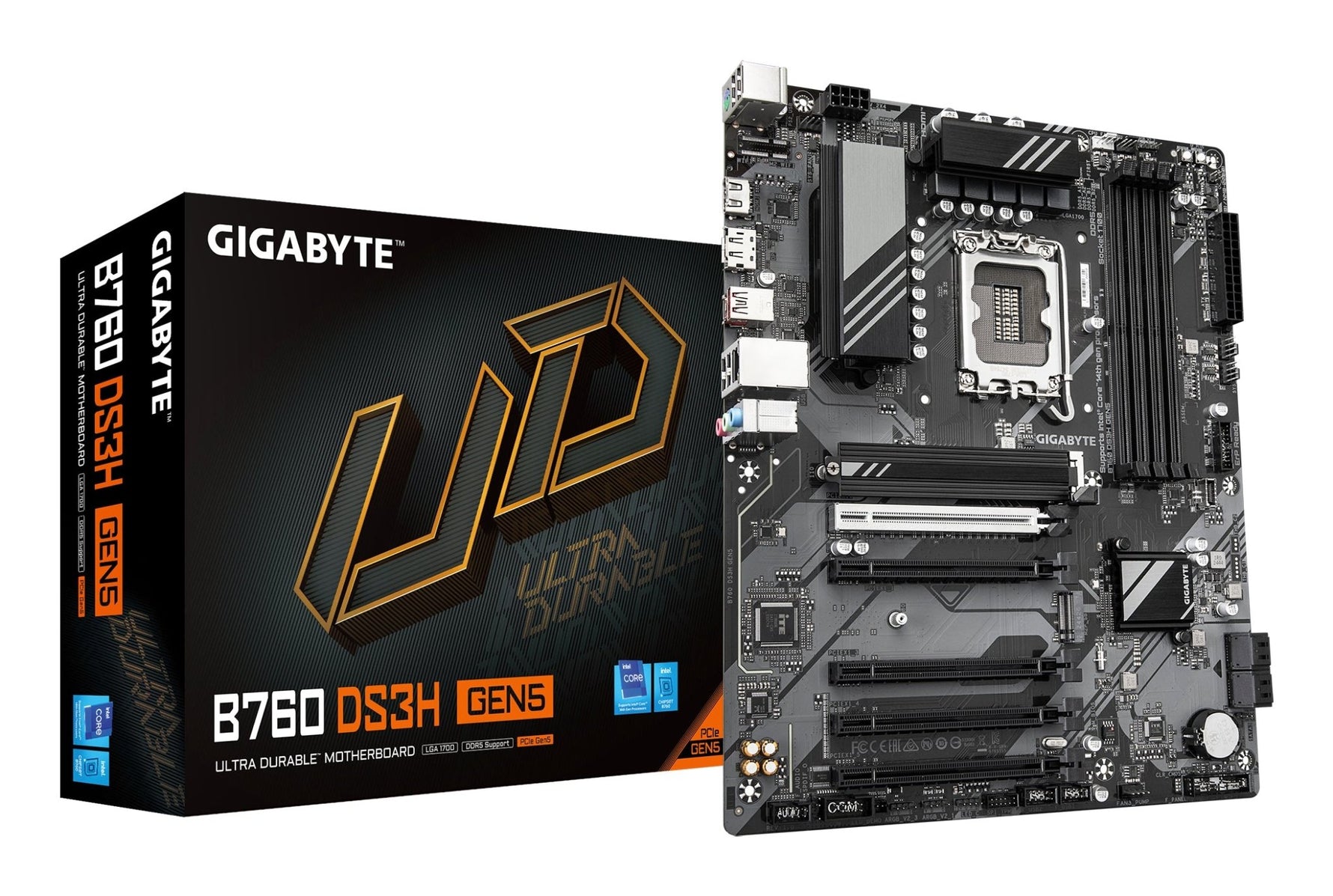

Gigabyte B760 DS3H Gen5 LGA1700 ATX Motherboard

The Gigabyte B760 DS3H Gen5 is a full-size ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors on the LGA1700 platform. Built on the Intel B760 chipset with DDR5 memory, PCIe 5.0 x16, and USB-C 20Gbps rear connectivity, it offers solid performance and storage options for mainstream builds without Wi-Fi.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Intel B760 chipset, LGA1700 socket — supports 12th, 13th and 14th Gen Intel Core processors
• ATX form factor (305 x 244mm)
• DDR5 memory — 4 slots, up to 256GB, up to DDR5-7600 (OC), XMP support
• 1x PCIe 5.0 x16 slot for GPU (EZ-Latch quick release)
• 2x PCIe 3.0 x1 slots
• 2x M.2 slots (PCIe 4.0 x4)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Realtek 1GbE LAN (no Wi-Fi)
• Realtek HD Audio
• 8+2+1 phase VRM power solution
• 3x Addressable RGB Gen 2 headers + 1x RGB header
• Q-Flash Plus (BIOS update without CPU/RAM/GPU)

Product Overview

The Gigabyte B760 DS3H Gen5 is a straightforward ATX board suited for mainstream Intel builds where Wi-Fi is not required. It supports the full range of 12th, 13th, and 14th Gen Intel Core processors, and offers DDR5 memory with XMP support up to DDR5-7600. The PCIe 5.0 x16 slot with EZ-Latch ensures GPU compatibility, while two PCIe 4.0 M.2 slots and four SATA ports provide flexible storage. Rear connectivity includes USB-C 20Gbps and DisplayPort alongside HDMI.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: Intel B760
• Socket: LGA1700 (12th, 13th, 14th Gen Intel Core)
• Form Factor: ATX (305 x 244mm)
• Memory: 4x DDR5 DIMM, up to 256GB, up to DDR5-7600 (OC), XMP
• PCIe Slots: 1x PCIe 5.0 x16, 2x PCIe 3.0 x1
• M.2 Slots: 2x PCIe 4.0 x4
• SATA Ports: 4x SATA 6Gb/s (RAID 0/1/5/10)
• LAN: Realtek 1GbE (1Gbps/100Mbps/10Mbps)
• Wireless: None
• Audio: Realtek HD Audio
• Rear I/O: 1x PS/2, 4x USB 2.0, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C, 1x HDMI, 1x DisplayPort, 1x LAN, 3x Audio jacks
• Internal Headers: 2x USB 2.0, 2x USB 3.2 Gen 1, 3x ARGB Gen 2, 1x RGB, 1x TPM, 1x S/PDIF, 1x COM
• VRM: 8+2+1 phase
• BIOS: 128Mbit Flash, AMI UEFI BIOS, Q-Flash Plus
• Net Weight: 0.90kg

Box Contents

• Motherboard
• 2x SATA cables
• M.2 screws and rubber pads
• I/O Shield
• Manual

Product Identification

Model: B760 DS3H GEN5
EAN: 4719331872892
