GIGABYTE

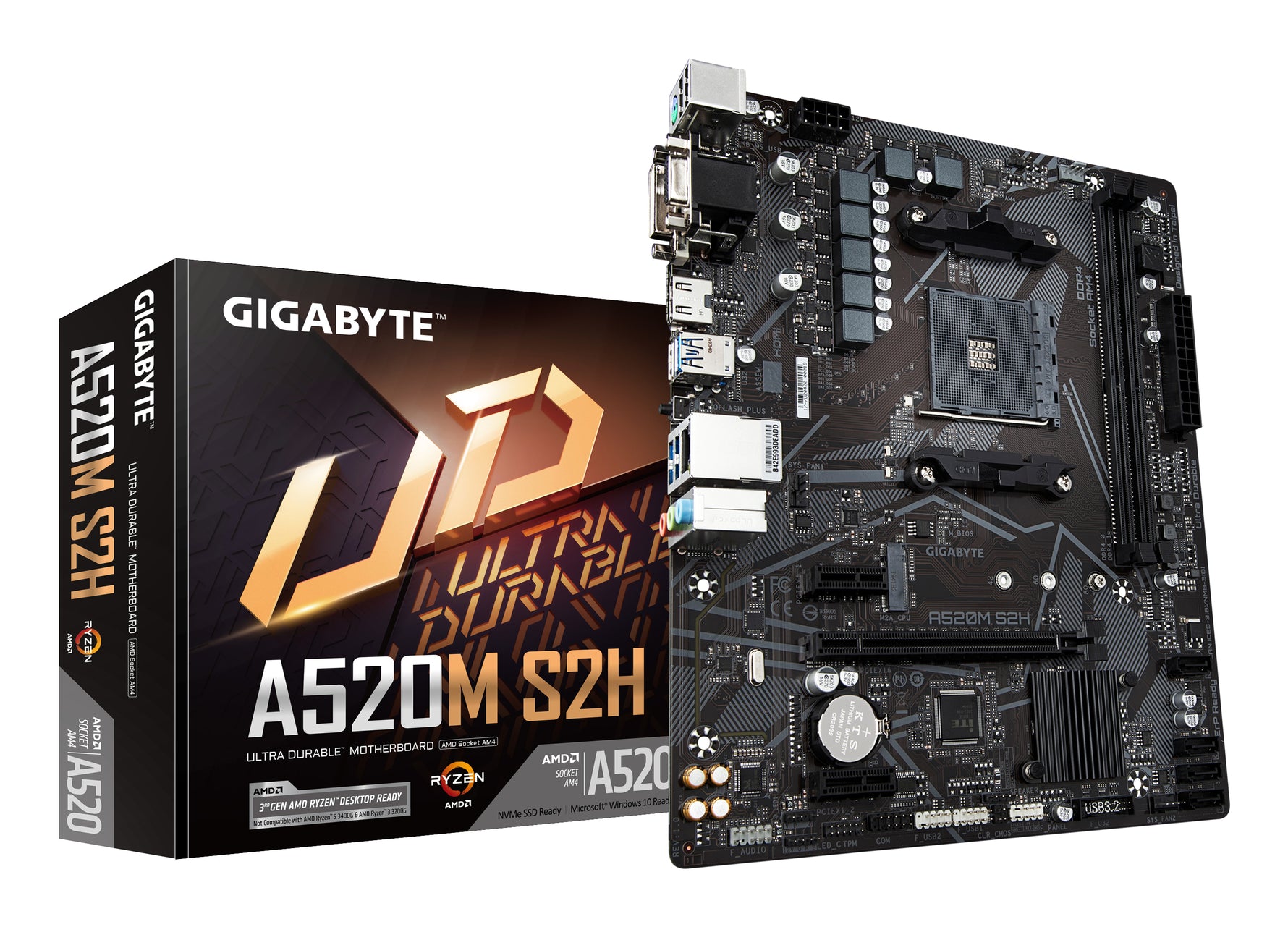

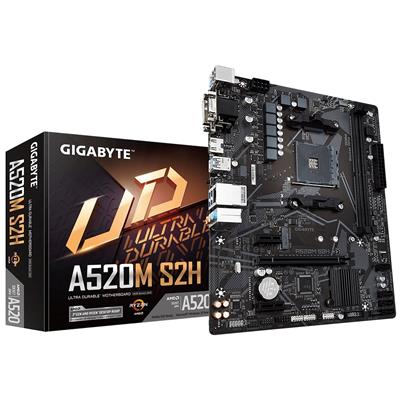

GIGABYTE A520M S2H AMD A520 Socket AM4 micro ATX
£69.99
✔ UK-based seller
✔ Tracked delivery on all orders
✔ Genuine products
✔ Fast dispatch within 1–2 business days
✔ 30-Day Returns
✔ Manufacturer Warranty Included
Your transaction is protected with advanced security measures to keep your information confidential
Estimated delivery between July 13 and July 15.
Delivery Information:
Processing Time
Orders are typically processed and dispatched within 1–2 business days (Monday–Friday).
Orders placed after 3:00 PM (UK time) will be processed the next business day.
Delivery Time
Estimated delivery time within the United Kingdom is 3–5 business days after dispatch.
Delivery times are estimates and may vary depending on courier delays, location, or peak periods.
Need Help?
If you have any questions about your order or delivery, please contact our support team at support@techfinderuk.com.
£69.99
£69.99
Gigabyte A520M S2H (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
| Web Address | www.gigabyte.com |
| Model Number | A520M S2H |
| EAN | 4719331809720 |
| UPC | 889523023594 |
| Package Type | Retail |
| Warranty | 3 Years |
Chipset & CPU
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD A520 |
| CPU Interface | Socket AM4 |
| CPU Support | https://www.gigabyte.com/Motherboard/A520M-S2H-rev-10/support#support-cpu |
Memory
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 2 x 288-pin |
| RAM Speeds | Up to DDR4 5000 (O.C.) |
| Max. Memory Support | 64GB |
Expansion Slots & Storage
| PCI Express 3.0 x16 | 1 |
| PCI Express 2.0 x1 | 2 |
| S-ATA 6Gb/s Port(s) | 4 |
| RAID | Raid 0/1/10 |
| M.2 Socket(s) | 1 |
Networking
| LAN Speed | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
Audio & Video
| On-Board Audio | Realtek ALC887 codec |
| On-Board Video | Processor with integrated graphics is required |
Back Panel I/O
| Back PS/2 Keyboard/Mouse Port | 1 |
| Back USB 2.0 Port(s) | 2 |
| Back USB 3.2 Port(s) Type-A Gen 1 | 4 |
| Back VGA Port(s) | 1 |
| Back DVI-D Port(s) | 1 |
| Back HDMI Port(s) | 1 |
| Back LAN Port(s) | 1 |
| Back Audio Jack(s) | 3 |
| Back Button(s) | 1 x Q-Flash Plus |
Internal Connectors
| 24-pin ATX Power | 1 |
| 8-pin ATX Power | 1 |
| USB 2.0 Header(s) | 2 |
| USB 3.2 Header(s) Gen 1 | 1 |
| COM Port Header(s) | 1 |
| Front Panel Audio Connector | 1 |
| TPM Header(s) | 1 |
| Internal Other Port(s) | 1 x Addressable LED Strip Header 1 x RGB LED Strip Header |
Physical Details
| Form Factor | Micro ATX |
| Product Width | 205mm |
| Product Length | 244mm |
| Package Width | 23.5cm |
| Package Length | 27cm |
| Package Height | 5.5cm |
| Gross Weight | 1.65Kg |
Special Features
| Special Features |
|
Package Contents
| Package Contents |
|
Keywords
| Keywords |
|
Authenticity Guaranteed
We only sell genuine products sourced through authorised UK distributors and trusted supply partners.
Every product we sell is brand-new, authentic and backed by the manufacturer's warranty.
