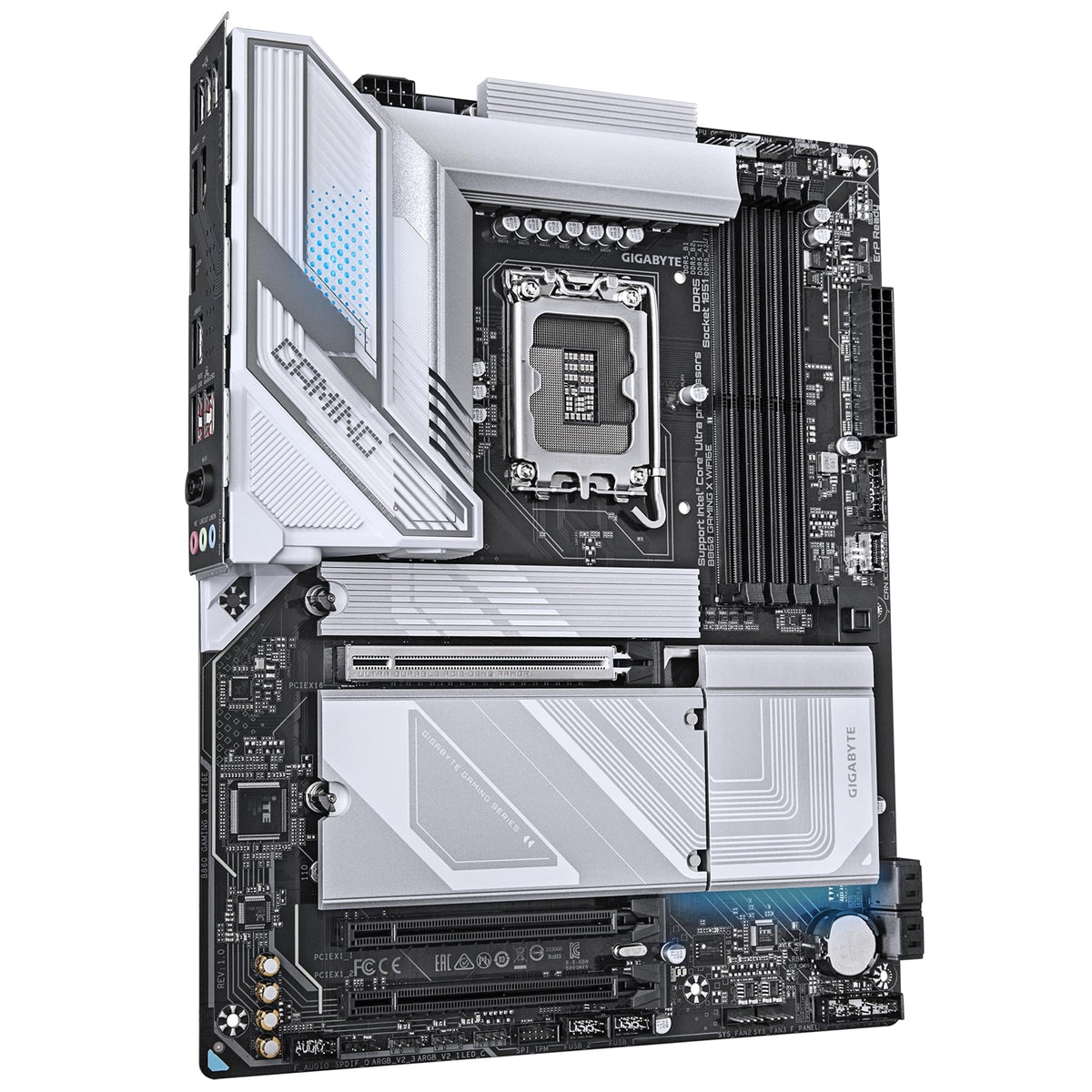

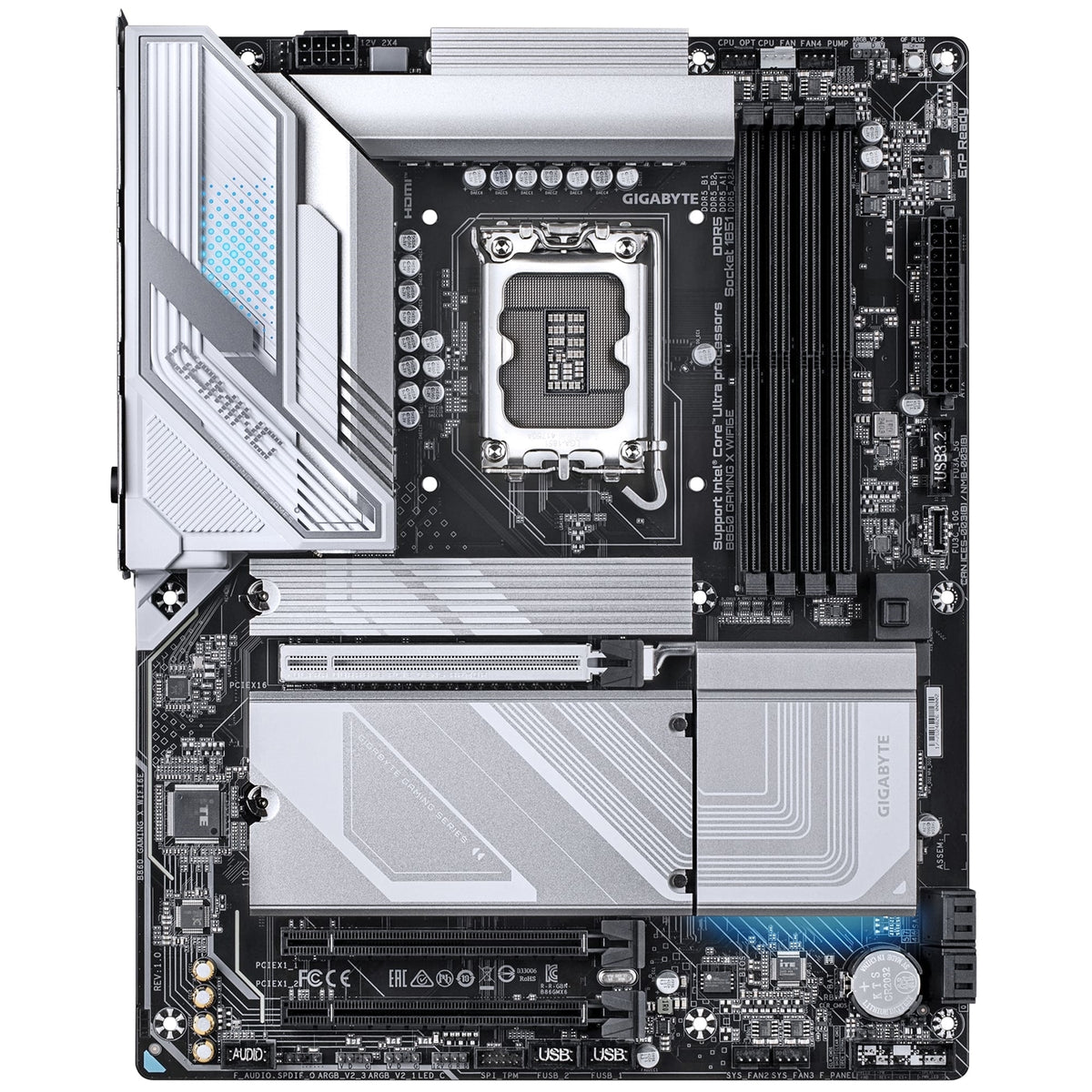

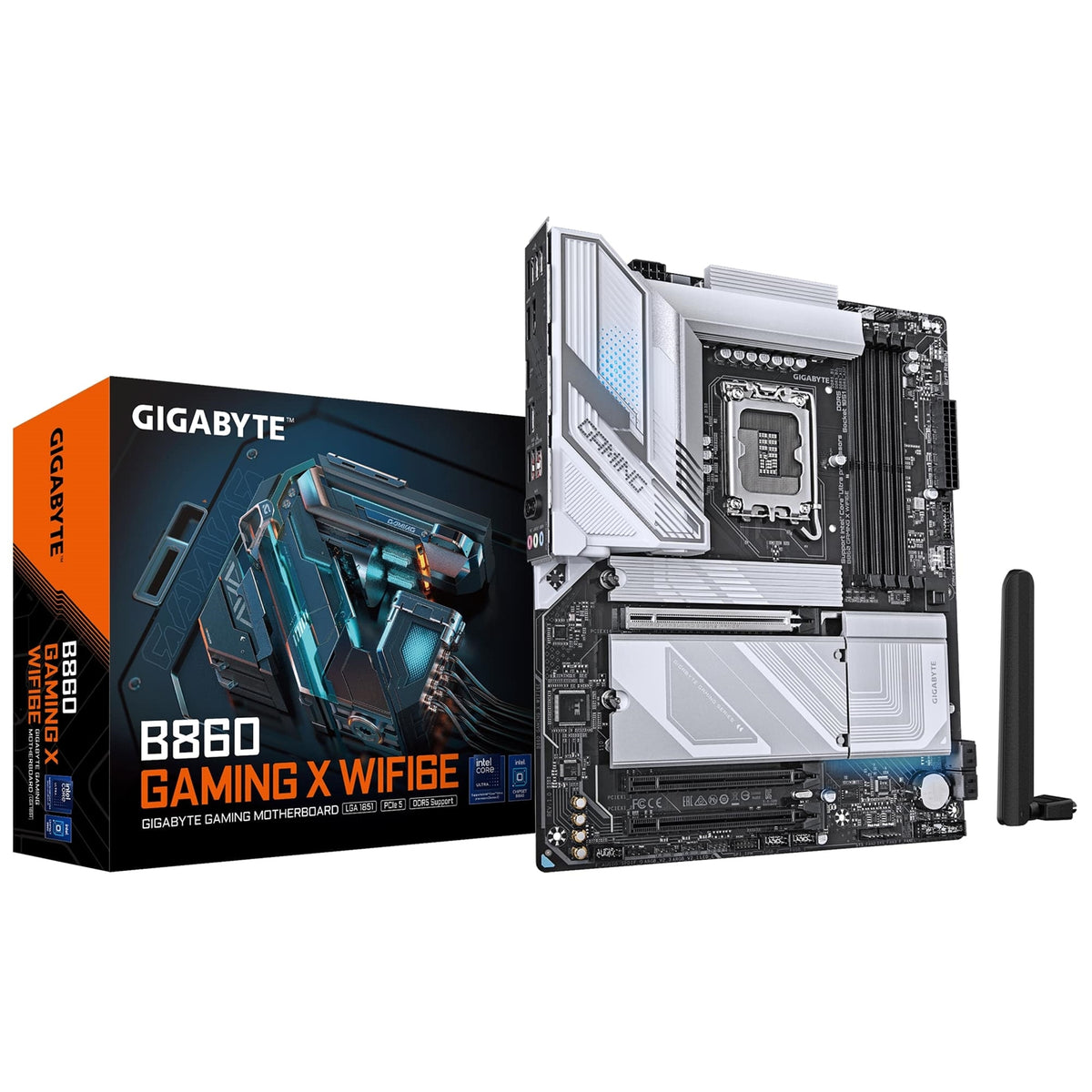

Gigabyte B860 GAMING X WIFI6E Intel 1851 Socket Motherboard

Gigabyte B860 GAMING X WIFI6E Intel 1851 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port / 1x USB-C (USB4)

£180.99 Inc. VAT

The Gigabyte B860 GAMING X WIFI6E is a desktop motherboard for LGA1851 processors, with DDR5 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model	Gigabyte B860 GAMING X WIFI6E
Chipset	Intel B860 Express Chipset
CPU socket	LGA1851
Supported processors	LGA1851 socket: Support for Intel Core Ultra Processors
Form factor / dimensions	ATX Form Factor; 30.5cm x 24.4cm

Memory

Memory slots	4 × DDR5 DIMM; dual channel
Maximum capacity	256 GB
Memory data rate	Up to DDR5-9066 (OC); depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles	Intel XMP

Expansion & Storage

Expansion slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2)
Storage connections	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Network & Audio

Ethernet

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wi-Fi / Bluetooth

Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Rear Connections

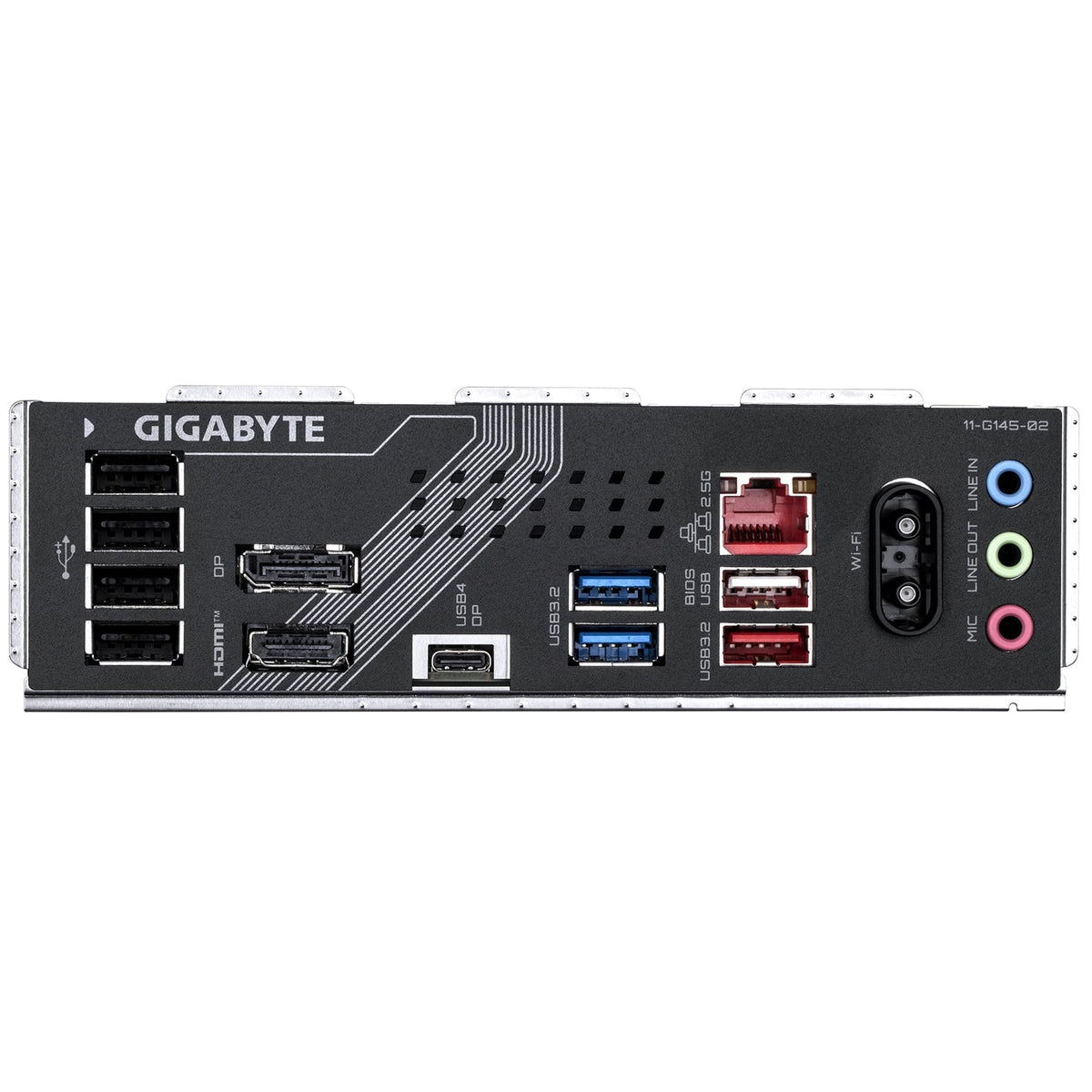

Rear I/O	1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB4 USB Type-C port (DisplayPort (Note)) 2 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 5 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.

Internal Connections

Internal USB headers	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Power connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Fan / pump headers	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header
Lighting headers	3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header

Compatibility Notes

CPU and BIOS	Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs	Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion	DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.
Manufacturer restrictions	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2)

Package & Identification

GTIN / EAN	4719331866532
