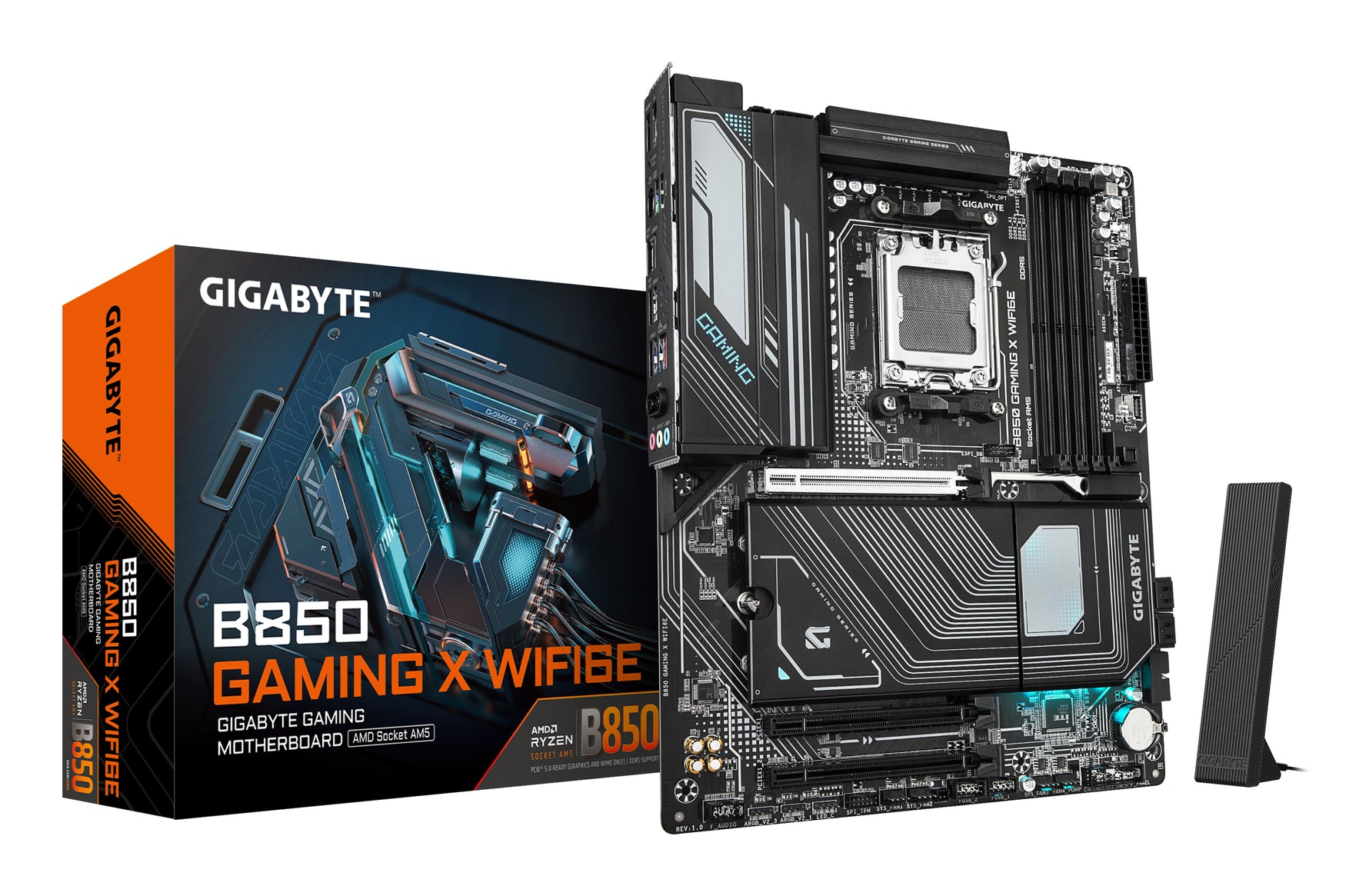

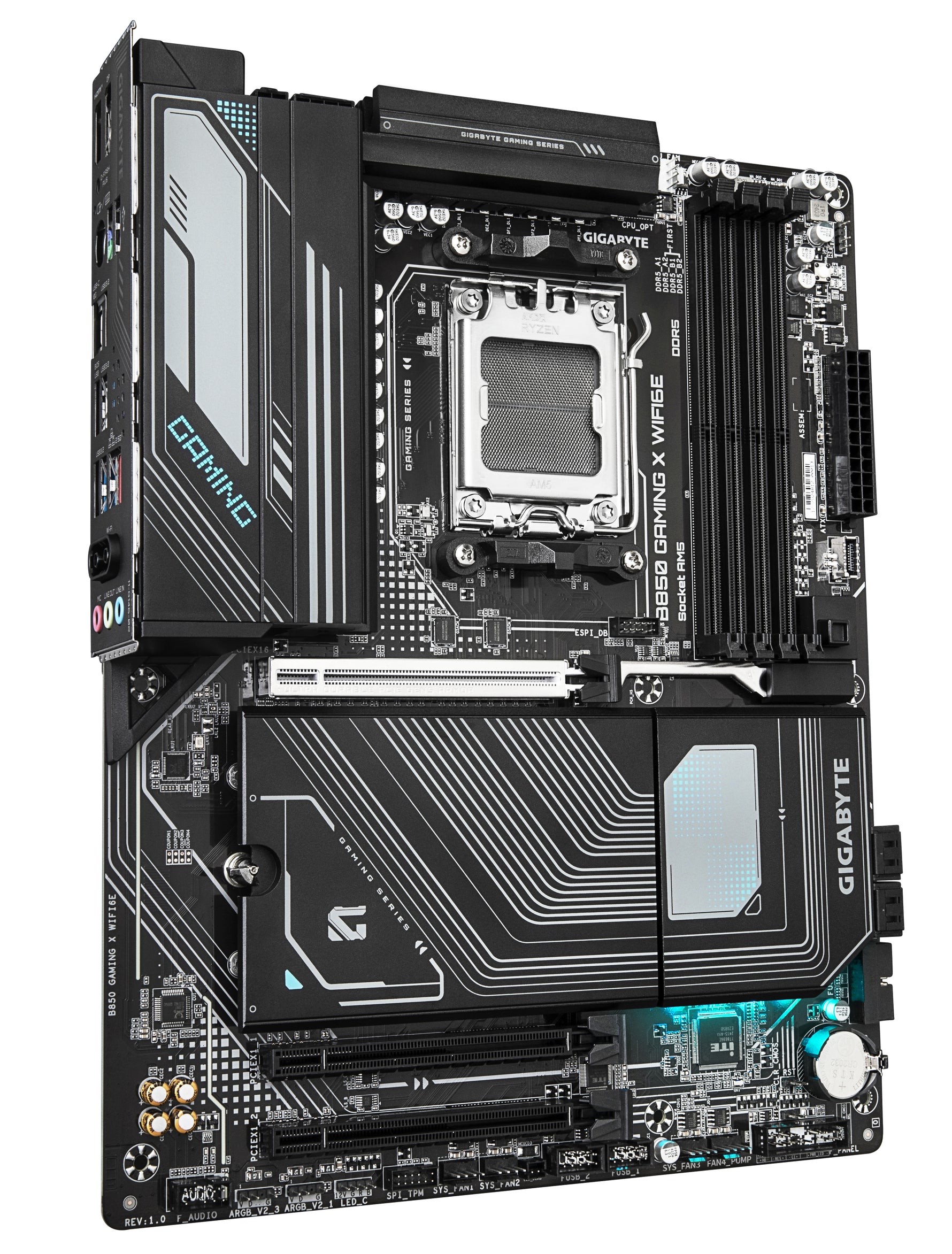

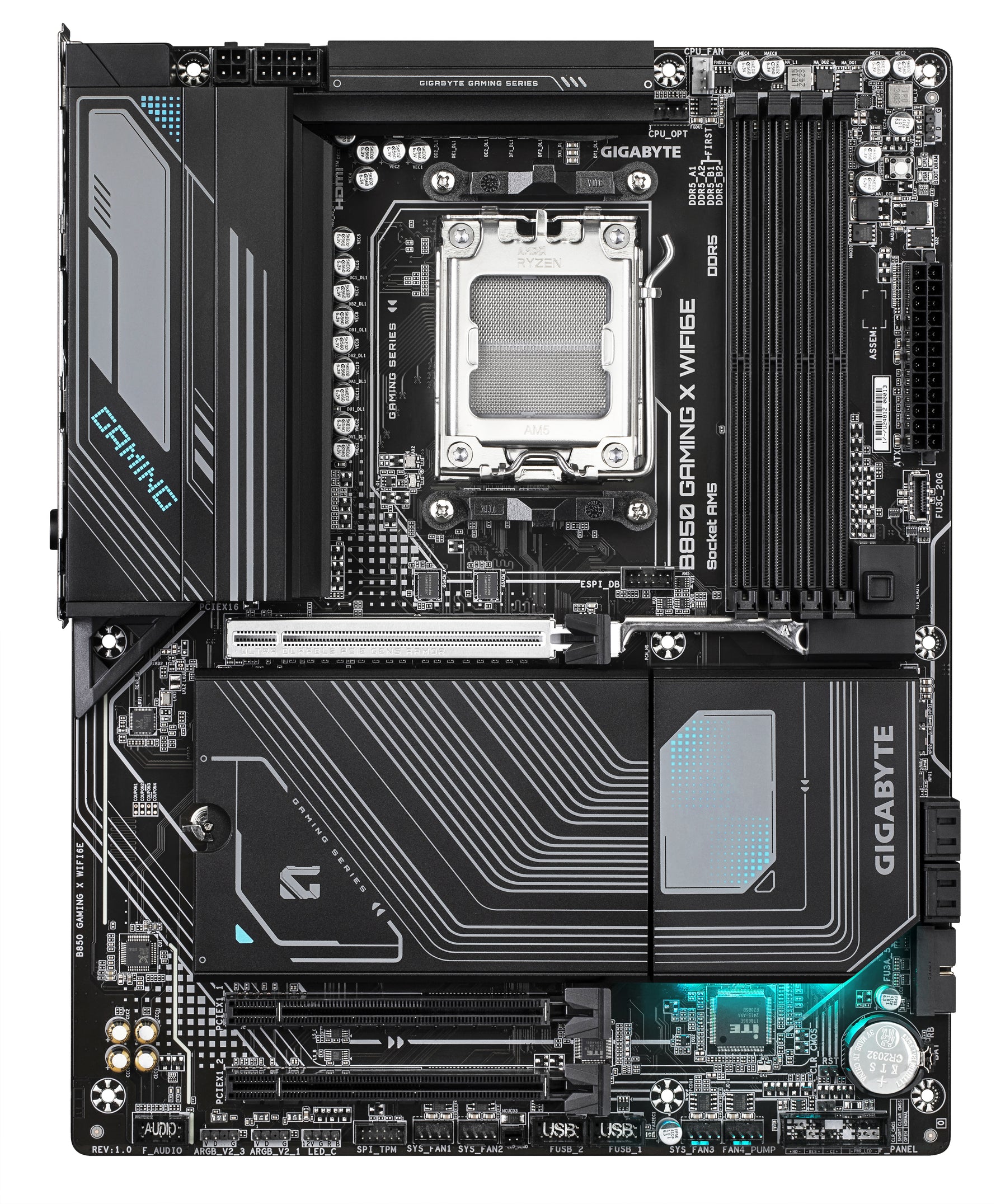

Gigabyte B850 Gaming X Wi-Fi 6E ATX Motherboard AM5 DDR5

The Gigabyte B850 Gaming X Wi-Fi 6E is an ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. Built on the AMD B850 chipset, it features three M.2 slots, PCIe 5.0 support, Realtek 2.5GbE LAN, Wi-Fi 6E, and Realtek HD audio, with EZ-Latch Plus for tool-free M.2 and PCIe installation.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

Key Features

• Socket AM5 — compatible with AMD Ryzen 9000, 8000 and 7000 Series processors
• AMD B850 chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, Non-ECC, up to 256GB, DDR5-8200 (OC), AMD EXPO and XMP support
• PCIe 5.0 x16 primary slot (CPU), plus 2 x PCIe 3.0 x1 chipset slots
• 3 x M.2 slots: 1 x PCIe Gen5 x4 (CPU), 1 x PCIe Gen4 x4 (CPU), 1 x PCIe Gen4 x4 (Chipset) — EZ-Latch Plus
• 4 x SATA 6Gb/s ports
• Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
• Wi-Fi 6E (802.11ax), 2.4/5/6GHz, 160MHz, Bluetooth 5.3 (Realtek RTL8852CE)
• Realtek 7.1 HD Audio

Product Overview

The B850 Gaming X Wi-Fi 6E is a value-oriented AM5 motherboard with a focus on ease of use. EZ-Latch Plus provides tool-free installation and removal for M.2 drives and PCIe cards. Three M.2 slots — including one PCIe Gen5 x4 from the CPU — cover most storage configurations, with NVMe RAID support including RAID 5 on Ryzen 9000. Wi-Fi 6E with 2.4/5/6GHz support and Realtek 2.5GbE LAN provide solid wired and wireless connectivity. The Q-Flash Plus button allows BIOS updates without a CPU or memory installed, and the 12+2+2 phase VRM design supports stable power delivery for demanding processors.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established UK suppliers and distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Compatible Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD B850
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, Non-ECC, Unbuffered (UDIMM); AMD EXPO and XMP support
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 256GB
• Memory Speed: Up to DDR5-8200 (OC) / DDR5-4800–5200 (JEDEC)
• PCIe Slots: 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 3.0 x1 (Chipset)
• M.2 Slots: M2A_CPU — PCIe Gen5 x4 (CPU, 25110/22110/2580/2280); M2B_CPU — PCIe Gen4 x4 (CPU, 25110/22110/2580/2280); M2C_SB — PCIe Gen4 x4 (Chipset, 25110/22110/2280) — EZ-Latch Plus
• SATA: 4 x SATA 6Gb/s
• RAID: NVMe — 0, 1, 5, 10 (RAID 5 requires Ryzen 9000); SATA — 0, 1, 10
• LAN: Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless: Wi-Fi 6E (802.11a/b/g/n/ac/ax), 2.4/5/6GHz, 160MHz (Realtek RTL8852CE)
• Bluetooth: 5.3
• Audio: Realtek 7.1 HD Audio, S/PDIF-Out (Optical)
• Onboard Graphics Output: 1 x HDMI 2.1 (max 4096x2160@60Hz, HDCP 2.3); 1 x DisplayPort 1.4 (max 3840x2160@144Hz) — requires CPU with integrated graphics

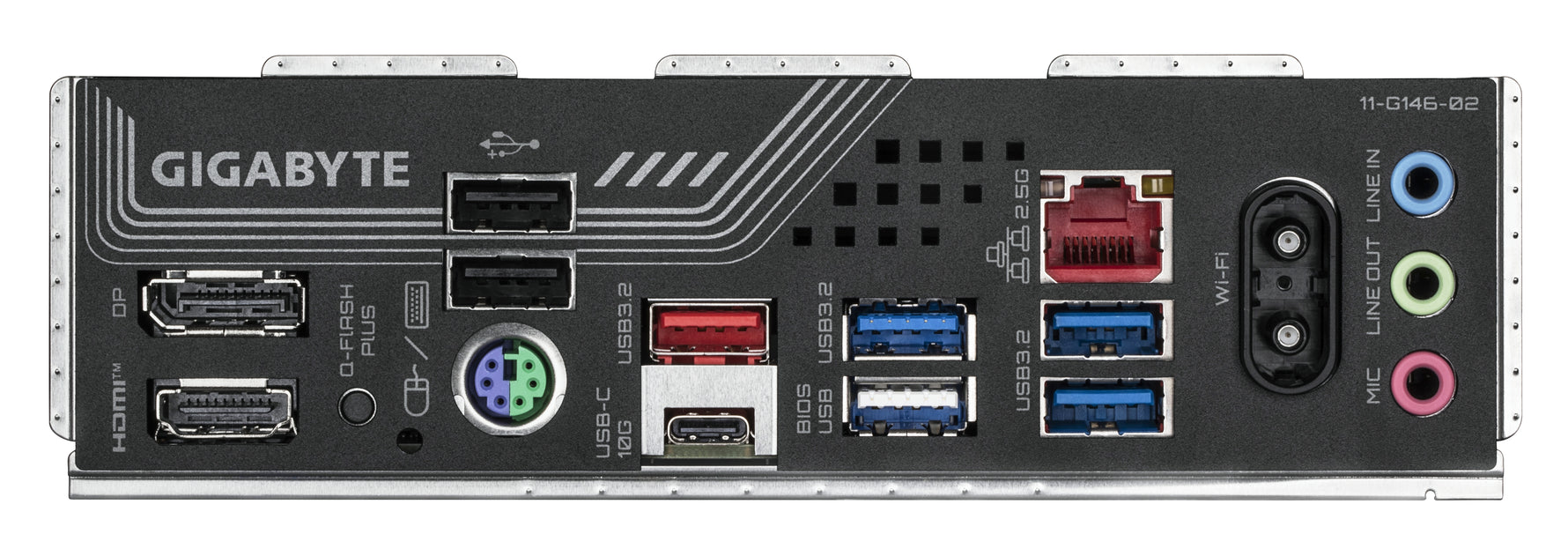

• Rear I/O: 1 x PS/2, 3 x USB 2.0, 3 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen2 Type-A (red), 1 x USB 3.2 Gen2 Type-C, 1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x RJ-45, 3 x Audio jacks, Q-Flash Plus button, 2 x Wi-Fi antenna connectors
• Internal Headers: 4 x USB 2.0, 1 x USB 3.2 Gen1, 1 x USB 3.2 Gen2x2 Type-C, 3 x ARGB Gen2, 1 x RGB LED, 3 x System Fan, 1 x System Fan/Water Pump, 1 x CPU Fan, 1 x CPU Fan/Water Pump, 1 x Front Panel, 1 x Front Panel Audio, 1 x TPM 2.0, 1 x Clear CMOS jumper, 1 x Reset jumper
• Power Connectors: 1 x 24-pin ATX, 1 x 8-pin EPS, 1 x 4-pin ATX
• BIOS: 256Mbit Flash, AMI UEFI BIOS, Q-Flash Plus
• Gross Weight: 2.09 kg
• Package Dimensions: 33.5 x 28 x 8 cm
• Warranty: 3 Years Gigabyte Manufacturer Warranty
• Package Contents: Motherboard, 1 x Wi-Fi antenna, 2 x SATA cables, 1 x G Connector, 3 x M.2 rubber pad packs, Quick installation guide, Manual

Product Identification

Model: B850 Gaming X Wi-Fi 6E
MPN: B850 GAMING X WIFI6E
EAN: 4719331866457
UPC: 889523046135
