Gigabyte B850 Aorus Elite Wi-Fi 7 ATX Motherboard AM5 DDR5

The Gigabyte B850 Aorus Elite Wi-Fi 7 is an ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. Built on the AMD B850 chipset, it features three M.2 slots, PCIe 5.0 support, Realtek 2.5GbE LAN, Wi-Fi 7, and Realtek ALC897 audio, with EZ-Latch Plus for tool-free M.2 and PCIe installation.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Socket AM5 - compatible with AMD Ryzen 9000, 8000 and 7000 Series processors
• AMD B850 chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, up to 256GB, DDR5-8200 (OC), AMD EXPO support
• 1 x PCIe 5.0 x16 and 2 x PCIe 4.0 x16 (x1 bandwidth) expansion slots
• 3 x M.2 slots: 1 x PCIe Gen5 x4, 2 x PCIe Gen4 x4 - EZ-Latch Plus screwless design
• 4 x SATA 6Gb/s ports with RAID 0, 1, 10 support
• Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, with Bluetooth 5.4
• Realtek ALC897 7.1 HD Audio

Product Overview

The B850 Aorus Elite Wi-Fi 7 is a well-specified AM5 motherboard with a focus on ease of use and connectivity. EZ-Latch Plus provides tool-free installation and removal for M.2 drives and PCIe cards, and EZ-Latch Click covers M.2 heatsinks with a screwless design. Three M.2 slots, including one PCIe Gen5 x4, cover most storage configurations. Wi-Fi 7 with a directional ultra-high gain antenna and Realtek 2.5GbE LAN provide fast wired and wireless connectivity. The Q-Flash Plus button allows BIOS updates without a CPU or memory installed, and the 14+2+2 phase VRM design supports stable power delivery for demanding processors.

Delivery and Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established distribution partners. Orders are processed within 1-2 business days and delivered within 3-5 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery - processed in 1-2 business days, delivered in 3-5 business days
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Compatible Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD B850
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, up to 256GB, AMD EXPO support
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 256GB
• Memory Speed: Up to DDR5-8200 (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16 (x1 bandwidth)
• M.2 Slots: 1 x PCIe Gen5 x4 (22-80/110), 2 x PCIe Gen4 x4 (22-80/110) - EZ-Latch Plus
• SATA: 4 x SATA 6Gb/s
• RAID: 0, 1, 10
• LAN: Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz
• Bluetooth: 5.4
• Audio: Realtek ALC897 7.1 HD Audio, S/PDIF-Out (Optical)

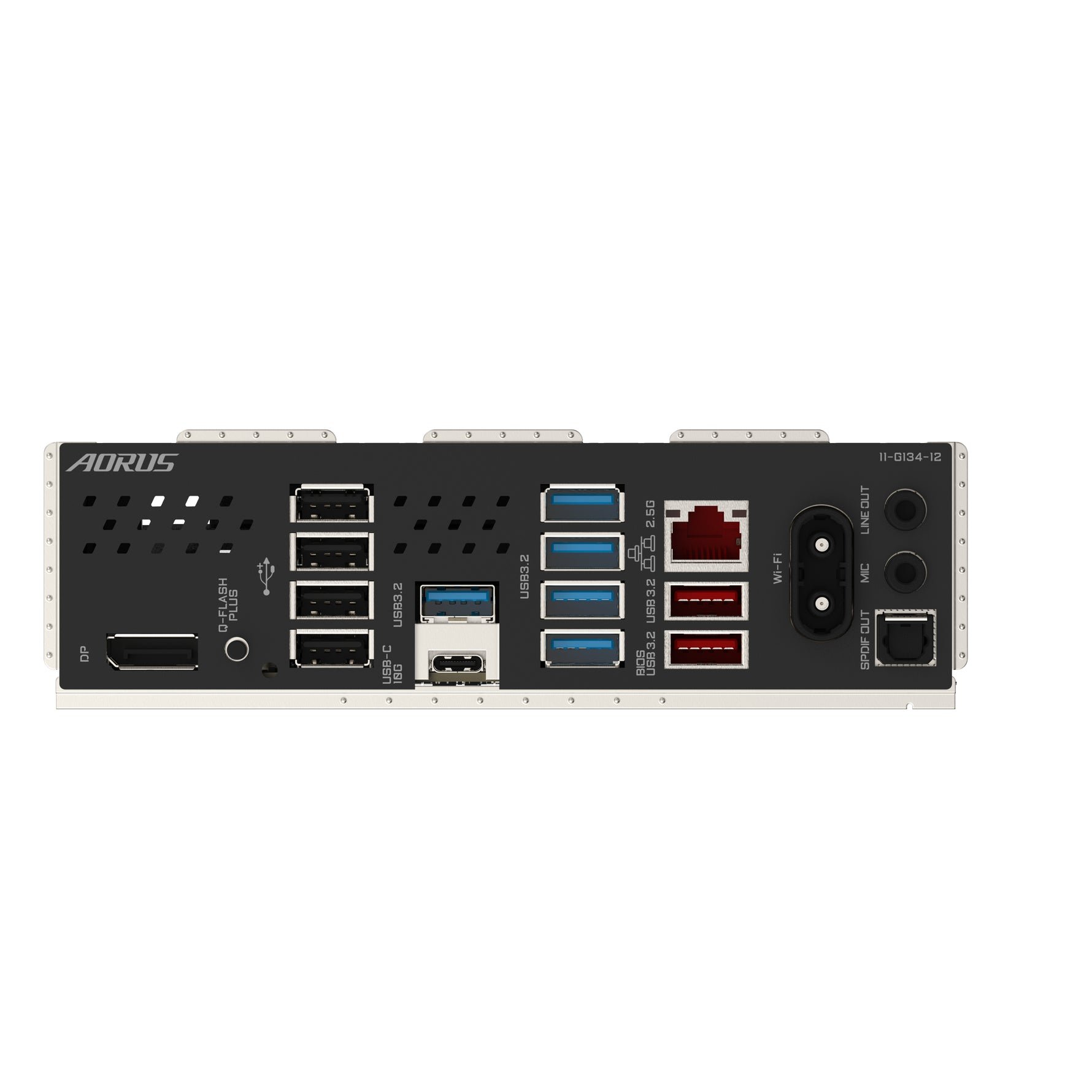

• Rear I/O: 4 x USB 2.0, 5 x USB 3.2 Gen1 Type-A, 2 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 1 x DisplayPort 1.4, 1 x HDMI 1.4, 1 x RJ-45, 2 x Audio I/O, 1 x S/PDIF-Out (Optical), Q-Flash Plus button, 2 x Wi-Fi antenna connectors
• Internal Headers: 2 x USB 2.0, 1 x USB 3.2 Gen1, 1 x USB 3.2 Gen2x2, 3 x ARGB Gen2, 1 x RGB LED, 3 x System Fan, 1 x System Fan/Water Pump, 1 x CPU Fan, 1 x CPU Water Pump/Fan, 1 x Front Panel Audio, 1 x TPM, 1 x Clear CMOS jumper, 1 x Power button, 1 x Reset button
• Power Connectors: 1 x 24-pin ATX, 1 x 8-pin EPS, 1 x 4-pin ATX
• BIOS: 256Mbit Flash, AMI UEFI BIOS, Q-Flash Plus
• Gross Weight: 2.19 kg
• Package Dimensions: 34 x 27.5 x 8 cm
• Warranty: 3 Years Gigabyte Manufacturer Warranty

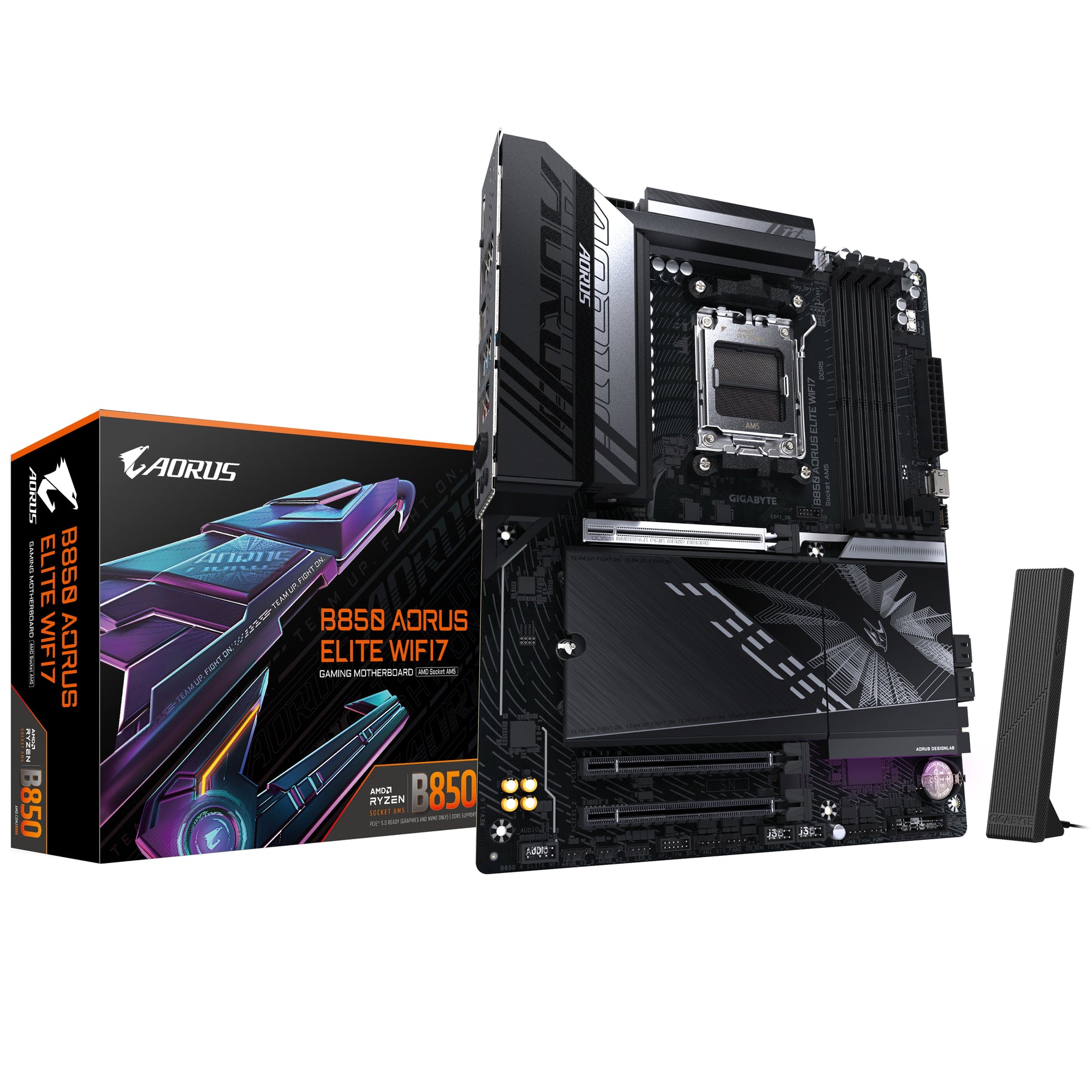

• Package Contents: Motherboard, 1 x Wi-Fi antenna, 2 x SATA cables, 1 x G Connector, 1 x M.2 thermal pad, 2 x M.2 rubber pad packs, Quick installation guide, Manual

Product Identification

Model: B850 AORUS ELITE WIFI7
MPN: B850 AORUS ELITE WIFI7
EAN: 4719331866105
UPC: 889523046067
