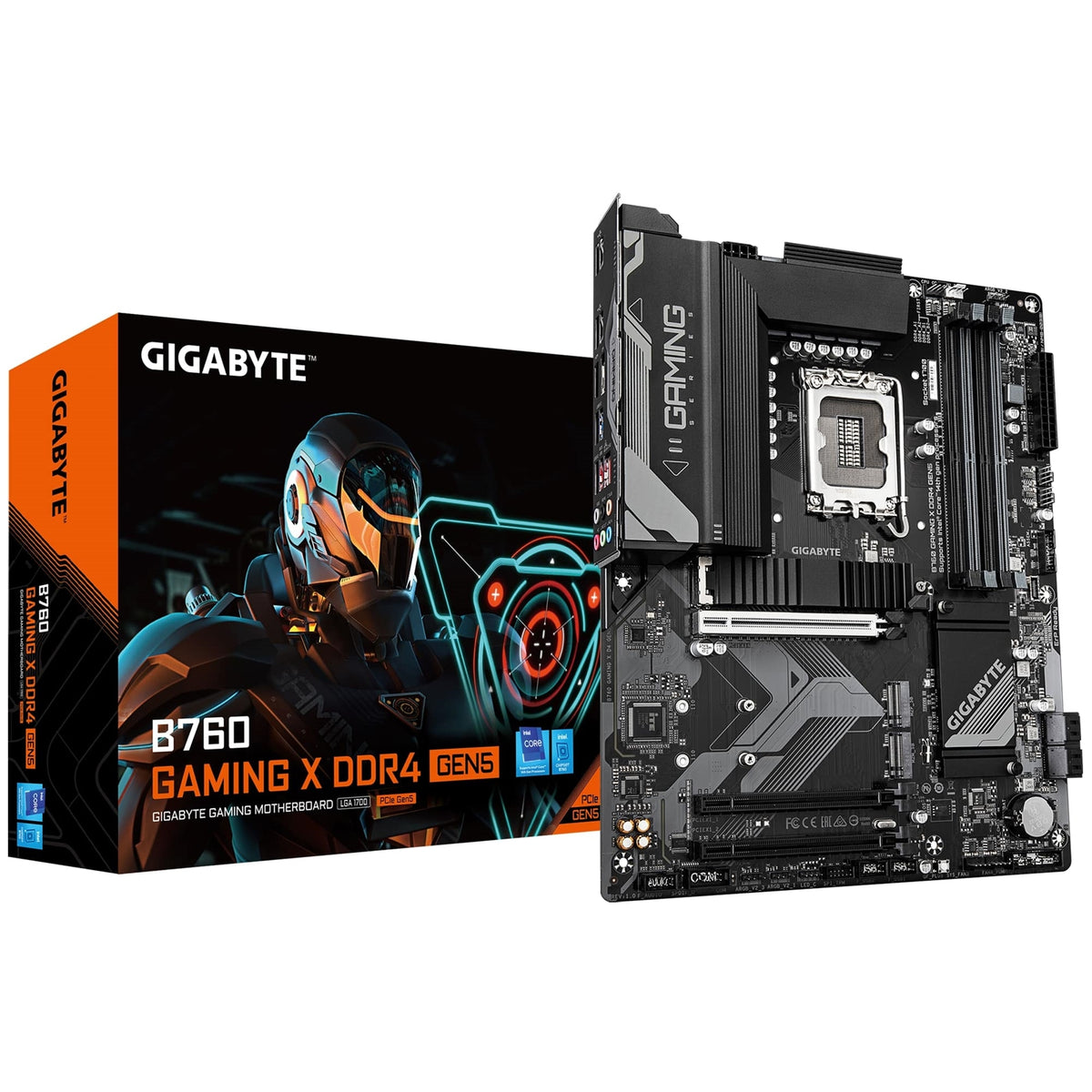

Gigabyte B760 GAMING X DDR4 GEN5 Intel 1700 Socket Motherboard
ATX
4x DDR4 Slots
3x M.2 Sockets

Gigabyte

Gigabyte B760 GAMING X DDR4 GEN5 LGA1700 ATX Motherboard

SKU: TF-MBGIG-B760GM45
Barcode: 4719331873448

£122.99 Inc. VAT

In stock

Free tracked UK delivery · 3–5 working days
Optional express delivery £3.25 at checkout.

Delivery

14-day change-of-mind returns

View returns policy

Need help choosing? Ask TechFinder UK
Gigabyte B760 GAMING X DDR4 GEN5 LGA1700 ATX Motherboard

£122.99 Inc. VAT

£122.99 Inc. VAT

The Gigabyte B760 GAMING X DDR4 GEN5 is a desktop motherboard for LGA1700 processors, with DDR4 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model Gigabyte B760 GAMING X DDR4 GEN5
Chipset Intel B760 Express Chipset
CPU socket LGA1700
Supported processors LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

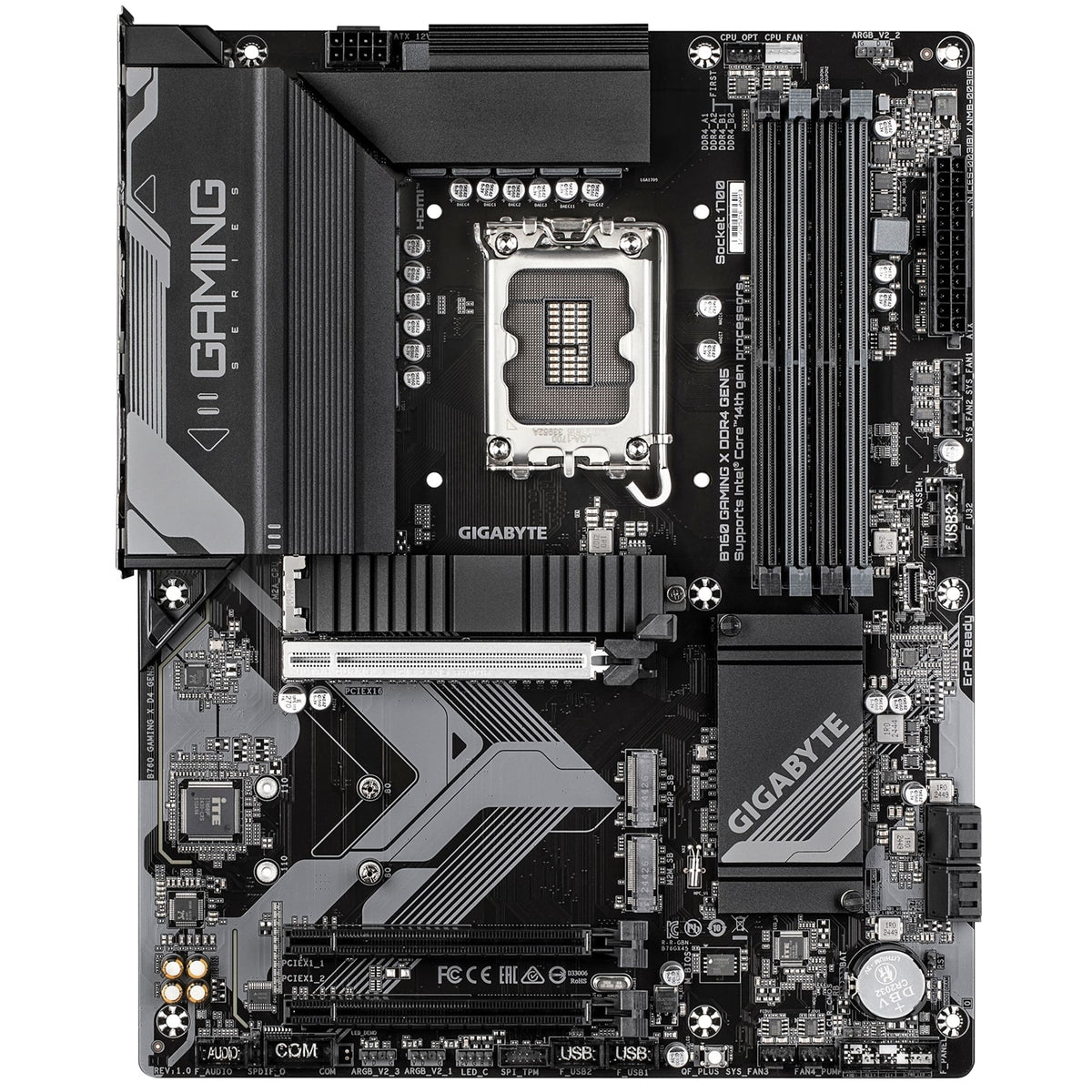

Form factor / dimensions ATX Form Factor; 30.5cm x 24.4cm

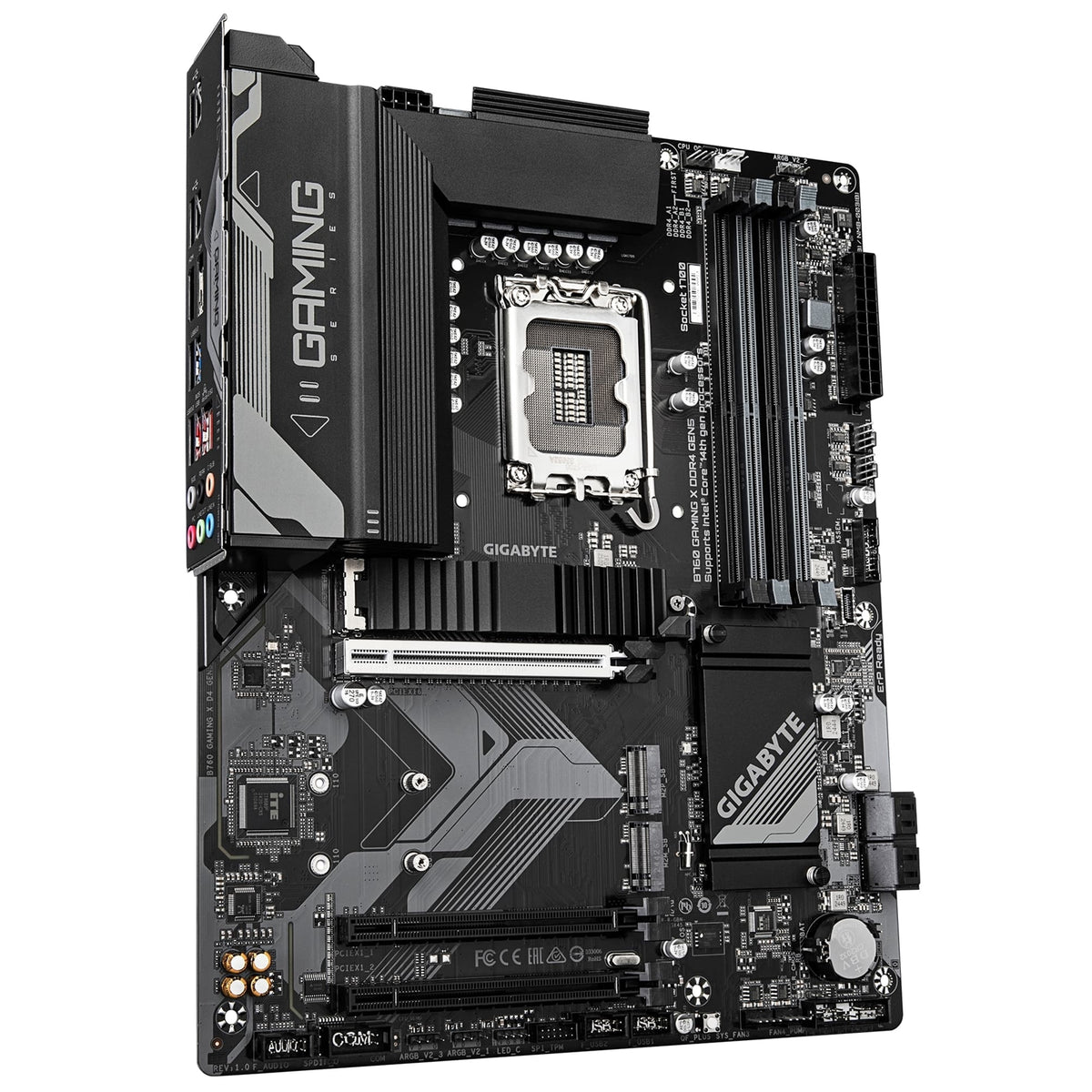

Memory

Memory slots 4 × DDR4 DIMM; dual channel
Maximum capacity 128 GB
Memory data rate Up to DDR4-5333 (OC); depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles Intel XMP

Expansion & Storage

Expansion slots CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage connections CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Network & Audio

Ethernet Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wi-Fi / Bluetooth No onboard wireless module listed by the manufacturer. Any optional Wi-Fi module, antennas and Bluetooth functionality require separate compatible hardware.

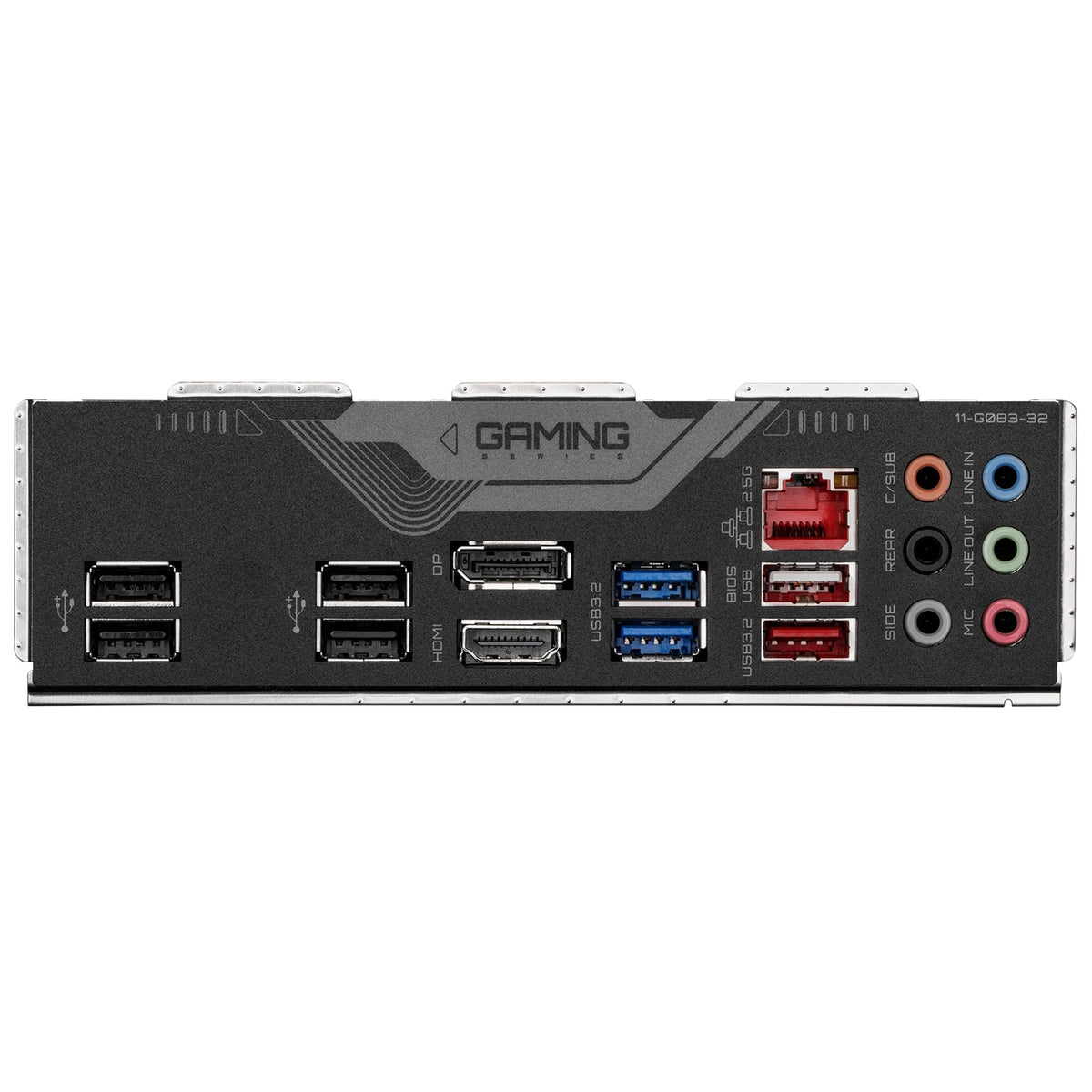

Rear Connections

Rear I/O 1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
Actual support may vary by CPU.

Internal Connections

Internal USB headers 1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Power connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Fan / pump headers 1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
Lighting headers 3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header

Compatibility Notes

CPU and BIOS Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.
Manufacturer restrictions 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Package & Identification

GTIN / EAN 4719331873448
