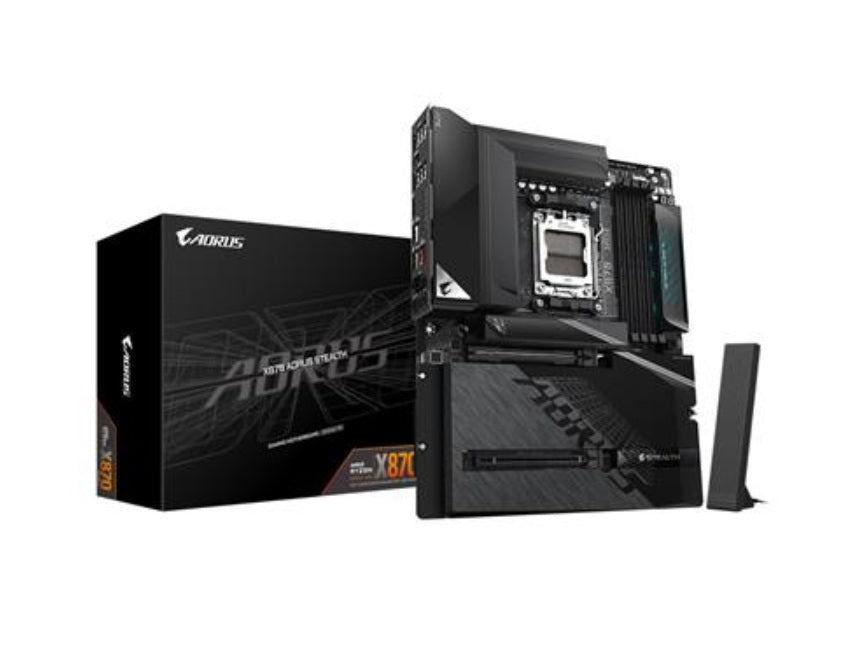

Gigabyte X870 AORUS STEALTH

(Socket AM5 / AMD X870 / DDR5 / SATA 6Gb/s / ATX)

• Manufacturer: Gigabyte

• Brand: AORUS

• Web Address: www.gigabyte.com

• Model Number: X870 AORUS STEALTH

• EAN: 4719331878801

• Package Type: Retail

• Warranty: 3 Years

BIOS

• 1 x 512 Mbit Flash

• Licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset

• Chipset: AMD X870

CPU Support

• CPU Interface: Socket AM5

• Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series

• CPU Support List:
  http://gigabyte.com/Motherboard/X870-AORUS-STEALTH/support#support-cpu

• Processor with integrated graphics required for video output

Memory

• Memory Technology: DDR5 (Dual Channel)

• Memory Slots: 4 x 288-pin DIMM

• Maximum Capacity: 256GB

• Memory Speeds: Up to DDR5 8200 (O.C.)

• AMD EXPO Support: Yes

Expansion Slots

• 1 x PCI Express 5.0 x16

• 1 x PCI Express 4.0 x16

Storage

• SATA 6Gb/s Ports: 2

• RAID Support: RAID 0 / 1

• M.2 Sockets:

  • 1 x PCIe Gen 5.0 x4

  • 2 x PCIe Gen 4.0 x4

Networking

Wired LAN

• Realtek 5GbE LAN (5Gbps / 2.5Gbps / 1Gbps / 100Mbps)

Wireless

• Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)

  • 2.4 / 5 / 6 GHz bands

• Bluetooth: v5.4

Audio

• Realtek ALC1220 CODEC

• 2 x Audio Jacks

• 1 x S/PDIF Output

Rear I/O Ports

USB

• 4 x USB 2.0

• 4 x USB 3.2 Gen 1 Type-A

• 2 x USB 3.2 Gen 2 Type-A

• 1 x USB 3.2 Gen 2 Type-C

• 2 x USB4 Type-C

Video

• 1 x HDMI

Networking

• 1 x LAN Port

• 2 x Antenna Connectors (2T2R)

Internal Connectors

Power

• 1 x 24-pin ATX

• 1 x 8-pin ATX

• 1 x 4-pin ATX

USB Headers

• 2 x USB 2.0

• 1 x USB 3.2 Gen 1

• 1 x USB 3.2 Gen 2x2

Other Headers

• 1 x Front Panel Audio

• 1 x TPM Header

• 3 x Addressable RGB Gen2 Headers

• 1 x RGB LED Header

• 1 x Noise Detection Header

• 2 x Temperature Sensor Headers

Internal Buttons

• 1 x Q-Flash Plus

• 1 x Power

• 1 x Reset

Form Factor & Dimensions

• Form Factor: Standard ATX

• Board Size: 244mm x 305mm

Package Dimensions

• Width: 27cm

• Length: 33cm

• Height: 8cm

Weight

• Net Weight: 2.42Kg

• Gross Weight: 4.42Kg

Special Features

• X3D Turbo Mode for enhanced gaming performance

• Digital Twin 16+2+2 Phase VRM

• DDR5 OC up to 8200MT/s

• DriverBIOS with Wi-Fi driver pre-install

• EZ-Latch Plus (tool-less PCIe & M.2 design)

• EZ-Latch Click (screwless M.2 heatsinks)

• M.2 EZ-Flex patented baseplate

• VRM Thermal Armor Advanced

• M.2 Thermal Guard L & Ext

• PCIe UD Slot (10X strength PCIe 5.0 slot)

• UD Base Plate for improved protection and heat dissipation

• Dual USB4 Type-C with DP-Alt

• 5GbE LAN & Wi-Fi 7

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 1 x Antenna

• 2 x SATA Cables

• 1 x G Connector

• Three Packs of M.2 Thick/Thin Rubber Pads
