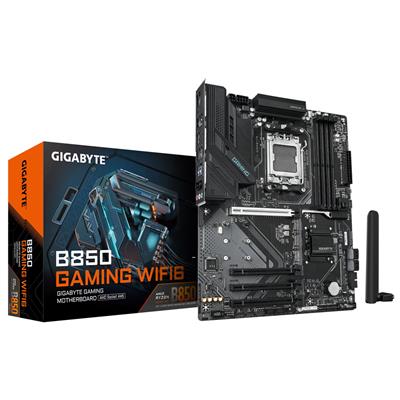

Gigabyte B850 GAMING WF6 (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Brand: Gigabyte

General Information

• Model Number: B850 GAMING WF6

• EAN: 4719331866631

• UPC: 889523046227

• Warranty: 3 Years

• Package Type: Retail

• Form Factor: Standard ATX

BIOS

• BIOS:

  • 1 x 256 Mbit flash

  • Use of licensed AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Processor

• CPU Interface: Socket AM5

• Chipset: AMD B850

• CPU Support: https://www.gigabyte.com/uk/Motherboard/B850-GAMING-WIFI6/support#support-cpu

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 x 288-pin

• RAM Speeds: Up to DDR5 8200 (O.C.)

• Max. Memory Support: 256GB

Expansion Slots

• PCI Express 3.0 x16: 3

• PCI Express 5.0 x16: 1

Storage

• S-ATA 6Gb/s Port(s): 4

• RAID: Raid 0/1/5/10

M.2 Socket(s)

• 1 x PCIe Gen 5.0 x4

• 2 x PCIe Gen 4.0 x4

Networking

• LAN Speed: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

• Wireless NIC: Wi-Fi 6

Wireless Technology

• WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

• Bluetooth: v5.3

Audio & Graphics

• On-Board Audio:

  • Realtek Audio CODEC

  • High Definition Audio

  • 2/4/5.1/7.1-channel

• On-Board Video: Processor with integrated graphics is required

Rear I/O Ports

• PS/2 Keyboard/Mouse Port: 1

• USB 2.0 Port(s): 4

• USB 3.2 Port(s) Type-A Gen 1: 2

• USB 3.2 Port(s) Type-A Gen 2: 2

• HDMI Port(s): 1

• DisplayPort(s): 1

• LAN Port(s): 1

• Audio Jack(s): 3

• Other Port(s): 2 x Antenna connectors (2T2R)

Back Button(s)

• 1 x Q-Flash Plus

Internal Connectors

• 24-pin ATX Power: 1

• 8-pin ATX Power: 1

• 4-pin ATX Power: 1

• USB 2.0 Header(s): 2

• USB 3.2 Header(s) Gen 1: 2

• Front Panel Audio Connector: 1

• TPM Header(s): 1

Internal Other Port(s)

• 3 x Addressable RGB Gen2 LED strip headers

• 1 x RGB LED strip header

Physical Specifications

Product Dimensions

• Width: 244mm

• Length: 305mm

Package Dimensions

• Width: 27cm

• Length: 34cm

• Height: 8cm

• Gross Weight: 1.52Kg

Features

• X3D Turbo Mode: Unleash new era gaming performance

• DDR5 OC up to 8200MT/s

• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

• Digital 6+2+2 phases VRM solution

• Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

• PCIe EZ-Latch Plus: PCIe slots with Quick Release Design

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

• Ultra-Fast Storage: 3 x M.2 slots, including PCIe 5.0x4 slot

• Efficient Thermal: VRM Thermal Armor Advanced

• Fast Networking: GbE LAN and Wi-Fi 6 802.11ax

• Extended Connectivity: HDMI, Displayport

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 1 x Antenna

• 2 x SATA cables

• 1 x G Connector

• M.2 screws

• 5 One packs of M.2 thick/thin rubber pad
