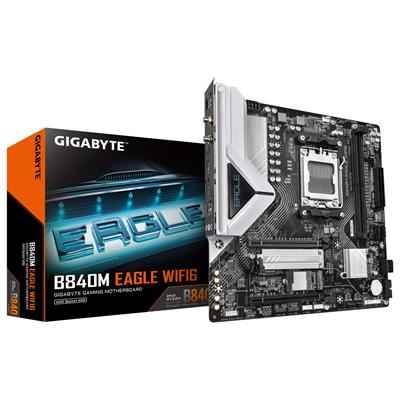

Gigabyte B840M EAGLE WIFI6 Motherboard (Socket AM5 / B840 / DDR5 / SATA 6Gb/s / Micro ATX)

Brand: Gigabyte
Model Number: B840M EAGLE WIFI6
EAN: 4719331868970
Web Address: www.gigabyte.com
Package Type: Retail
Warranty: 3 Years

General Information

• Chipset: AMD B840

• CPU Interface: Socket AM5

• CPU Support: https://www.gigabyte.com/Motherboard/B840M-EAGLE-WIFI6-rev-10-11/support#dl

• Form Factor: Micro ATX

BIOS

• 1 × 256 Mbit flash

• Licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 2 × 288-pin

• RAM Speeds: Up to DDR5 7600 (O.C.)

• Max. Memory Support: 128 GB

Expansion Slots

• 1 × PCI Express 4.0 x16

• 1 × PCI Express 3.0 x16

Storage

• 4 × SATA 6 Gb/s Ports

• RAID Support: 0 / 1 / 5 / 10

• M.2 Sockets:

  • 1 × PCIe Gen 4.0 x4

  • 1 × PCIe Gen 3.0 x4

Networking

• LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

• Wireless NIC: Wi-Fi 6

• Wireless Standards: 802.11a / b / g / n / ac / ax (2.4 / 5 GHz)

• Bluetooth: v5.3

Audio & Video

On-Board Audio

• Realtek Audio CODEC

• High Definition Audio

• 2 / 4 / 5.1 / 7.1-channel

On-Board Video

• Processor with integrated graphics required

Rear I/O Ports

• 1 × PS/2 Keyboard/Mouse Port

• 4 × USB 2.0

• 2 × USB 3.2 Type-A Gen 1

• 1 × HDMI

• 1 × DisplayPort

• 1 × LAN (RJ-45)

• 3 × Audio Jacks

• 2 × SMA Antenna Connectors (2T2R)

• 1 × Q-Flash Plus Button

Internal Connectors

• 1 × 24-pin ATX Power

• 1 × 8-pin ATX Power

• 2 × USB 2.0 Headers

• 1 × USB 3.2 Gen 1 Header

• 1 × Front Panel Audio Connector

• 1 × TPM Header

• 2 × Addressable RGB Gen2 LED Strip Headers

• 1 × RGB LED Strip Header

Physical Specifications

• Dimensions (W × L): 244 mm × 244 mm

• Net Weight: 1.23 kg

Packaging

• Package Dimensions (W × L × H): 26.8 cm × 27 cm × 6.8 cm

• Gross Weight: 1.30 kg

Features

• X3D Turbo Mode

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

• Digital 5+2+2 Phases VRM Solution

• Dual Channel DDR5 with AMD EXPO Support

• D5 Bionic Corsa

• EZ-Latch PCIe and M.2 Quick Release Design

• Screwless M.2 Heatsinks

• Multi-Theme BIOS UI with AIO Fan Control and Q-Flash Auto Scan

• 2 × M.2 Slots for Ultra-Fast Storage

• VRM Thermal Armor Advanced and M.2 Thermal Guard

• 2.5GbE LAN and Wi-Fi 6

• HDMI and DisplayPort Connectivity

• PCIe UD Slot with reinforced x16 slot

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 2 × Antennas

• 2 × SATA Cables

• M.2 Thick + Thin Rubber Pads Pack
