GIGABYTE

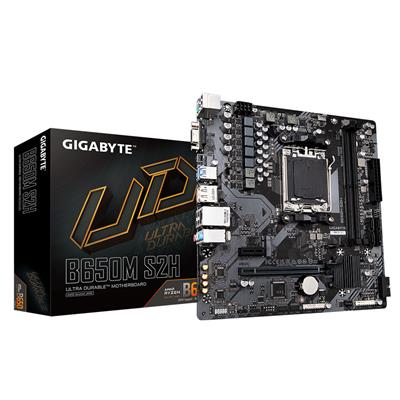

Gigabyte B650M S2H B650 AM5 M-ATX
£95.99
✔ UK-based seller
✔ Tracked delivery on all orders
✔ Genuine products
✔ Fast dispatch within 1–2 business days
Your transaction is protected with advanced security measures to keep your information confidential
Estimated delivery between June 21 and June 23.
Delivery Information
Processing Time
Orders are typically processed and dispatched within 1–2 business days (Monday–Friday).
Orders placed after 3:00 PM (UK time) will be processed the next business day.
Delivery Time
Estimated delivery time within the United Kingdom is 3–5 business days after dispatch.
Delivery times are estimates and may vary depending on courier delays, location, or peak periods.
£95.99
£95.99
Gigabyte B650M S2H (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
| Web Address | www.gigabyte.com |
| Model Number | B650M S2H |
| EAN | 4719331856298 |
| Package Type | Retail |
| Warranty | 3 Years |
Chipset & CPU
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B650 |
| CPU Interface | Socket AM5 |
| CPU Support | https://www.gigabyte.com/Motherboard/B650M-S2H-rev-10/support#support-cpu |
Memory
| RAM Technology | DDR5 (Dual Channel) |
| RAM Slots | 2 x 288-pin |
| RAM Speeds | Up to DDR5 6400 (O.C.) |
| Max. Memory Support | 96GB |
Expansion Slots & Storage
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x1 | 1 |
| S-ATA 6Gb/s Port(s) | 4 |
| RAID | Raid 0/1/10 |
| M.2 Socket(s) | 1 x PCIe Gen 4.0 x4 |
Networking
| On-Board LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Audio & Video
| On-Board Audio |
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| On-Board Video | Processor with integrated graphics is required |
Back Panel I/O
| Back PS/2 Keyboard/Mouse Port | 1 |
| Back USB 2.0 Port(s) | 4 |
| Back USB 3.2 Port(s) Type-A Gen 1 | 2 |
| Back VGA Port(s) | 1 |
| Back HDMI Port(s) | 1 |
| Back DisplayPort(s) | 1 |
| Back LAN Port(s) | 1 |
| Back Audio Jack(s) | 3 |
Internal Connectors
| 24-pin ATX Power | 1 |
| 8-pin ATX Power | 1 |
| USB 2.0 Header(s) | 2 |
| USB 3.1 Header(s) Gen 1 | 1 |
| Front Panel Audio Connector | 1 |
| TPM Header(s) | 1 |
| Internal Other Port(s) |
1 x Addressable LED strip header 1 x RGB LED strip header |
Physical Details
| Form Factor | Micro ATX |
| Product Width | 225mm |
| Product Length | 230mm |
| Package Width | 26.5cm |
| Package Length | 37cm |
| Package Height | 5.5cm |
| Gross Weight | 0.84Kg |
Special Features
| Special Features |
AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors. Unparalleled Performance: 5+2+2 Phases Digital VRM Solution. Dual Channel DDR5: 2 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support. SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector. EZ-Latch: PCIe x16 Slot with Quick Release Design. Fast Networks: GbE LAN. Extended Connectivity: DP, HDMI, D-Sub. Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card. |
Package Contents
| Package Contents |
|
Keywords
| Keywords |
|
