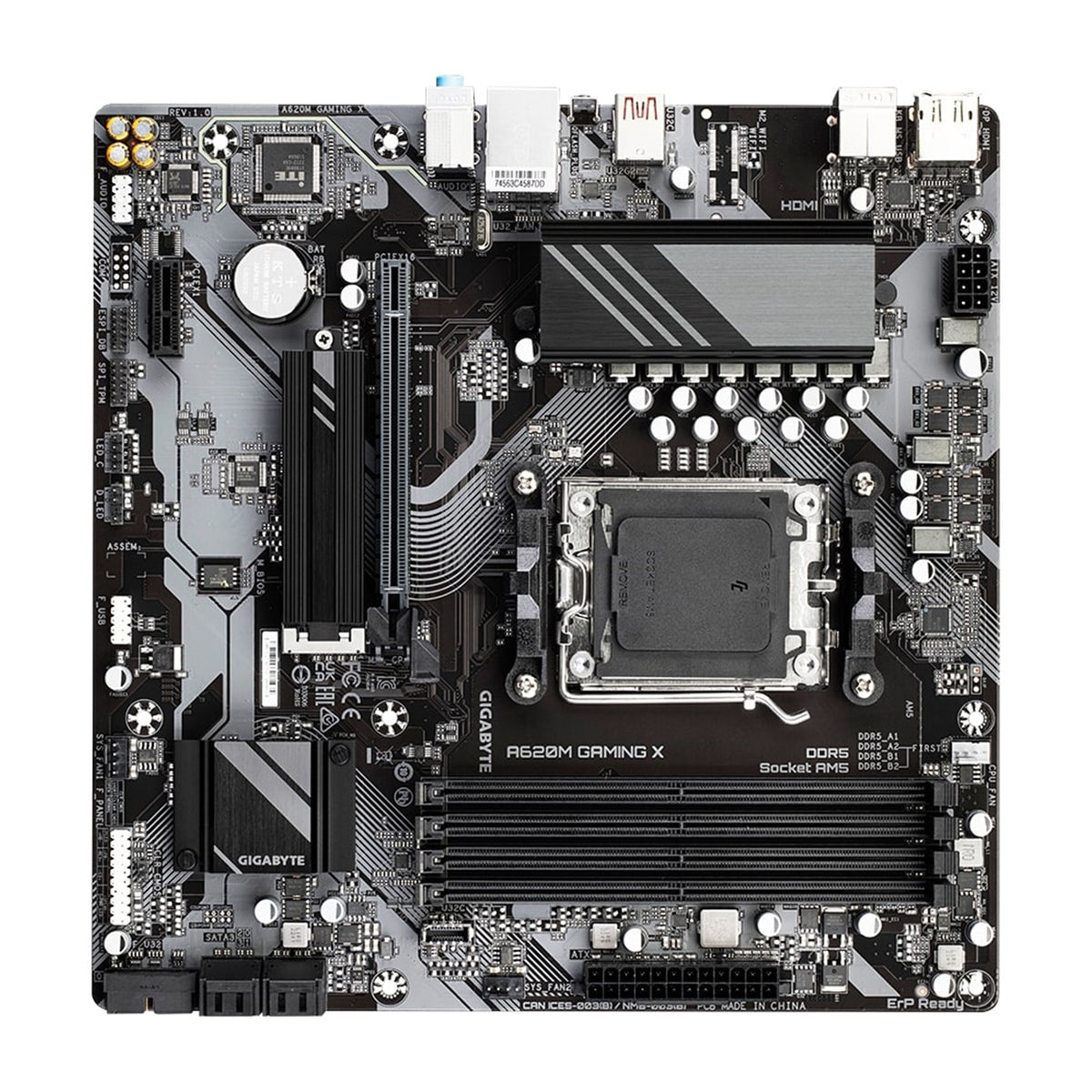

Name: Gigabyte A620M GAMING X AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port
Brand: Gigabyte
SKU: TF-MBGIG-A620GAMX
Price: 100.99 GBP
Availability: InStock

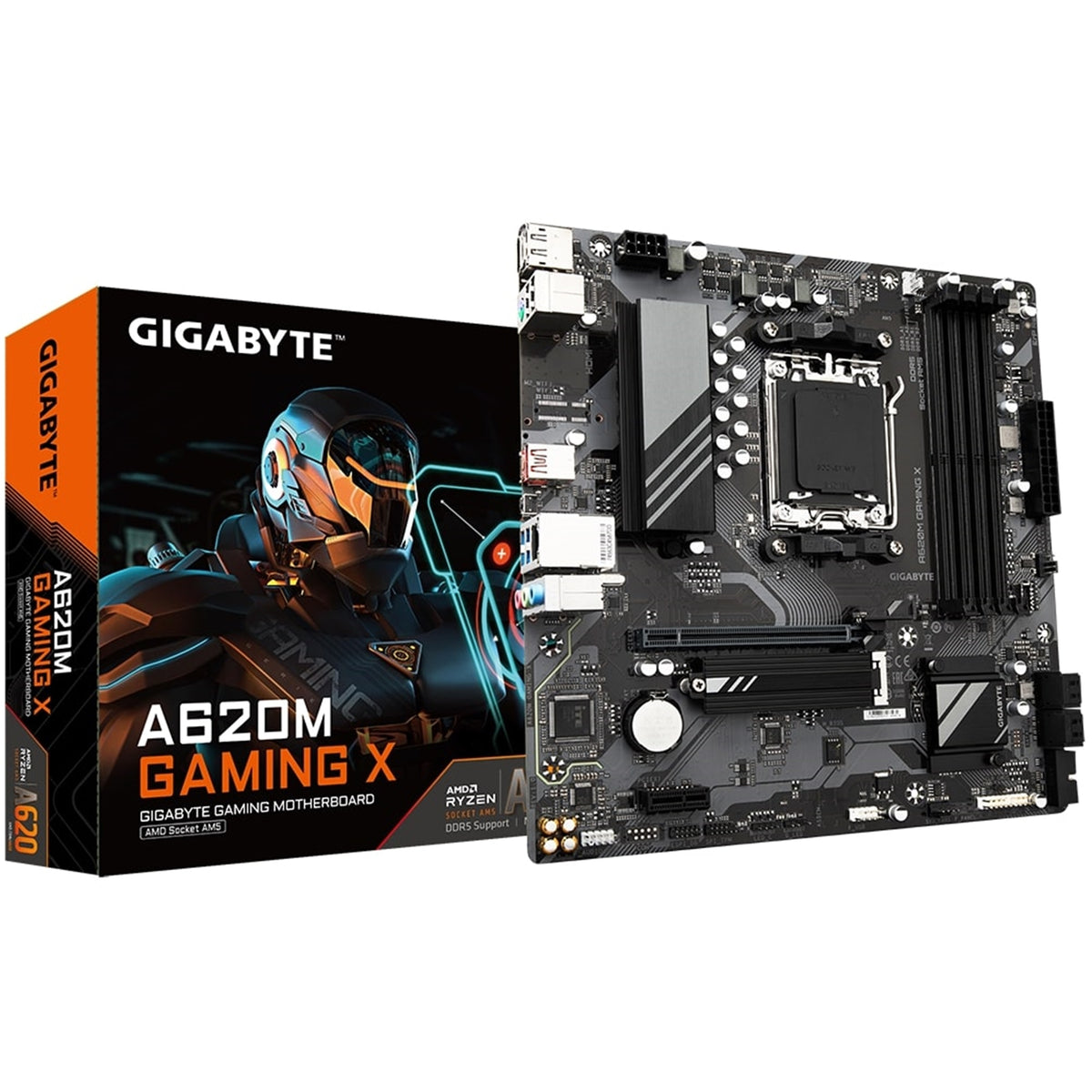

Gigabyte A620M GAMING X AMD AM5 Socket Motherboard

Gigabyte A620M GAMING X AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

£100.99 Inc. VAT

The Gigabyte A620M GAMING X is a Micro-ATX motherboard for AM5 processors, with DDR5 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model	Gigabyte A620M GAMING X
Chipset	AMD A620
CPU socket	AM5
Supported processors	AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

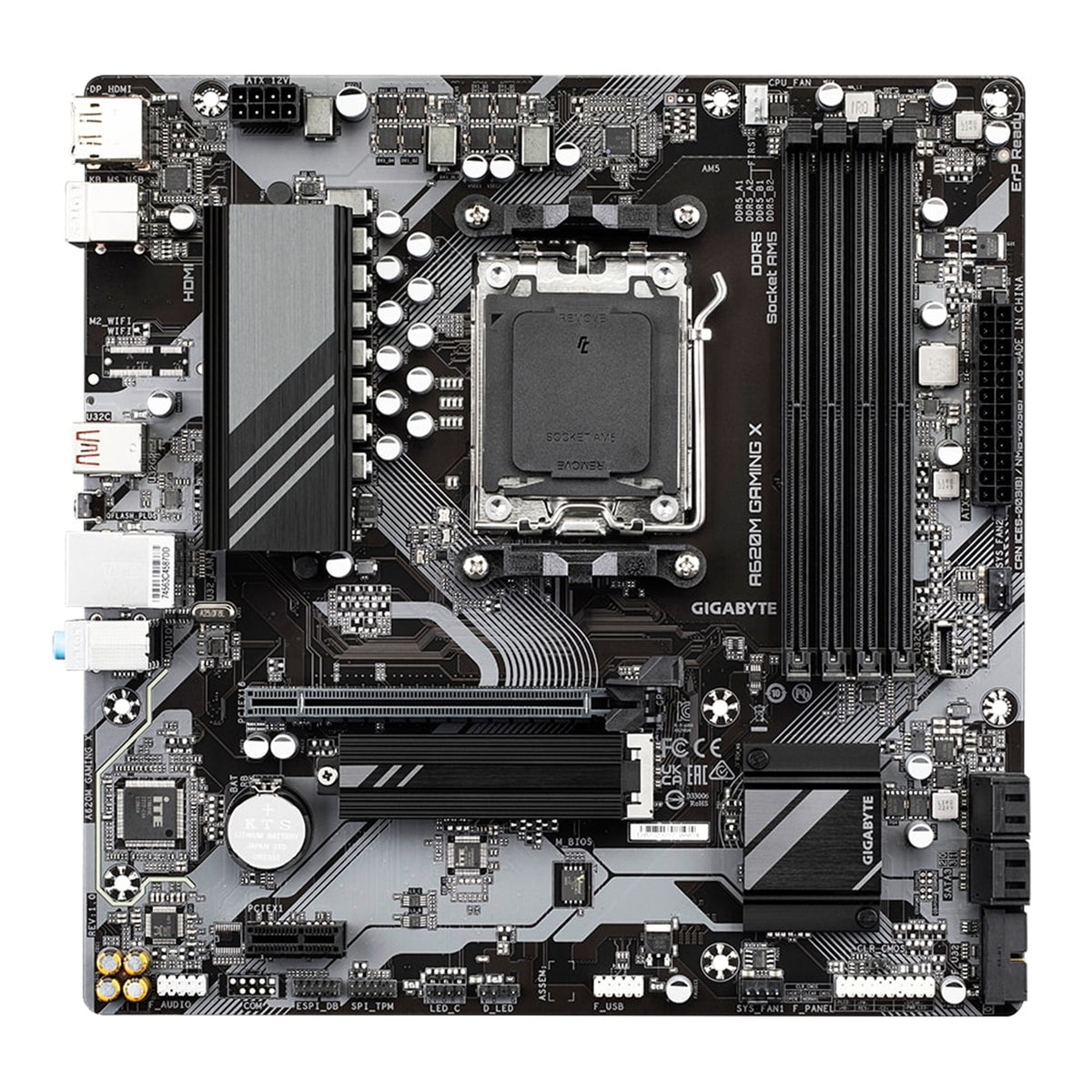

Form factor / dimensions	Micro ATX Form Factor; 24.4cm x 24.4cm

Memory

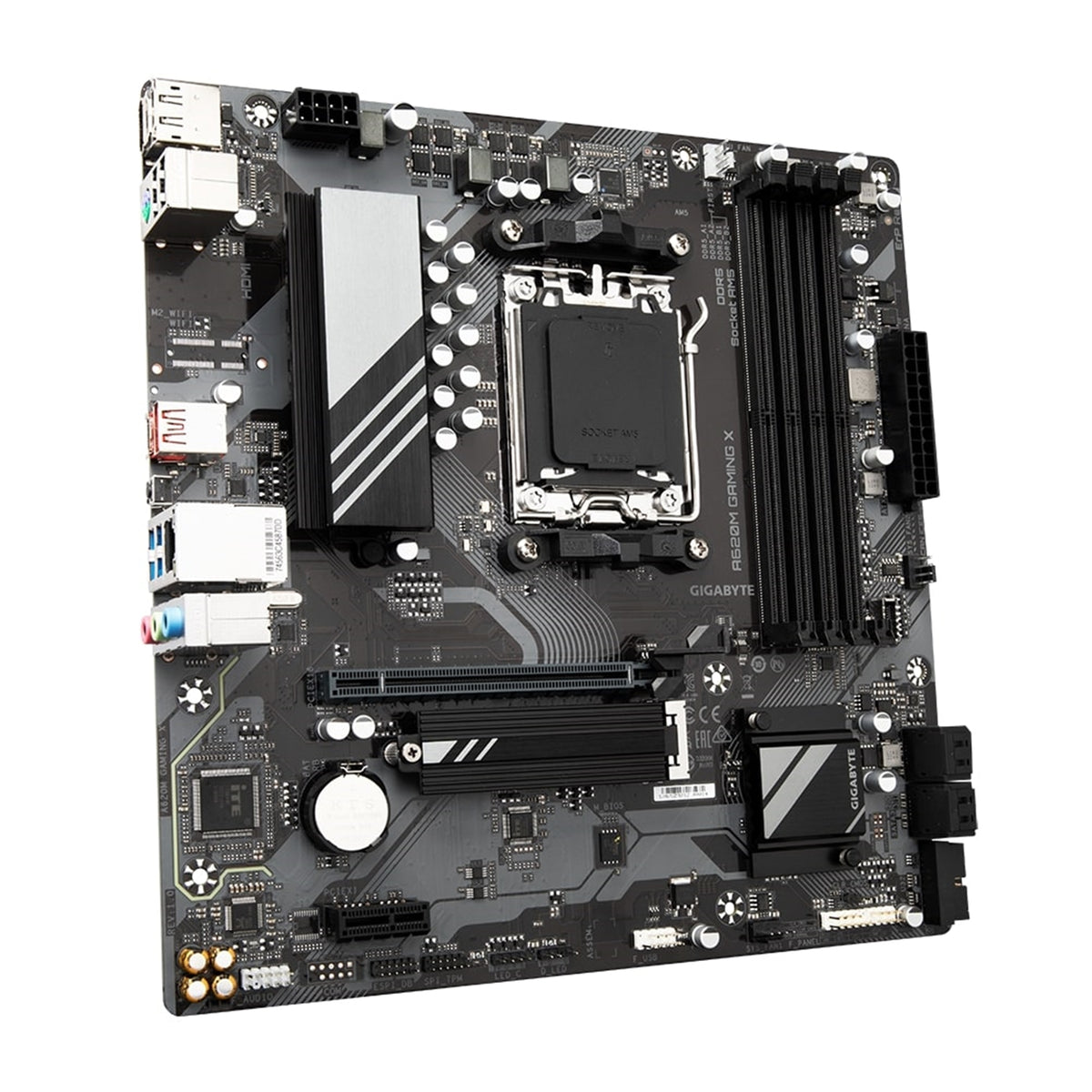

Memory slots	4 × DDR5 DIMM; dual channel
Maximum capacity	256 GB
Memory data rate	Up to DDR5-8000 (OC); depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles	AMD EXPO; Intel XMP

Expansion & Storage

Expansion slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage connections

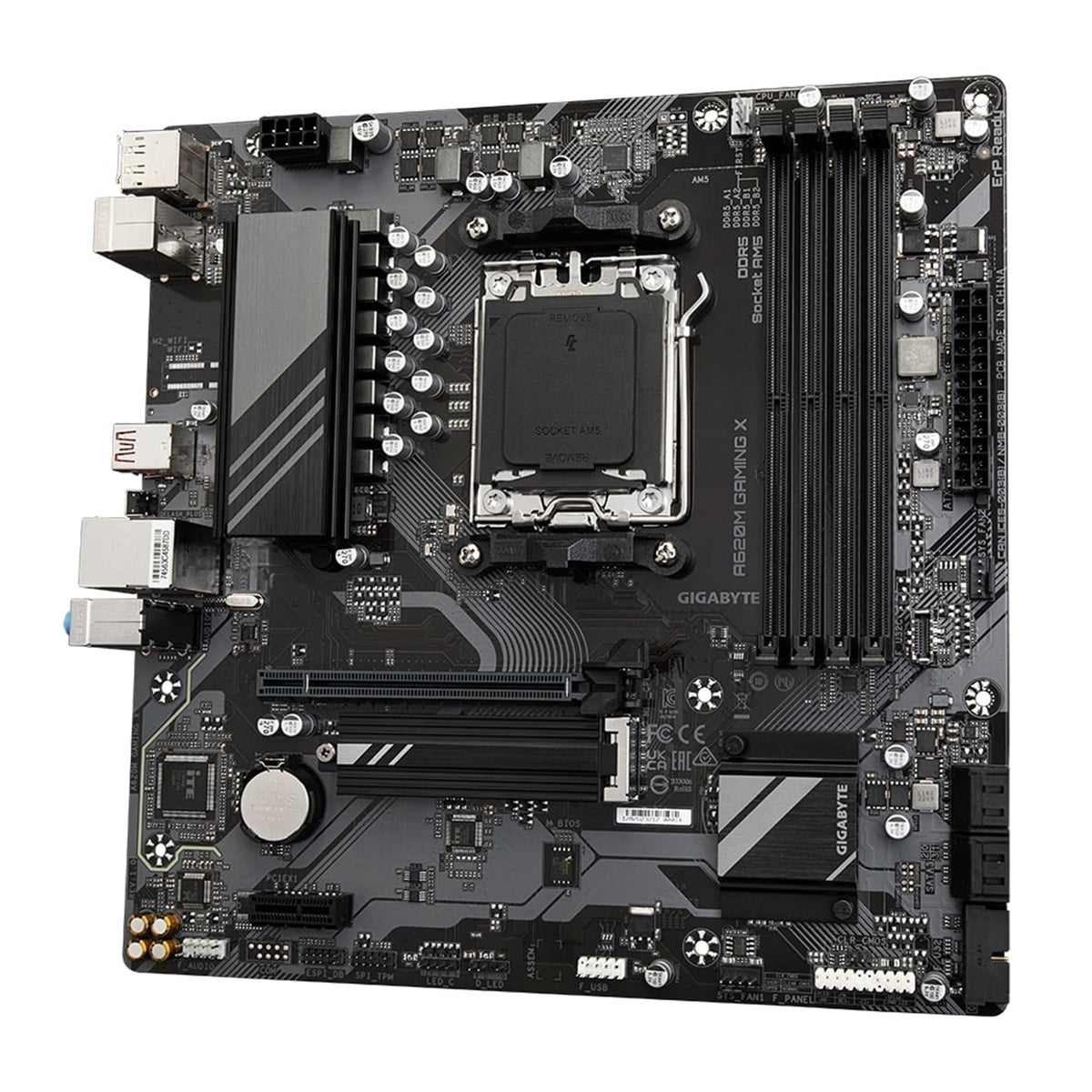

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Network & Audio

Ethernet	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Wi-Fi / Bluetooth	No onboard wireless module listed by the manufacturer. Any optional Wi-Fi module, antennas and Bluetooth functionality require separate compatible hardware.
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Rear Connections

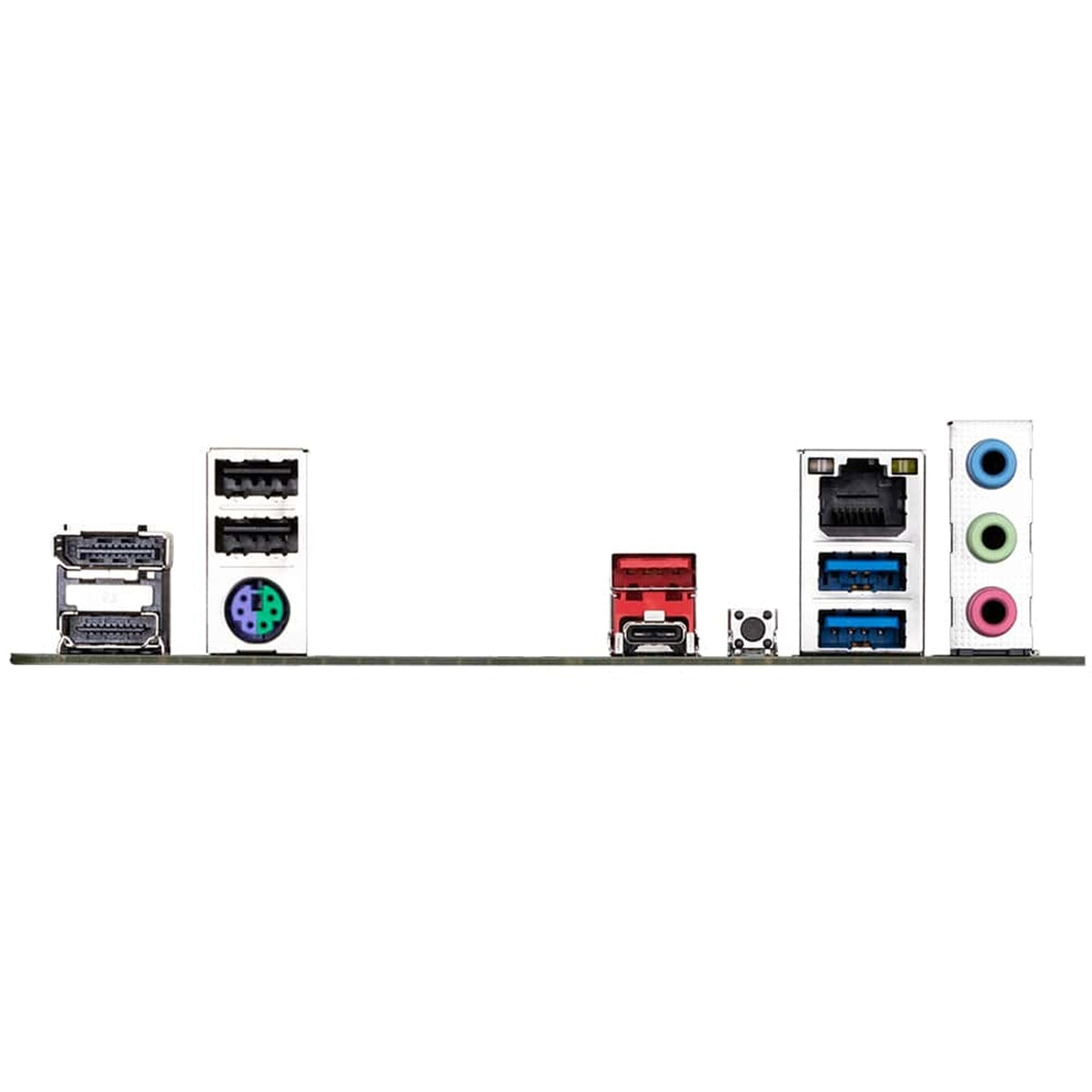

Rear I/O	1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks

Internal Connections

Internal USB headers	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Power connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Fan / pump headers	1 x CPU fan header 2 x system fan headers
Lighting headers	1 x addressable LED strip header 1 x RGB LED strip header

Compatibility Notes

CPU and BIOS	Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs	Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion	DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.
Manufacturer restrictions	The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Package & Identification

GTIN / EAN	4719331854096
