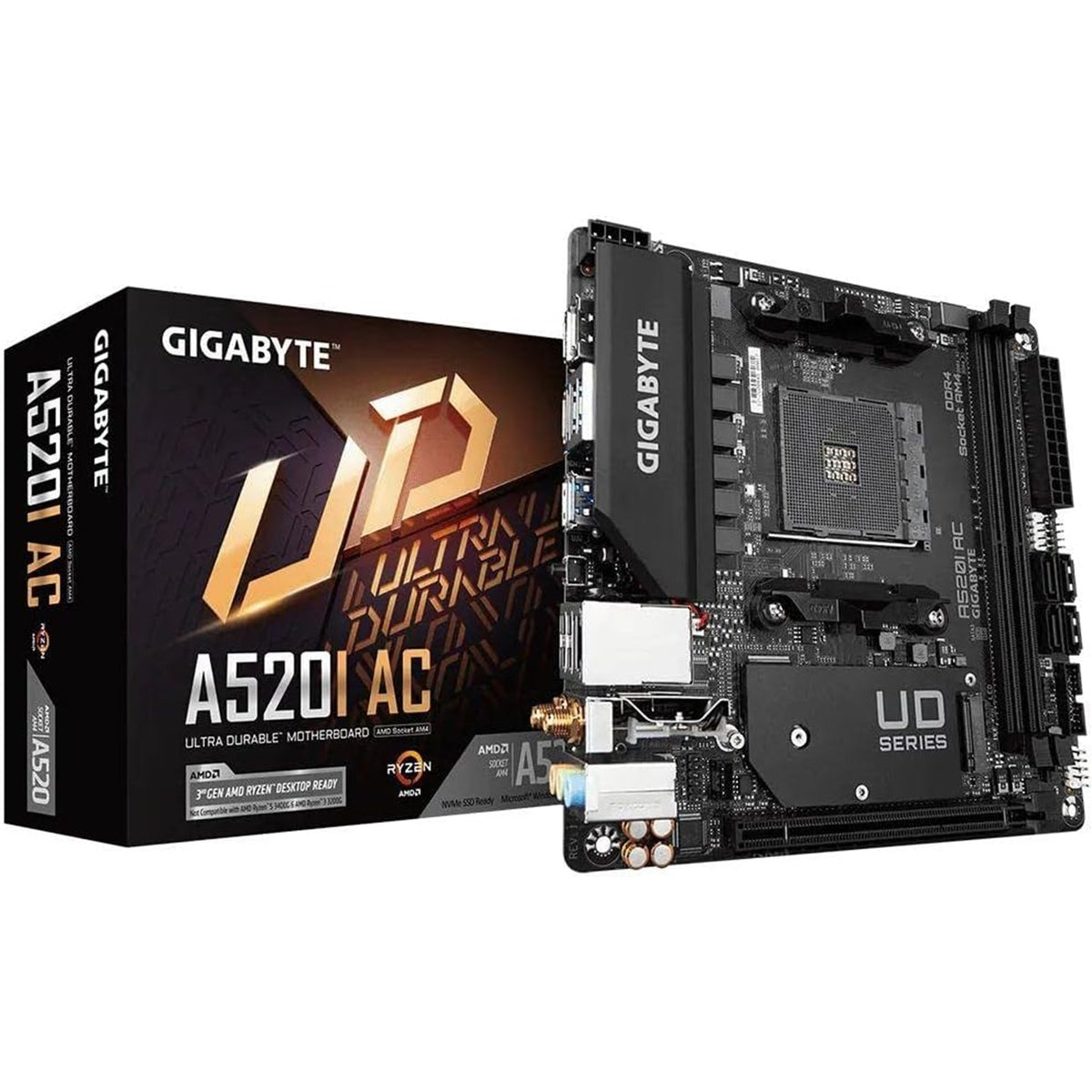

Gigabyte A520I AC Ultra Durable AMD AM4 Socket Motherboard

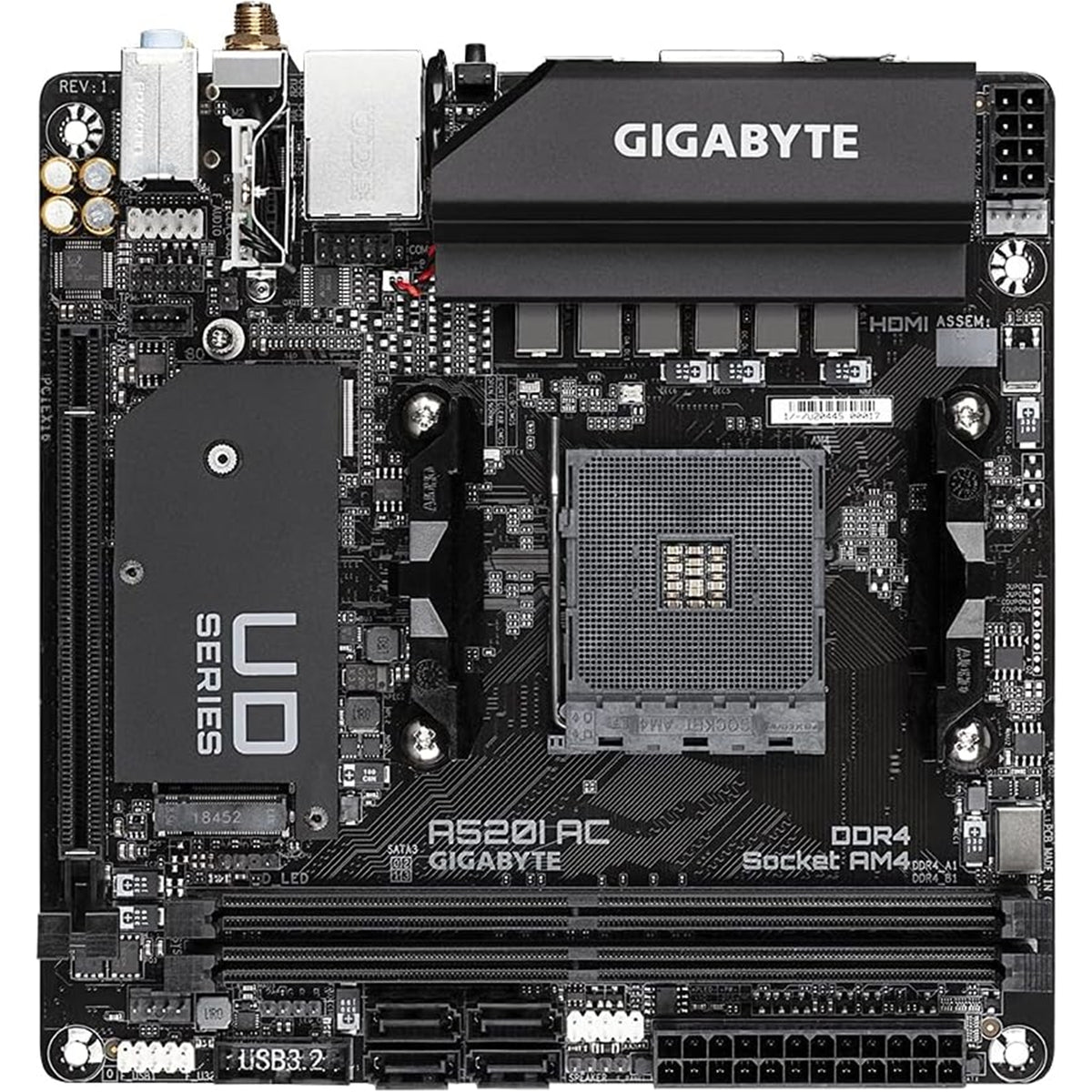

Mini-ITX

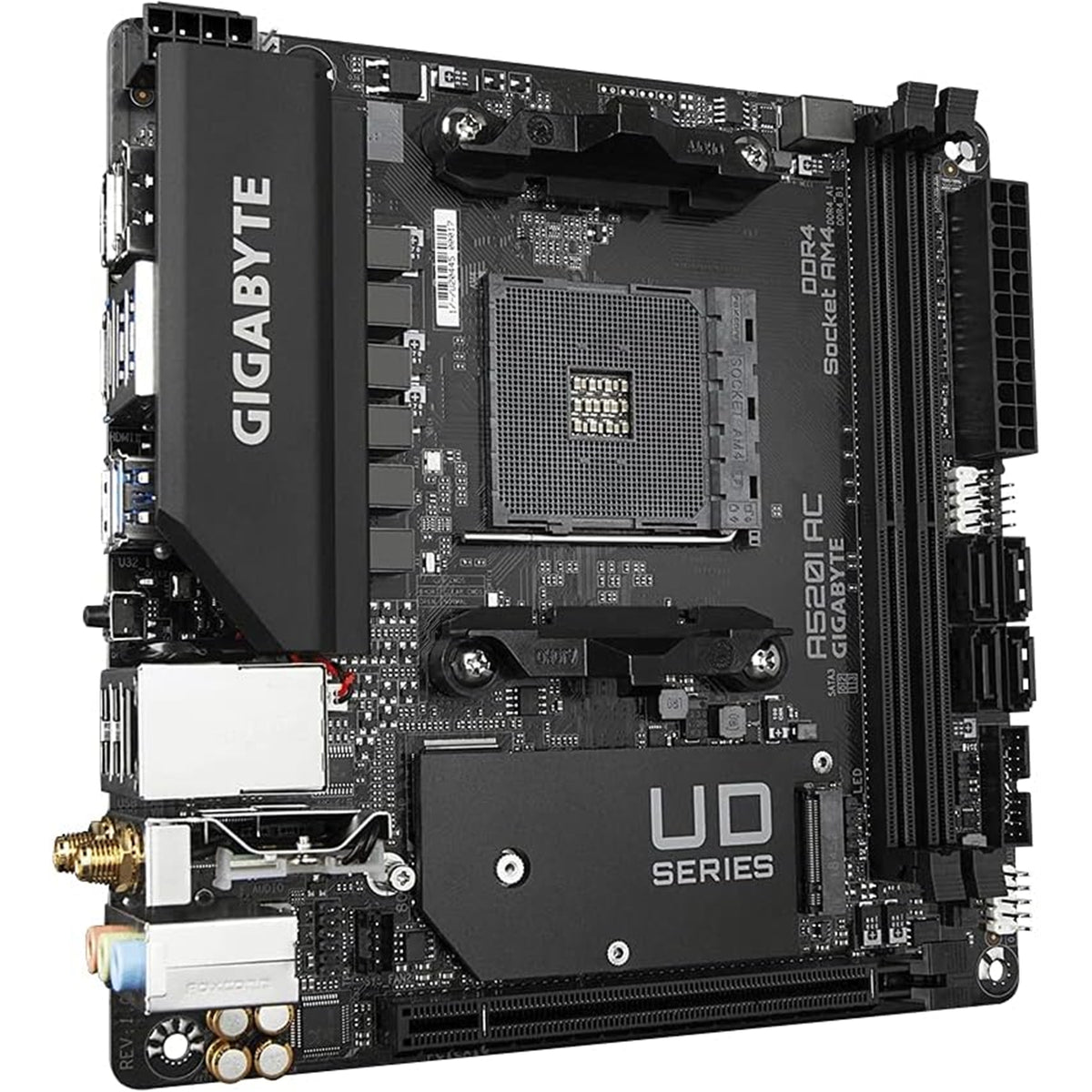

2x DDR4 Slots

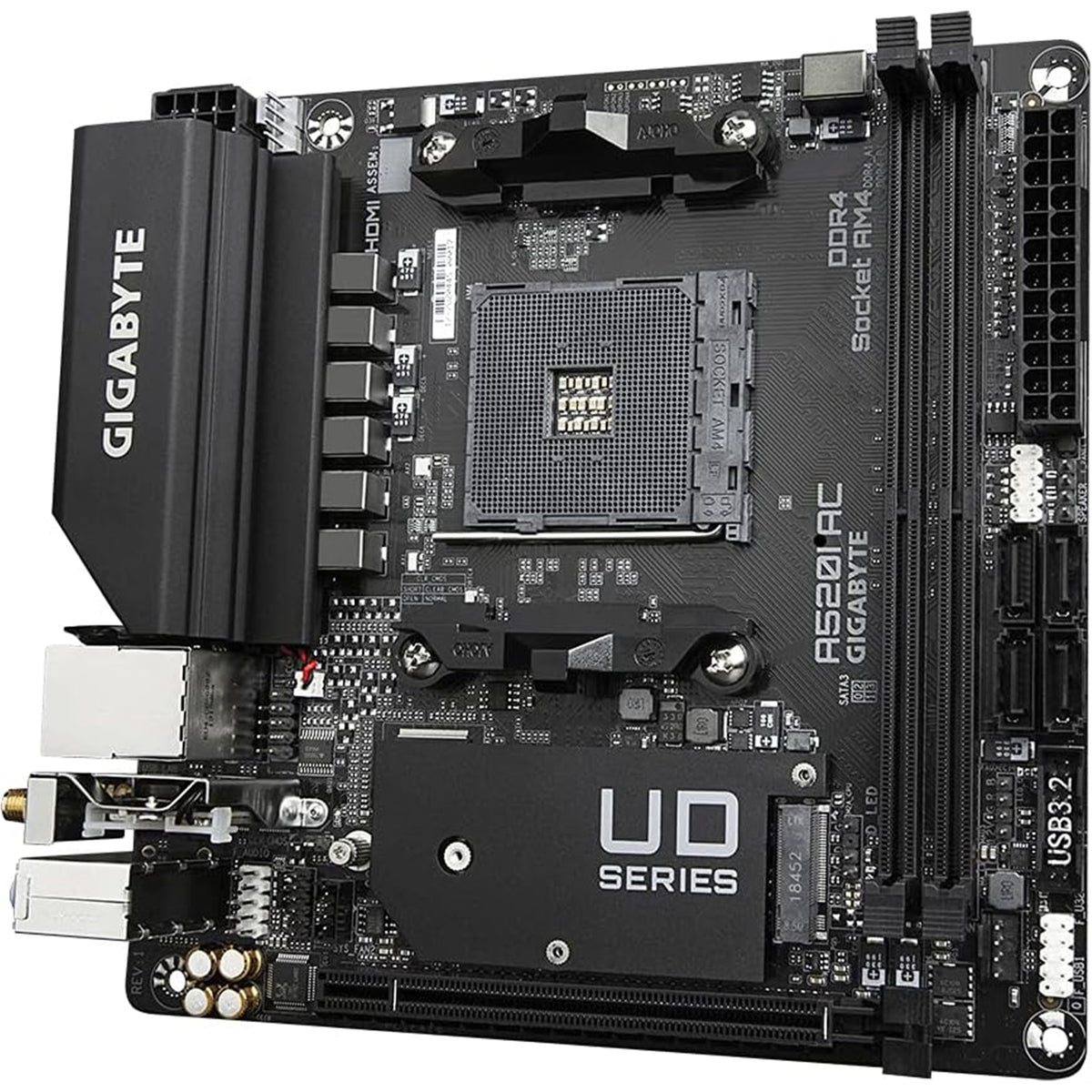

1x M.2 Socket
GbE LAN

Gigabyte

Gigabyte A520I AC Ultra Durable AM4 Mini-ITX DDR4 Motherboard

SKU: TF-MBGIG-A520IAC
Barcode: 4719331809867

£99.99 Inc. VAT

Low in stock

Free tracked UK delivery · 3–5 working days
Optional express delivery £3.25 at checkout.

Delivery

14-day change-of-mind returns

View returns policy

Need help choosing? Ask TechFinder UK
Gigabyte A520I AC Ultra Durable AM4 Mini-ITX DDR4 Motherboard

£99.99 Inc. VAT

£99.99 Inc. VAT

The Gigabyte A520I AC is a Mini-ITX motherboard for AM4 processors, with DDR4 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model Gigabyte A520I AC
Chipset AMD A520
CPU socket AM4
Supported processors AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Form factor / dimensions Mini-ITX Form Factor; 17.0cm x 17.0cm

Memory

Memory slots 2 × DDR4 DIMM; dual channel
Maximum capacity 64 GB
Memory data rate Up to DDR4-5300 (OC); depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles Intel XMP

Expansion & Storage

Expansion slots Integrated in the CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Storage connections Integrated in the CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Network & Audio

Ethernet Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wi-Fi / Bluetooth Realtek Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard
(Actual data rate may vary depending on environment and equipment.)
Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Rear Connections

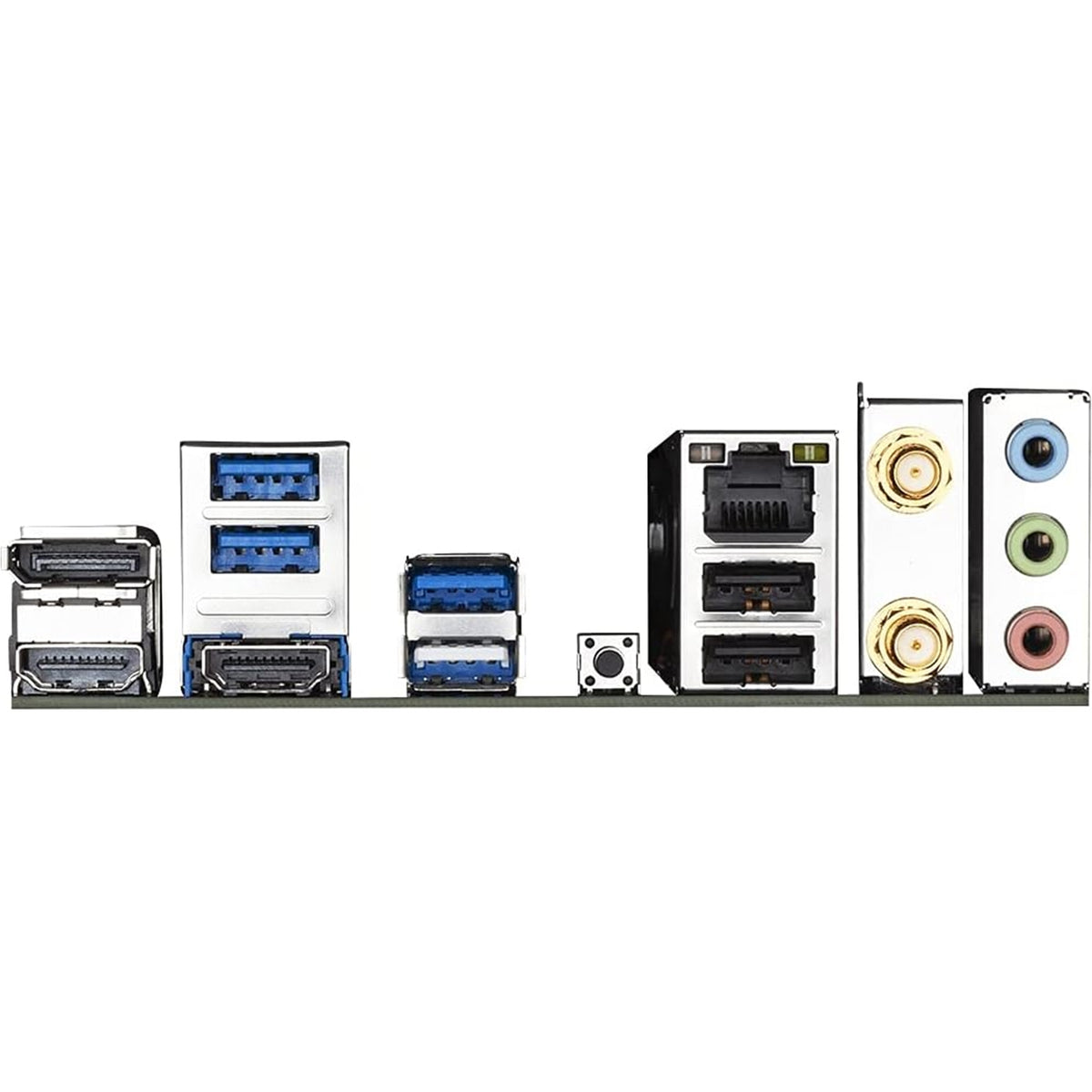

Rear I/O 1 x DisplayPort
2 x HDMI ports
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 ports
2 x SMA antenna connectors (1T1R)
3 x audio jacks

Internal Connections

Internal USB headers 1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Power connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Fan / pump headers 1 x CPU fan header
2 x system fan headers
Lighting headers 1 x addressable LED strip header
1 x RGB LED strip header

Compatibility Notes

CPU and BIOS Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.
Manufacturer restrictions 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Package & Identification

GTIN / EAN 4719331809867
