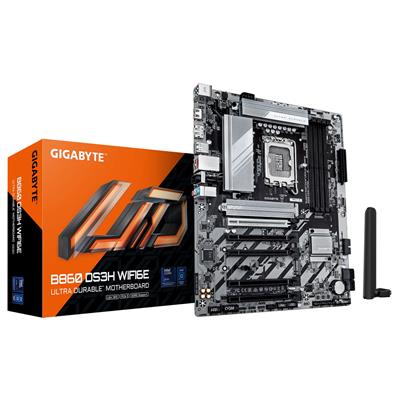

Gigabyte B860 DS3H WIFI6E (Socket 1851/B860/DDR5/S-ATA 6Gb/s/ATX)

Brand: Gigabyte

General Information

• Model Number: B860 DS3H WIFI6E

• EAN: 4719331867515

• UPC: 889523046326

• Warranty: 3 Years

• Package Type: Retail

• Form Factor: Standard ATX

BIOS

• BIOS:

  • 1 × 256 Mbit flash

  • Use of licensed AMI UEFI BIOS

  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Processor

• CPU Interface: Socket 1851

• Chipset: Intel B860 Express

• CPU Support: https://www.gigabyte.com/Motherboard/B860-DS3H-WIFI6E/support#support-cpu

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 9066 (O.C.)

• Max. Memory Support: 256 GB

Expansion Slots

• PCI Express 5.0 x16: 1

• PCI Express 4.0 x16: 4

Storage

• S-ATA 6Gb/s Port(s): 4

• RAID: Raid 0/1/5/10

M.2 Socket(s)

• 1 × PCIe Gen 5.0 x4

• 1 × PCIe Gen 4.0 x4

Networking

• LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)

• Wireless NIC: Wi-Fi 6E

Wireless Technology

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• Bluetooth: v5.3

Audio & Graphics

• On-Board Audio:

  • Realtek Audio CODEC

  • High Definition Audio

  • 2/4/5.1/7.1-channel

• On-Board Video: Processor with integrated graphics is required

Rear I/O Ports

• PS/2 Keyboard/Mouse Port: 1

• USB 2.0 Port(s): 4

• USB 3.2 Port(s) Type-A Gen 2: 1

• USB 3.2 Port(s) Type-C Gen 2x2: 1

• HDMI Port(s): 1

• DisplayPort(s): 1

• LAN Port(s): 1

• Audio Jack(s): 3

• Other Port(s): 2 × Antenna Connectors (2T2R)

Internal Connectors

• 24-pin ATX Power: 1

• 8-pin ATX Power: 1

• USB 2.0 Header(s): 2

• USB 3.2 Header(s) Gen 1: 2

• COM Port Header(s): 1

• Front Panel Audio Connector: 1

• TPM Header(s): 1

• S/PDIF Out Header(s): 1

Internal Other Port(s)

• 3 × Addressable RGB Gen2 LED strip headers

• 1 × RGB LED strip header

Internal Button(s)

• 1 × Q-Flash Plus

Physical Specifications

Product Dimensions

• Width: 244 mm

• Length: 305 mm

Package Dimensions

• Width: 27.5 cm

• Length: 33.5 cm

• Height: 8 cm

• Gross Weight: 1.37 kg

Features

• Supports Intel Core Ultra processors.777

• Hybrid 8+1+2 phases VRM solution.

• D5 Bionic Corsa for Infinite Memory Performance.

• AI Perfdrive: Provides optimal and customized BI.S preset profile for users.

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.

• EZ-Latch: PCIe x16 Slot with Quick Release Design.

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

• Ultra-Fast Storage: 2M.2 slots, including 1 PCIe 5.0 x4.

• M.2 Thermal Guard: To Ensure M.2 SSD Performance.

• Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax.

• Extended Connectivity: DisplayPort, HDMI.

Package Contents

• Motherboard

• Manual

• Quick Installation Guide

• 1 × Antenna

• 2 × SATA cables

• I/O Shield

• One pack of M.2 thick/thin rubber pads
