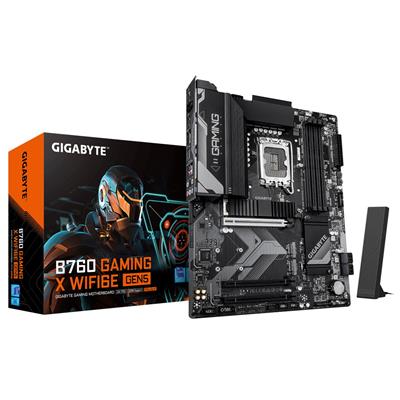

Gigabyte B760 GAMING X WIFI6E GEN5 Motherboard (Socket 1700 / B760 Express / DDR5 / SATA 6Gb/s / ATX)

Brand: Gigabyte
Model Number: B760 G X WF6E GEN5
EAN: 4719331871673
Web Address: www.gigabyte.com
Package Type: Retail
Warranty: 3 Years

General Information

• Chipset: Intel B760 Express

• CPU Interface: Socket 1700

• CPU Support: https://www.gigabyte.com/Motherboard/B760-GAMING-X-WIFI6E-GEN5/support#support-cpu

• Form Factor: Standard ATX

BIOS

• 1 × 256 Mbit flash

• Licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 5600 (O.C.)

• Max. Memory Support: 256 GB

Expansion Slots

• 1 × PCI Express 5.0 x16

• 2 × PCI Express 3.0 x16

Storage

• 4 × SATA 6 Gb/s Ports

• RAID Support: 0 / 1 / 5 / 10

• M.2 Sockets: 3 × PCIe Gen 4.0 x4

Networking

• LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

• Wireless NIC: Wi-Fi 6E AX210

• Wireless Standards: 802.11a / b / g / n / ac / ax (2.4 / 5 / 6 GHz)

• Bluetooth: v5.3

Audio & Video

On-Board Audio

• Realtek Audio CODEC

• High Definition Audio

• 2 / 4 / 5.1 / 7.1-channel

On-Board Video

• Processor with integrated graphics required

Rear I/O Ports

• 5 × USB 2.0

• 1 × USB 3.2 Type-A Gen 1

• 1 × USB 3.2 Type-C Gen 1

• 1 × USB 3.2 Type-A Gen 2

• 1 × HDMI

• 1 × DisplayPort

• 1 × LAN (RJ-45)

• 6 × Audio Jacks

• 2 × Antenna Connectors (2T2R)

Internal Connectors

• 1 × 24-pin ATX Power

• 1 × 8-pin ATX Power

• 2 × USB 2.0 Headers

• 1 × USB 3.2 Gen 1 Header

• 1 × USB 3.2 Gen 2 Header

• 1 × COM Port Header

• 1 × Front Panel Audio Connector

• 1 × TPM Header

• 1 × S/PDIF Out Header

• 3 × Addressable RGB Gen2 LED Strip Headers

• 1 × RGB LED Strip Header

• 1 × Q-Flash Plus Button

Physical Specifications

• Dimensions (W × L): 244 mm × 305 mm

• Net Weight: 1.61 kg

Packaging

• Package Dimensions (W × L × H): 27 cm × 33.50 cm × 8 cm

• Gross Weight: 1.80 kg

Features

• PCIe Gen5 Performance

• Supports Intel Core 14th / 13th / 12th Processors

• Hybrid 8+1+1 Phases VRM Solution

• Dual Channel DDR5 with XMP Support

• VRM Thermal Armor Advanced and M.2 Thermal Guard

• WIFI EZ-Plug Design

• WIFI Compass for optimal antenna positioning

• EZ-Latch PCIe 5.0 x16 Quick Release

• PCIe UD Slot with SMD PCIe 5.0 Armor

• 2.5GbE LAN and Wi-Fi 6E 802.11ax

• Front USB-C 10 Gb/s, DisplayPort and HDMI Connectivity

• 3 × PCIe 4.0 x4 M.2 Connectors

• Smart Fan 6 with Multiple Temperature Sensors and FAN STOP

• Q-Flash Plus BIOS Update Without CPU, Memory or GPU

Package Contents

• Motherboard

• Manual

• 1 × Antenna

• 2 × SATA Cables

• M.2 Screws

• M.2 Thick/Thin Rubber Pads Pack
