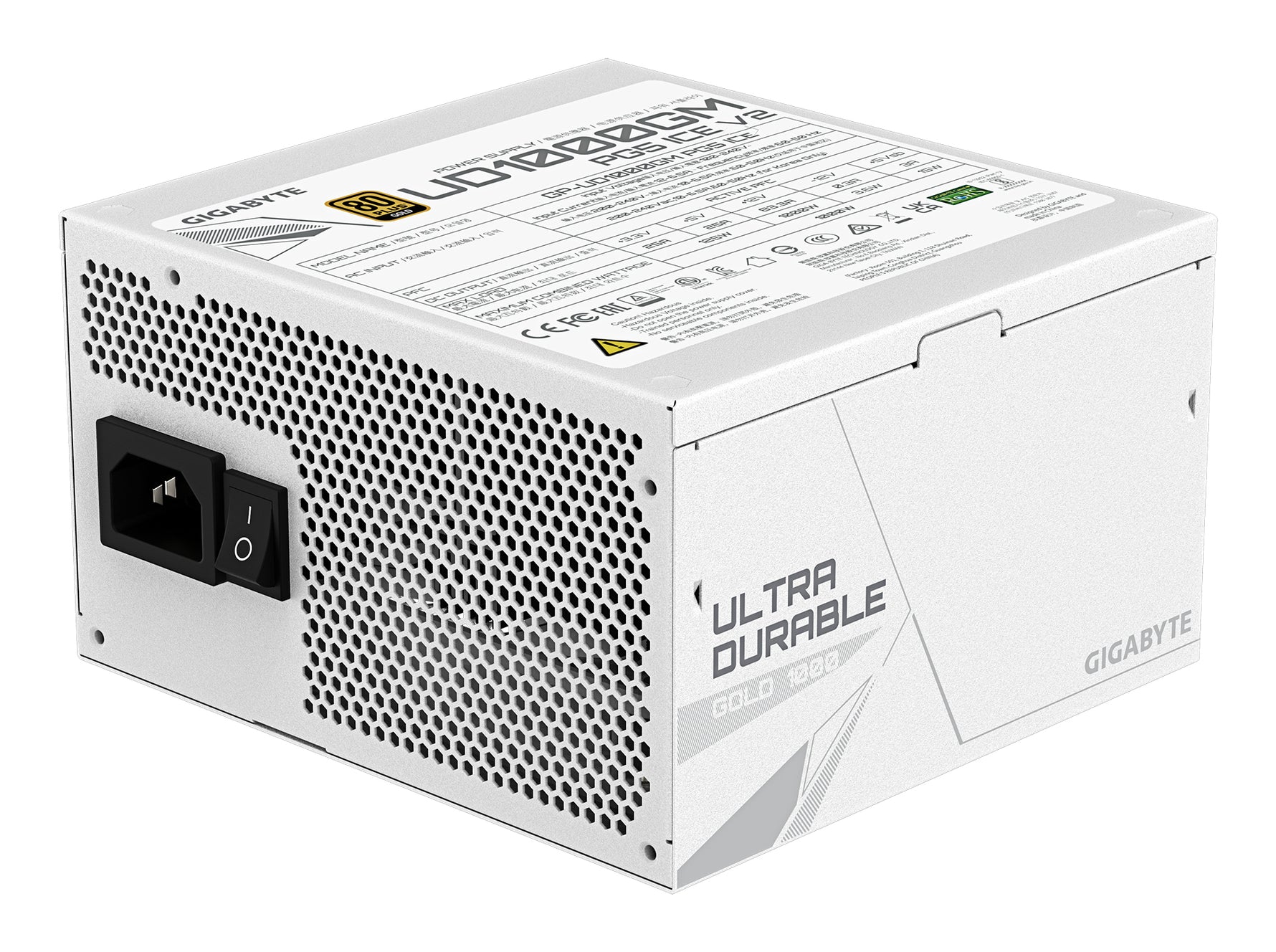

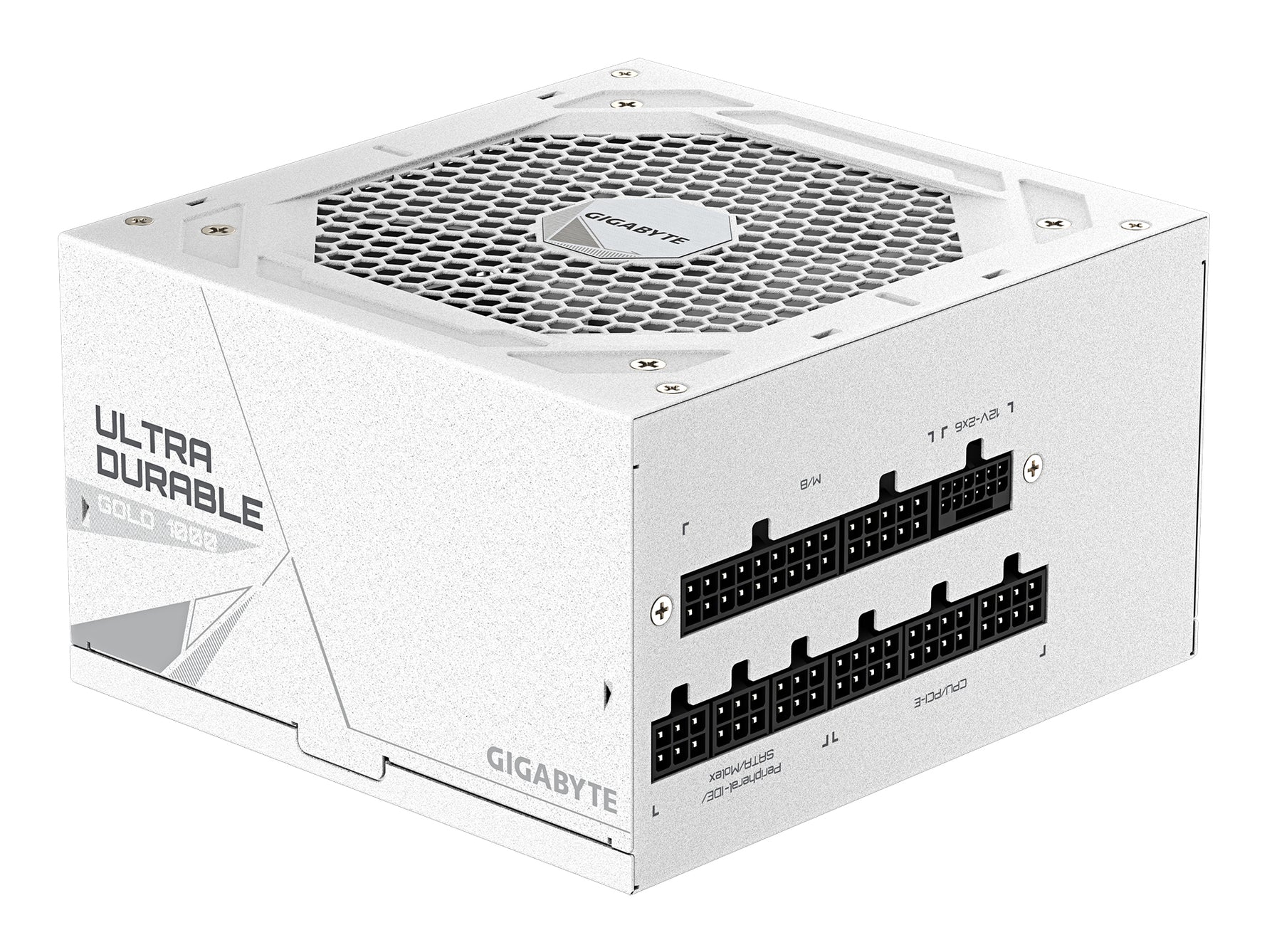

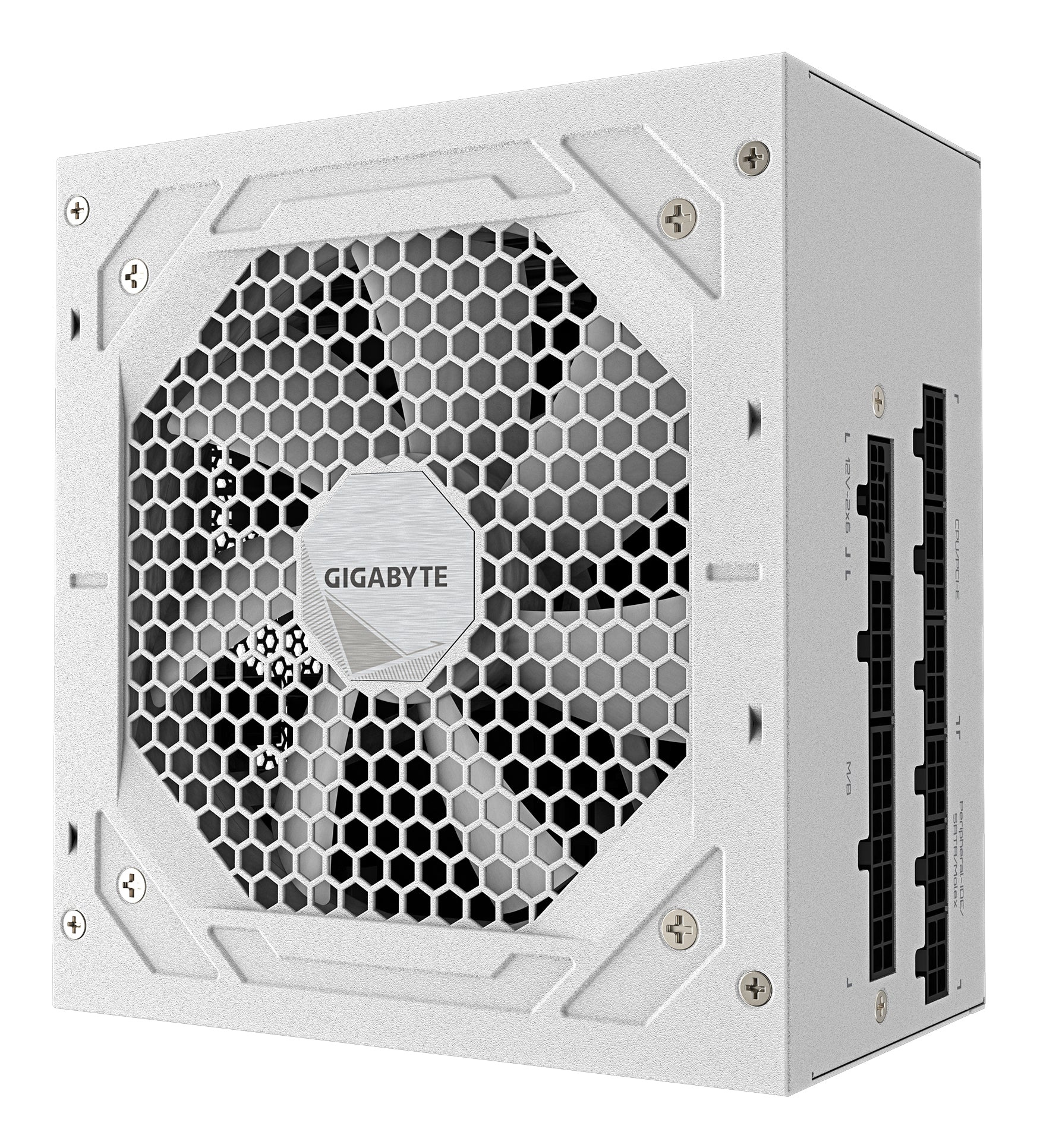

Gigabyte UD1000GM PG5 ICE 1000W ATX 3.1 Fully Modular Power Supply White

The Gigabyte UD1000GM PG5 ICE is a 1000W fully modular ATX 3.1 power supply in an all-white finish, combining high-end performance with a clean aesthetic for white or windowed builds. It delivers 83.3A on a single +12V rail with a native 12V-2x6 connector, and ships with an all-white embossed cable set to complete the look.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

• Wattage: 1000W
• Form Factor: ATX 3.1 / PCIe 5.1
• Efficiency: 80 PLUS Gold (up to 90% at 230Vac)
• Modularity: Fully modular with all-white embossed cables

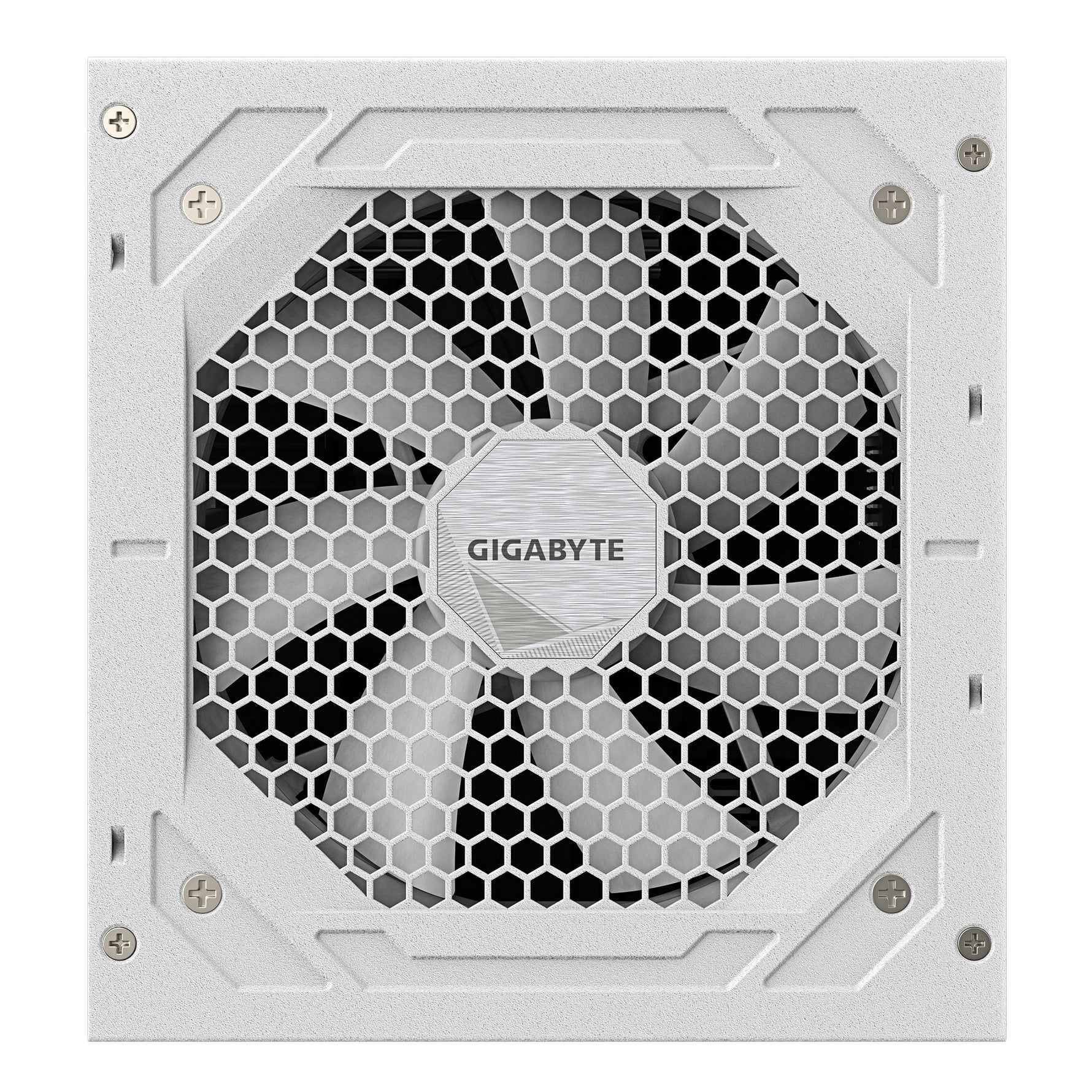

• Fan: 1 x 120mm Hybrid Bearing (HYB) fan
• +12V Rail: Single rail, 83.3A
• Native 12V-2x6 connector: Supports latest-generation GPUs without adapters
• On/Off switch: Yes
• Capacitors: 100% Japanese
• MTBF: 100,000 hours
• Colour: White

The UD1000GM PG5 ICE is the top-wattage white variant in Gigabyte's UD PG5 ICE series, sharing the same compact 140mm platform as the 750W and 850W ICE models. It is a practical choice for high-end builds that prioritise both power headroom and a clean, all-white interior. The 120mm HYB fan provides efficient, low-noise cooling, and the comprehensive protection suite — OVP, OPP, SCP, UVP, OCP and OTP — safeguards all connected components.

Delivery & Fulfilment
This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Form Factor: ATX 3.1
• Wattage: 1000W
• Efficiency: 80 PLUS Gold (up to 90% at 230Vac)
• +12V Rail: Single rail — 83.3A
• Modularity: Fully modular
• Fan: 1 x 120mm Hybrid Bearing (HYB)
• PFC: Active
• AC Input: 100–240VAC
• Hold-up Time: 16ms
• MTBF: 100,000 hours
• On/Off Switch: Yes

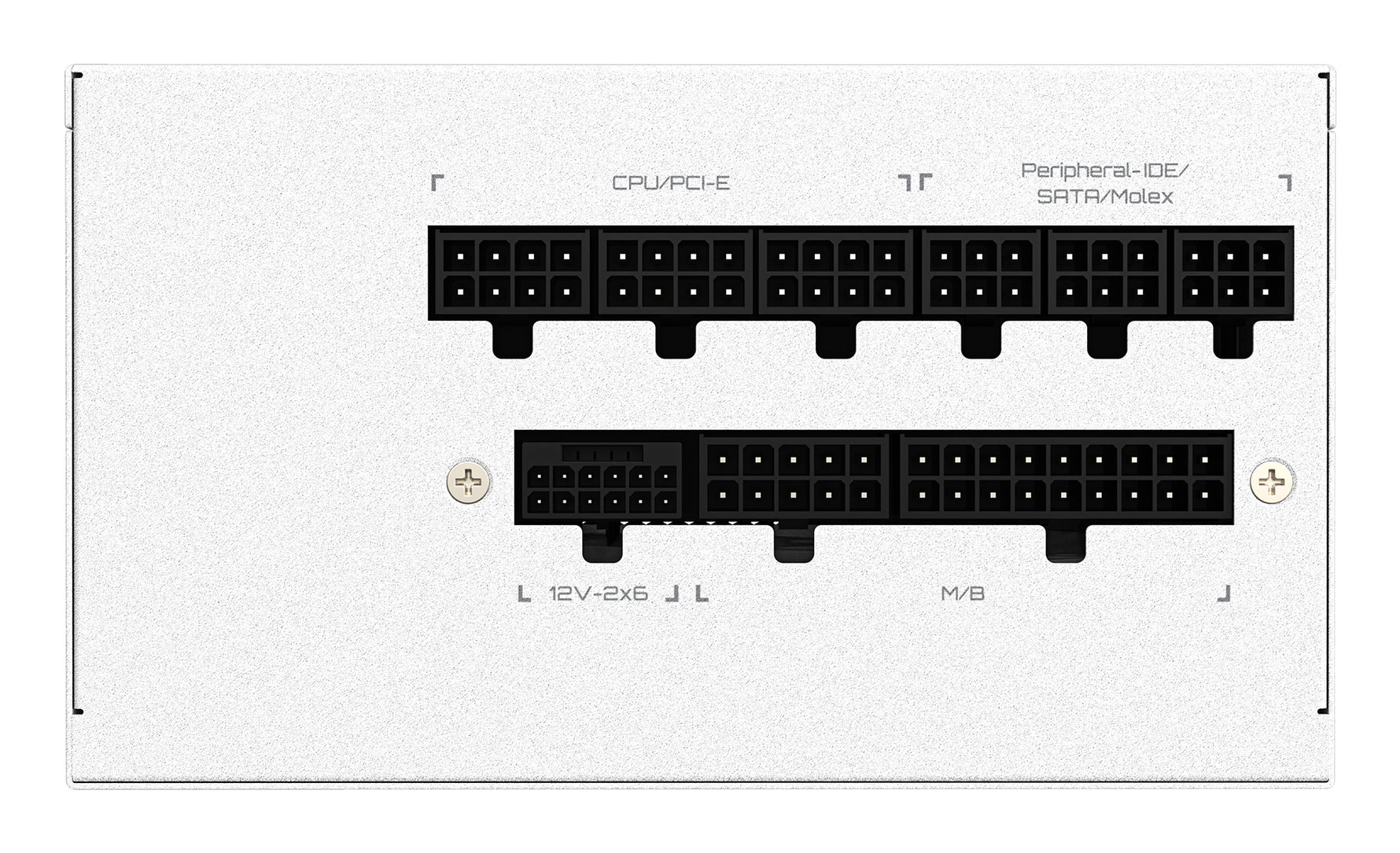

• Motherboard Connector: 1 x 20+4-pin ATX — 610mm
• CPU Connectors: 2 x 8-pin (4+4) EPS/ATX12V — 650mm+200mm
• PCIe Connectors: 1 x 12+4-pin 12V-2x6 — 700mm; 4 x 8-pin (6+2) PCIe — 600mm+150mm (x2 cables)
• SATA Connectors: 8 x SATA — 600mm+150mm+150mm+150mm (x2 cables)
• Peripheral Connectors: 3 x PATA (Molex) + 1 x Floppy — 500mm+150mm+150mm+150mm
• Cable Sleeving: All-white embossed
• Protections: OVP, UVP, OCP, OPP, SCP, OTP
• Dimensions: 150 x 86 x 140mm (W x H x D)
• Colour: White
• Warranty: 5 Years Gigabyte Manufacturer Warranty

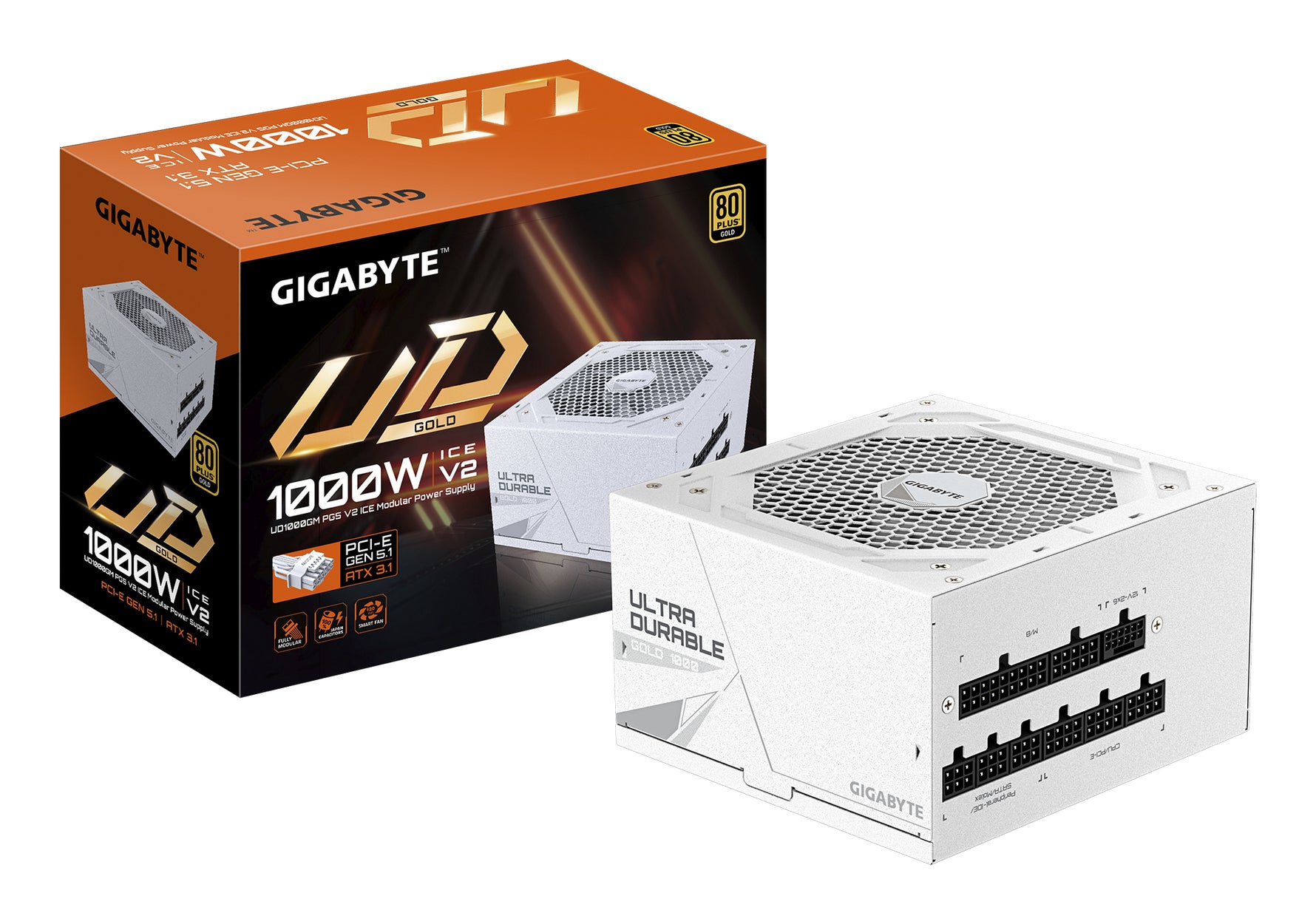

Package Contents

• Gigabyte UD1000GM PG5 ICE Power Supply
• All-White Modular Cable Set
• UK Power Cord
• Mounting Screws

Product Identification
Model: UD1000GM PG5 ICE
MPN: GP-UD1000GM PG5 ICE
EAN: 4719331556631
