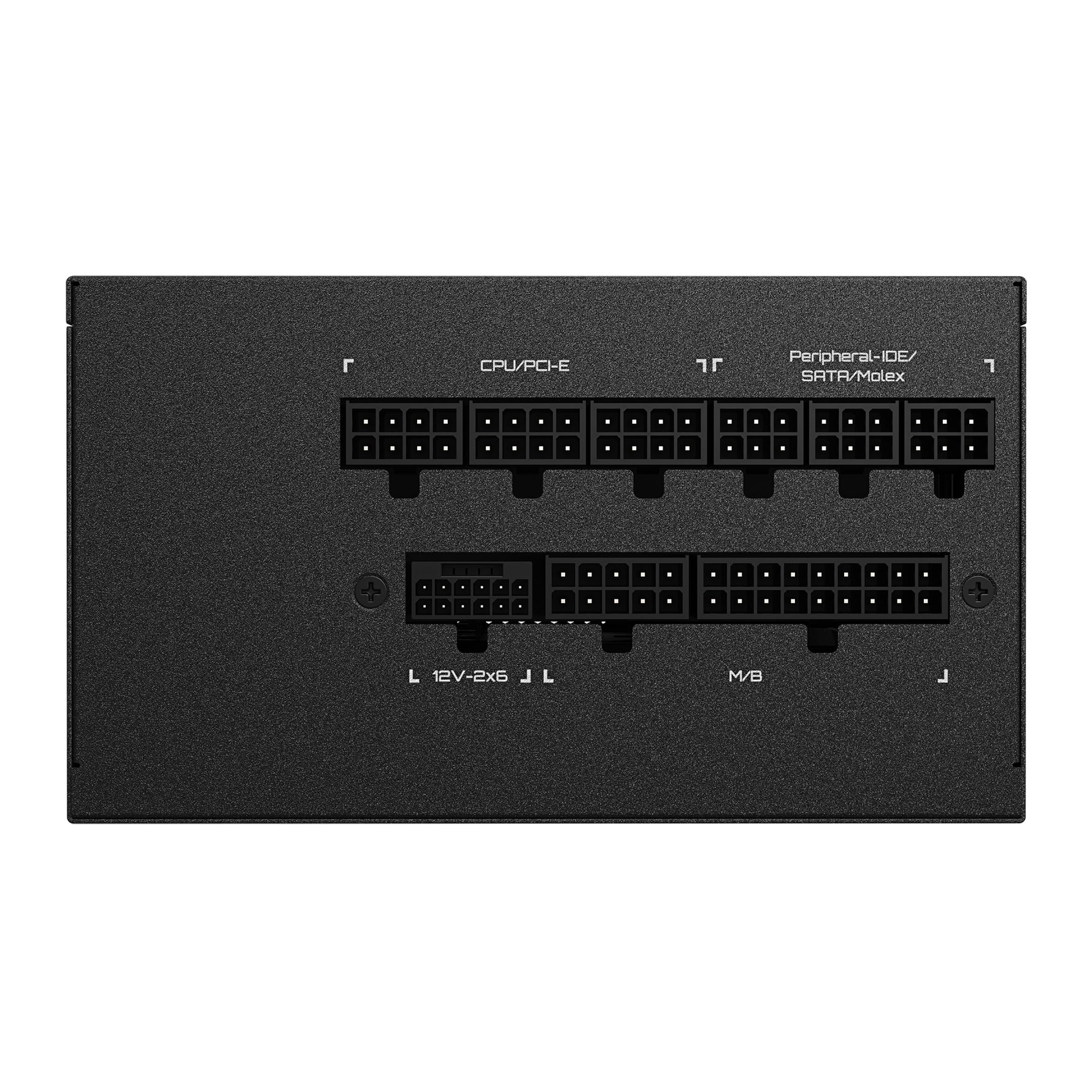

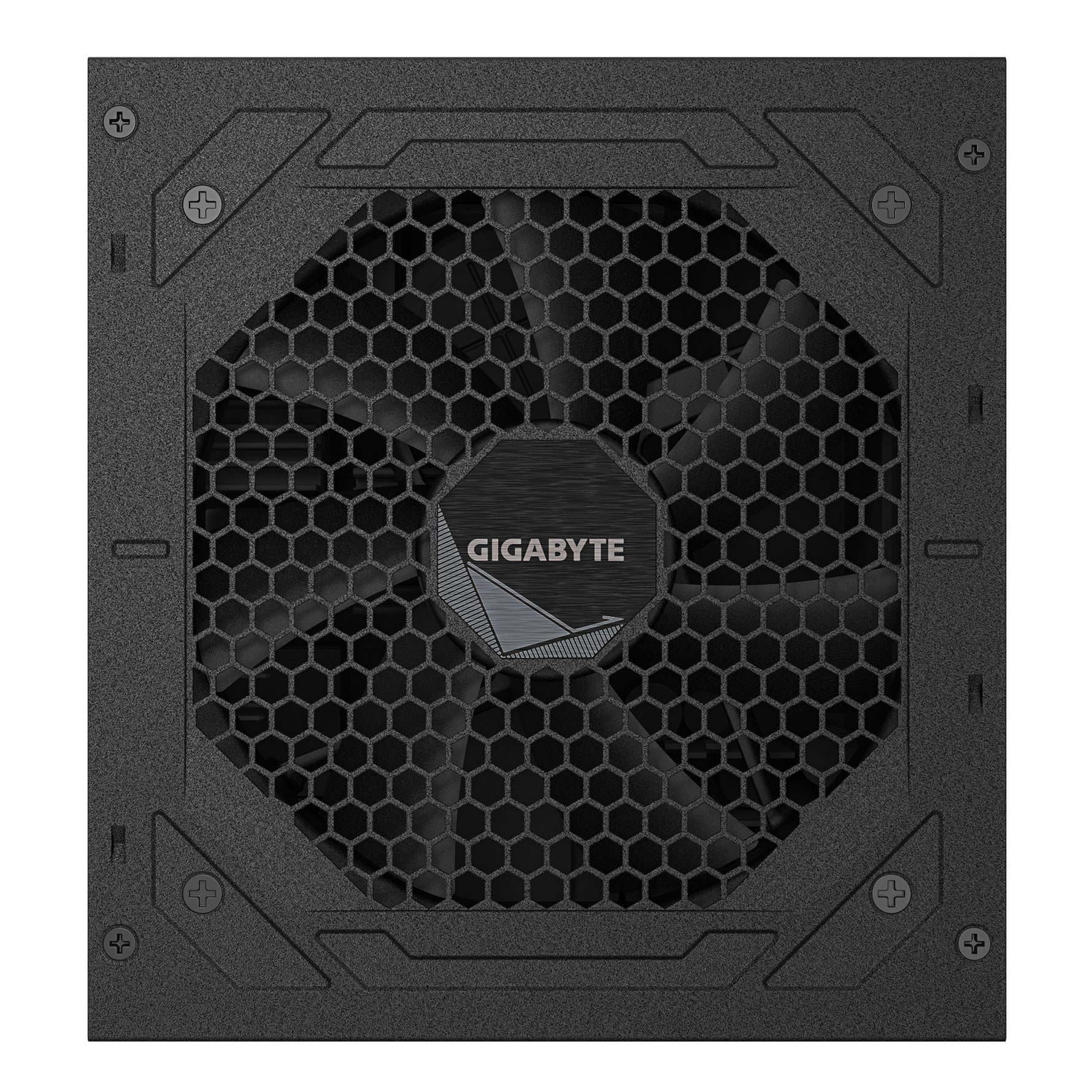

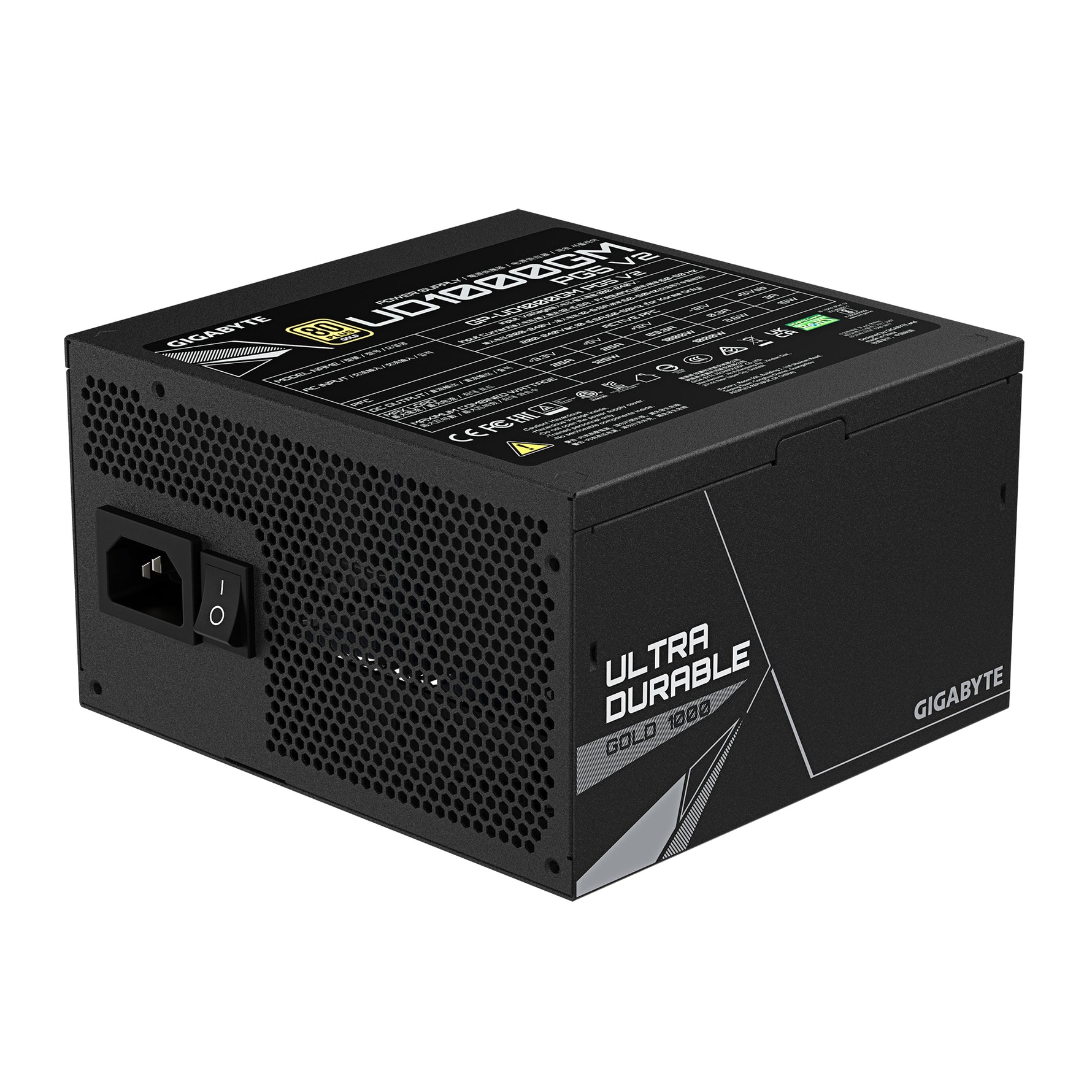

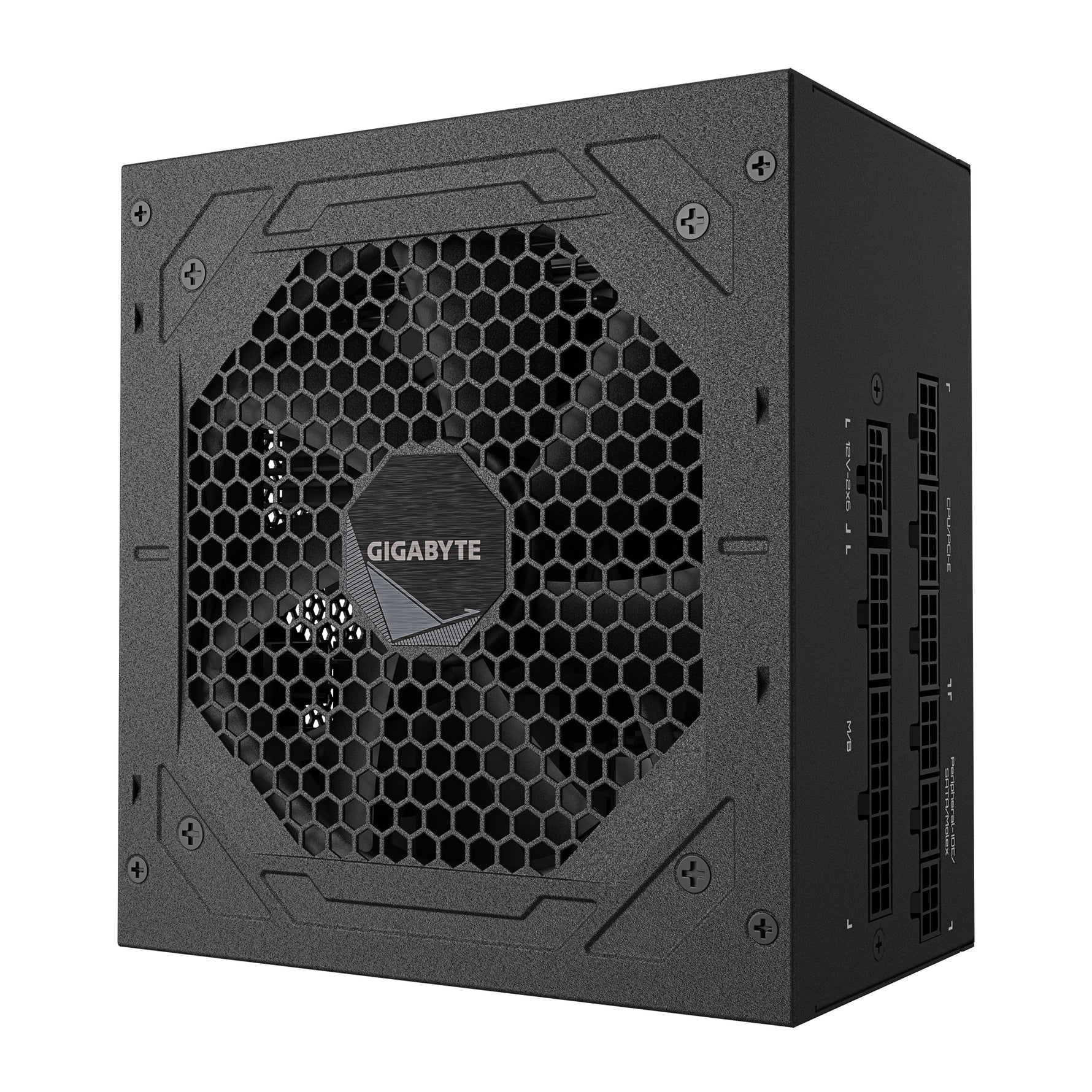

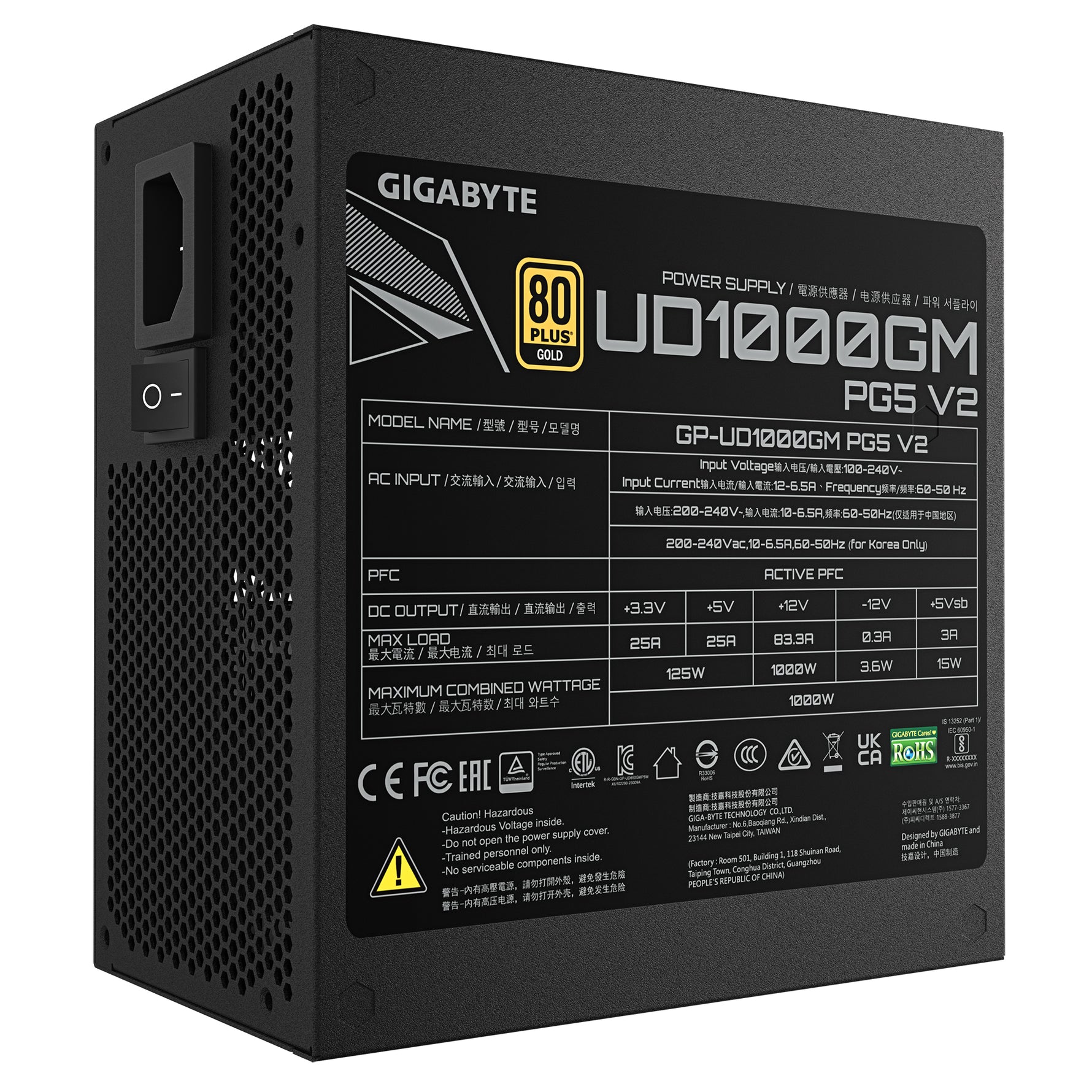

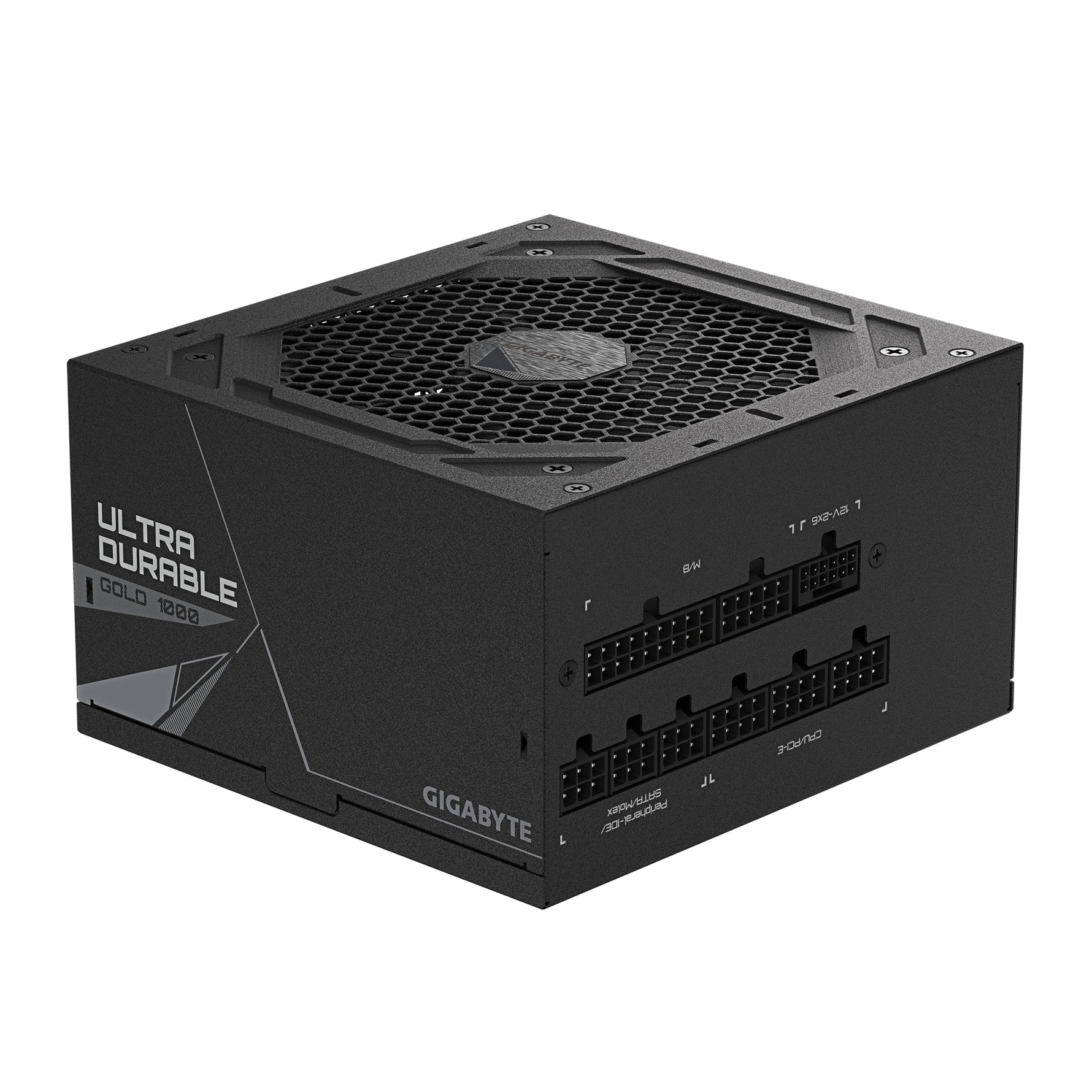

Gigabyte UD1000GM PG5 V2 1000W ATX 3.1 Fully Modular Power Supply

The Gigabyte UD1000GM PG5 V2 is a 1000W fully modular ATX 3.1 power supply designed for high-end builds running the latest PCIe 5.1 graphics cards. Built on the same compact 140mm platform as the rest of the UD PG5 range, it delivers 83.3A on a single +12V rail with a native 12V-2x6 connector, making it a straightforward choice for demanding GPU and CPU combinations.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

• Wattage: 1000W
• Form Factor: ATX 3.1 / PCIe 5.1
• Efficiency: 80 PLUS Gold (up to 90% at 230Vac)
• Modularity: Fully modular with all-black embossed cables
• Fan: 1 x 120mm Hybrid Bearing (HYB) fan
• +12V Rail: Single rail, 83.3A
• Native 12V-2x6 connector: Supports latest-generation GPUs without adapters
• On/Off switch: Yes
• Capacitors: 100% Japanese
• MTBF: 100,000 hours
• Colour: Black

The UD1000GM PG5 V2 is the 1000W variant in Gigabyte's UD PG5 series, offering the most headroom in the range while retaining the same compact 140mm depth. The 120mm HYB fan provides efficient, low-noise cooling, and the fully modular all-black embossed cable set keeps the build clean. A comprehensive protection suite — OVP, OPP, SCP, UVP, OCP and OTP — safeguards all connected components.

Delivery & Fulfilment
This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established distribution partners. Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Specifications

• Form Factor: ATX 3.1
• Wattage: 1000W
• Efficiency: 80 PLUS Gold (up to 90% at 230Vac)
• +12V Rail: Single rail — 83.3A
• Modularity: Fully modular
• Fan: 1 x 120mm Hybrid Bearing (HYB)
• PFC: Active
• AC Input: 100–240VAC
• Hold-up Time: 16ms
• MTBF: 100,000 hours
• On/Off Switch: Yes
• Motherboard Connector: 1 x 20+4-pin ATX — 610mm
• CPU Connectors: 2 x 8-pin (4+4) EPS/ATX12V — 650mm+200mm
• PCIe Connectors: 1 x 12+4-pin 12V-2x6 — 700mm; 4 x 8-pin (6+2) PCIe — 600mm+150mm (x2 cables)
• SATA Connectors: 8 x SATA — 600mm+150mm+150mm+150mm (x2 cables)
• Peripheral Connectors: 3 x PATA (Molex) + 1 x Floppy — 500mm+150mm+150mm+150mm
• Cable Sleeving: All-black embossed
• Protections: OVP, UVP, OCP, OPP, SCP, OTP
• Dimensions: 150 x 86 x 140mm (W x H x D)
• Colour: Black
• Warranty: 5 Years Gigabyte Manufacturer Warranty

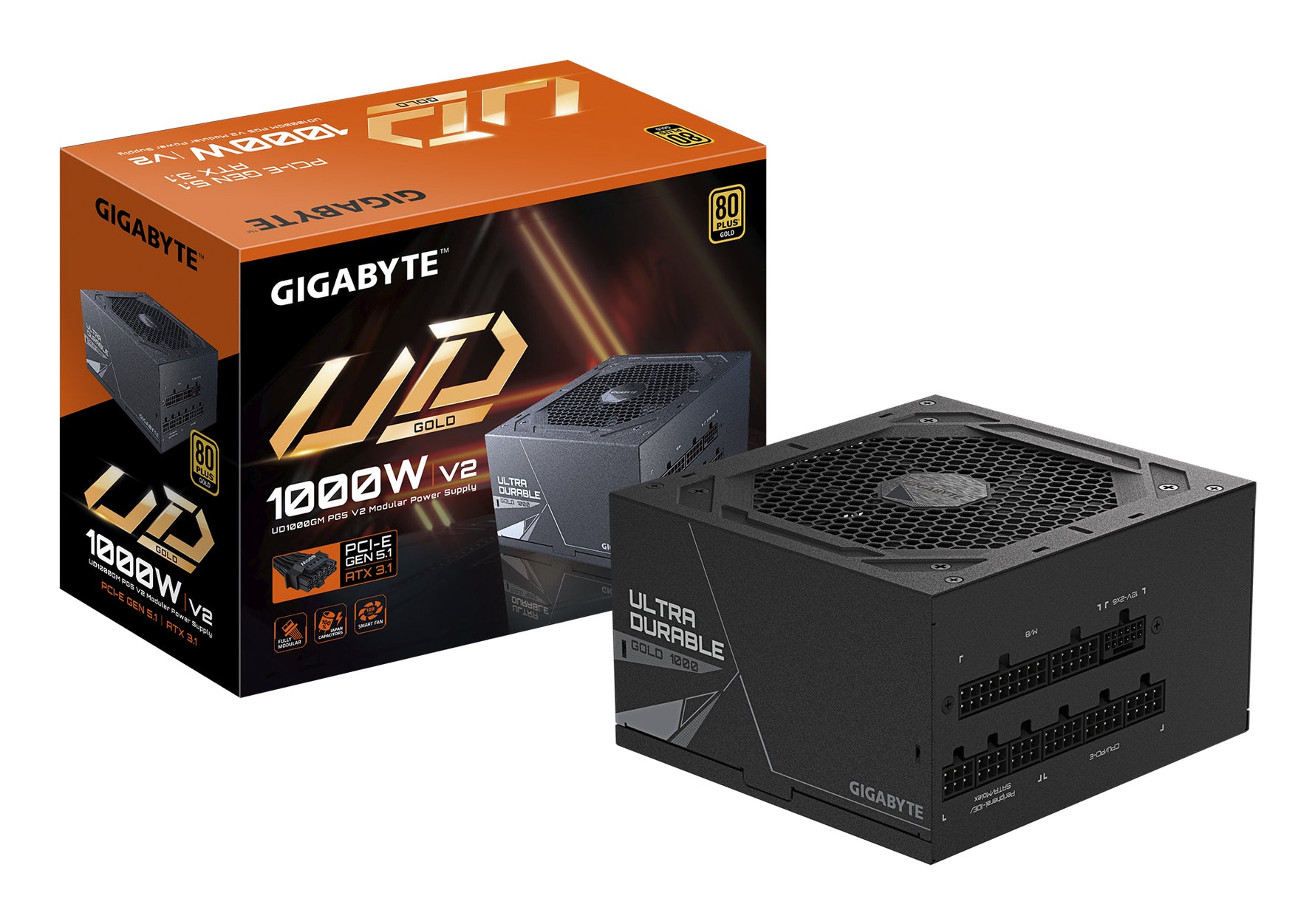

Package Contents

• Gigabyte UD1000GM PG5 V2 Power Supply
• Modular Cable Set
• UK Power Cord
• Mounting Screws

Product Identification
Model: UD1000GM PG5 V2
MPN: GP-UD1000GM PG5 V2
EAN: 4719331556150
