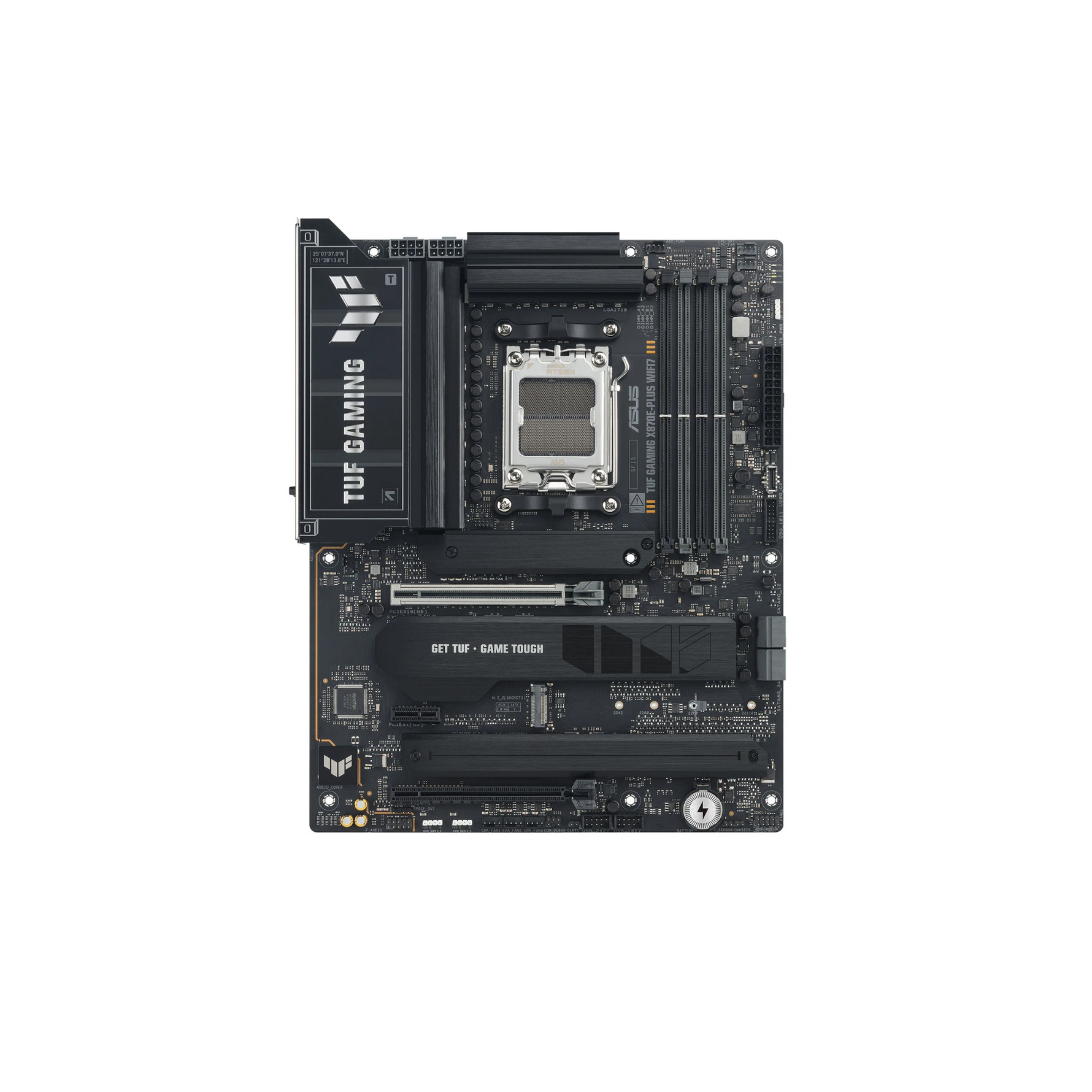

ASUS TUF Gaming X870E-Plus Wi-Fi 7 ATX Motherboard AM5 DDR5

The ASUS TUF Gaming X870E-Plus Wi-Fi 7 is an ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. Built on the AMD X870E chipset, it offers four M.2 slots, PCIe 5.0 support, dual USB4 Type-C ports, Wi-Fi 7, Realtek 2.5GbE LAN, and Realtek ALC1220 audio, combining X870E-level connectivity with TUF durability.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

Key Features

• Socket AM5 — compatible with AMD Ryzen 9000, 8000 and 7000 Series processors
• AMD X870E chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, ECC/Non-ECC, up to 256GB, DDR5-8000 (OC)
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 bandwidth), 1 x PCIe 3.0 x1 expansion slots
• 4 x M.2 slots: 2 x PCIe Gen5 x4, 2 x PCIe Gen4 x4
• 4 x SATA 6Gb/s ports with RAID 0, 1, 5, 10 support
• Realtek 2.5GbE LAN (10/100/1000/2500 Mbps) with TUF LANGuard
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, 160MHz, up to 2.9Gbps, with Bluetooth 5.4
• 2 x USB4 Type-C (40Gbps) ports
• Realtek ALC1220 7.1 HD Audio

Product Overview

The TUF Gaming X870E-Plus Wi-Fi 7 brings X870E chipset features to the TUF Gaming lineup, offering a reliable and well-connected platform for AM5 builds. Four M.2 slots, including two PCIe Gen5 x4, provide fast and flexible storage options. Dual USB4 Type-C ports support 40Gbps peripherals and displays, and Wi-Fi 7 with 160MHz bandwidth delivers up to 2.9Gbps wireless throughput. The Realtek ALC1220 codec handles 7.1 surround sound with full rear audio output, and the BIOS Flashback button allows firmware updates without a CPU installed.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established UK suppliers and distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Compatible Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD X870E
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, ECC/Non-ECC, Unbuffered (UDIMM)
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 256GB
• Memory Speed: Up to DDR5-8000 (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 bandwidth), 1 x PCIe 3.0 x1
• M.2 Slots: 1 x PCIe Gen5 x4 (22-42/60/80/110), 1 x PCIe Gen5 x4 (22-80), 2 x PCIe Gen4 x4 (22-80)
• SATA: 4 x SATA 6Gb/s
• RAID: 0, 1, 5, 10
• LAN: Realtek 2.5GbE (10/100/1000/2500 Mbps) with TUF LANGuard
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz, 160MHz, up to 2.9Gbps
• Bluetooth: 5.4
• Audio: Realtek ALC1220 7.1 HD Audio, S/PDIF-Out (Optical)
• Onboard Graphics Output: 1 x HDMI; 2 x USB4 Type-C (DP Alt) — requires CPU with integrated graphics

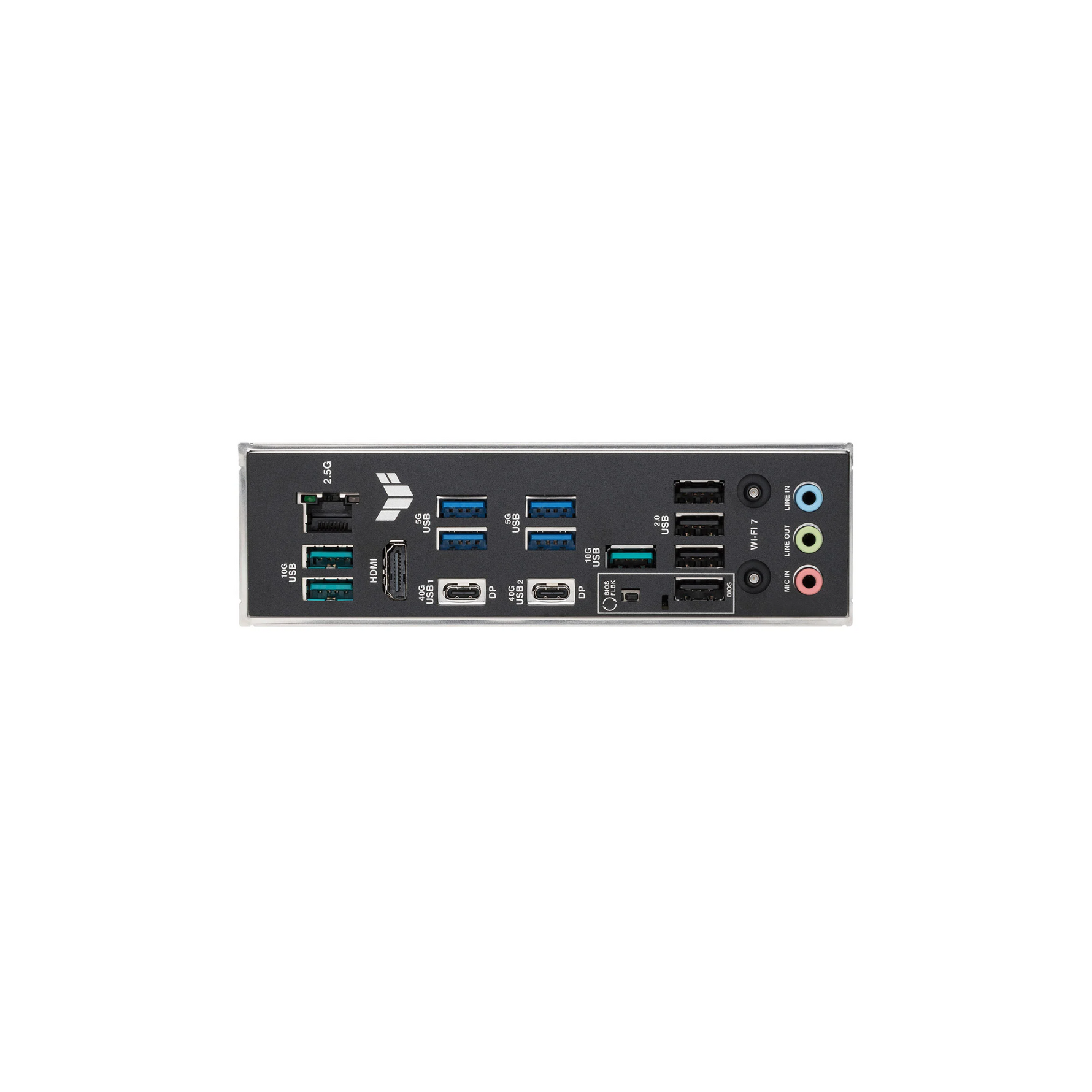

• Rear I/O: 4 x USB 2.0, 4 x USB 5Gbps Type-A, 3 x USB 10Gbps Type-A, 2 x USB4 Type-C (40Gbps), 1 x HDMI, 1 x RJ-45, Line In/Line Out/Mic-In/Rear Speaker Out, 1 x S/PDIF-Out (Optical), BIOS Flashback button
• Internal Headers: 2 x USB 2.0, 1 x USB 5Gbps header, 1 x USB 20Gbps Type-C connector, 3 x ARGB Gen2, 4 x Chassis Fan, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 1 x Front Panel, 1 x Front Panel Audio, 1 x Chassis Intrusion, 1 x Thermal Sensor, 1 x Clear CMOS button
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Net Weight: 2.13 kg
• Gross Weight: 2.42 kg
• Package Dimensions: 35.3 x 27.3 x 6.8 cm
• Warranty: 3 Years ASUS Manufacturer Warranty

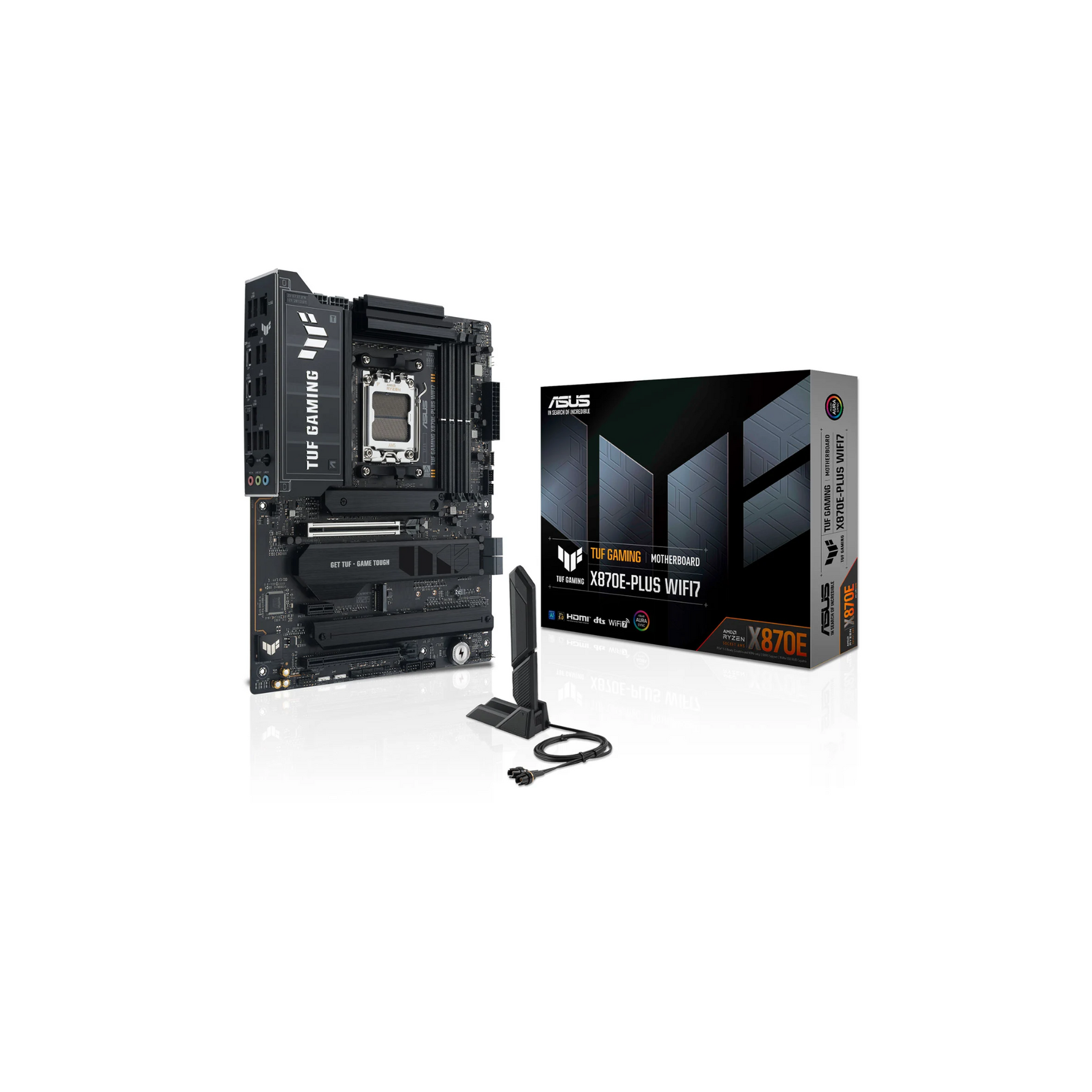

• Package Contents: Motherboard, 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 rubber packages, 1 x M.2 screw package, 1 x TUF Gaming sticker, 1 x Quick start guide

Product Identification

Model: TUF Gaming X870E-Plus Wi-Fi 7
MPN: 90MB1M70-M0EAY0
EAN: 4711636100342
