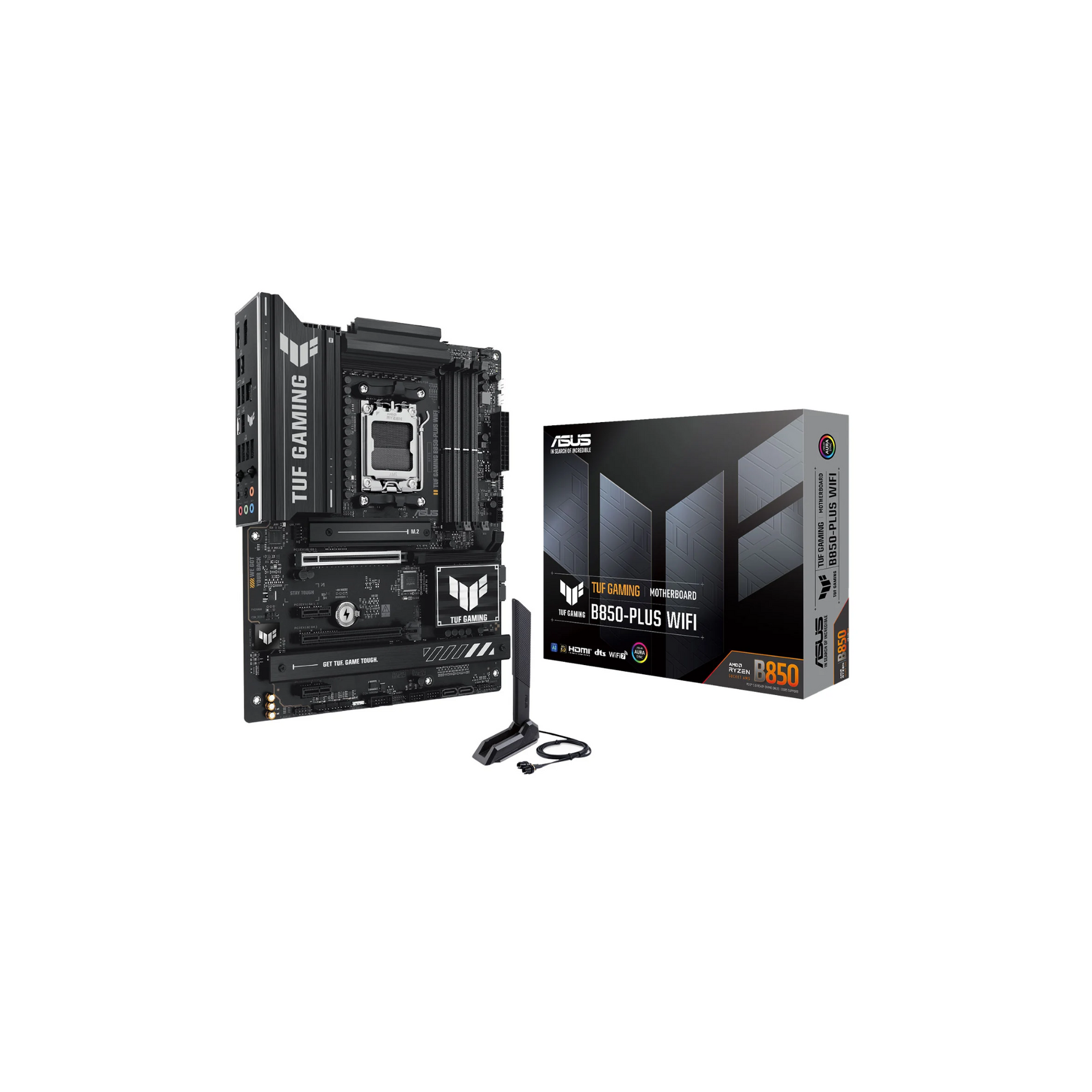

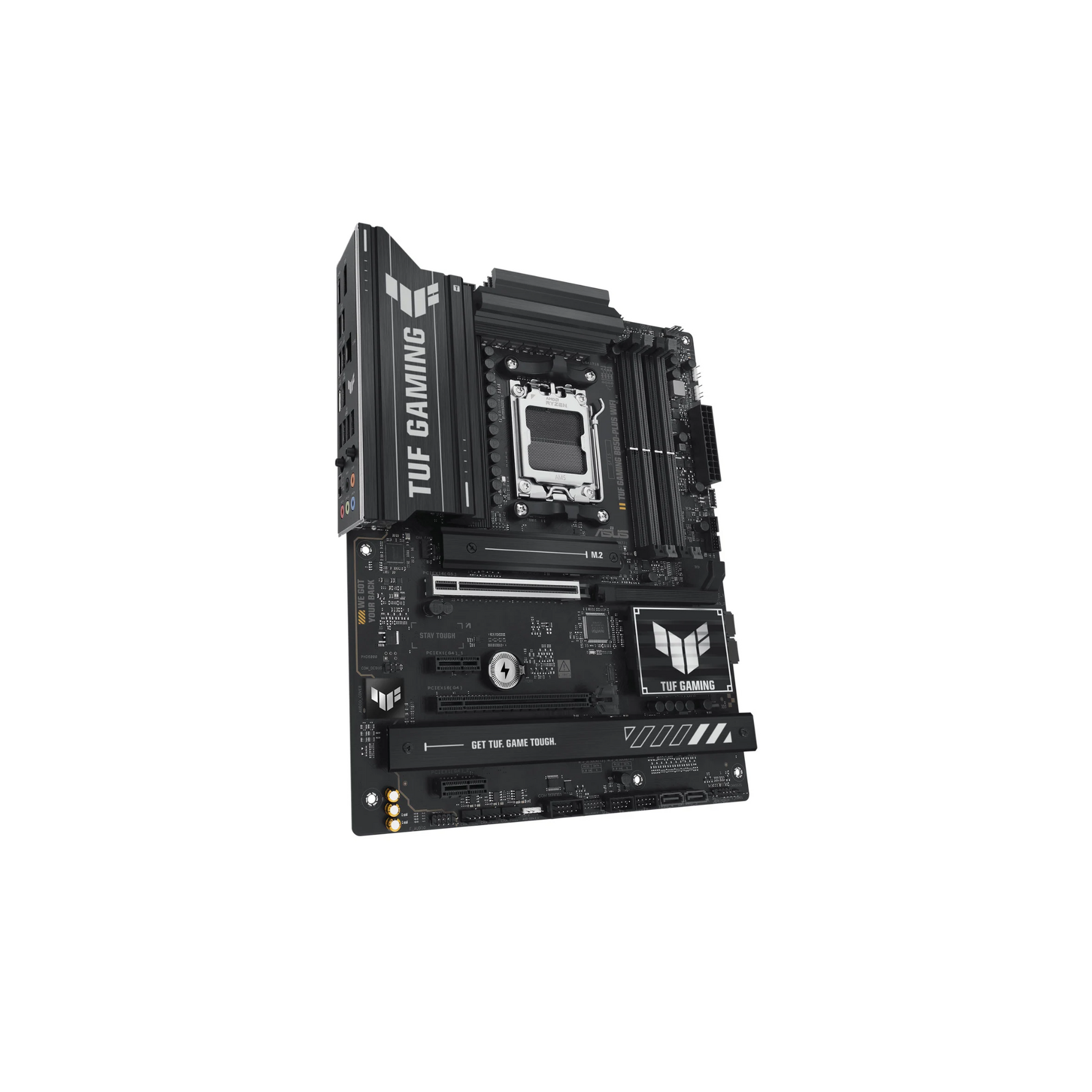

ASUS TUF Gaming B850-Plus Wi-Fi ATX Motherboard AM5 DDR5

The ASUS TUF Gaming B850-Plus Wi-Fi is an ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. It offers PCIe 5.0 support, three M.2 slots, Wi-Fi 7, and Realtek 2.5GbE LAN, built around ASUS's TUF durability standards for reliable long-term use.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

Key Features

• Socket AM5 — compatible with AMD Ryzen 9000, 8000 and 7000 Series processors
• AMD B850 chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, Non-ECC, up to 192GB, DDR5-8000 (OC)
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 expansion slots
• 3 x M.2 slots: 1 x PCIe Gen5 x4, 2 x PCIe Gen4 x4
• 4 x SATA 6Gb/s ports with RAID 0, 1, 5, 10 support
• Realtek 2.5GbE LAN with TUF LANGuard
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, with Bluetooth 5.4
• Realtek ALC1220P 7.1 HD Audio

Product Overview

The TUF Gaming B850-Plus Wi-Fi is a straightforward, well-built AM5 motherboard aimed at gamers and builders who want reliable performance without unnecessary extras. Three M.2 slots cover most storage configurations, and the PCIe 5.0 primary slot ensures compatibility with current and upcoming graphics cards. Wi-Fi 7 with 2.4/5/6GHz support and Realtek 2.5GbE LAN provide solid connectivity options. The BIOS Flashback button allows firmware updates without a CPU installed, and TUF-grade components support long-term reliability.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established UK suppliers and distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Compatible Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD B850
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, Non-ECC, Unbuffered (UDIMM)
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 192GB
• Memory Speed: Up to DDR5-8000 (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
• M.2 Slots: 1 x PCIe Gen5 x4 (22-80), 1 x PCIe Gen4 x4 (22-42/60/80/110), 1 x PCIe Gen4 x4 (22-80)
• SATA: 4 x SATA 6Gb/s
• RAID: 0, 1, 5, 10
• LAN: Realtek 2.5GbE (10/100/1000/2500 Mbps) with TUF LANGuard
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz
• Bluetooth: 5.4
• Audio: Realtek ALC1220P 7.1 HD Audio
• Onboard Graphics Output: 1 x DisplayPort 1.4; 1 x HDMI — requires CPU with integrated graphics

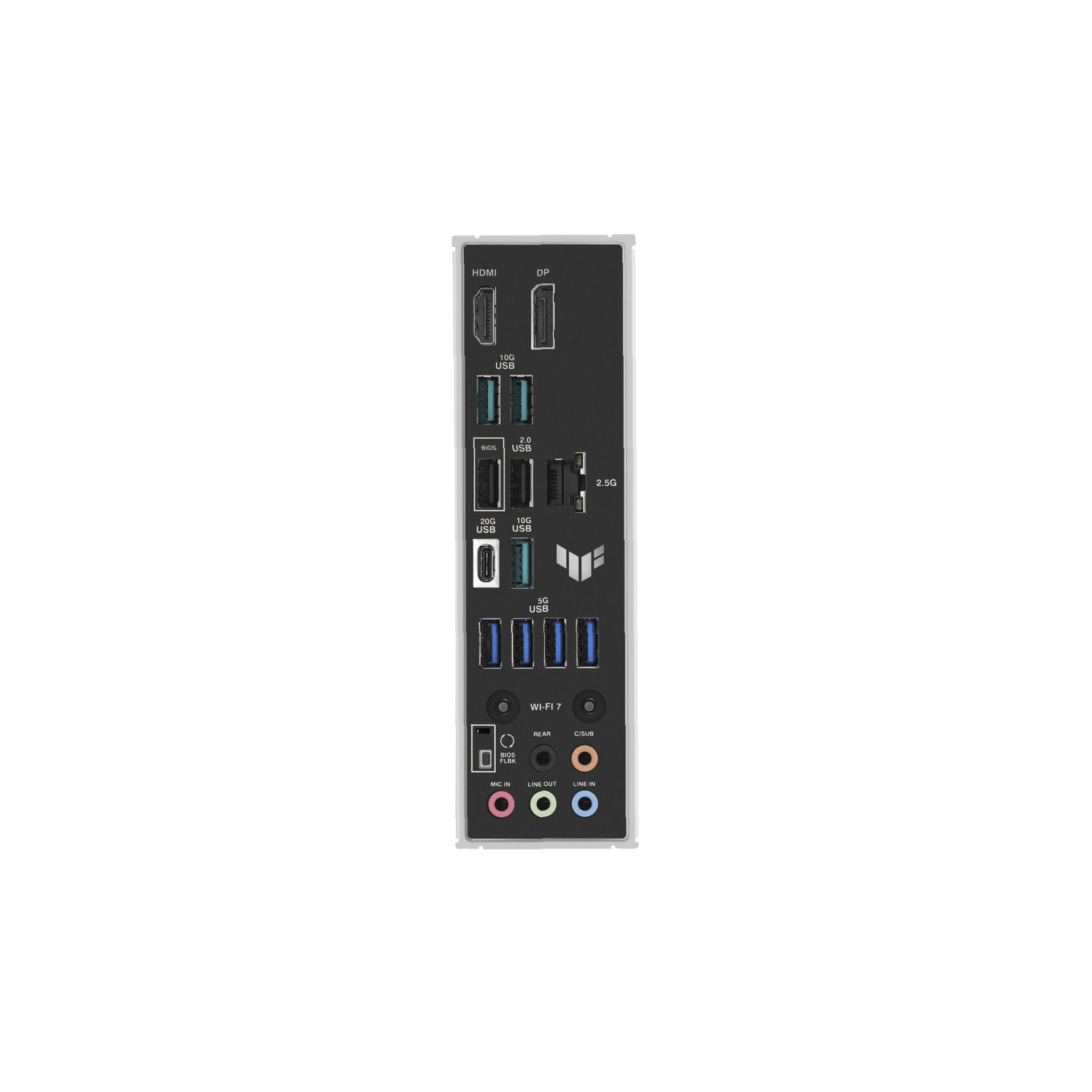

• Rear I/O: 2 x USB 2.0, 4 x USB 5Gbps Type-A, 3 x USB 10Gbps Type-A, 1 x USB 20Gbps Type-C, 1 x DisplayPort 1.4, 1 x HDMI, 1 x RJ-45, 7.1 Audio I/O, BIOS Flashback button
• Internal Headers: 4 x USB 2.0 (via 2 headers), 1 x USB 5Gbps header, 1 x USB 10Gbps header, 1 x USB4 header, 3 x ARGB Gen2, 4 x Chassis Fan, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 1 x Front Panel, 1 x Front Panel Audio, 1 x Chassis Intrusion, 1 x Clear CMOS, 1 x COM (Serial)
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Net Weight: 1.32 kg
• Gross Weight: 1.93 kg
• Package Dimensions: 35.3 x 27.3 x 6.8 cm
• Warranty: 3 Years ASUS Manufacturer Warranty
• Package Contents: Motherboard, 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF Gaming sticker, 2 x M.2 rubber packages, 1 x Quick start guide

Product Identification

Model: TUF Gaming B850-Plus Wi-Fi
MPN: 90MB1J30-M0EAY0
EAN: 4711387781609
UPC: 197105781603
