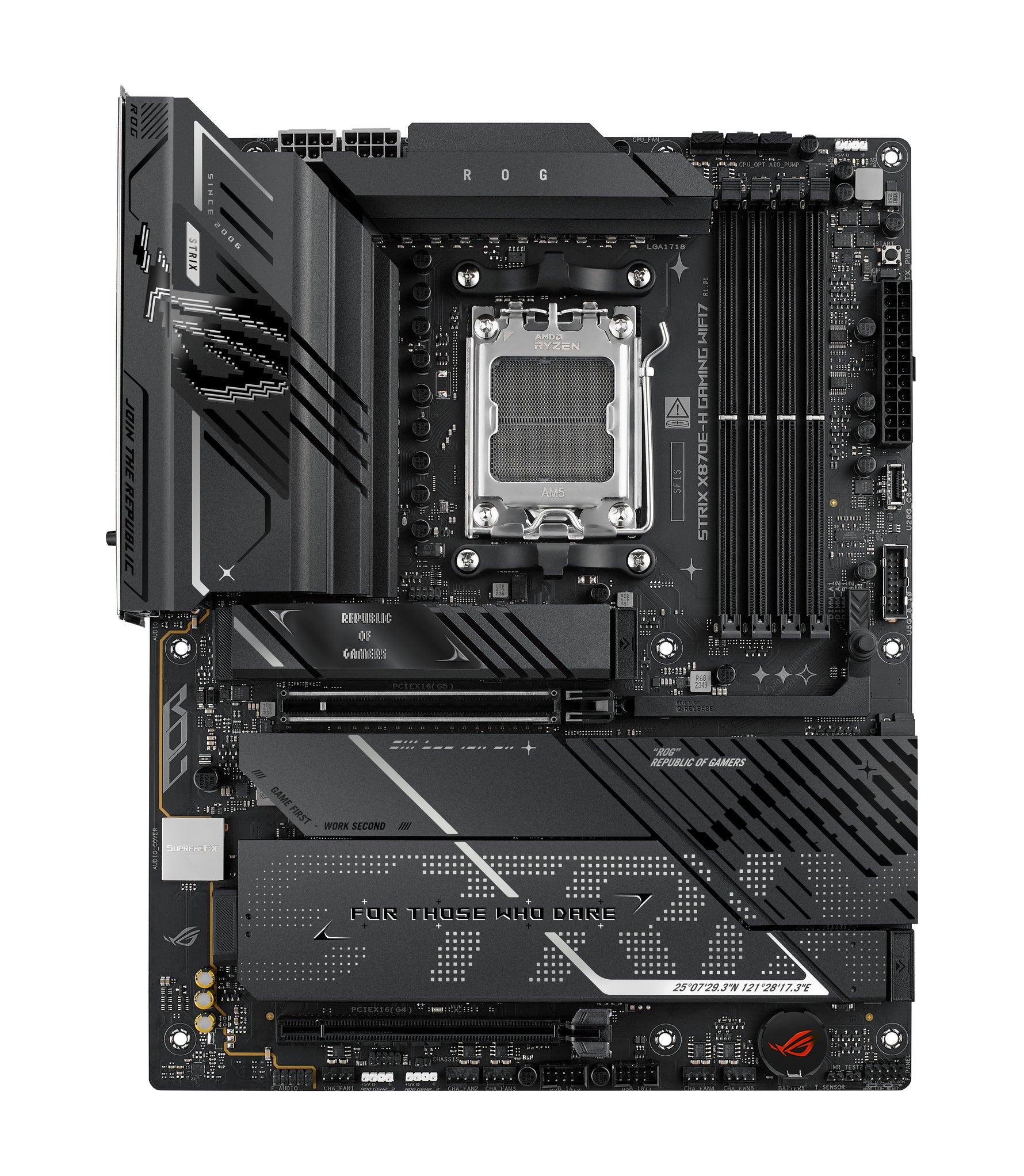

ASUS ROG Strix X870E-H Gaming Wi-Fi 7 ATX Motherboard AM5 DDR5

The ASUS ROG Strix X870E-H Gaming Wi-Fi 7 is an ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. Built on the AMD X870E chipset, it offers four M.2 slots with M.2 Q-Release, PCIe 5.0 support, dual USB4 Type-C ports, Wi-Fi 7, Realtek 5GbE LAN, and Realtek ALC1220P audio.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

Key Features

• Socket AM5 — compatible with AMD Ryzen 9000, 8000 and 7000 Series processors
• AMD X870E chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, Non-ECC, up to 256GB, DDR5-8000+ (OC); AMD EXPO and AEMP support
• 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset) expansion slots
• 4 x M.2 slots: 2 x PCIe Gen5 x4 (CPU), 2 x PCIe Gen4 x4 (Chipset) — all with M.2 Q-Release
• 4 x SATA 6Gb/s ports
• Realtek 5GbE LAN (100/1000/2500/5000 Mbps) with ASUS LANGuard
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, 160MHz, with Bluetooth 5.4 (Realtek RTL8922AE)
• 2 x USB4 Type-C (40Gbps) ports
• Realtek ALC1220P 7.1 HD Audio

Product Overview

The ROG Strix X870E-H Gaming Wi-Fi 7 is a well-specified X870E motherboard that prioritises connectivity and ease of use. All four M.2 slots feature M.2 Q-Release for tool-free drive installation and removal, and the PCIe slot includes Q-Release for straightforward GPU swaps. Dual USB4 Type-C ports support high-speed peripherals and displays, while Realtek 5GbE LAN and Wi-Fi 7 cover wired and wireless connectivity. The Realtek ALC1220P codec handles 7.1 surround sound at up to 32-bit/192kHz with SupremeFX Shielding Technology for reduced interference.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established UK suppliers and distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Compatible Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD X870E
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, Non-ECC, Unbuffered (UDIMM); AMD EXPO and AEMP support
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 256GB
• Memory Speed: Up to DDR5-8000+ (OC)
• PCIe Slots: 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset)
• M.2 Slots: M.2_1 — PCIe Gen5 x4 (CPU, 2242/2260/2280); M.2_2 — PCIe Gen5 x4 (CPU, 2280/22110, Ryzen 9000/7000 only, shares bandwidth with PCIe 5.0 slot); M.2_3 — PCIe Gen4 x4 (Chipset, 2280); M.2_4 — PCIe Gen4 x4 (Chipset, 2280) — all with M.2 Q-Release
• SATA: 4 x SATA 6Gb/s
• RAID: Ryzen 9000 — 0, 1, 5, 10; Ryzen 8000 — 0, 1; Ryzen 7000 — 0, 1, 10
• LAN: Realtek 5GbE (100/1000/2500/5000 Mbps) with ASUS LANGuard
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz, 160MHz (Realtek RTL8922AE)
• Bluetooth: 5.4
• Audio: Realtek ALC1220P 7.1 HD Audio, up to 32-bit/192kHz, S/PDIF-Out (Optical)
• Onboard Graphics Output: 1 x HDMI 2.1 (max 4K@60Hz); 2 x USB4 Type-C (DP 1.4a, max 4K@60Hz) — requires CPU with integrated graphics

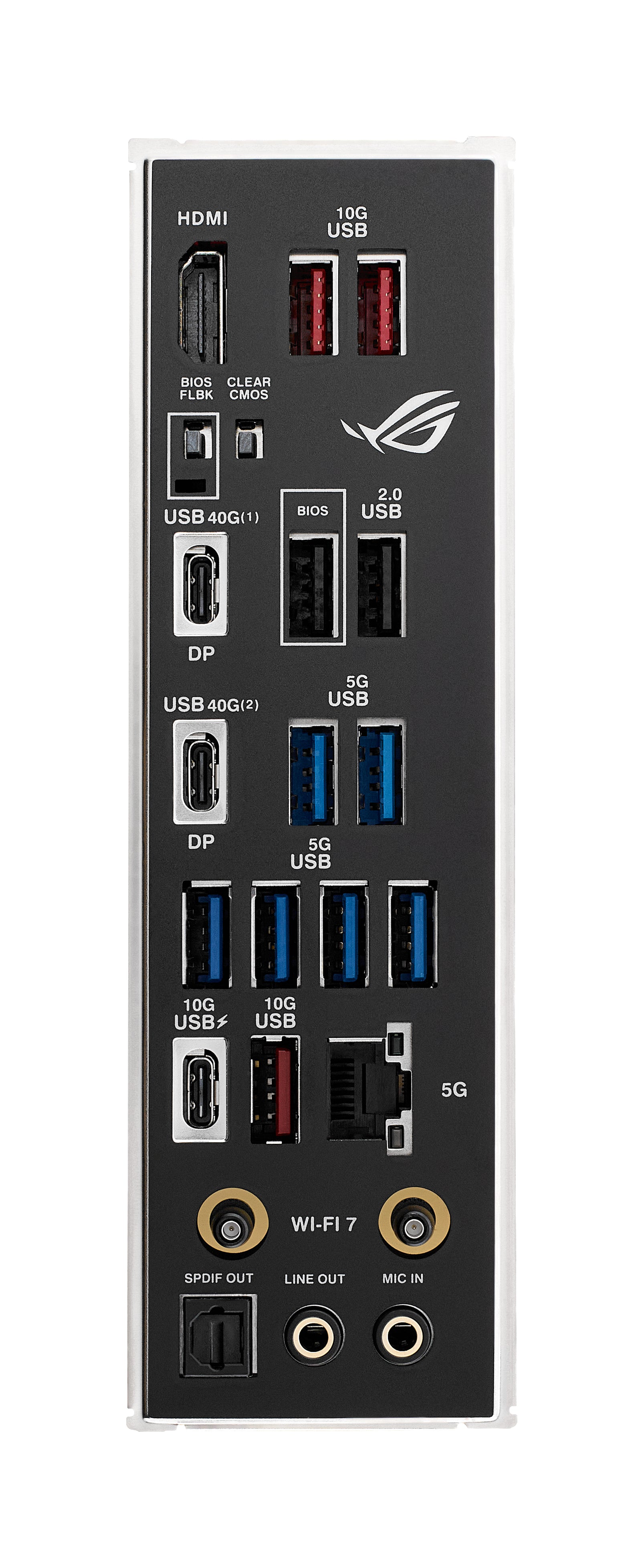

• Rear I/O: 2 x USB 2.0, 6 x USB 5Gbps Type-A, 3 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C (30W PD), 2 x USB4 Type-C (40Gbps), 1 x HDMI, 1 x RJ-45, 2 x Audio jacks, 1 x S/PDIF-Out (Optical), BIOS Flashback button, Clear CMOS button
• Internal Headers: 4 x USB 2.0 (via 2 headers), 2 x USB 5Gbps (via 1 header), 1 x USB 20Gbps Type-C connector, 3 x ARGB Gen2, 5 x Chassis Fan, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 1 x Front Panel, 1 x Front Panel Audio, 1 x Chassis Intrusion, 1 x Thermal Sensor, 1 x CPU OV jumper, 1 x Start button
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Net Weight: 1.87 kg
• Gross Weight: 2.54 kg
• Package Dimensions: 35.3 x 27.3 x 6.8 cm
• Warranty: 3 Years ASUS Manufacturer Warranty

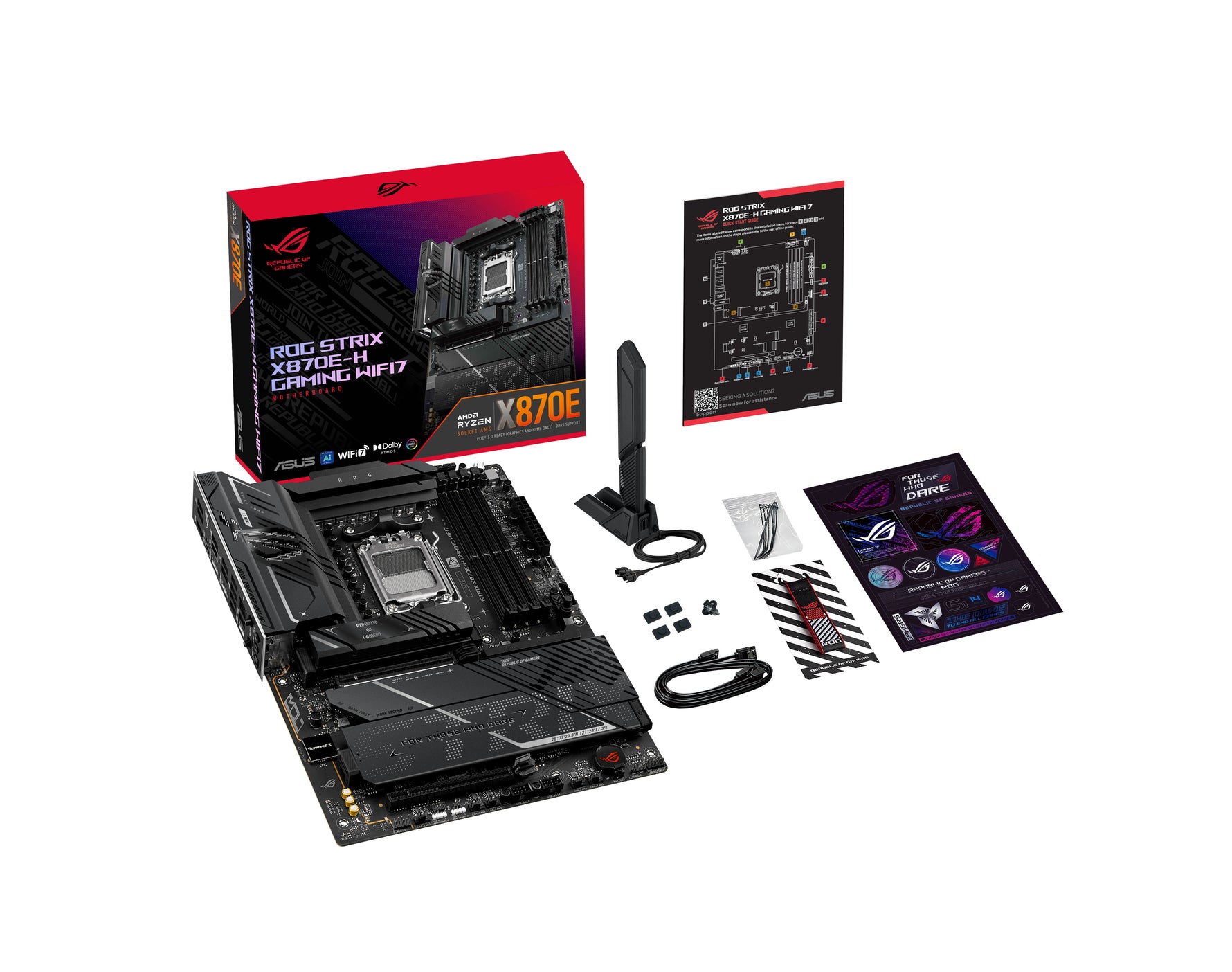

• Package Contents: Motherboard, 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubbers, 1 x Quick start guide

Product Identification

Model: ROG Strix X870E-H Gaming Wi-Fi 7
MPN: 90MB1M90-M0EAY0
EAN: 4711636167208
