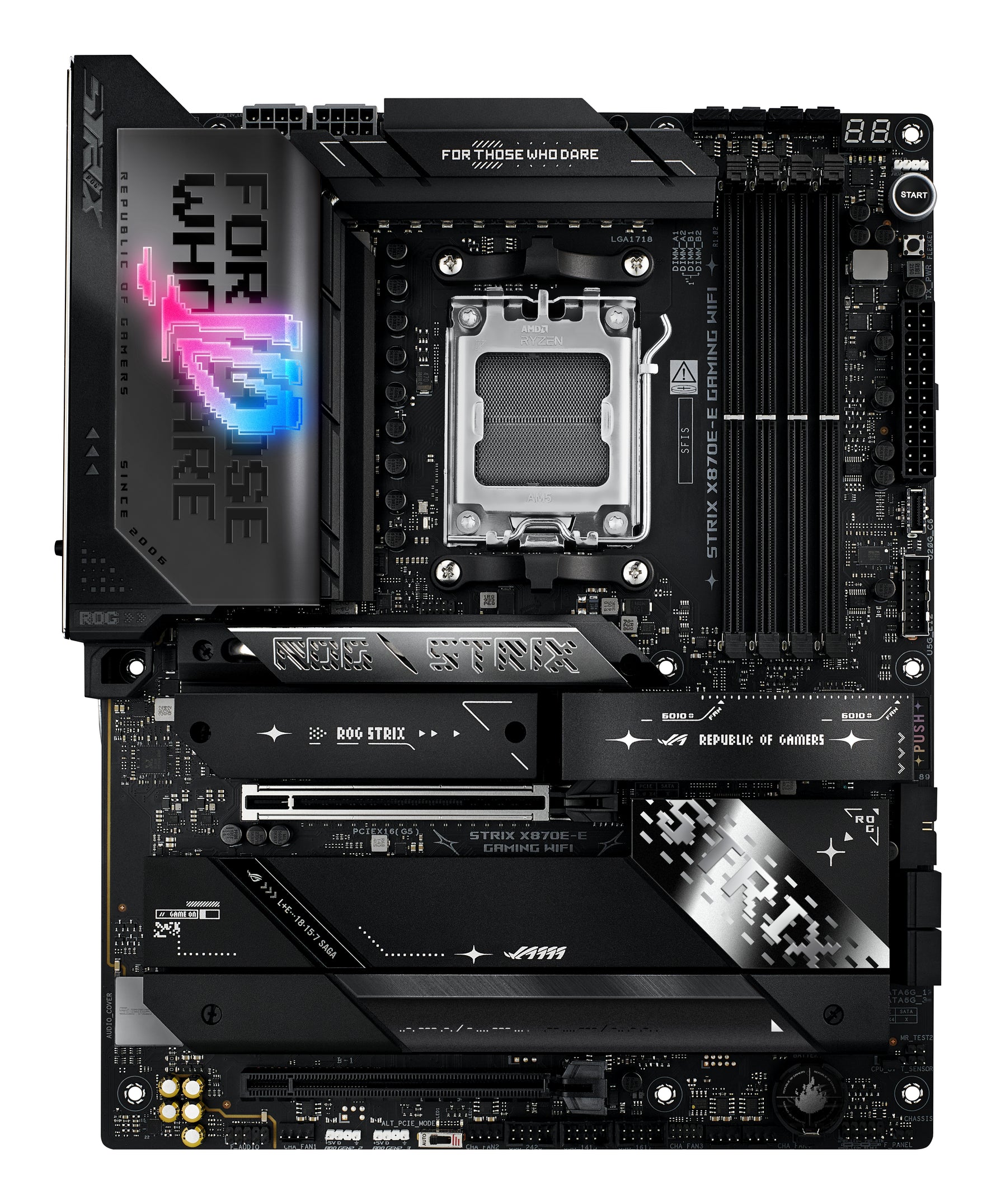

ASUS ROG Strix X870E-E Gaming Wi-Fi ATX Motherboard AM5 DDR5

The ASUS ROG Strix X870E-E Gaming Wi-Fi is a high-end ATX motherboard for AMD Ryzen 9000 Series processors on the AM5 platform. It features the AMD X870E chipset, five M.2 slots, dual LAN (2.5GbE and 5GbE), dual USB4 Type-C ports, Wi-Fi 7, and ROG SupremeFX audio, making it a comprehensive choice for demanding gaming and productivity builds.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Socket AM5 - compatible with AMD Ryzen 9000 Series processors
• AMD X870E chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, ECC/Non-ECC, up to 192GB (4x48GB), DDR5-8400 (OC)
• 1 x PCIe 5.0 x16 and 1 x PCIe 4.0 x16 expansion slots
• 5 x M.2 slots: 3 x PCIe Gen5 x4, 2 x PCIe Gen4 x4
• 4 x SATA 6Gb/s ports with RAID 0, 1, 5, 10 support
• Dual LAN: Realtek 5GbE (100/1000/2500/5000 Mbps) + 2.5GbE (10/100/1000/2500 Mbps)
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, up to 6.5Gbps, with Bluetooth 5.4
• 2 x USB4 Type-C (40Gbps) with DisplayPort and Power Delivery
• ROG SupremeFX 7.1 HD Audio, ALC4080 codec

Product Overview

The ROG Strix X870E-E Gaming Wi-Fi is built around the AMD X870E chipset, offering a step up in connectivity and expandability over B850-based boards. Five M.2 slots, including three PCIe Gen5 x4, provide extensive high-speed storage options. Dual LAN ports cover both 2.5GbE and 5GbE wired connectivity, and two USB4 Type-C ports with DisplayPort and Power Delivery support a wide range of peripherals and displays. Wi-Fi 7 with 320MHz bandwidth delivers up to 6.5Gbps wireless throughput. AI Overclocking, AI Cooling II, and AEMP memory profiles simplify system tuning, while robust M.2 heatsinks manage thermal performance under sustained loads.

Delivery and Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established distribution partners. Orders are processed within 1-2 business days and delivered within 3-5 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery - processed in 1-2 business days, delivered in 3-5 business days
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Chipset: AMD X870E
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, ECC/Non-ECC, Unbuffered (UDIMM)
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 192GB (4x48GB)
• Memory Speed: Up to DDR5-8400 (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
• M.2 Slots: 3 x PCIe Gen5 x4 (22-42/60/80 and 22-42/60/80/110), 2 x PCIe Gen4 x4 (22-80)
• SATA: 4 x SATA 6Gb/s
• RAID: 0, 1, 5, 10
• LAN: Realtek 5GbE (100/1000/2500/5000 Mbps) + 2.5GbE (10/100/1000/2500 Mbps)
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz, up to 6.5Gbps
• Bluetooth: 5.4
• Audio: ROG SupremeFX 7.1 HD ALC4080, S/PDIF-Out (Optical)

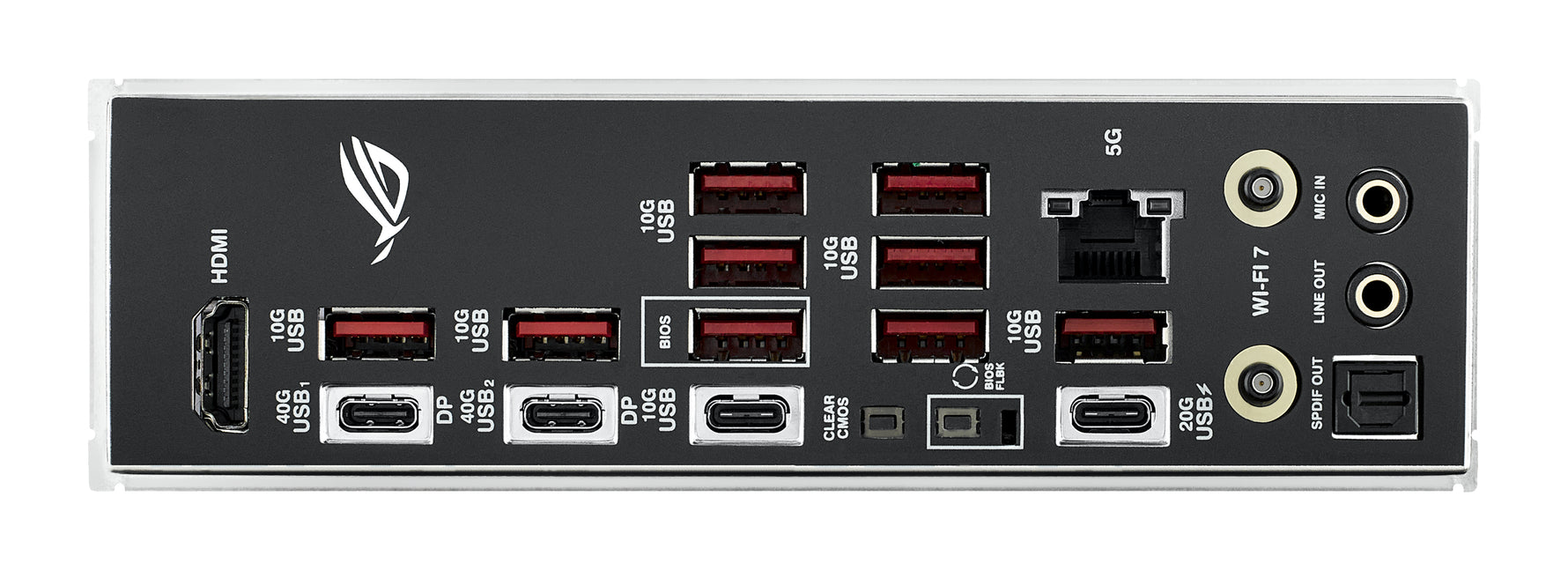

• Rear I/O: 9 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2x2 Type-C (20Gbps), 2 x USB4 Type-C (40Gbps, PD+DP), 1 x HDMI 2.1, 1 x RJ-45 (5GbE), 1 x RJ-45 (2.5GbE), Line Out/Mic-In, 1 x S/PDIF-Out (Optical), BIOS Flashback button, Clear CMOS button
• Internal Headers: 3 x USB 2.0, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-C, 3 x ARGB Gen2, 5 x CHA_FAN, 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 1 x Front Panel Audio, 1 x Thermal Sensor, 1 x CPU OV jumper, 1 x FlexKey, 1 x Start button, 1 x ReTry button
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Gross Weight: 2.87 kg
• Package Dimensions: 36.5 x 28.1 x 8.7 cm
• Warranty: 3 Years ASUS Manufacturer Warranty

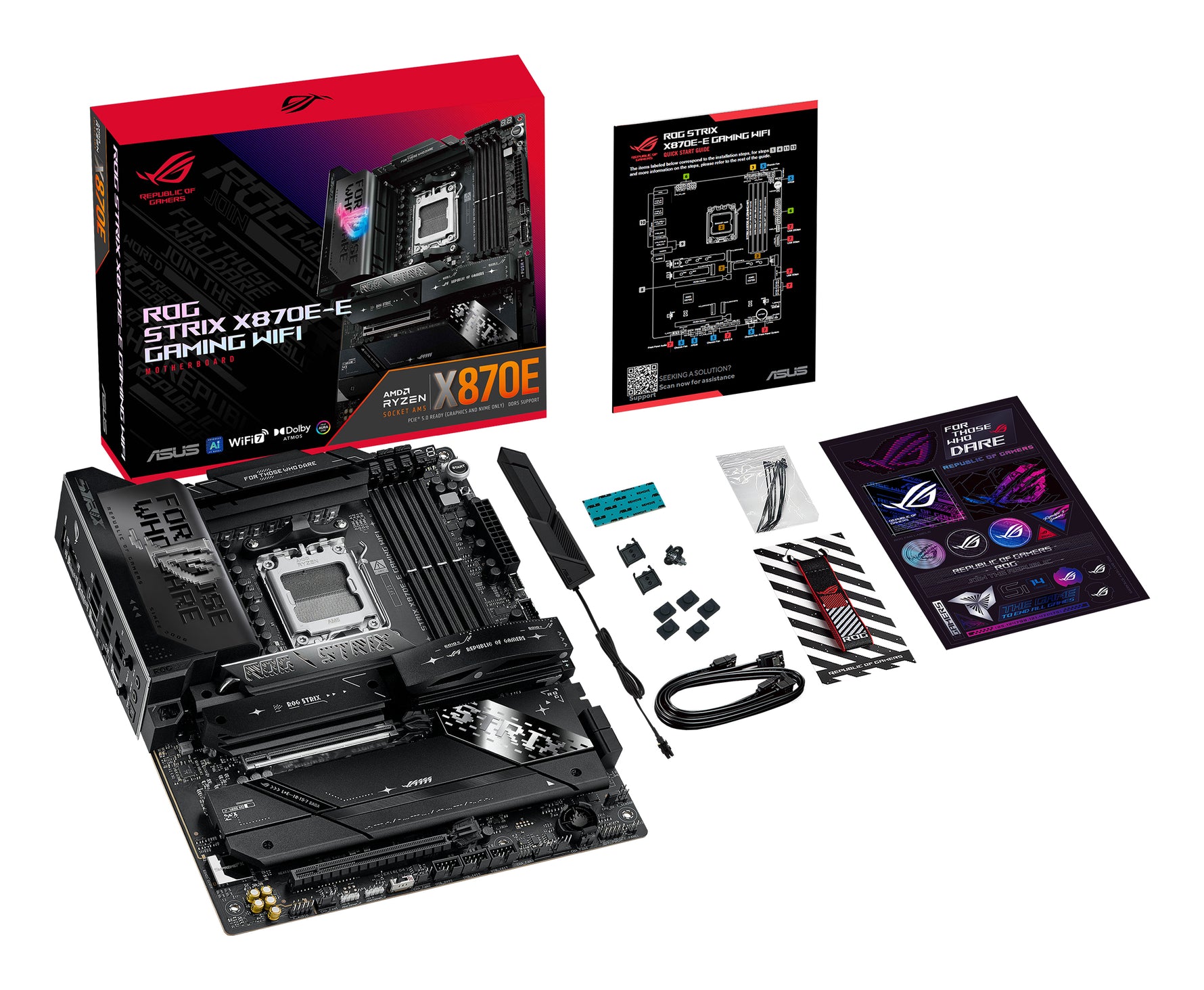

• Package Contents: Motherboard, 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x M.2 Q-Latch package, 2 x M.2 Q-Slides, 1 x ROG key chain, 1 x ROG Strix stickers, 5 x M.2 rubbers, 1 x Quick start guide

Product Identification

Model: ROG STRIX X870E-E GAMING WIFI
MPN: 90MB1IB0-M0EAY0
EAN: 4711387724163
UPC: 197105724163
