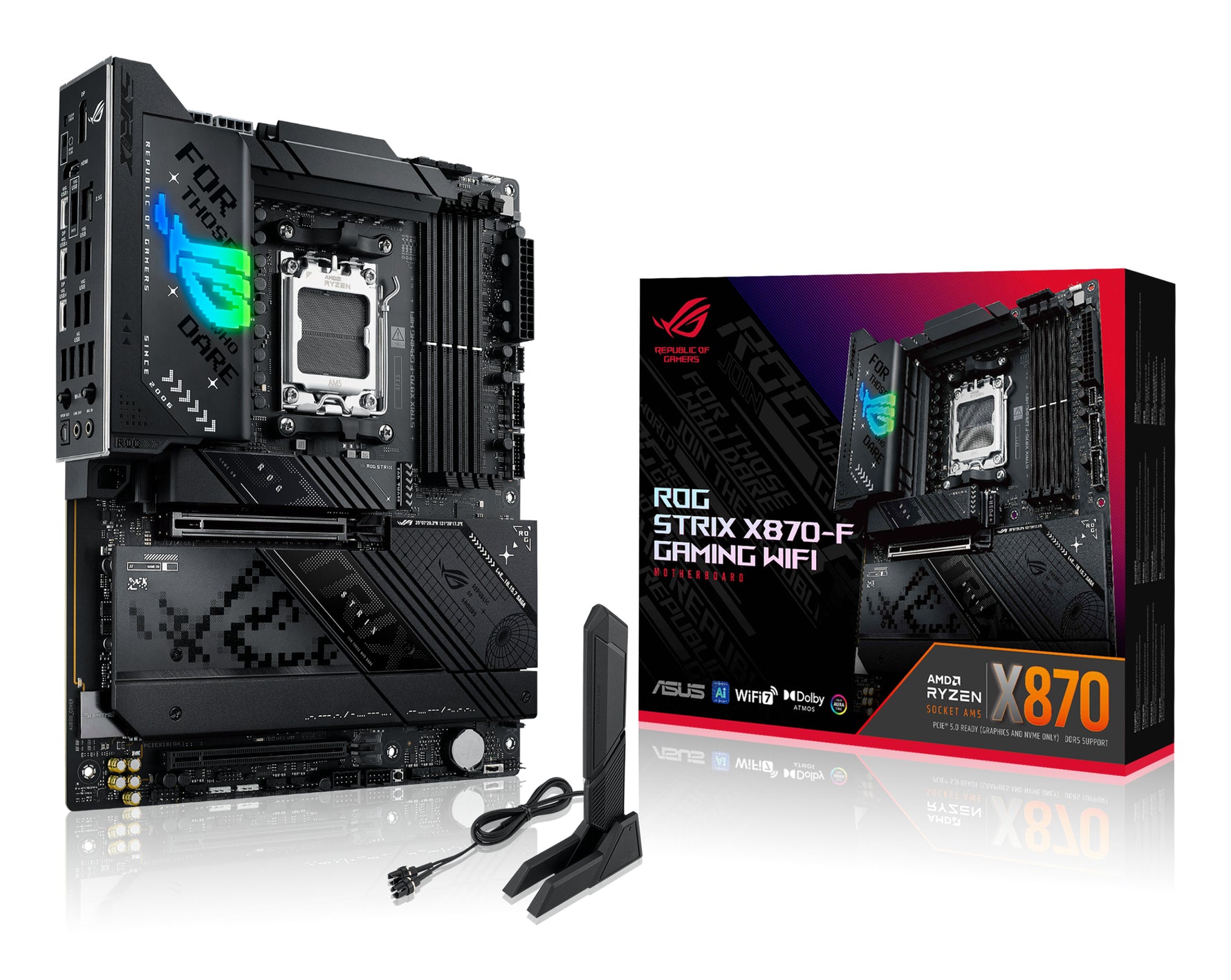

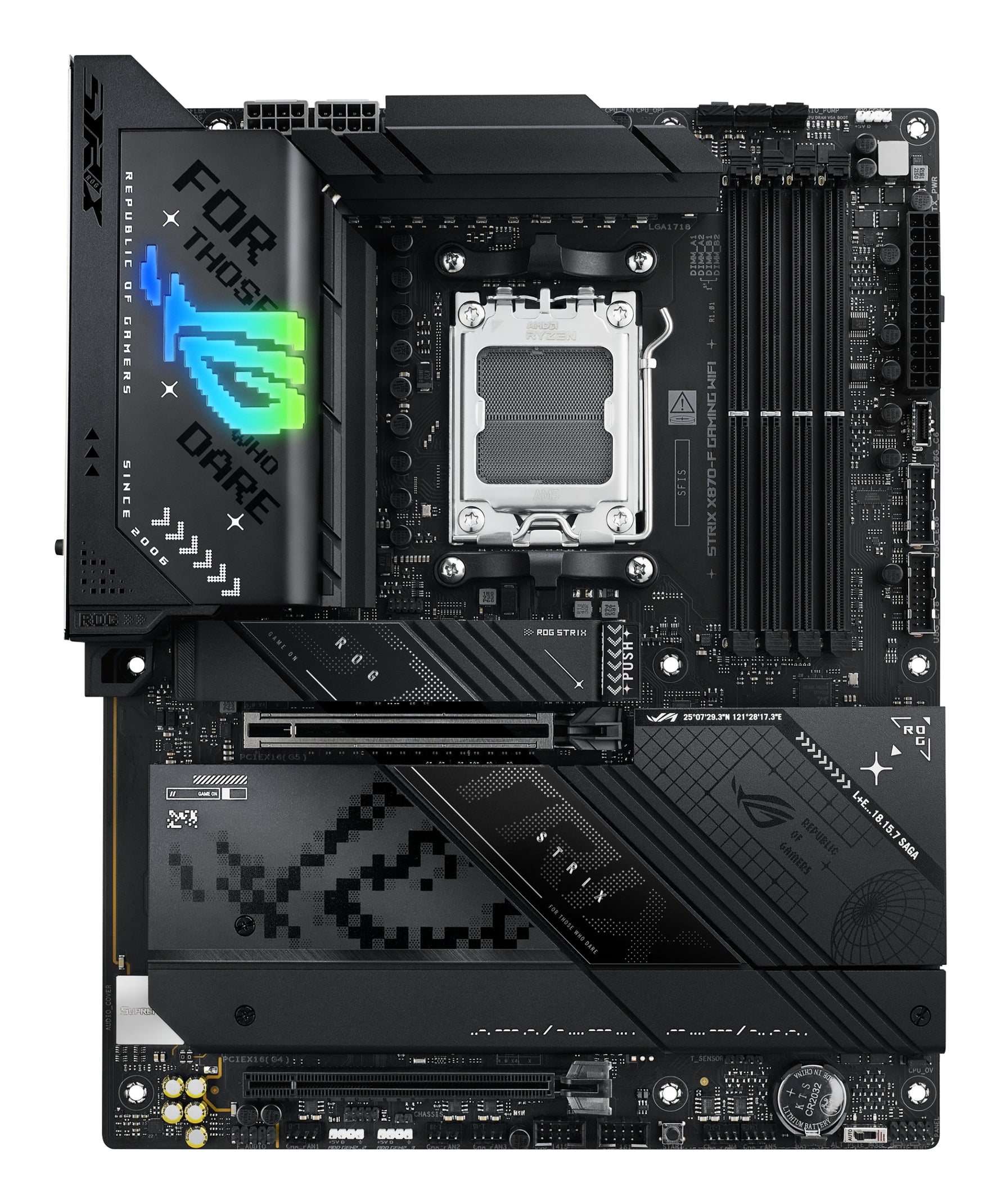

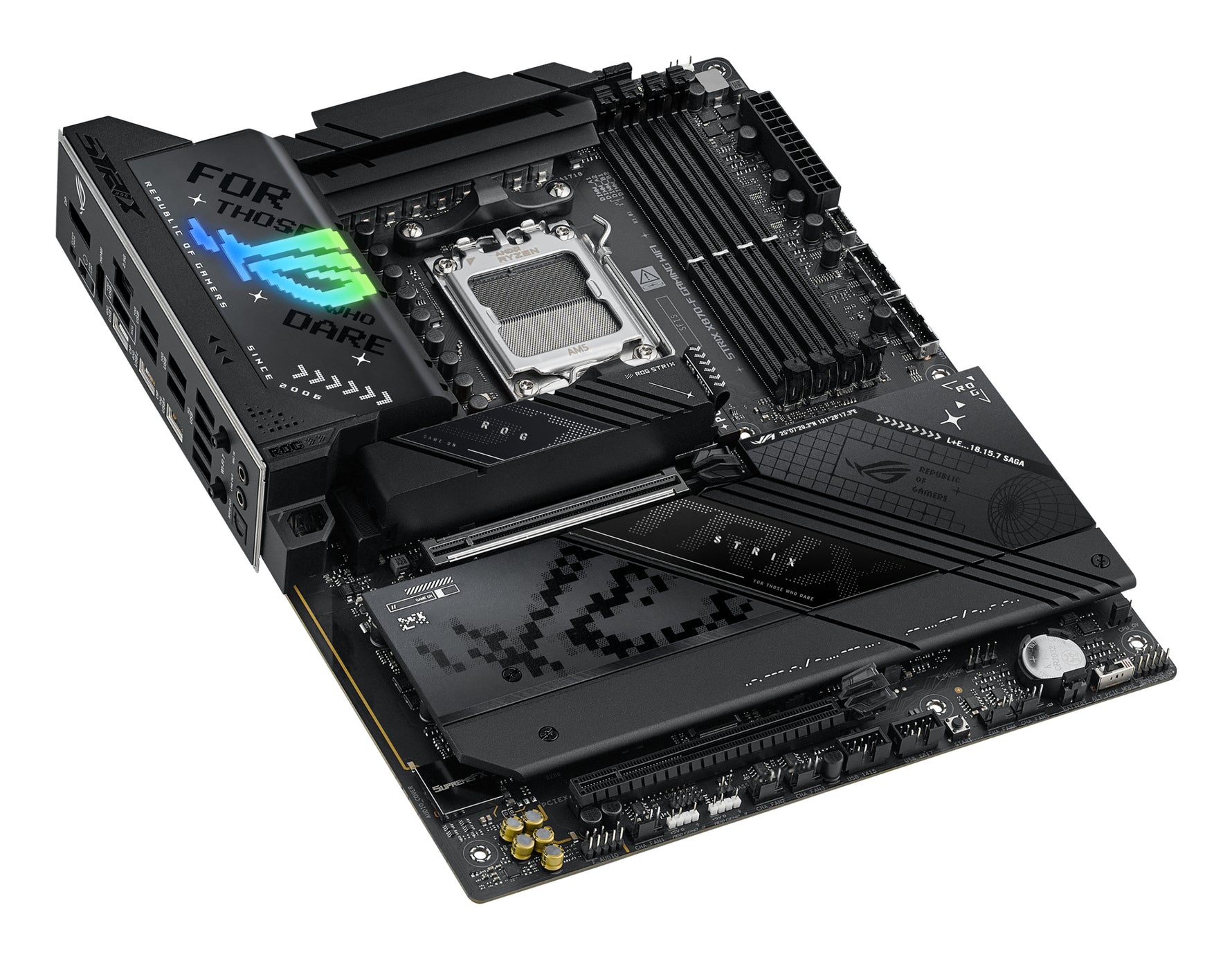

ASUS ROG Strix X870-F Gaming Wi-Fi ATX Motherboard AM5 DDR5

The ASUS ROG Strix X870-F Gaming Wi-Fi is an ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. Built on the AMD X870 chipset, it offers four M.2 slots, PCIe 5.0 support, dual USB4 Type-C ports, Wi-Fi 7 with 320MHz bandwidth, Intel 2.5GbE LAN, and ROG SupremeFX ALC4080 audio.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

Key Features

• Socket AM5 — compatible with AMD Ryzen 9000, 8000 and 7000 Series processors
• AMD X870 chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, ECC/Non-ECC, up to 256GB, DDR5-8000+ (OC); AMD EXPO and AEMP support
• 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset) expansion slots
• 4 x M.2 slots: 2 x PCIe Gen5 x4 (CPU), 2 x PCIe Gen4 x4 (Chipset)
• 2 x SATA 6Gb/s ports
• Intel 2.5GbE LAN (10/100/1000/2500 Mbps) with ASUS LANGuard
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, 320MHz, with Bluetooth 5.4
• 2 x USB4 Type-C (40Gbps) with DisplayPort Alt Mode
• ROG SupremeFX ALC4080 7.1 Surround Sound Audio

Product Overview

The ROG Strix X870-F Gaming Wi-Fi delivers a well-rounded feature set for AM5 builds. Four M.2 slots, including two PCIe Gen5 x4 from the CPU, provide fast and flexible storage options. Dual USB4 Type-C ports with DisplayPort Alt Mode support high-speed peripherals and displays, and Wi-Fi 7 with 320MHz bandwidth delivers fast wireless throughput. Intel 2.5GbE LAN with ASUS LANGuard covers wired connectivity. ROG SupremeFX ALC4080 audio handles 7.1 surround sound at up to 32-bit/384kHz, and the BIOS Flashback button allows firmware updates without a CPU installed.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established UK suppliers and distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Compatible Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD X870
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, ECC/Non-ECC, Unbuffered (UDIMM); AMD EXPO and AEMP support
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 256GB
• Memory Speed: Up to DDR5-8000+ (OC)
• PCIe Slots: 1 x PCIe 5.0 x16 (CPU, Ryzen 9000/7000) / PCIe 4.0 x16 (Ryzen 8000); 1 x PCIe 4.0 x16 (x4 mode, Chipset)
• M.2 Slots: M.2_1 — PCIe Gen5 x4 (CPU, 2242/2260/2280); M.2_2 — PCIe Gen5 x4 (CPU, 2242/2260/2280/22110, Ryzen 9000/7000 only, shares bandwidth with PCIe 5.0 slot); M.2_3 — PCIe Gen4 x4 (Chipset, 2280, shares bandwidth with PCIe 4.0 slot); M.2_4 — PCIe Gen4 x4 (Chipset, 2280)
• SATA: 2 x SATA 6Gb/s
• RAID: PCIe — 0, 1, 5, 10 (RAID 5 requires Ryzen 9000); SATA — 0, 1
• LAN: Intel 2.5GbE (10/100/1000/2500 Mbps) with ASUS LANGuard
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz, 320MHz
• Bluetooth: 5.4
• Audio: ROG SupremeFX ALC4080, 7.1 Surround Sound, up to 32-bit/384kHz, S/PDIF-Out (Optical)
• Onboard Graphics Output: 1 x DisplayPort 1.4 (max 8K@30Hz); 1 x HDMI 2.1 (max 4K@60Hz); 2 x USB4 Type-C (DP 1.4a, max 4K@60Hz) — requires CPU with integrated graphics

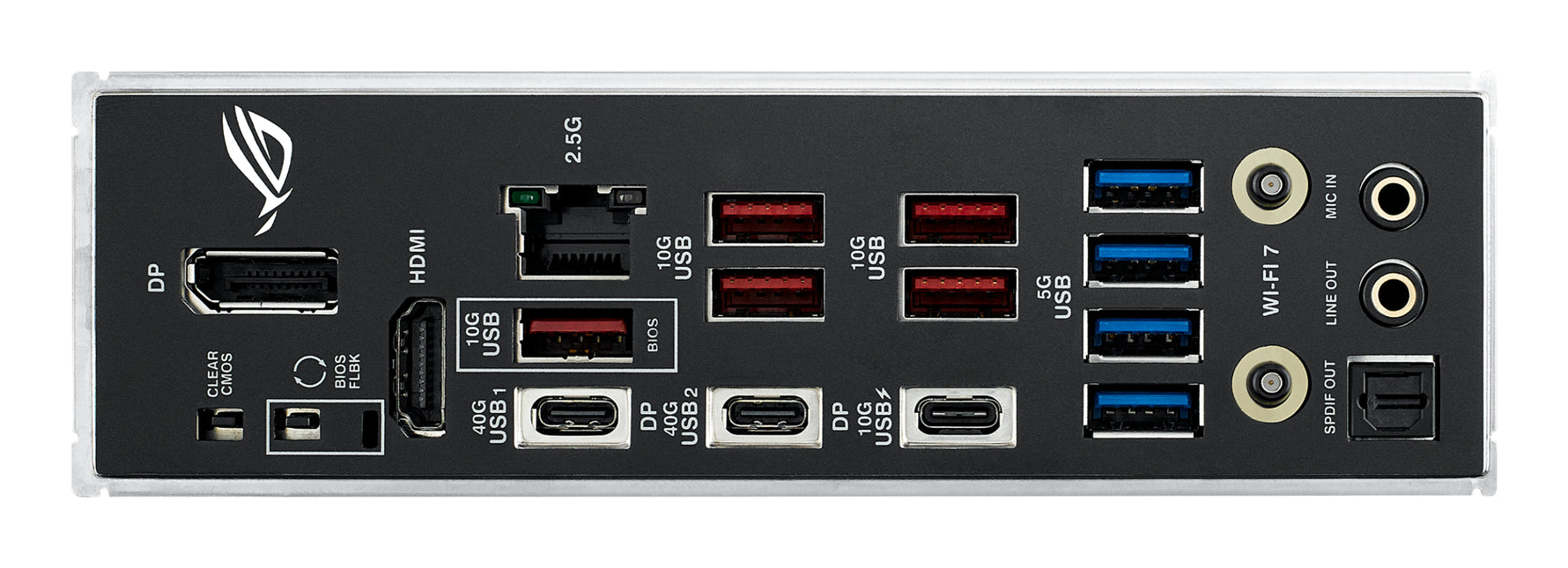

• Rear I/O: 4 x USB 5Gbps Type-A, 5 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C (30W PD), 2 x USB4 Type-C (40Gbps, DP Alt), 1 x DisplayPort, 1 x HDMI, 1 x RJ-45, 2 x Audio jacks, 1 x S/PDIF-Out (Optical), BIOS Flashback button, Clear CMOS button
• Internal Headers: 4 x USB 2.0 (via 2 headers), 4 x USB 5Gbps (via 2 headers), 1 x USB 20Gbps Type-C connector, 3 x ARGB Gen2, 5 x Chassis Fan, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 1 x Front Panel, 1 x Front Panel Audio, 1 x Chassis Intrusion, 1 x Thermal Sensor, 1 x CPU OV jumper, 1 x Alteration PCIe mode switch, 1 x Start button
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Gross Weight: 2.53 kg
• Package Dimensions: 36 x 27.5 x 7 cm
• Warranty: 3 Years ASUS Manufacturer Warranty

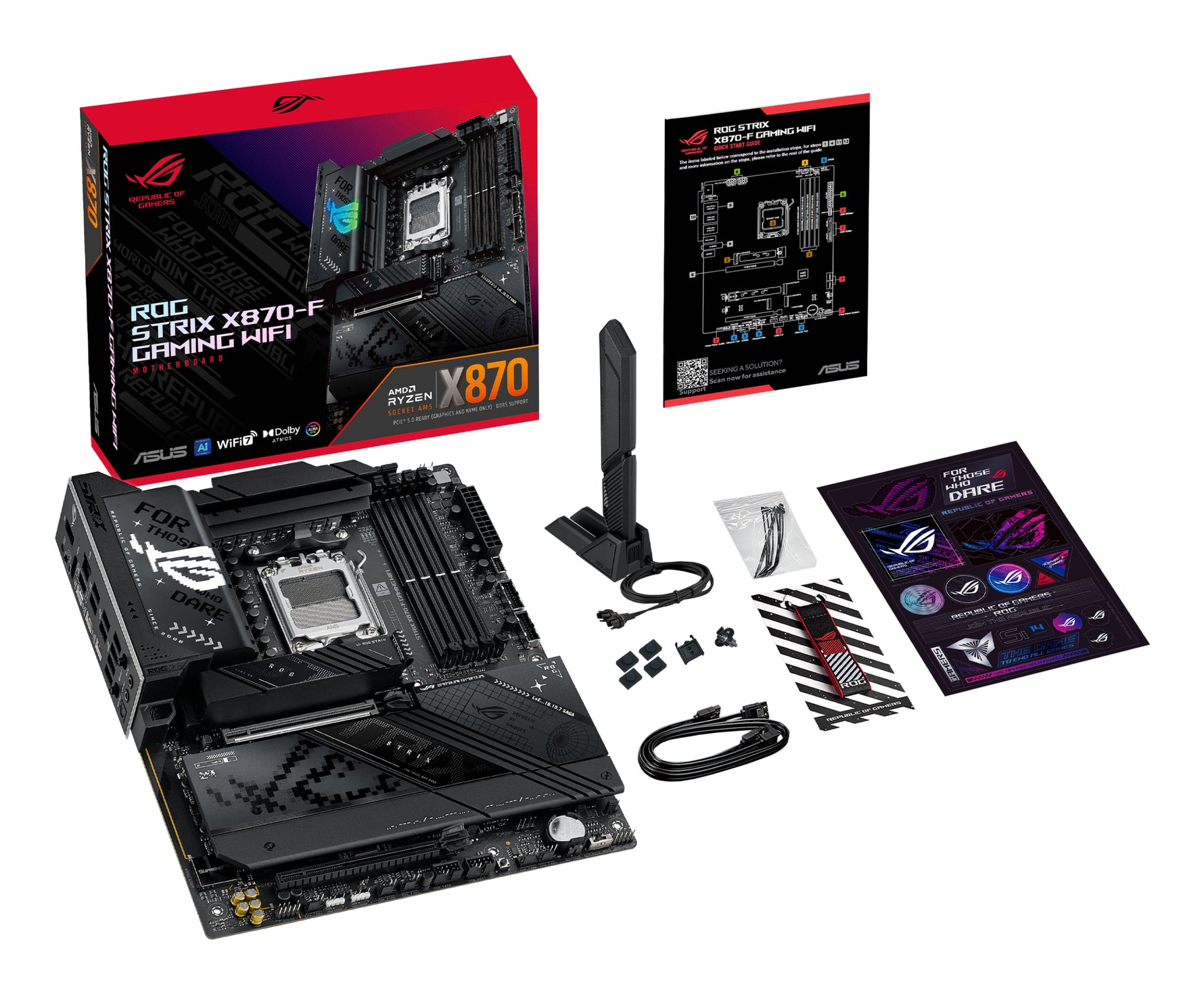

• Package Contents: Motherboard, 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubber packages, 1 x Quick start guide

Product Identification

Model: ROG Strix X870-F Gaming Wi-Fi
MPN: 90MB1IV0-M0EAY0
EAN: 4711387732045
UPC: 197105732049
