ASUS ROG Strix B860-F Gaming Wi-Fi ATX Motherboard LGA1851 DDR5

The ASUS ROG Strix B860-F Gaming Wi-Fi is an ATX motherboard for Intel Core Ultra Series 2 processors on the LGA1851 platform. Built on the Intel B860 chipset, it features four M.2 slots, PCIe 5.0 support, one Thunderbolt 4 rear port, Intel 2.5GbE LAN, Wi-Fi 7, and ROG SupremeFX ALC4080 audio.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

Key Features

• Socket LGA1851 — compatible with Intel Core Ultra Series 2 (Arrow Lake) processors
• Intel B860 chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, Non-ECC, up to 256GB, DDR5-9066 (OC); CUDIMM, XMP and AEMP III support
• 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset) expansion slots
• 4 x M.2 slots: 1 x PCIe Gen5 x4 (CPU), 3 x PCIe Gen4 x4 (Chipset)
• 4 x SATA 6Gb/s ports with RAID 0, 1, 5, 10 (SATA)
• Intel 2.5GbE LAN with ASUS LANGuard
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, 160MHz, up to 2.9Gbps, with Bluetooth 5.4
• 1 x Thunderbolt 4 Type-C port (rear panel, 40Gbps)
• ROG SupremeFX ALC4080 7.1 Surround Sound Audio

Product Overview

The ROG Strix B860-F Gaming Wi-Fi brings ROG-level features to the Intel B860 platform. Four M.2 slots, including one PCIe Gen5 x4 from the CPU, provide fast and flexible storage options. A Thunderbolt 4 rear port supports 40Gbps peripherals and displays, and Wi-Fi 7 with 160MHz bandwidth delivers up to 2.9Gbps wireless throughput. Intel 2.5GbE LAN with ASUS LANGuard covers wired connectivity. ROG SupremeFX ALC4080 audio handles 7.1 surround sound at up to 32-bit/384kHz, and the BIOS Flashback button allows firmware updates without a CPU installed. Three ARGB Gen2 headers support Aura Sync customisable lighting.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established UK suppliers and distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Socket: LGA1851
• Compatible Processors: Intel Core Ultra Series 2 (Arrow Lake)
• Chipset: Intel B860
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, Non-ECC, Unbuffered (UDIMM); CUDIMM supported; XMP and AEMP III support
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 256GB
• Memory Speed: Up to DDR5-9066 (OC)
• PCIe Slots: 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset)
• M.2 Slots: M.2_1 — PCIe Gen5 x4 (CPU, 2242/2260/2280); M.2_2 — PCIe Gen4 x4 (Chipset, 2280); M.2_3 — PCIe Gen4 x4 (Chipset, 2280/22110); M.2_4 — PCIe Gen4 x4 (Chipset, 2280, shares bandwidth with PCIe 4.0 slot)
• SATA: 4 x SATA 6Gb/s
• RAID: 0, 1, 5, 10 (SATA)
• LAN: Intel 2.5GbE (10/100/1000/2500 Mbps) with ASUS LANGuard
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz, 160MHz, up to 2.9Gbps
• Bluetooth: 5.4
• Audio: ROG SupremeFX ALC4080, 7.1 Surround Sound, up to 32-bit/384kHz, S/PDIF-Out (Optical, rear)
• Onboard Graphics Output: 1 x DisplayPort 1.4 (max 8K@60Hz DSC); 1 x HDMI 2.1 (max 8K@60Hz DSC); 1 x Thunderbolt 4 Type-C (DP, max 8K@60Hz DSC) — requires CPU with integrated graphics

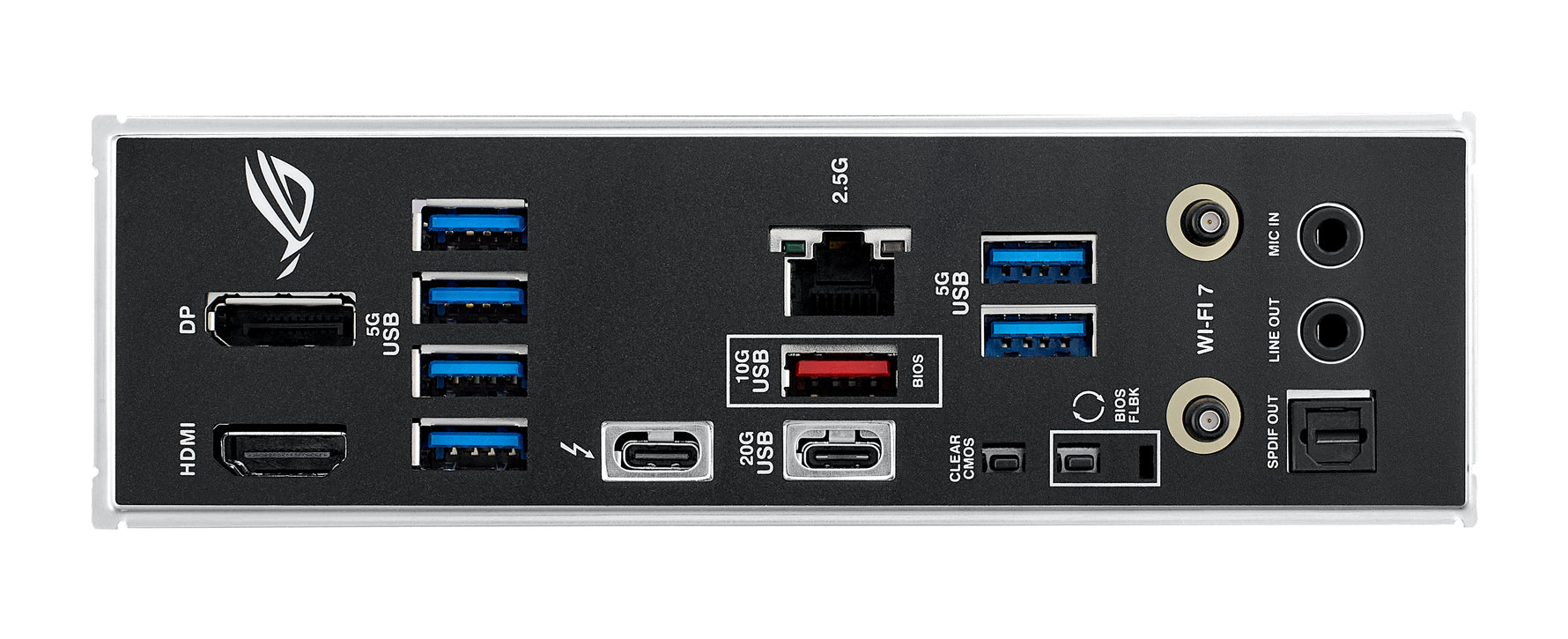

• Rear I/O: 6 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-A, 1 x USB 20Gbps Type-C, 1 x Thunderbolt 4 Type-C (40Gbps), 1 x DisplayPort, 1 x HDMI, 1 x RJ-45, 2 x Audio jacks, 1 x S/PDIF-Out (Optical), BIOS Flashback button, Clear CMOS button
• Internal Headers: 3 x USB 2.0 (via 2 headers), 2 x USB 5Gbps (via 1 header), 1 x USB 10Gbps Type-C connector, 1 x Thunderbolt (USB4) header, 3 x ARGB Gen2, 4 x Chassis Fan, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 1 x Front Panel, 1 x Front Panel Audio, 1 x Chassis Intrusion, 1 x Thermal Sensor, 1 x Start button
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Gross Weight: 2.16 kg
• Package Dimensions: 35.5 x 27.3 x 6.9 cm
• Warranty: 3 Years ASUS Manufacturer Warranty

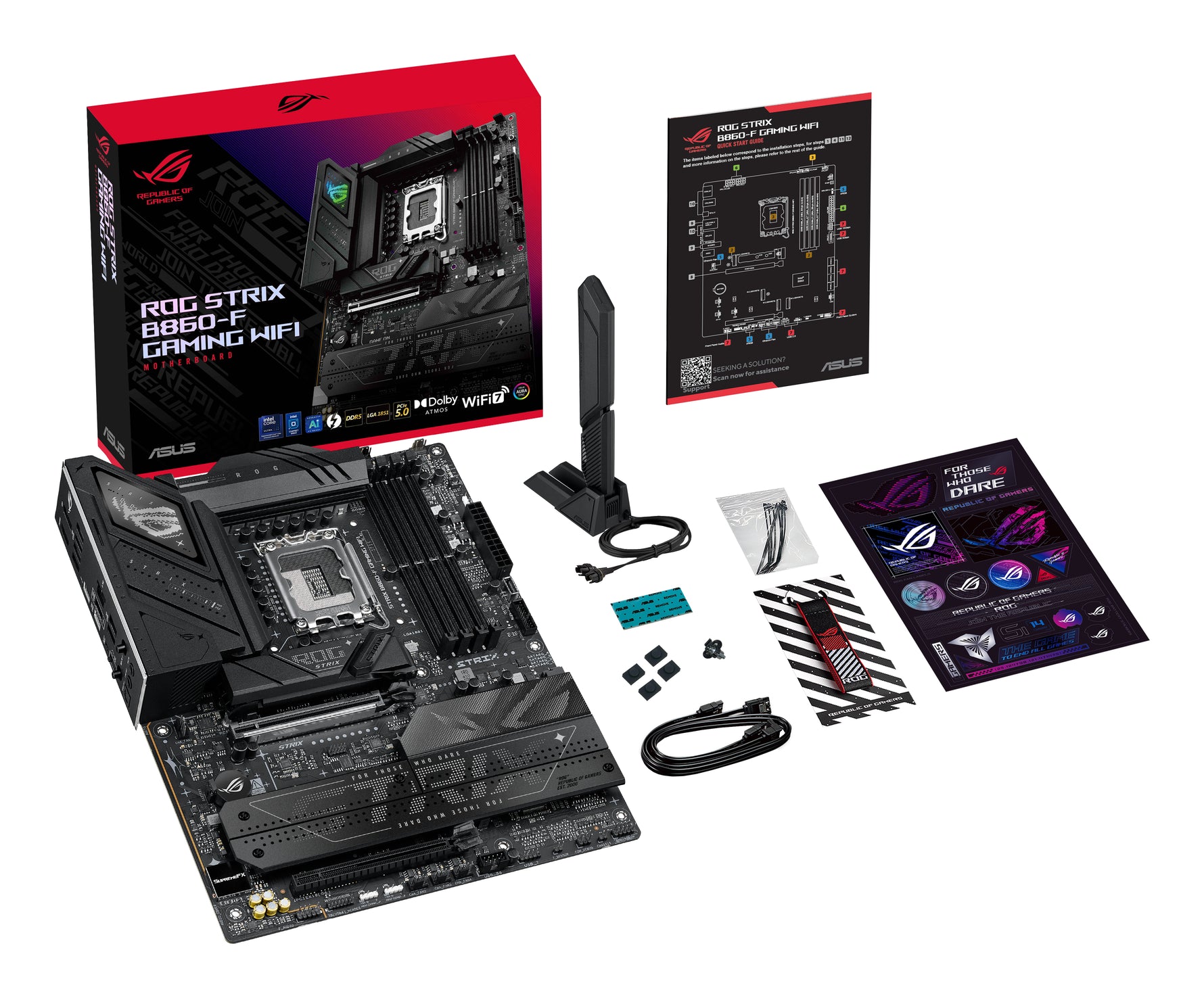

• Package Contents: Motherboard, 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubbers, 1 x Quick start guide

Product Identification

Model: ROG Strix B860-F Gaming Wi-Fi
MPN: 90MB1JG0-M0EAY0
EAN: 4711387806951
UPC: 197105806955
