ASUS ROG Strix B850-F Gaming Wi-Fi 7 Neo ATX Motherboard AM5 DDR5

The ASUS ROG Strix B850-F Gaming Wi-Fi 7 Neo is an ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. It features four M.2 slots including two PCIe Gen5 x4, PCIe 5.0 support, Wi-Fi 7 with 160MHz bandwidth, Realtek 5GbE LAN, and ROG SupremeFX ALC4080 audio.

UK-based seller
Tracked delivery across the UK
Genuine product sourced through established UK suppliers and distribution partners

Key Features

• Socket AM5 — compatible with AMD Ryzen 9000, 8000 and 7000 Series processors
• AMD B850 chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, ECC/Non-ECC, up to 256GB, DDR5-9000+ (OC); AMD EXPO and AEMP support
• 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset) expansion slots
• 4 x M.2 slots: 2 x PCIe Gen5 x4 (CPU), 2 x PCIe Gen4 x4 (Chipset)
• 2 x SATA 6Gb/s ports with RAID 0, 1, 5, 10 support
• Realtek 5GbE LAN (100/1000/2500/5000 Mbps) with ASUS LANGuard
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, 160MHz, with Bluetooth 5.4 (MediaTek MT7925)
• ROG SupremeFX ALC4080 7.1 Surround Sound Audio

Product Overview

The ROG Strix B850-F Gaming Wi-Fi 7 Neo is a feature-rich AM5 motherboard that balances connectivity and performance. Four M.2 slots — including two PCIe Gen5 x4 from the CPU — provide fast and flexible storage options. Realtek 5GbE LAN and Wi-Fi 7 with 160MHz bandwidth ensure reliable wired and wireless connectivity. ROG SupremeFX ALC4080 audio delivers clear 7.1 surround sound at up to 32-bit/384kHz, and the dual 8-pin EPS power connectors support demanding processor configurations. The BIOS Flashback and Clear CMOS buttons on the rear panel simplify setup and troubleshooting.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established UK suppliers and distribution partners. Customers can typically expect to receive their order within 3–5 business days from the date the order is placed, with free tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established UK suppliers and distribution partners
• Secure checkout
• Free tracked UK delivery — typically 3–5 business days from the date the order is placed
• Pre- and post-purchase support available

Technical Specifications

• Socket: AM5
• Compatible Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Chipset: AMD B850
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, ECC/Non-ECC, Unbuffered (UDIMM); AMD EXPO and AEMP support
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 256GB
• Memory Speed: Up to DDR5-9000+ (OC manual) / DDR5-8400+ (EXPO/AEMP, Ryzen 9000) / DDR5-9000+ (EXPO/AEMP, Ryzen 8000) / DDR5-8000+ (EXPO/AEMP, Ryzen 7000)
• PCIe Slots: 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset, shares bandwidth with M.2_3)
• M.2 Slots: M.2_1 — PCIe Gen5 x4 (CPU, 2242/2260/2280); M.2_2 — PCIe Gen5 x4 (CPU, 2280); M.2_3 — PCIe Gen4 x4 (Chipset, 2280, shares bandwidth with PCIe 4.0 slot); M.2_4 — PCIe Gen4 x4 (Chipset, 2242/2260/2280)
• SATA: 2 x SATA 6Gb/s
• RAID: 0, 1, 5, 10
• LAN: Realtek 5GbE (100/1000/2500/5000 Mbps) with ASUS LANGuard
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz, 160MHz (MediaTek MT7925)
• Bluetooth: 5.4
• Audio: ROG SupremeFX ALC4080, 7.1 Surround Sound, up to 32-bit/384kHz, S/PDIF-Out (Optical)
• Onboard Graphics Output: 1 x HDMI 2.1 (max 4K@60Hz) — requires CPU with integrated graphics

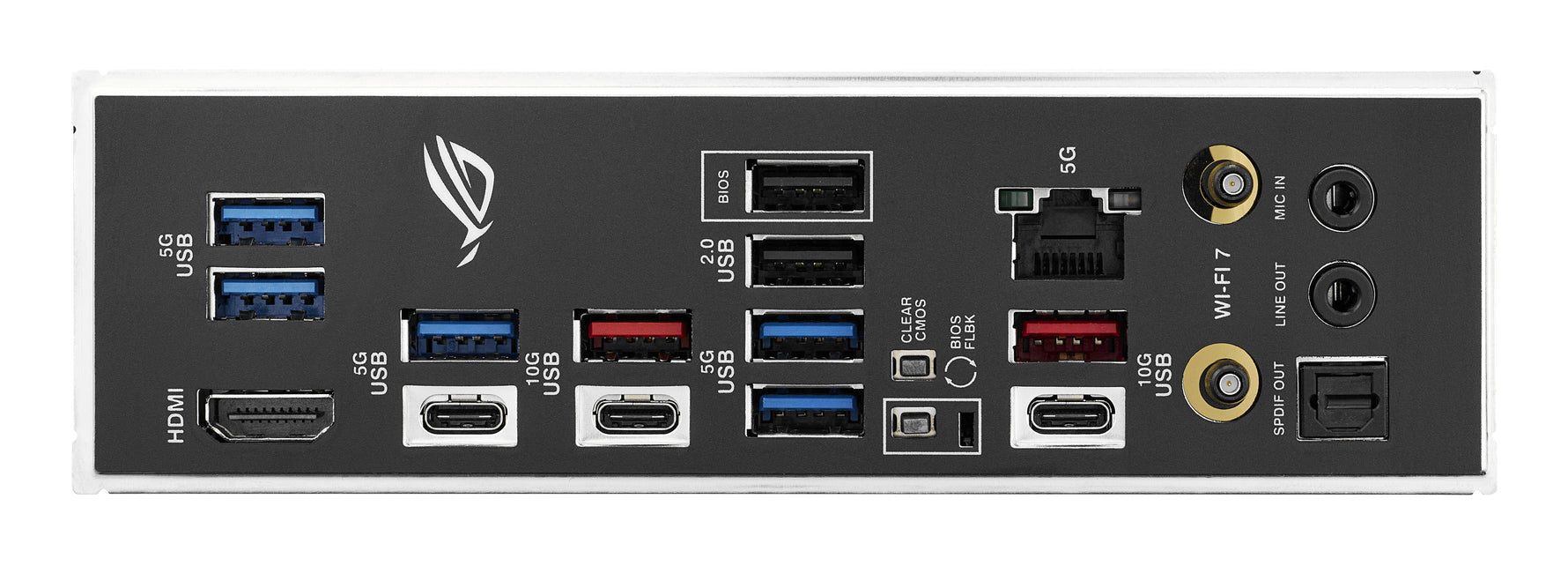

• Rear I/O: 2 x USB 2.0, 5 x USB 5Gbps Type-A, 1 x USB 5Gbps Type-C, 2 x USB 10Gbps Type-A, 2 x USB 10Gbps Type-C, 1 x HDMI, 1 x RJ-45, 2 x Audio jacks, 1 x S/PDIF-Out (Optical), BIOS Flashback button, Clear CMOS button
• Internal Headers: 6 x USB 2.0 (via 3 headers), 4 x USB 5Gbps (via 2 headers), 1 x USB 20Gbps Type-C connector, 1 x Thunderbolt (USB4) header, 3 x ARGB Gen2, 4 x Chassis Fan, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 1 x Front Panel, 1 x Front Panel Audio, 1 x Thermal Sensor, 1 x CPU OV jumper, 1 x Power button
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
• BIOS: 64 MB (512Mb) Flash ROM, UEFI AMI BIOS
• Board Weight: 1.63 kg
• Gross Weight: 2.18 kg
• Package Dimensions: 35.3 x 27.3 x 6.8 cm
• Warranty: 3 Years ASUS Manufacturer Warranty

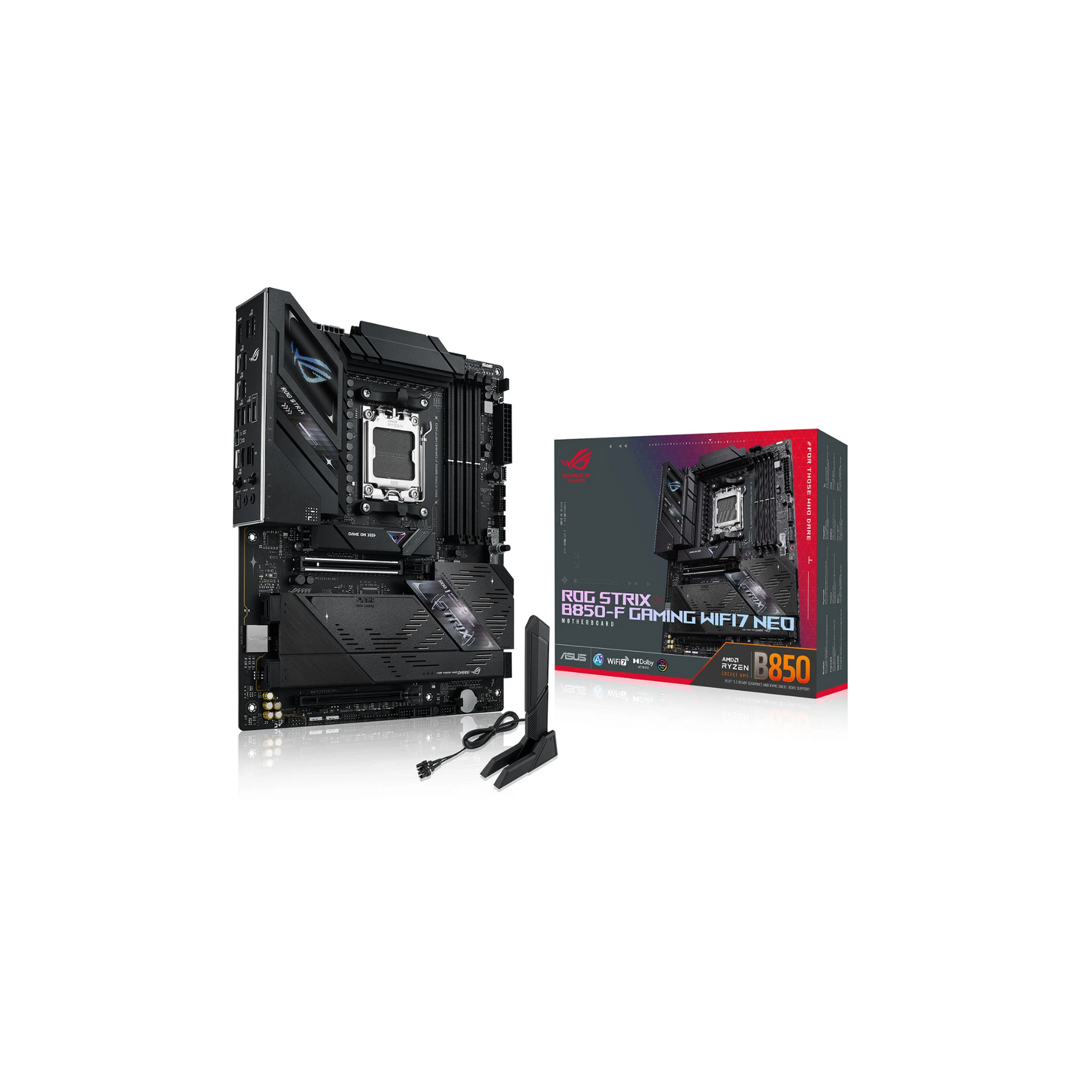

• Package Contents: Motherboard, 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 3 x M.2 rubbers, 1 x M.2 backplate rubber package, 1 x Quick start guide

Product Identification

Model: ROG Strix B850-F Gaming Wi-Fi 7 Neo
MPN: 90MB1NX0-M0EAY0
EAN: 4711636434904
