The ASUS ROG Maximus Z890 Hero is a high-end ATX motherboard for Intel Core Ultra Series 2 processors on the LGA1851 platform. Built on the Intel Z890 chipset, it features six M.2 slots, PCIe 5.0 support, dual LAN (Intel 2.5GbE and Realtek 5GbE), two Thunderbolt 4 ports, Wi-Fi 7, and ROG SupremeFX ALC4082 audio.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Socket LGA1851 - compatible with Intel Core Ultra Series 2 (Arrow Lake) processors
• Intel Z890 chipset
• ATX form factor, 305 x 244 mm
• 4 x DDR5 DIMM slots, Dual Channel, Non-ECC, up to 192GB (4x48GB), DDR5-8800 (OC)
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 bandwidth), 1 x PCIe 4.0 x1 expansion slots
• 6 x M.2 slots: 3 x PCIe Gen5 x4, 3 x PCIe Gen4 x4
• 4 x SATA 6Gb/s ports with RAID 0, 1, 5, 10 support
• Dual LAN: Intel 2.5GbE + Realtek 5GbE
• Wi-Fi 7 (802.11be), 2.4/5/6GHz, 320MHz, up to 5.8Gbps, with Bluetooth 5.4
• 2 x Thunderbolt 4 Type-C ports (rear panel)
• ROG SupremeFX 7.1 HD Audio, ALC4082 codec

Product Overview

The ROG Maximus Z890 Hero is a flagship-tier Z890 motherboard designed for enthusiast Intel builds. Six M.2 slots, including three PCIe Gen5 x4, provide extensive high-speed storage options, and the ROG M.2 PowerBoost feature ensures stable power delivery to NVMe drives under sustained loads. Dual LAN ports cover both 2.5GbE and 5GbE wired connectivity, and two Thunderbolt 4 rear ports support high-bandwidth peripherals and displays. Wi-Fi 7 with 320MHz bandwidth delivers up to 5.8Gbps wireless throughput. The Extreme OC Kit and Extreme Engine Digi+ power design support demanding overclocking configurations, while the FlexKey and ReTry buttons simplify system management.

Delivery and Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business. All hardware is sourced through established distribution partners. Orders are processed within 1-2 business days and delivered within 3-5 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery - processed in 1-2 business days, delivered in 3-5 business days
• Pre- and post-purchase support available

Technical Specifications

• Socket: LGA1851 (Socket V1)
• Compatible Processors: Intel Core Ultra Series 2 (Arrow Lake)
• Chipset: Intel Z890
• Form Factor: ATX
• Dimensions: 305 x 244 mm
• Memory Type: DDR5, Dual Channel, Non-ECC, Unbuffered (UDIMM)
• Memory Slots: 4 x 288-pin DIMM
• Max Memory: 192GB (4x48GB)
• Memory Speed: Up to DDR5-8800 (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 bandwidth), 1 x PCIe 4.0 x1
• M.2 Slots: 3 x PCIe Gen5 x4 (22-42/60/80 and 22-42/60/80/110), 3 x PCIe Gen4 x4 (22-42/60/80)
• SATA: 4 x SATA 6Gb/s
• RAID: 0, 1, 5, 10
• LAN: Intel 2.5GbE + Realtek 5GbE (dual LAN)
• Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz, 320MHz, up to 5.8Gbps
• Bluetooth: 5.4
• Audio: ROG SupremeFX 7.1 HD ALC4082, S/PDIF (Optical)

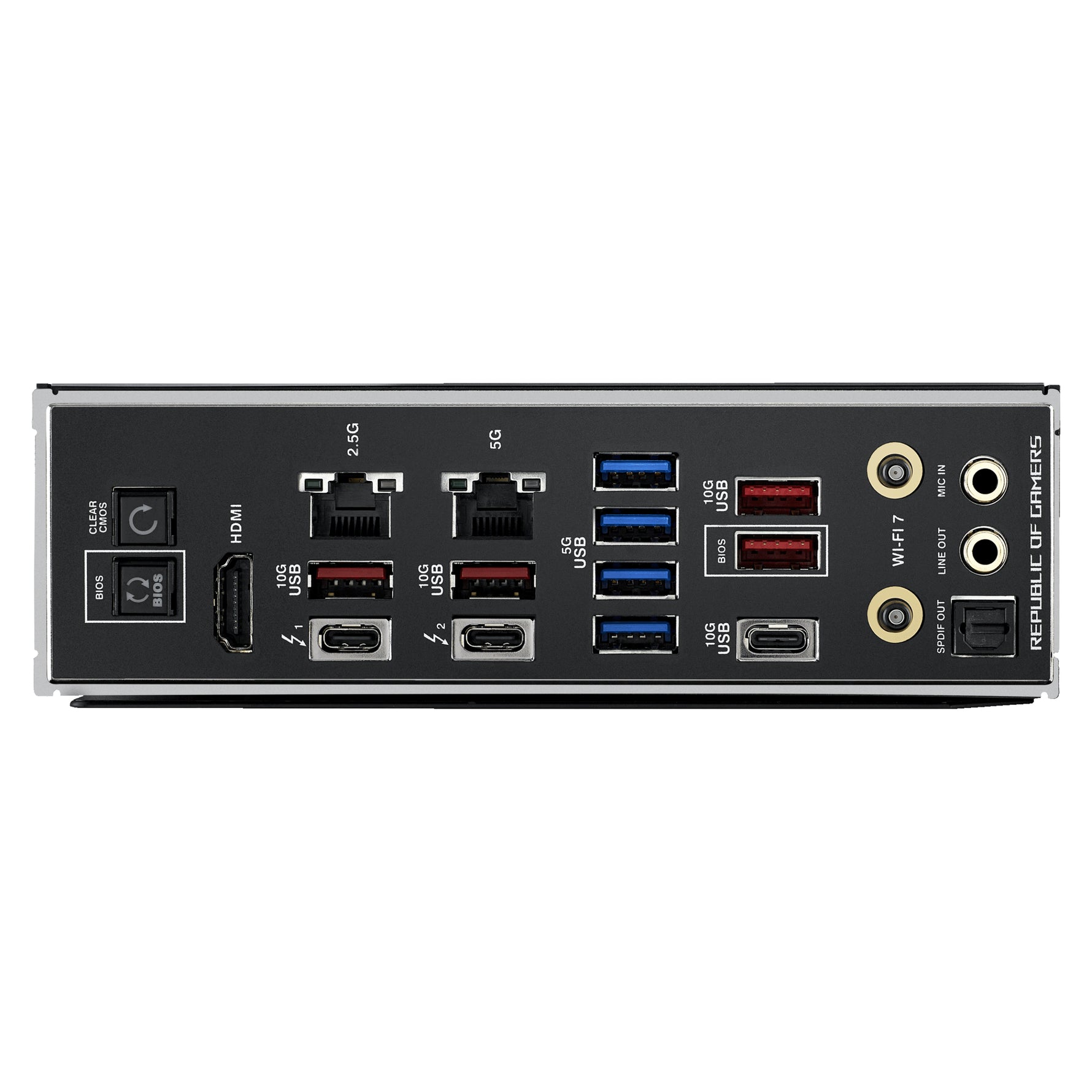

• Rear I/O: 4 x USB 3.2 Gen1 Type-A, 4 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 2 x Thunderbolt 4 Type-C, 1 x HDMI, 2 x RJ-45 (2.5GbE + 5GbE), Line Out/Mic-In, S/PDIF (Optical), BIOS Flashback button, Clear CMOS button
• Internal Headers: 2 x USB 2.0, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2x2, 1 x Thunderbolt 4, 1 x SlimSAS, 3 x ARGB Gen2, 4 x CHA_FAN, 1 x CPU Fan, 1 x CPU OPT, 1 x Front Panel Audio, 1 x Thermal Sensor, 1 x PCIe mode switch, 1 x FlexKey, 1 x ReTry, 1 x Start, 1 x Power button
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS, 1 x 8-pin PCIe
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Gross Weight: 4.23 kg
• Package Dimensions: 37 x 31 x 11 cm
• Warranty: 3 Years ASUS Manufacturer Warranty

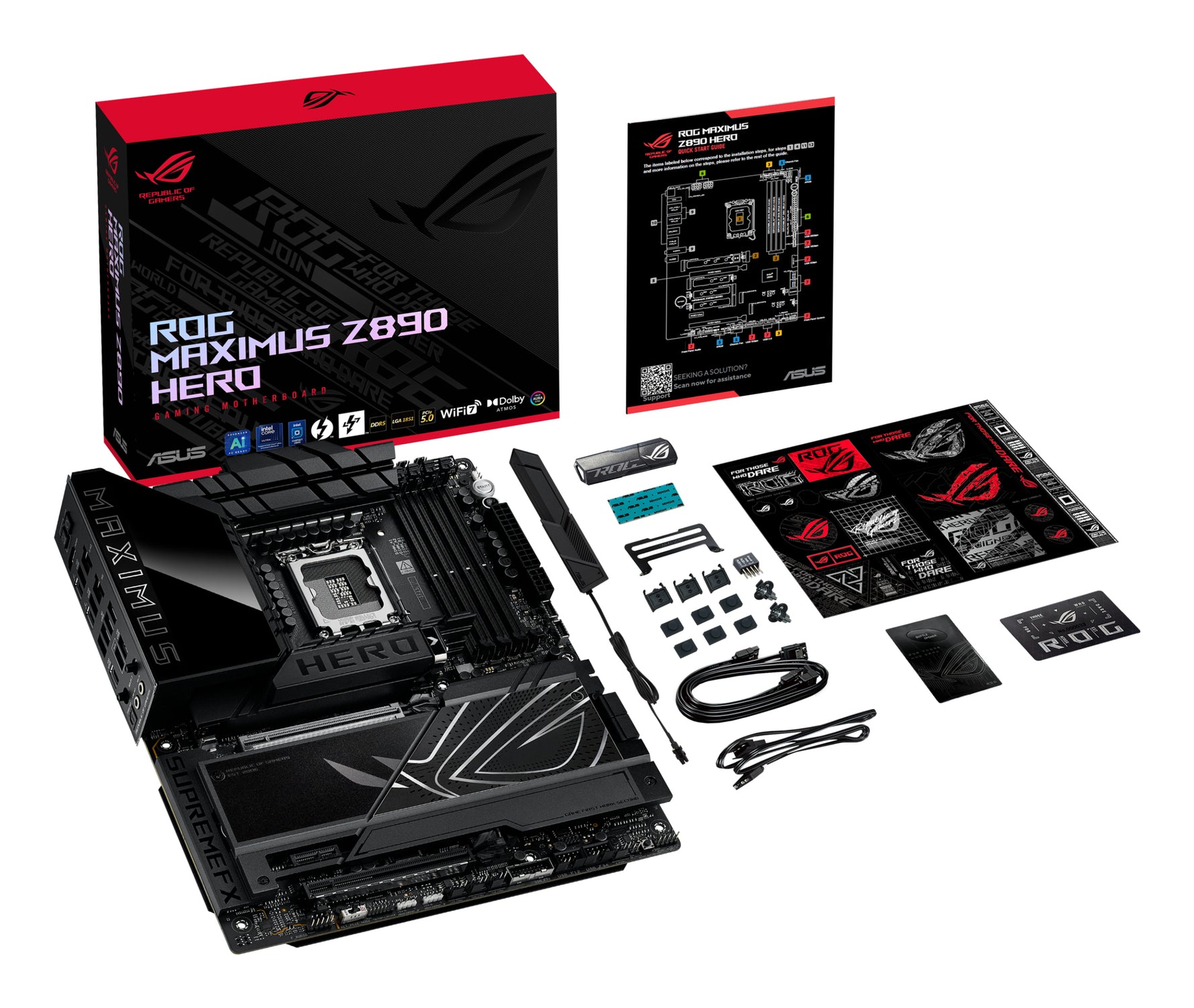

• Package Contents: Motherboard, 1 x ARGB extension cable, 4 x SATA 6Gb/s cables, 1 x DDR5 fan holder, 1 x Thermal pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 1 x M.2 Q-Latch package, 3 x M.2 Q-Slide packages, 1 x ROG stickers, 6 x M.2 rubber packages, 1 x ROG thank you card, 1 x ROG Bottle Opener, 1 x USB drive with utilities and drivers, 1 x Quick start guide

Product Identification

Model: ROG MAXIMUS Z890 HERO
MPN: 90MB1ID0-M0EAY0
EAN: 4711387747223
UPC: 197105747227
