Name: ASUS PRIME H610M-K D4 Intel LGA1700 Micro-ATX DDR4 Motherboard
Brand: ASUS
SKU: 121284
Price: 70.99 GBP
Availability: InStock

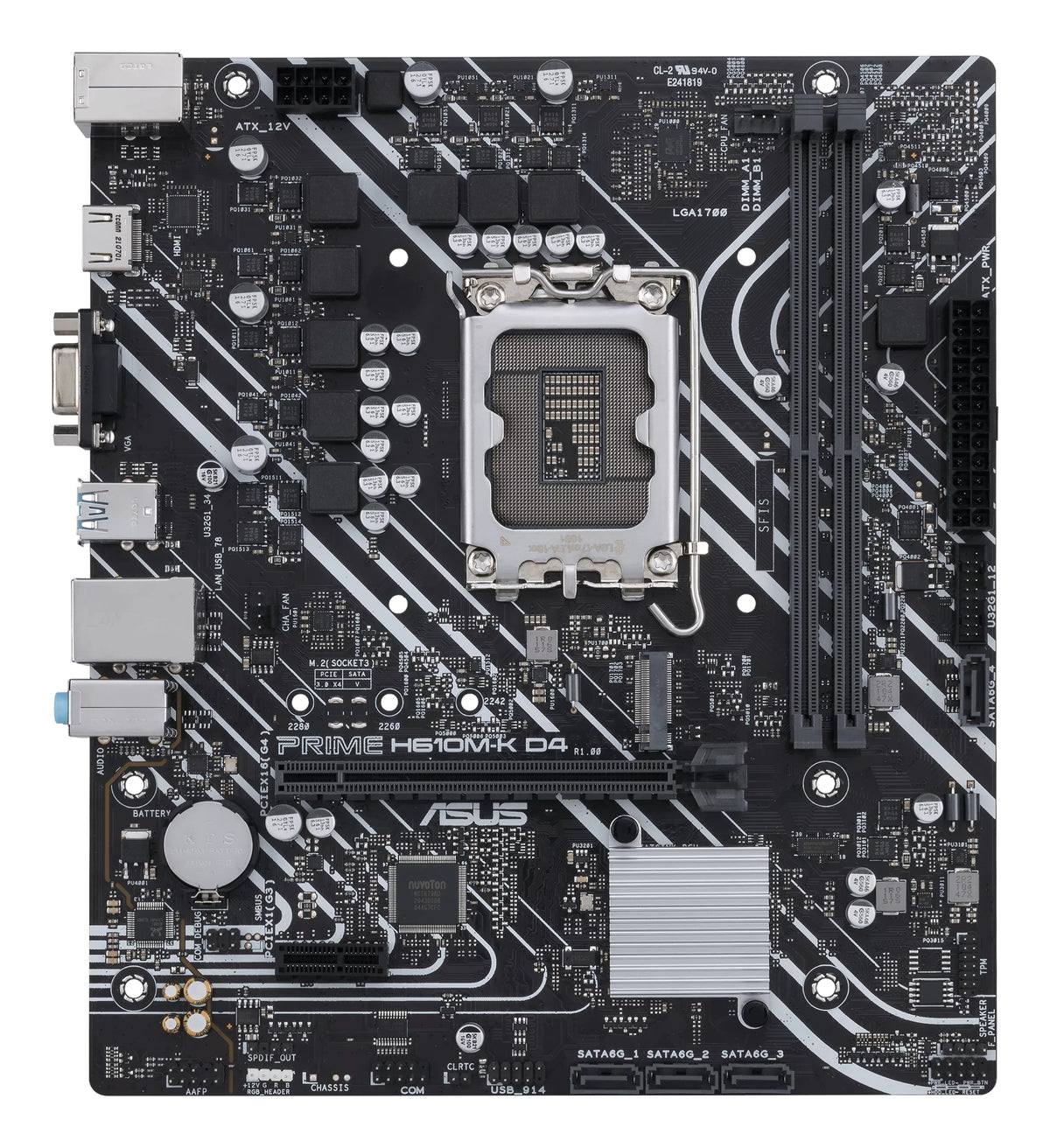

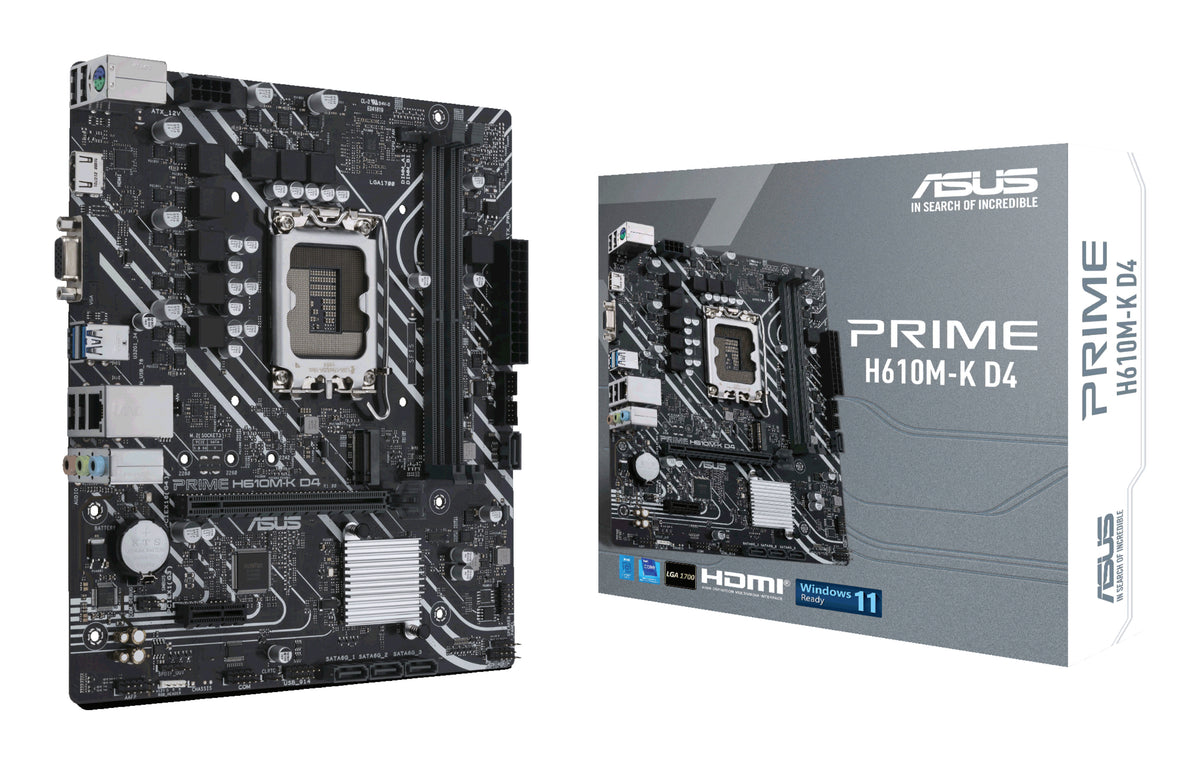

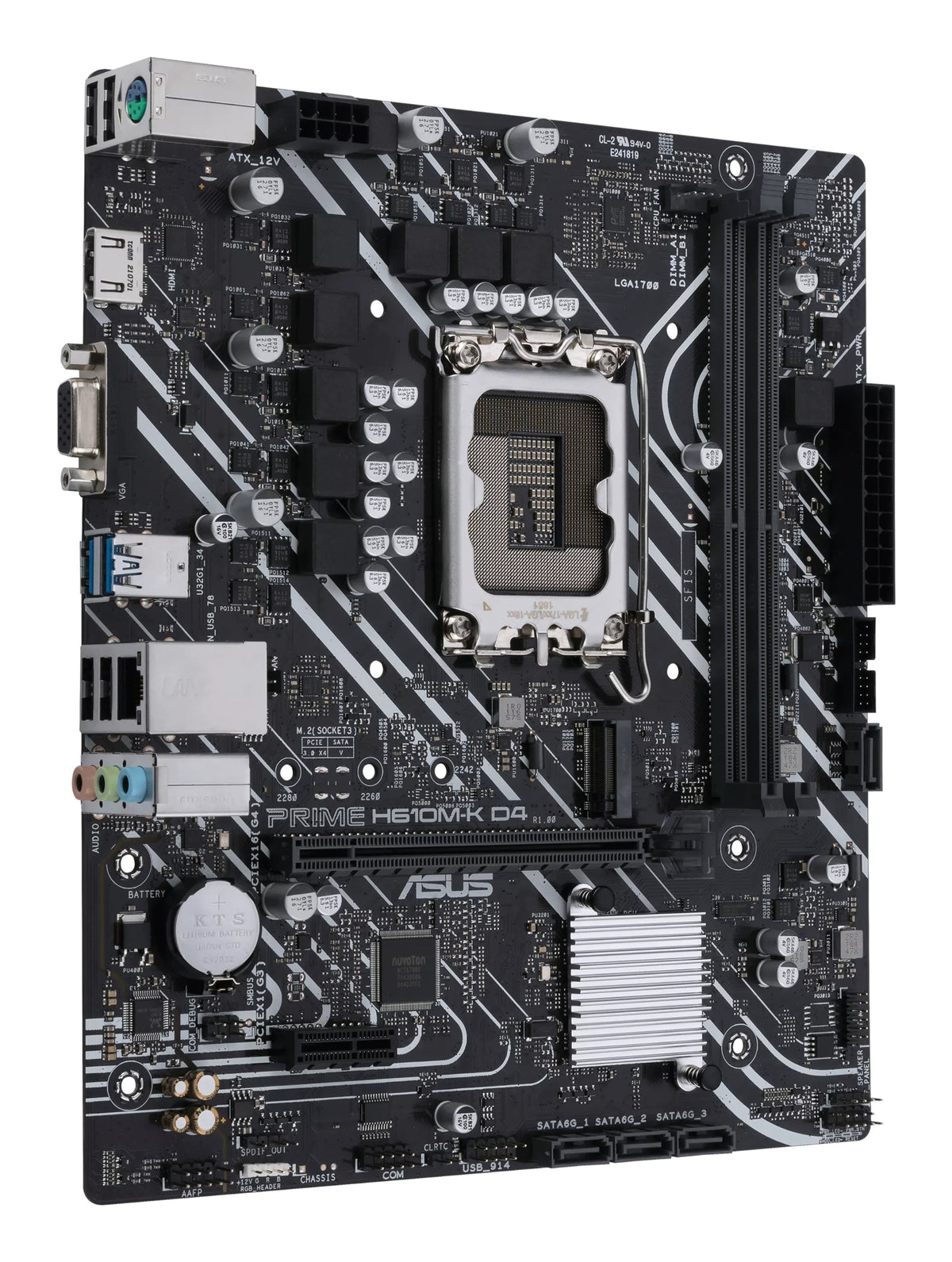

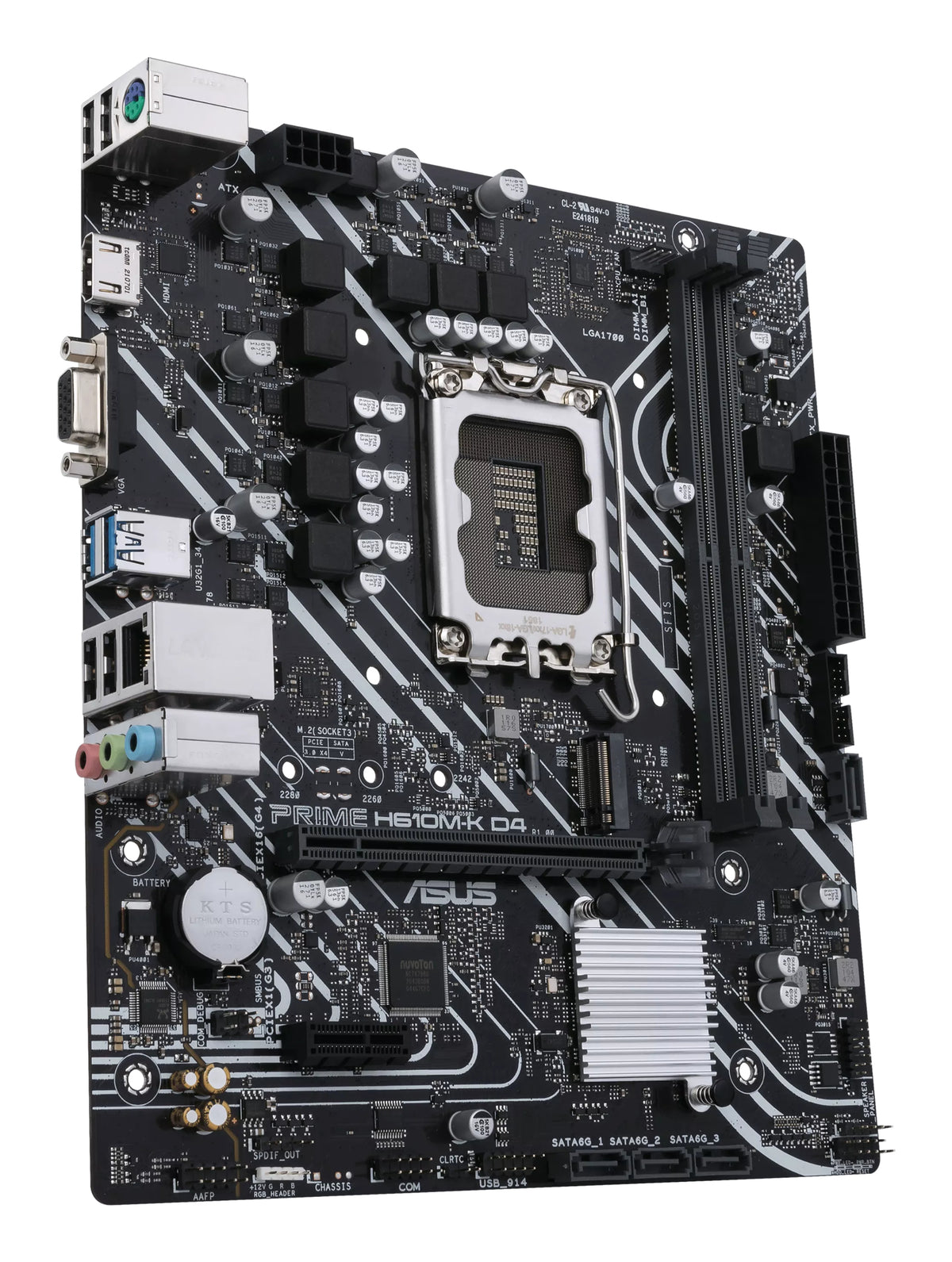

ASUS PRIME H610M-K D4 Intel LGA1700 Micro-ATX DDR4 Motherboard

ASUS PRIME H610M-K D4 Intel LGA1700 Micro-ATX DDR4 Motherboard

£70.99 Inc. VAT

The ASUS PRIME H610M-K D4 is a desktop motherboard for LGA1700 processors, with DDR4 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model	ASUS PRIME H610M-K D4
Chipset	Intel H610 Chipset
CPU socket	LGA1700
Form factor / dimensions	mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.

Memory

Memory slots	2 × DDR4 DIMM; dual channel
Maximum capacity	64 GB
Memory data rate	Up to DDR4-3200; depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles	Intel XMP

Expansion & Storage

Expansion slots	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
Storage connections	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Network & Audio

Ethernet	1 x Realtek 1Gb Ethernet
Wi-Fi / Bluetooth	No onboard wireless module listed by the manufacturer. Any optional Wi-Fi module, antennas and Bluetooth functionality require separate compatible hardware.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC

Rear Connections

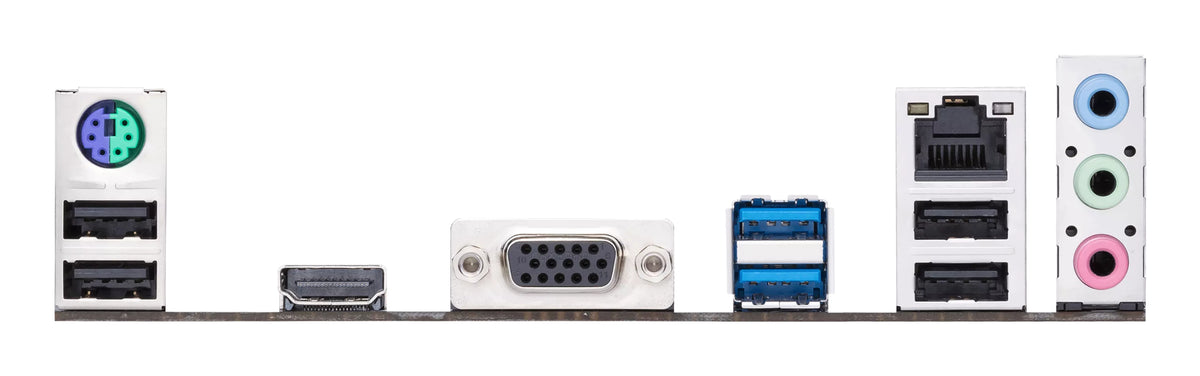

Rear I/O	2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal Connections

Power connectors	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Fan / pump headers	1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header

Compatibility Notes

CPU and BIOS	Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs	Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion	DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.
Manufacturer restrictions	The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Package & Identification

Manufacturer-listed accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Installation Media 1 x Support DVD Documentation 1 x User Guide
GTIN / EAN	4711081565499
