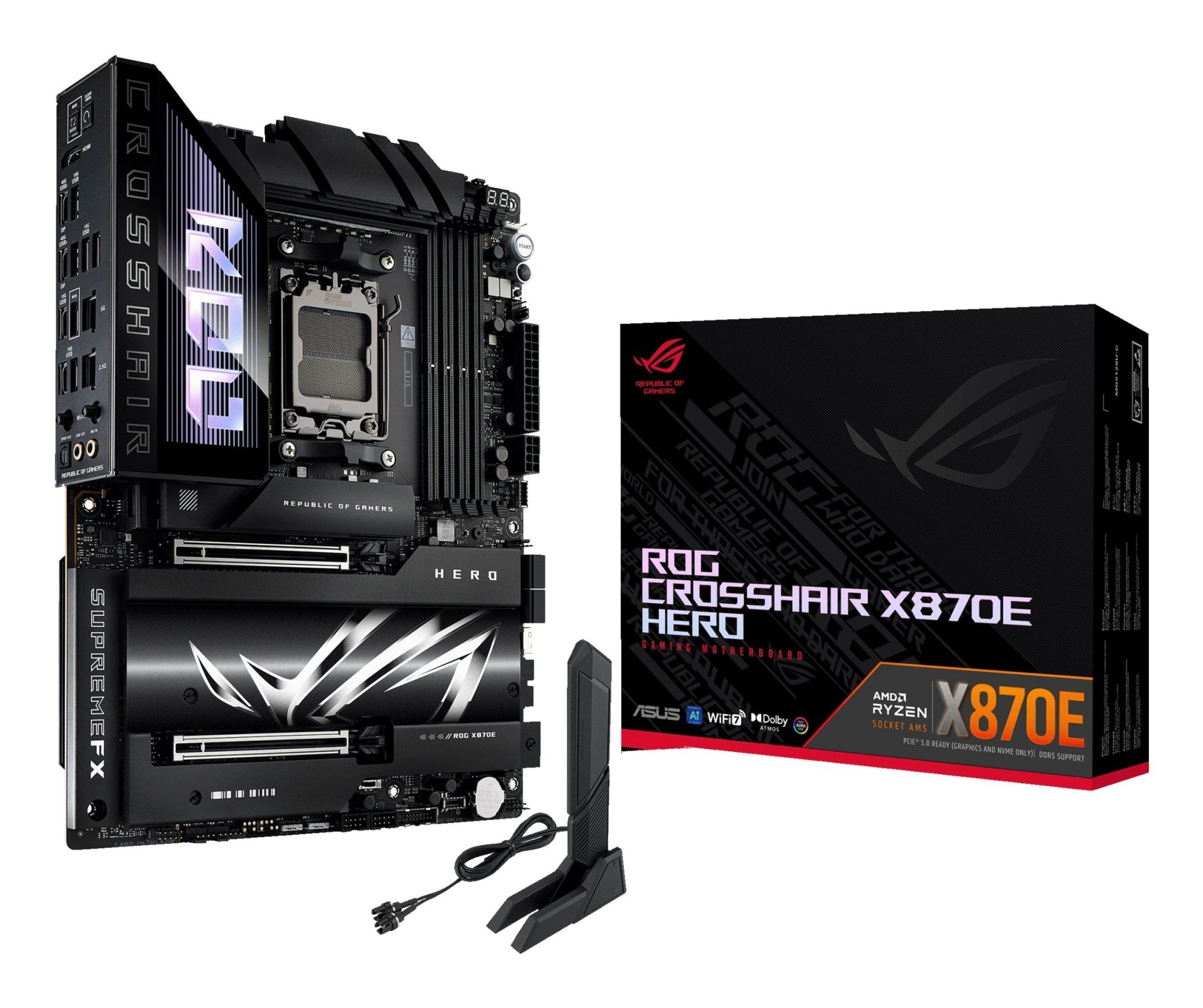

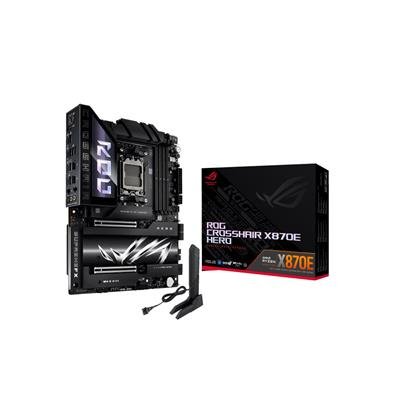

ASUS ROG CROSSHAIR X870E HERO X870E AM5 ATX Motherboard

ASUS ROG CROSSHAIR X870E HERO is a flagship ATX motherboard for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. Built on the AMD X870E chipset with four DDR5 slots up to DDR5-8200 (OC), five M.2 slots including three PCIe 5.0 x4, dual LAN (Intel 2.5GbE + Realtek 5GbE), Wi-Fi 7 with 320MHz support, ROG SupremeFX ALC4082 audio, and two USB4 40Gbps Type-C ports, it is designed for enthusiast builds demanding maximum connectivity and overclocking headroom.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• AMD X870E chipset, AM5 socket — supports Ryzen 7000, 8000 and 9000 Series processors
• ATX form factor (305 x 244mm)
• DDR5 memory — 4 slots, up to 192GB, up to DDR5-8200 (OC)
• 2x PCIe 5.0 x16 slots
• 5x M.2 slots: 3x PCIe 5.0 x4, 2x PCIe 4.0 x4
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Dual LAN: Intel 2.5GbE + Realtek 5GbE, ASUS LANGuard
• Wi-Fi 7 (2x2, 802.11be, 2.4/5/6GHz, 320MHz, up to 6.5Gbps) + Bluetooth 5.4
• ROG SupremeFX ALC4082 7.1-channel HD Audio, 120dB SNR, 2x rear audio jacks + 1x S/PDIF optical out
• 2x USB4 40Gbps Type-C + 2x USB 10Gbps Type-C + 6x USB 10Gbps Type-A on rear panel
• 1x HDMI video output
• BIOS FlashBack + Clear CMOS buttons on rear panel
• 2x 8-pin CPU power + 1x 8-pin PCIe power connectors
• 2x USB 20Gbps internal headers
• 3x Addressable RGB Gen 2 headers + 1x Thermal Sensor header
• Onboard Start, FlexKey, ReTry buttons + PCIe mode switch

Product Overview

The ASUS ROG CROSSHAIR X870E HERO sits at the top of the ROG Crosshair lineup for AM5, leveraging the X870E chipset for maximum PCIe 5.0 lane allocation. Three PCIe 5.0 x4 M.2 slots and two PCIe 5.0 x16 GPU slots provide full-bandwidth connectivity throughout. Four SATA ports offer more legacy storage capacity than most X870 boards. Dual LAN combines Intel 2.5GbE and Realtek 5GbE for flexible networking. Wi-Fi 7 operates at 320MHz channel width for up to 6.5Gbps throughput — significantly higher than boards limited to 160MHz. The onboard 8-pin PCIe power connector provides additional power headroom for extreme overclocking. ROG SupremeFX ALC4082 delivers 120dB SNR stereo playback and supports up to 32-bit/384kHz on the front panel output. BIOS FlashBack and Clear CMOS are accessible from the rear panel without a CPU or RAM installed.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1-2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1-2 business days
• Pre- and post-purchase support available

Specifications

Box Contents

• Motherboard
• 1x ARGB RGB extension cable
• 4x SATA 6Gb/s cables
• 1x ASUS WiFi Q-Antenna
• 1x Q-connector
• 2x M.2 Q-Latch package
• 3x M.2 Q-Slide package
• 5x M.2 rubber package
• 1x ROG stickers
• 1x ROG thank you card
• 1x ROG Bottle Opener
• 1x USB drive with utilities and drivers
• Quick start guide

Product Identification

Model: ROG CROSSHAIR X870E HERO
EAN: 4711387710302
