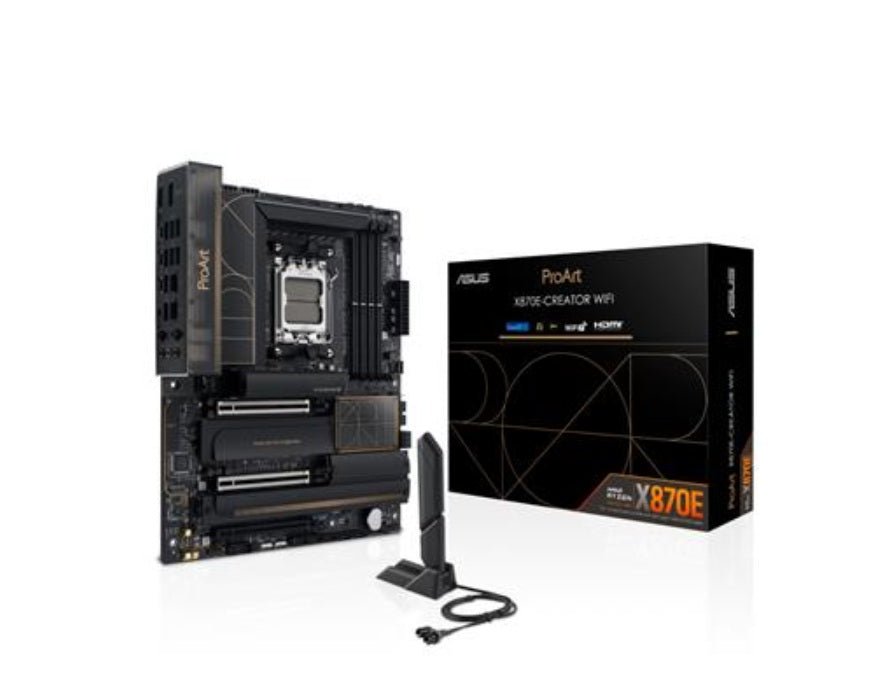

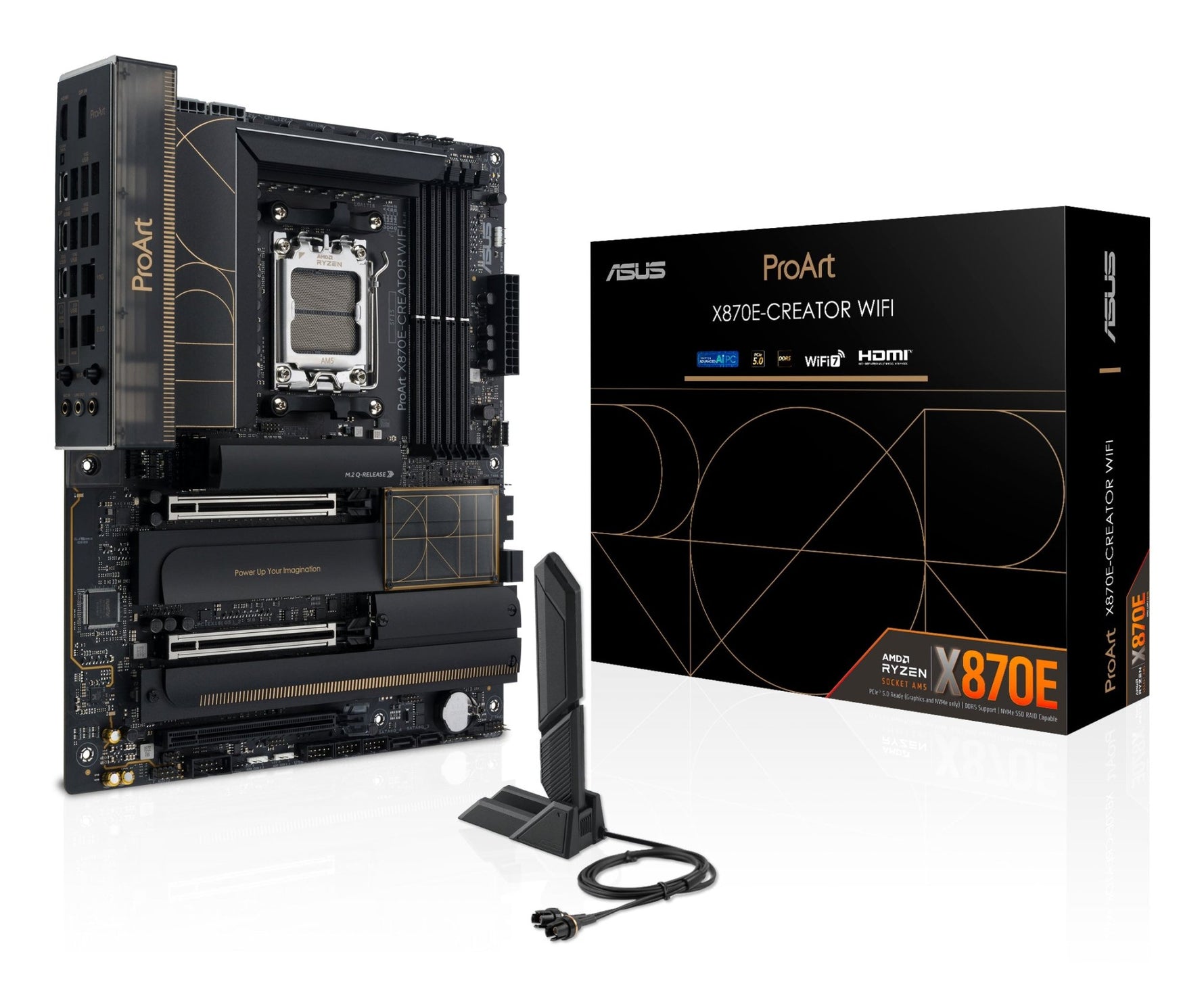

ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard

ASUS ProArt X870E-Creator WiFi is a full-size ATX motherboard designed for content creators using AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. Built on the AMD X870E chipset with four DDR5 slots up to DDR5-8000 (OC), four M.2 slots including two PCIe 5.0 x4, dual LAN (Marvell AQtion 10GbE + Intel 2.5GbE), Wi-Fi 7 (up to 6.5Gbps), two USB4 40Gbps Type-C ports, and a DisplayPort input for capture/dock use, it delivers a professional-grade AM5 creator platform.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• AMD X870E chipset, AM5 socket - supports Ryzen 7000, 8000 and 9000 Series processors
• ATX form factor (305 x 244mm)
• DDR5 memory - 4 slots, up to 192GB, up to DDR5-8000 (OC), AEMP support
• 2x PCIe 5.0 x16 + 1x PCIe 4.0 x16 slots
• 2x PCIe 5.0 x4 M.2 + 2x PCIe 4.0 x4 M.2 (4 M.2 slots total)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Marvell AQtion 10GbE + Intel 2.5GbE dual LAN, ASUS LANGuard
• Wi-Fi 7 (2x2, 802.11be, 2.4/5/6GHz, 320MHz, up to 6.5Gbps) + Bluetooth 5.4
• Realtek S1220A HD Audio (7.1-channel)
• 2x USB4 40Gbps Type-C + 1x USB 20Gbps Type-C + 7x USB 10Gbps Type-A + 1x USB 2.0 on rear panel
• 1x DisplayPort input on rear panel (for capture card / Thunderbolt dock use)
• 1x HDMI output on rear panel
• BIOS FlashBack + Clear CMOS buttons on rear panel
• 16+2+2 phase VRM, 2x 8-pin CPU power connectors
• 1x USB 20Gbps internal header
• 3x Addressable RGB Gen 2 headers
• 1x Chassis Intrusion header + 1x Thermal Sensor header + 1x COM port header
• Aura Sync RGB, ASUS Q-Design

Product Overview

The ASUS ProArt X870E-Creator WiFi is a professional AM5 ATX board built for content creators and power users. Four M.2 slots provide fast NVMe storage — two PCIe 5.0 x4 and two PCIe 4.0 x4. Dual LAN combines Marvell AQtion 10GbE and Intel 2.5GbE for high-bandwidth wired networking. Wi-Fi 7 with 320MHz channel support achieves up to 6.5Gbps wireless throughput. Two USB4 40Gbps Type-C ports deliver maximum USB bandwidth for fast storage and display connectivity. The rear panel includes a DisplayPort input — useful for capture card workflows or Thunderbolt dock pass-through, not a display output. The 16+2+2 phase VRM ensures stable power delivery for demanding Ryzen workloads. Includes a DisplayPort cable, ProArt ruler, and ACC Express Activation Key Card in the box.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1-2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1-2 business days
• Pre- and post-purchase support available

Specifications

Box Contents

• Motherboard
• 4x SATA 6Gb/s cables
• 1x DisplayPort cable
• 1x ASUS WiFi Q-Antenna
• 2x M.2 rubber packages
• 1x M.2 Q-Latch package
• 1x M.2 Q-Latch Q-Slide package for M.2 backplate
• 1x Thermal pad for M.2 22110
• 1x Q-connector
• 1x ProArt ruler
• 1x ACC Express Activation Key Card
• Quick start guide

Product Identification

Model: PROART X870E-CREATOR WIFI
EAN: 4711387730775
