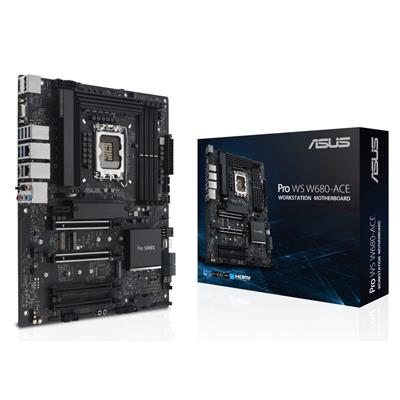

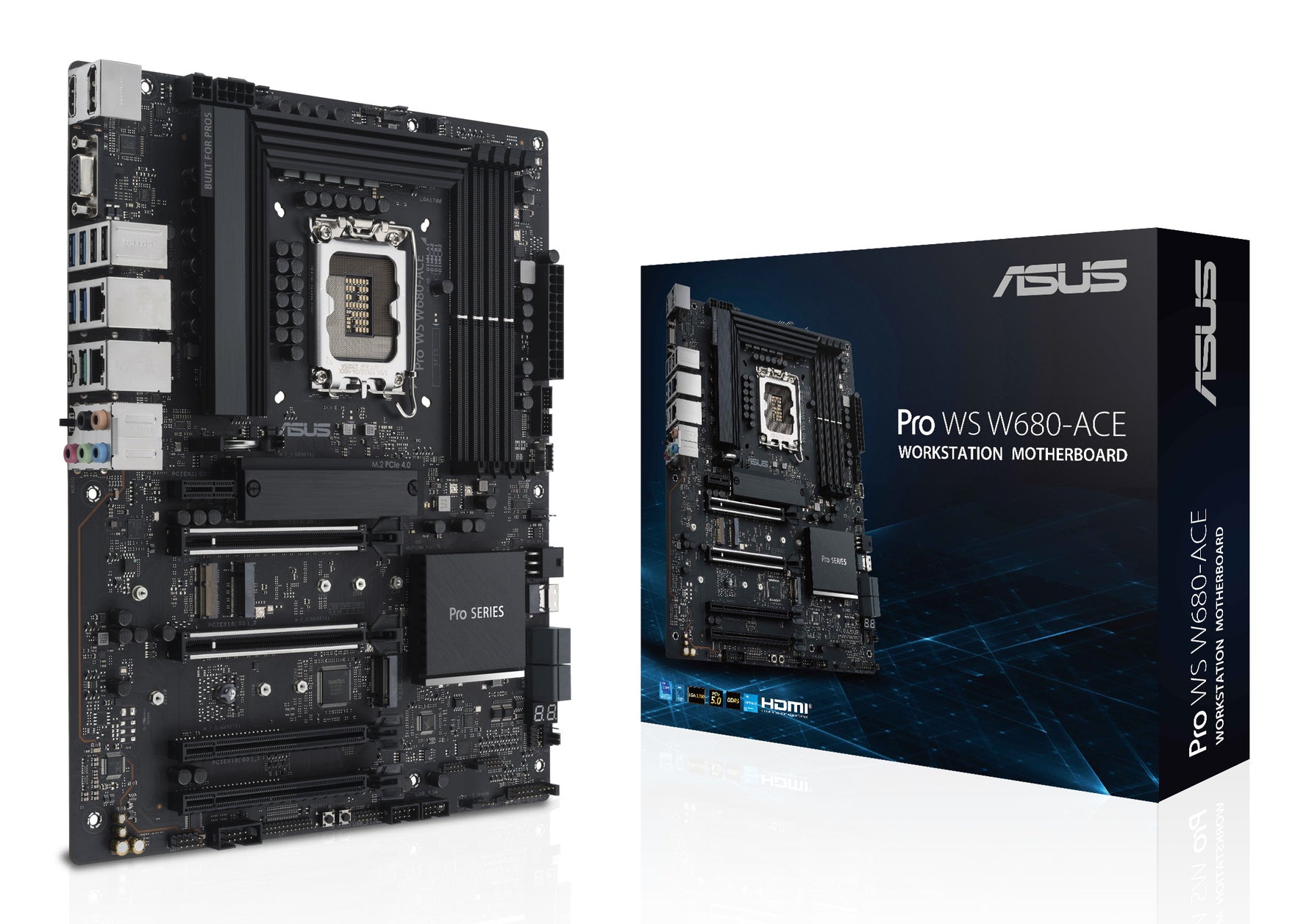

ASUS PRO WS W680-ACE W680 LGA1700 ATX Workstation Motherboard

ASUS PRO WS W680-ACE is a professional ATX workstation motherboard for Intel 12th and 13th Gen Core, Pentium Gold, and Celeron processors on the LGA1700 platform. Built on the Intel W680 chipset with four DDR5 slots supporting up to 192GB including ECC memory, three M.2 PCIe 4.0 x4 slots, dual Intel 2.5GbE LAN, two PCIe 5.0 x16 slots, a SlimSAS port, and a Thunderbolt 4 internal header, it is designed for demanding workstation and professional computing environments requiring stability, security, and high-bandwidth connectivity.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Intel W680 chipset, LGA1700 socket — supports Intel 12th and 13th Gen Core, Pentium Gold and Celeron processors
• ATX form factor (305 x 244mm)
• DDR5 memory — 4 slots, up to 192GB, ECC and non-ECC unbuffered DDR5 supported
• 2x PCIe 5.0 x16 + 2x PCIe 3.0 x16 + 1x PCIe 3.0 x1 slots
• 3x M.2 slots: PCIe 4.0 x4
• 4x SATA 6Gb/s ports + 1x SlimSAS port, RAID 0/1/5/10
• Dual Intel 2.5GbE LAN — no Wi-Fi
• Realtek 7.1-channel HD Audio, 5x rear audio jacks
• 4x USB 5Gbps Type-A + 1x USB 10Gbps Type-A + 1x USB 10Gbps Type-C + 2x USB 2.0 on rear panel
• 1x VGA + 1x HDMI + 1x DisplayPort video outputs
• BIOS FlashBack button on rear panel
• 1x 8-pin + 1x 4-pin CPU power + 1x 6-pin PCIe power connectors
• 1x USB 20Gbps internal header
• 1x Thunderbolt 4 internal header
• 1x BMC header, 1x TPM header
• Onboard Start + FlexKey buttons

Product Overview

The ASUS PRO WS W680-ACE is built around the Intel W680 workstation chipset, which adds ECC memory support and enhanced reliability features over consumer B- and Z-series chipsets. ECC DDR5 allows error correction for mission-critical workloads. Two PCIe 5.0 x16 slots support dual high-bandwidth GPU or accelerator configurations. Three M.2 PCIe 4.0 x4 slots provide fast NVMe storage alongside four SATA ports and a SlimSAS connector for additional storage expansion. Dual Intel 2.5GbE LAN ports operate independently for redundancy or bonding. The Thunderbolt 4 internal header supports add-in cards for 40Gbps connectivity. A BMC header enables out-of-band management integration. BIOS FlashBack allows firmware updates without a CPU or RAM installed. Note: no Wi-Fi is included.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1-2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader - genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1-2 business days
• Pre- and post-purchase support available

Specifications

Box Contents

• Motherboard
• 2x SATA 6Gb/s cables
• 1x Q-connector
• 1x M.2 Rubber Package
• 2x Screw package for M.2 SSD
• 1x Screw package for M.2 Key E
• 1x IO Shield
• 1x ACC Express Activation Key Card
• User guide

Product Identification

Model: PRO WS W680-ACE
EAN: 4711387006177
