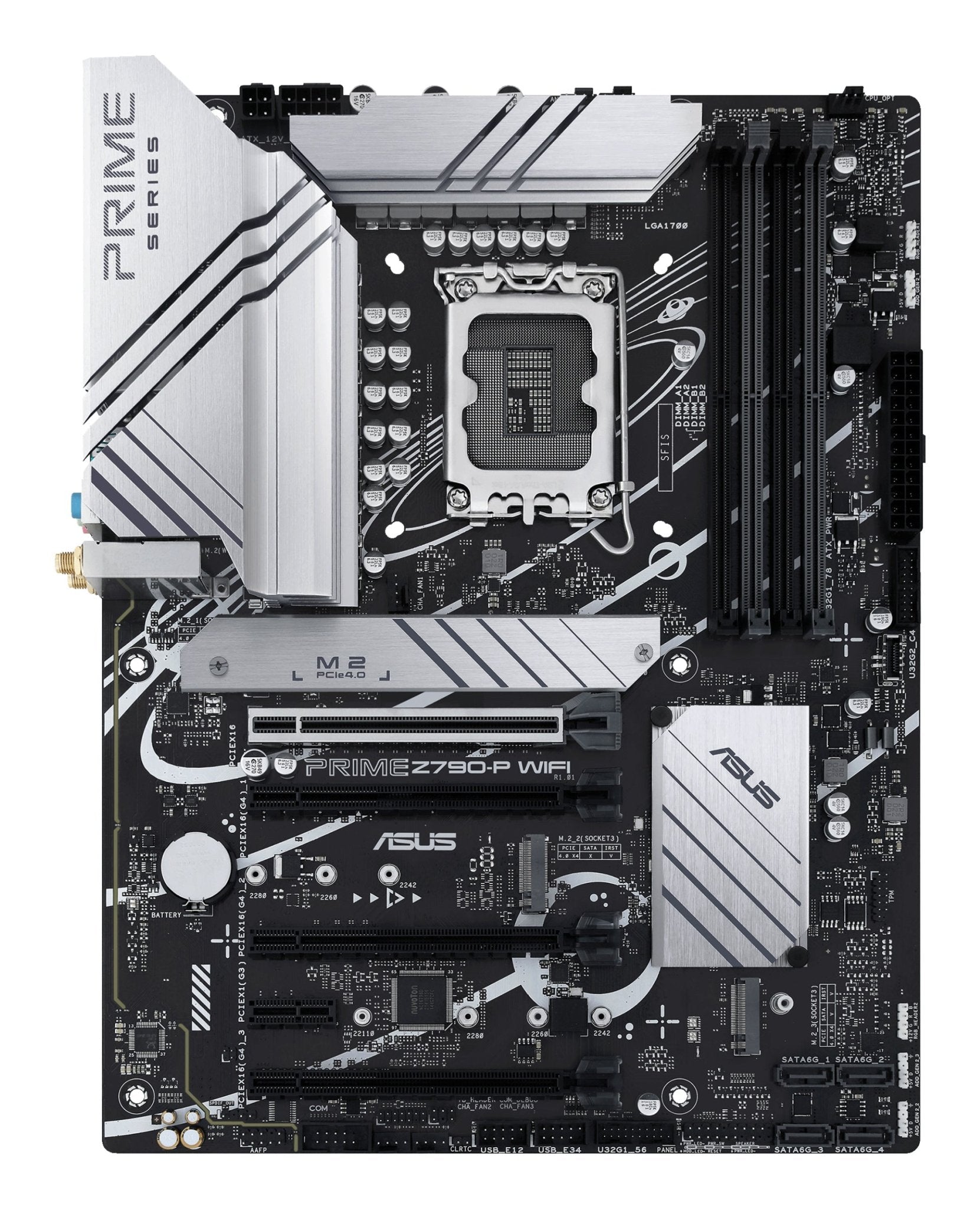

Asus Prime Z790-P WiFi LGA1700 ATX DDR5 Motherboard

The ASUS Prime Z790-P WiFi is a full-size ATX motherboard for 12th and 13th Gen Intel Core processors on LGA 1700, featuring DDR5 memory, PCIe 5.0, three PCIe 4.0 M.2 slots, Wi-Fi 6, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C, and a 14+1 DrMOS power design for capable and well-connected Z790 builds.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Intel Z790 chipset, LGA 1700 socket (12th/13th Gen Intel Core)
• 4 x DDR5 288-pin slots, dual channel, up to 128GB, DDR5 7200+ (O.C.)
• 1 x PCIe 5.0 x16, 3 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
• 3 x M.2 slots: 2x PCIe Gen4 x4, 1x PCIe Gen4 x4/SATA (with M.2 heatsink)
• 4 x SATA 6Gb/s, RAID 0/1/5/10
• Realtek 2.5Gb Ethernet
• Wi-Fi 6 (802.11ax, 2x2, MU-MIMO, 2.4/5GHz) + Bluetooth 5.2
• Realtek 7.1-channel HD Audio, 3x audio jacks
• Back panel: 4x USB 2.0, 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2x2 Type-C (20Gbps), 1x PS/2
• HDMI + DisplayPort video outputs (requires CPU with integrated graphics)
• Aura Sync RGB: 3x Addressable Gen2 headers, 2x Aura RGB headers
• Thunderbolt (USB4) header, Fan Xpert 4 with AI Cooling II
• Form factor: Standard ATX (234 x 305mm)

Product Overview

The Prime Z790-P WiFi delivers a comprehensive Z790 feature set for 12th and 13th Gen Intel builds. The 14+1 DrMOS power design with ProCool connectors, alloy chokes, and a 6-layer PCB provides stable power delivery under demanding workloads. ASUS Enhanced Memory Profile II and OptiMem II enable reliable DDR5 overclocking up to DDR5 7200+. Three PCIe 4.0 M.2 slots with flexible M.2 heatsinks and PCIe 5.0 on the primary x16 slot cover current-generation storage and GPU needs. USB 3.2 Gen2x2 Type-C at 20Gbps and a Thunderbolt (USB4) header provide high-speed peripheral connectivity. Fan Xpert 4 with AI Cooling II automates thermal management across all fan headers.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Specifications

• Chipset: Intel Z790
• CPU Socket: LGA 1700 (12th/13th Gen Intel Core)
• BIOS: 192Mb Flash ROM, UEFI AMI BIOS
• Memory: 4 x DDR5 288-pin, dual channel, up to 128GB, DDR5 7200+ (O.C.)
• PCIe: 1x PCIe 5.0 x16, 3x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 4x SATA 6Gb/s, RAID 0/1/5/10, 3x M.2 (2x PCIe Gen4 x4, 1x PCIe Gen4 x4/SATA)
• LAN: Realtek 2.5Gb Ethernet
• Wireless: Wi-Fi 6 (802.11ax, 2x2, MU-MIMO, 2.4/5GHz), Bluetooth 5.2
• Audio: Realtek 7.1-channel HD Audio, 3x audio jacks
• Back USB: 4x USB 2.0, 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2x2 Type-C
• Back video: 1x HDMI, 1x DisplayPort (requires CPU with integrated graphics)
• Back other: 1x PS/2, 1x LAN, 1x Wi-Fi antenna connector
• Internal headers: 2x USB 2.0, 2x USB 3.2 Gen1, 1x USB 3.2 Gen2, 1x Thunderbolt, 1x COM, 1x Front Panel Audio, 1x TPM, 1x S/PDIF Out, 3x Addressable Gen2, 2x Aura RGB, 1x Clear CMOS
• Power: 1x 24-pin ATX, 1x 8-pin CPU, 1x 4-pin ATX
• Form Factor: Standard ATX
• Dimensions: 234 x 305mm
• Gross Weight: 1.68kg
• Warranty: 3 Years
• Package Contents: Motherboard, 2x SATA 6Gb/s Cables, 1x ASUS Wi-Fi Moving Antenna, 1x I/O Shield, 1x M.2 Rubber Package, 2x Screw Packages for M.2 SSD, 1x User Guide

Product Identification

Model: PRIME Z790-P WIFI
EAN: 4711081937227
UPC: 195553937221
