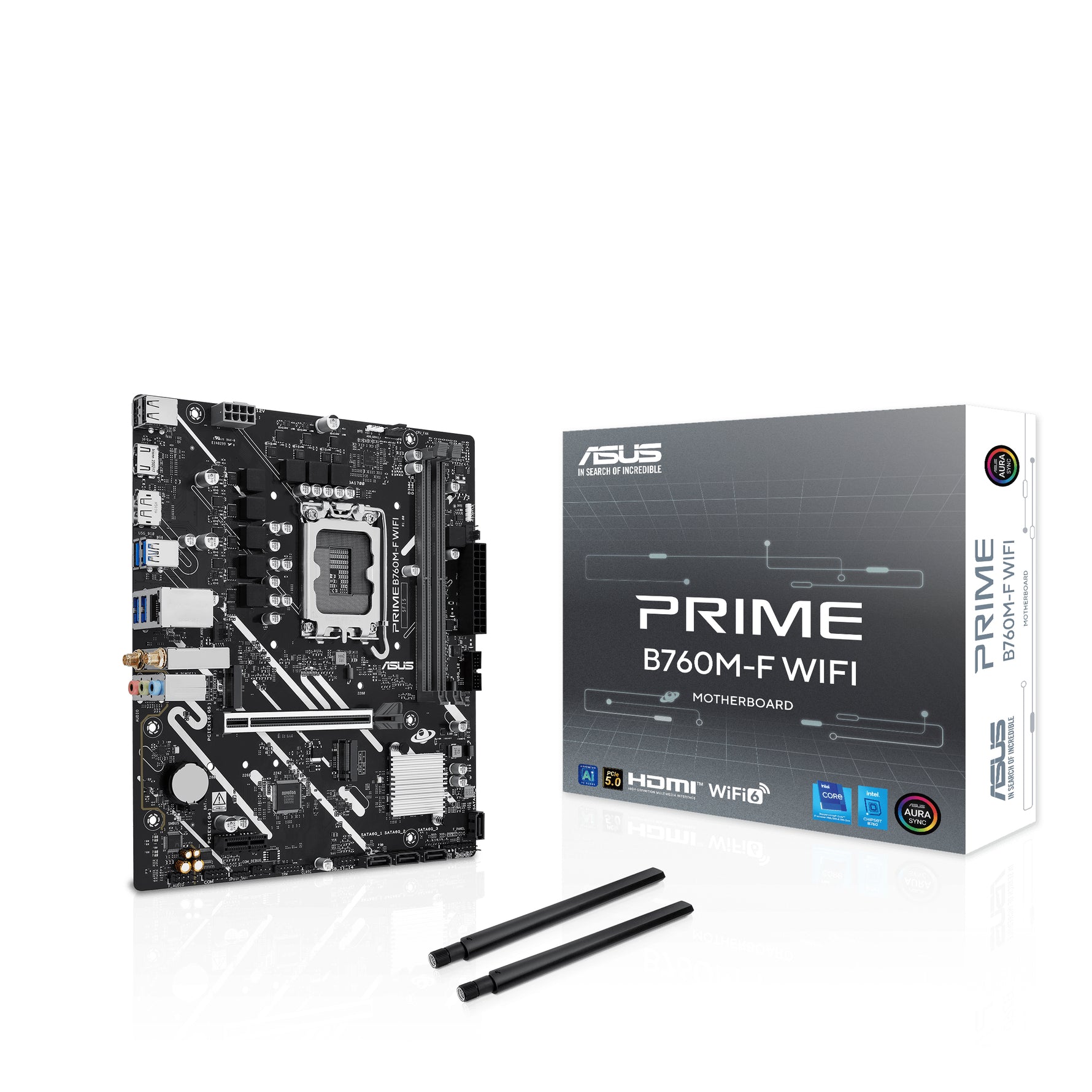

ASUS PRIME B760M-F WIFI B760 LGA1700 Micro ATX DDR5 Motherboard

The ASUS PRIME B760M-F WIFI is a Micro ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors on the LGA1700 platform. Built on the Intel B760 chipset with DDR5 memory support, Wi-Fi 6, and PCIe 5.0, it offers a solid feature set for mainstream builds and home office systems.

UK-based seller
Tracked delivery across the UK
Genuine product from trusted distributors

Key Features

• Intel B760 chipset, LGA1700 socket — supports 12th, 13th and 14th Gen Intel Core processors
• Micro ATX form factor (244 x 211mm)
• DDR5 memory — 2 slots, up to 96GB, up to DDR5-8000 (OC)
• 1x PCIe 5.0 x16 slot for GPU
• 2x M.2 slots (PCIe 4.0 x4)
• 4x SATA 6Gb/s ports, RAID 0/1/5/10
• Wi-Fi 6 (2.4/5GHz) + Bluetooth 5.3
• 1x Realtek 1Gb Ethernet (ASUS LANGuard)
• Realtek 7.1 Surround Sound HD Audio
• 2x Addressable RGB Gen 2 headers (Aura Sync)

Product Overview

The ASUS PRIME B760M-F WIFI is a compact and capable Micro ATX board suited for mainstream Intel builds. It supports the full range of 12th, 13th, and 14th Gen Intel Core processors via the LGA1700 socket, and offers DDR5 memory support with speeds up to DDR5-8000 via overclocking. Connectivity is well-covered with Wi-Fi 6, Bluetooth 5.3, and Realtek Gigabit Ethernet. Two PCIe 4.0 M.2 slots and four SATA ports provide ample storage options, while the PCIe 5.0 x16 slot ensures GPU compatibility with current and future graphics cards.

Delivery & Fulfilment

This product is sold by TechFinder UK, a UK-based sole trader business.
All hardware is sourced through established distribution partners.
Orders are dispatched within 1–2 business days with tracked delivery across the United Kingdom.

Why Buy from TechFinder UK?

• UK-based sole trader — genuine products, real accountability
• Sourced through established distribution partners
• Secure checkout with buyer protection
• Tracked UK delivery, dispatched within 1–2 business days
• Pre- and post-purchase support available

Technical Details

• Chipset: Intel B760
• Socket: LGA1700 (12th, 13th, 14th Gen Intel Core)
• Form Factor: Micro ATX (244 x 211mm)
• Memory: 2x DDR5 DIMM, up to 96GB, up to DDR5-8000 (OC)
• PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x1
• M.2 Slots: 2x PCIe 4.0 x4
• SATA Ports: 4x SATA 6Gb/s (RAID 0/1/5/10)
• LAN: Realtek 1Gb Ethernet
• Wireless: Wi-Fi 6 (2.4/5GHz), Bluetooth 5.3
• Audio: Realtek 7.1 Surround Sound HD Audio
• Rear I/O: 2x USB 2.0, 4x USB 5Gbps Type-A, 1x HDMI, 1x DisplayPort, 1x LAN, 3x Audio jacks
• Internal Headers: 1x USB 2.0, 2x USB 5Gbps, 2x ARGB Gen 2, 1x COM, 1x TPM, 1x S/PDIF
• BIOS: 128Mb Flash ROM, UEFI AMI BIOS
• Weight: 0.87kg (net)

Box Contents

• Motherboard
• 2x SATA 6Gb/s cables
• 1x ASUS Wi-Fi antenna
• 1x I/O Shield
• 2x M.2 anchors
• 1x Quick start guide

Product Identification

Model: PRIME B760M-F WIFI
EAN: 4711636182232
