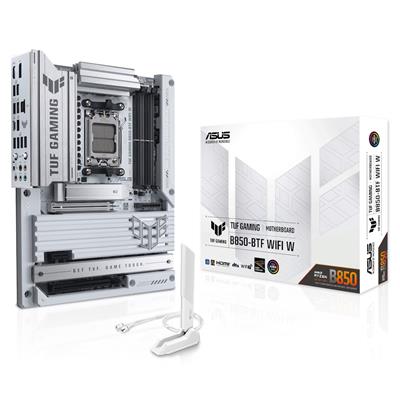

ASUS TUF GAMING B850-BTF WIFI W ATX Motherboard

Brand: ASUS
Model Number: TUF GAMING B850-BTF WIFI W
EAN: 4711387941874
Website: www.asus.com
Package Type: Retail
Warranty: 3 Years

General Information

• Form Factor: Standard ATX

• Chipset: AMD B850

• CPU Interface: Socket AM5

• CPU Support:
  https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-btf-wifi-w/helpdesk_qvl_cpu?model2Name=TUF-GAMING-B850-BTF-WIFI-W

BIOS

• 256 Mb Flash ROM

• UEFI AMI BIOS

Memory

• RAM Technology: DDR5 (Dual Channel)

• RAM Slots: 4 × 288-pin

• RAM Speeds: Up to DDR5 8000+ (O.C.)

• Maximum Memory Support: 256 GB

Expansion Slots

• PCI Express 5.0 ×16: 1

• PCI Express 4.0 ×16: 1

• PCI Express 4.0 ×1: 1

Storage

• SATA 6 Gb/s Ports: 4

• RAID Support: RAID 0 / 1 / 5 / 10

• M.2 Sockets:

  • 1 × PCIe Gen 5.0 ×4

  • 2 × PCIe Gen 4.0 ×4

Connectivity

Wired Networking

• LAN:

  • 1 × Realtek 2.5 Gb Ethernet

  • TUF LANGuard

Wireless

• Wi-Fi: Wi-Fi 7

• Frequency Bands: 2.4 GHz / 5 GHz / 6 GHz

• Wi-Fi Bandwidth Support: 160 MHz

• Maximum Transfer Rate: Up to 2.9 Gbps

• Bluetooth: v5.4

On-Board Audio

• Codec: Realtek ALC1220P

• Audio: 7.1 Surround Sound High Definition Audio

On-Board Video

• Processor with integrated graphics required

Rear I/O Ports

• USB 2.0: 2

• USB 5 Gbps Type-A: 4

• USB 10 Gbps Type-A: 3

• USB 20 Gbps Type-C: 1

• HDMI: 1

• DisplayPort: 1

• LAN (RJ-45): 1

• Audio Jacks: 5

Rear Buttons

• 1 × BIOS FlashBack

Internal Connectors

• 24-pin ATX Power: 1

• 8-pin ATX Power: 2

• USB 2.0 Headers: 2

• USB 5 Gbps Header: 1

• USB 10 Gbps Header: 1

• Thunderbolt Header: 1

• COM Port Header: 1

• Front Panel Audio Connector: 1

• Addressable RGB Gen 2 Headers: 3

Physical Specifications

Product Dimensions

• Width: 244 mm

• Length: 305 mm

• Net Weight: 1.55 kg

Package Dimensions

• Width: 27.3 cm

• Length: 37.3 cm

• Height: 6.8 cm

• Gross Weight: 2.23 kg

Features

• BTF (Back To the Future) connector design

• Hidden underside connectors for improved cable management

• Graphics card high-power slot delivering up to 600 W for BTF graphics cards

• Designed for advanced AI PC applications

• Game-ready features and durable TUF design

Package Contents

• Motherboard

• 2 × SATA 6 Gb/s Cables

• 1 × ASUS WiFi Q-Antenna

• 1 × TUF Gaming Sticker

• 2 × M.2 Rubber Packages

• 1 × Quick Start Guide
