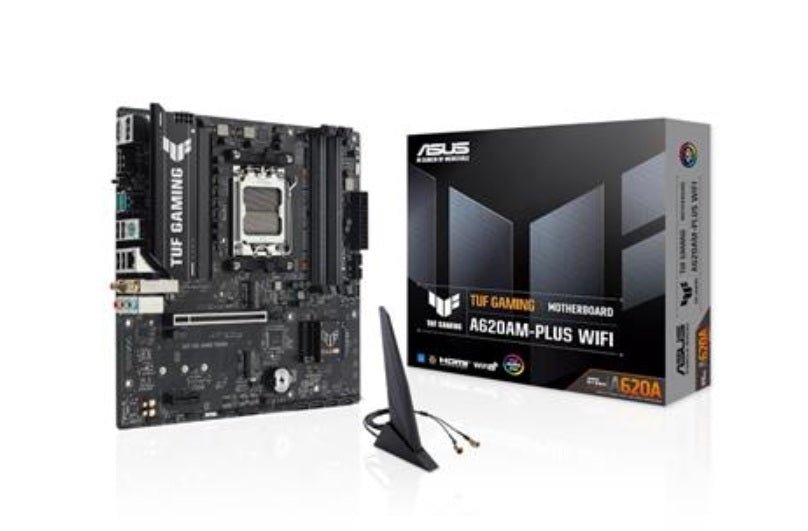

ASUS TUF GAMING A620AM-PLUS WIFI

(Socket AM5 / AMD A620A / DDR5 / SATA 6Gb/s / Micro ATX)

• Brand: ASUS

• Series: ASUS TUF Gaming

• Web Address: www.asus.com

• Model Number: TUF GAMING A620AM-PLUS WIFI

• EAN: 4711636231817

• Package Type: Retail

• Warranty: 3 Years

BIOS

• 256 Mb Flash ROM

• UEFI AMI BIOS

Chipset

• Chipset: AMD A620A

CPU Support

• CPU Interface: Socket AM5

• CPU Support List:
  https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620am-plus-wifi/helpdesk_qvl_cpu?model2Name=TUF-GAMING-A620AM-PLUS-WIFI

• Processor with integrated graphics required for video output

Memory

• Memory Technology: DDR5 (Dual Channel)

• Memory Slots: 4 x 288-pin

• Maximum Capacity: 256GB

• Memory Speeds: Up to DDR5 7600+ (O.C.)

Expansion Slots

• 1 x PCI Express 4.0 x16

• 1 x PCI Express 3.0 x1

Storage

• SATA 6Gb/s Ports: 4

• RAID Support: RAID 0 / 1 / 5 / 10

• M.2 Sockets: 2 x PCIe Gen 4.0 x4

Networking

Wired LAN

• 1 x Realtek 2.5Gb Ethernet

• TUF LANGuard

Wireless

• Wi-Fi 6 (802.11ax)

  • 1x1 configuration

  • Supports 2.4GHz / 5GHz bands

• Bluetooth: v5.3

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

Rear I/O Ports

• 1 x PS/2 Keyboard/Mouse Combo

• 4 x USB 2.0

• 2 x USB 10Gbps Type-A

• 1 x HDMI

• 2 x DisplayPort

• 1 x LAN Port

• 3 x Audio Jacks

• 1 x Wi-Fi Module

• 1 x BIOS FlashBack Button

Internal Connectors

Power

• 1 x 24-pin ATX Power

• 1 x 8-pin ATX Power

USB Headers

• 2 x USB 2.0 Headers

• 2 x USB 5Gbps Headers

Other Headers

• 1 x COM Port Header

• 1 x Front Panel Audio Connector

• 1 x S/PDIF Out Header

• 3 x Addressable RGB Gen 2 Headers

Form Factor & Dimensions

• Form Factor: Micro ATX

• Board Size: 244mm x 244mm

Special Features

• Designed for AMD Ryzen processors

• Military-grade components for durability

• Enhanced power delivery design

• Comprehensive cooling solution

• Stable performance for extended gaming sessions

• Integrated Wi-Fi 6 and Bluetooth 5.3

Package Contents

• Motherboard

• 2 x SATA 6Gb/s Cables

• 1 x ASUS Wi-Fi Moving Antenna

• 1 x I/O Shield

• 2 x Screw Packages for M.2 SSD

• 1 x TUF GAMING Sticker

• 1 x Quick Start Guide
