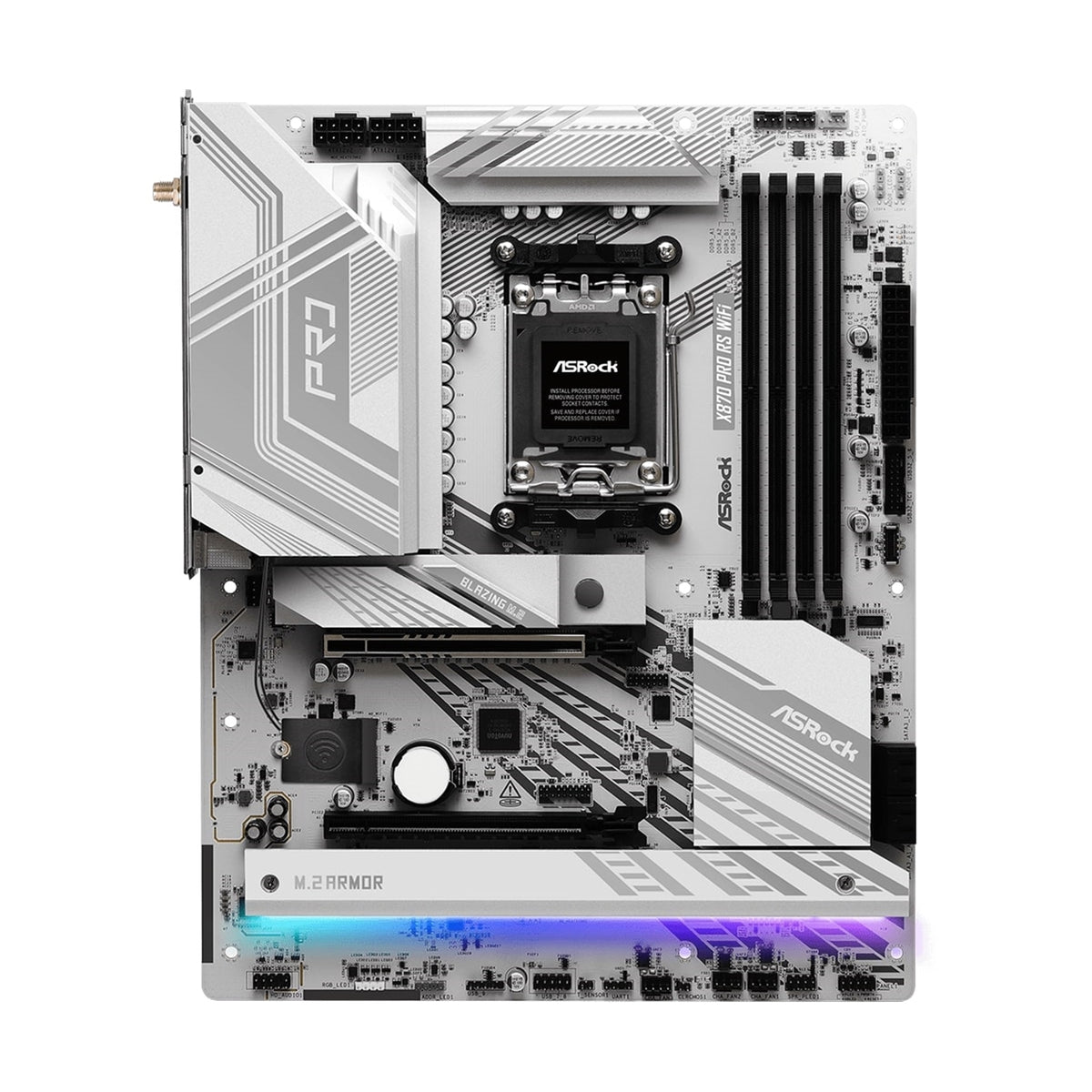

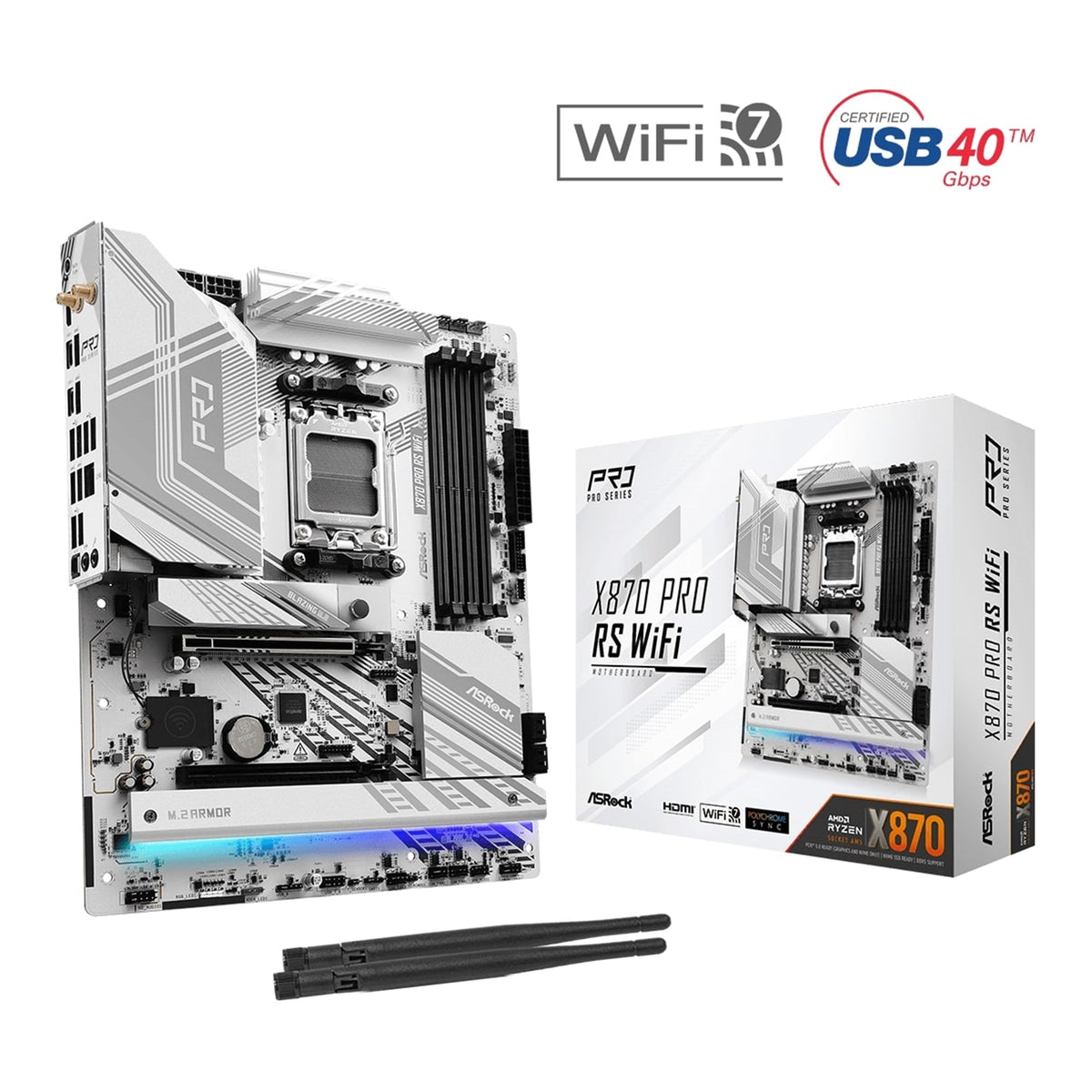

ASRock X870 PRO RS WIFI, AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2.5GbE LAN, Wi-Fi 7, 1x HDMI, 2x USB4 Type-C, 3 Year Warranty

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD X870
• Form Factor: ATX

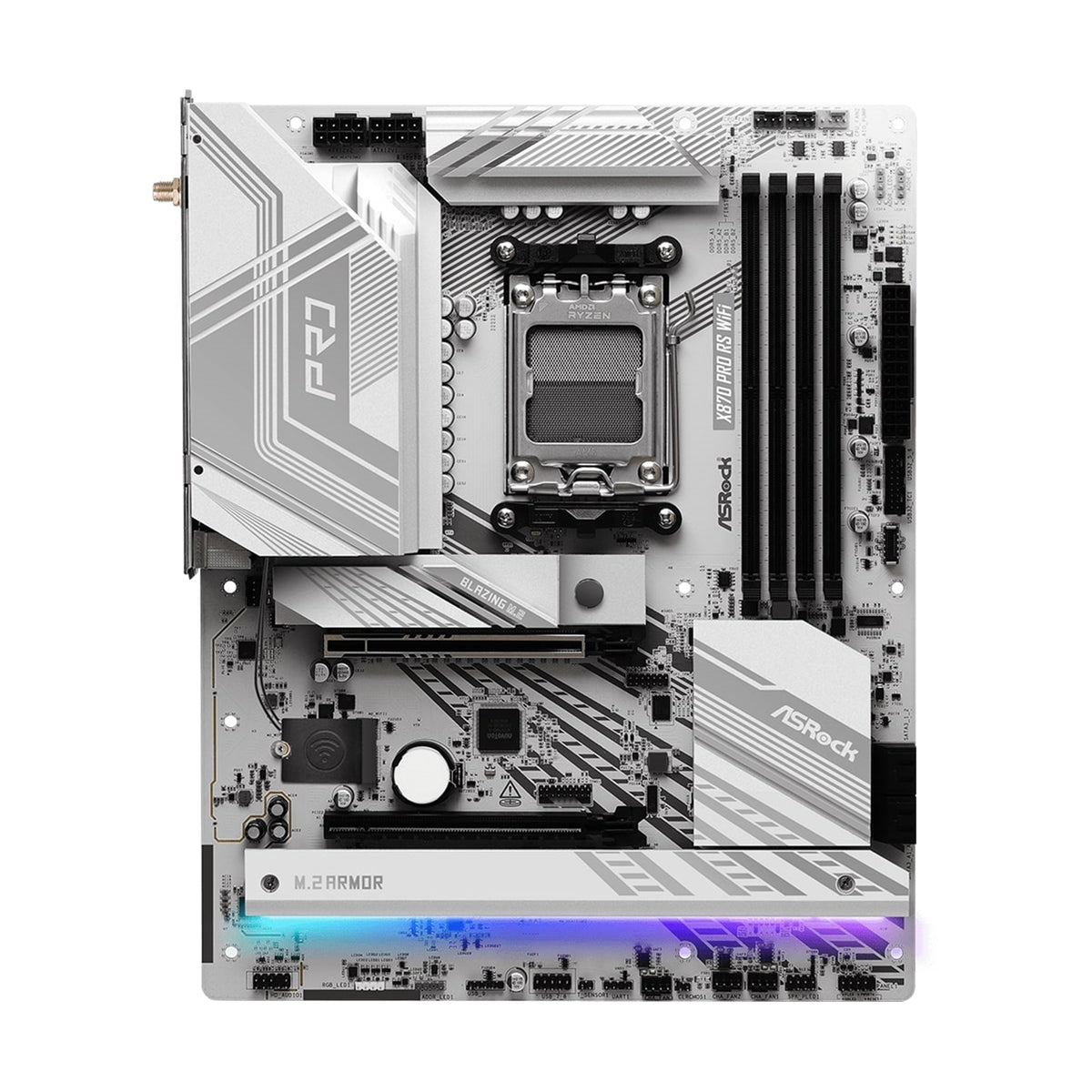

• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe 5 / PCIe 4 / PCIe 3
• Wi-Fi: Yes

X870 Pro RS WiFi
The Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard — modern, feature-rich, and built for performance with a perfect balance of overclocking capability and daily reliability.

Key Features
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
14+2+1 power phase design with 80A Dr.MOS
4x DDR5 DIMM slots with AMD EXPO and XMP support, up to DDR5-8000+ (O.C.)

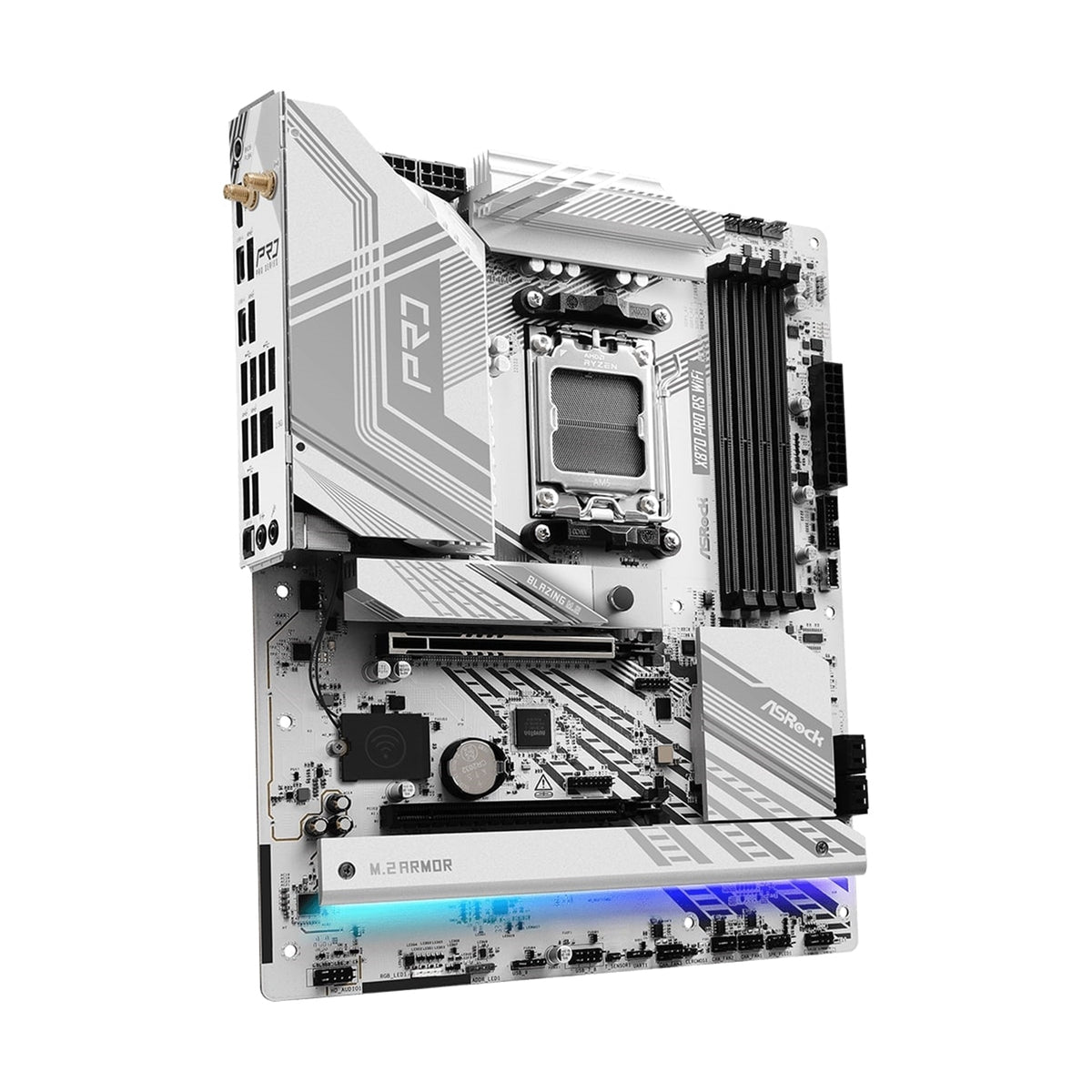

3x M.2 slots including 1x PCIe 5.0 x4 (Blazing M.2)
2x USB4 Type-C (40Gbps, DP-Alt)
Wi-Fi 7 (802.11be) with Bluetooth 5.4
2.5GbE Dragon LAN
1x HDMI 2.1 (up to 4K @ 120Hz)
BIOS Flashback button
Polychrome RGB with addressable LED headers
PCIe 5.0 x16 reinforced steel slot

14+2+1 Power Phase Design
Featuring sturdy components and smooth power delivery to the CPU, with 80A Dr.MOS per phase for improved thermal performance and superior overclocking capability.

PCIe Gen5 Blazing M.2
The Blazing M.2 supports PCI Express 5.0 with up to 128GB/s transfer speed, ready to unleash the full potential of the latest ultrafast NVMe SSDs.

USB4 Type-C (40Gbps)
Two USB4 Type-C ports deliver up to 40Gbps data transfer with DisplayPort Alt Mode support, ideal for high-resolution displays, video editing, and large file transfers.

Wi-Fi 7 802.11be
The latest Wi-Fi 7 technology delivers extreme wireless speeds with lower latency, Multi-Link Operation (MLO), and support for 2.4 / 5 / 6 GHz bands. Bluetooth 5.4 provides extended range and faster transmission.

Specification

CPU
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Chipset
AMD X870

Memory
4x DDR5 DIMM slots, up to 256GB (64GB single DIMM)
Dual channel, DDR5-4800 native, up to DDR5-8000+ (O.C.)
Supports AMD EXPO and XMP
Supports ECC and non-ECC Un-buffered DIMM

Expansion Slots
1x PCIe 5.0 x16 (CPU, PCIE1) — reinforced steel slot
1x PCIe 4.0 x16 (chipset, running at x4, PCIE2)
Supports AMD CrossFire

Storage
1x M.2 PCIe 5.0 x4 (M2_1, Blazing M.2, type 2280, CPU)
1x M.2 PCIe 4.0 x4 (M2_2, Hyper M.2, type 2230/2242/2260/2280, chipset)
1x M.2 PCIe 3.0 x4 / SATA (M2_3, Ultra M.2, type 2280, chipset)
4x SATA 6Gb/s (2x onboard + 2x ASMedia ASM1061)
RAID 0/1 for SATA; RAID 0/1/10 for NVMe

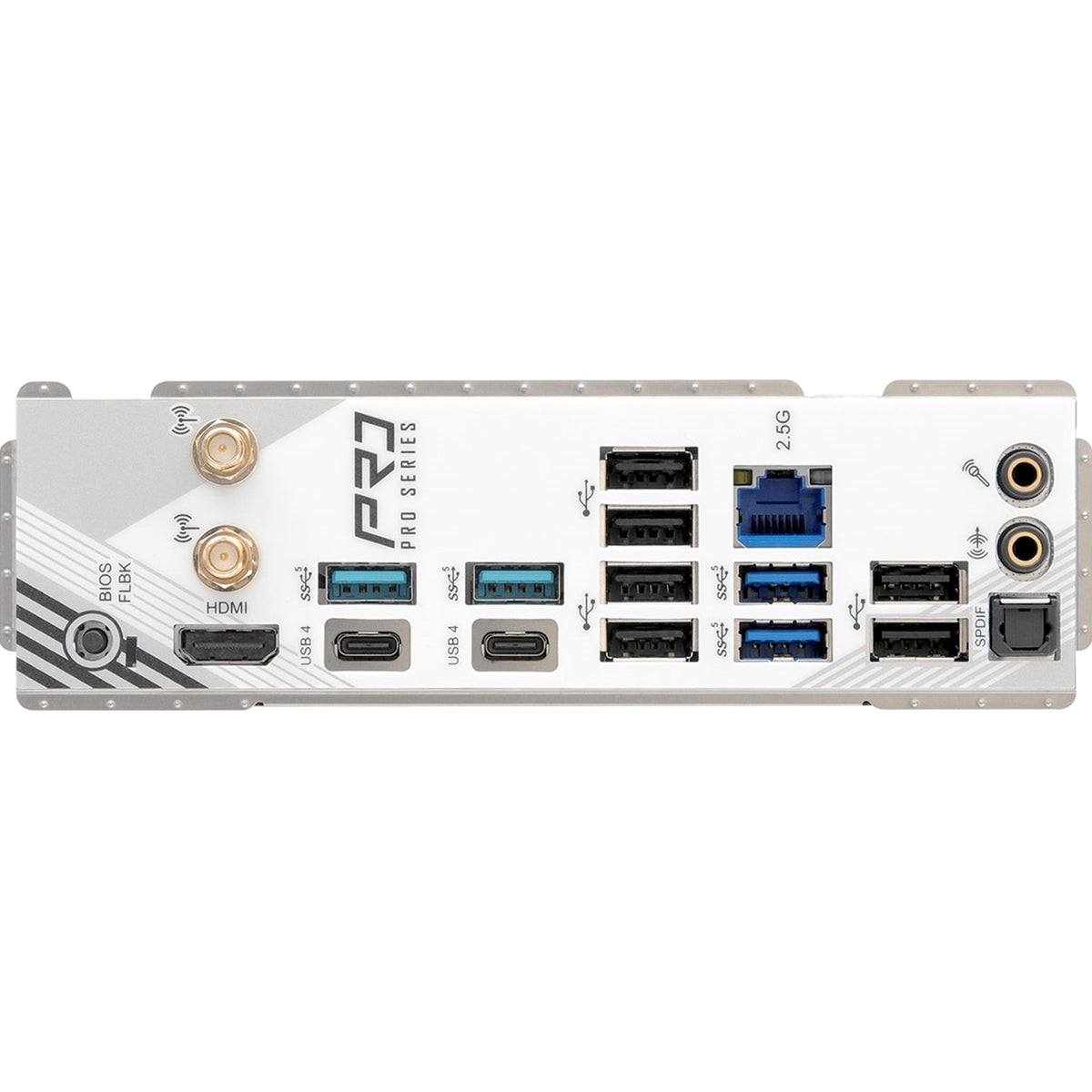

USB (Back Panel)
2x USB4 Type-C (40Gbps, DP-Alt)
2x USB 3.2 Gen 1 Type-A (5Gbps)
6x USB 2.0 Type-A

Display Output
1x HDMI 2.1 (up to 4096x2160 @ 120Hz)
2x USB4 Type-C with DP-Alt (up to 8K @ 30Hz)

LAN
Dragon RTL8125BG, 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless
Wi-Fi 7 802.11be (2.4 / 5 / 6 GHz, up to 160MHz)
Bluetooth 5.4

Audio
Realtek ALC1220, 7.1-channel HD Audio with Nahimic Audio

RGB
1x RGB LED header
3x Addressable LED (ARGB Gen2) headers
Polychrome RGB software support

Form Factor
ATX (305mm x 244mm)

OS Support
Windows 11 64-bit

Warranty
3 Years ASRock Manufacturer Warranty
