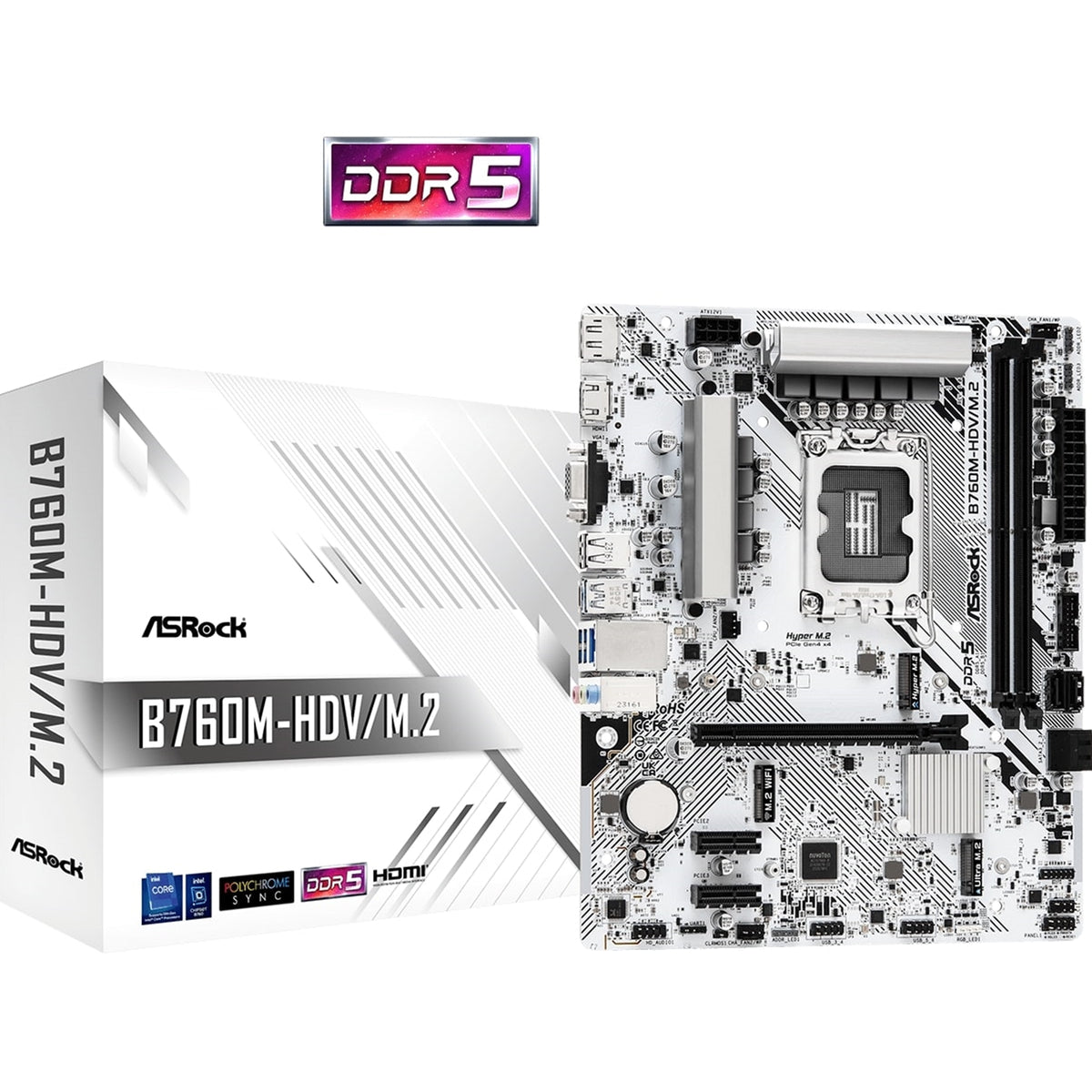

ASRock B760M-HDV/M.2 Intel 1700 Socket Motherboard
Micro-ATX
2x DDR5 Slots
2x M.2 Sockets

ASROCK

ASRock B760M-HDV/M.2, Intel LGA1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI, 3 Year Warranty

SKU: TF-MBASR-B760MHDVM2
Barcode: 4710483943485

£90.99 Inc. VAT

In stock

Free tracked UK delivery · 3–5 working days
Optional express delivery £3.25 at checkout.

Delivery

14-day change-of-mind returns

View returns policy

Need help choosing? Ask TechFinder UK
ASRock B760M-HDV/M.2, Intel LGA1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI, 3 Year Warranty

£90.99 Inc. VAT

£90.99 Inc. VAT

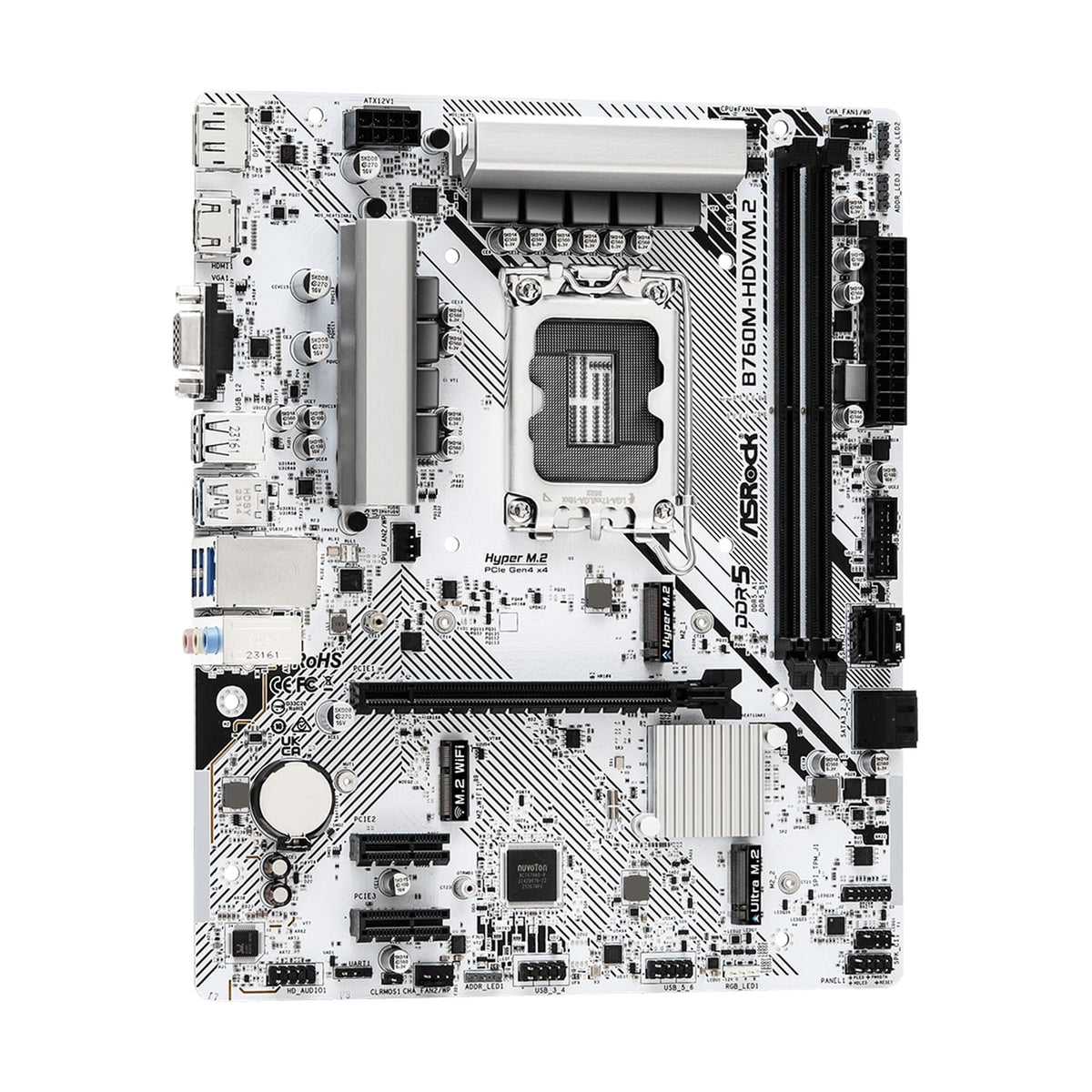

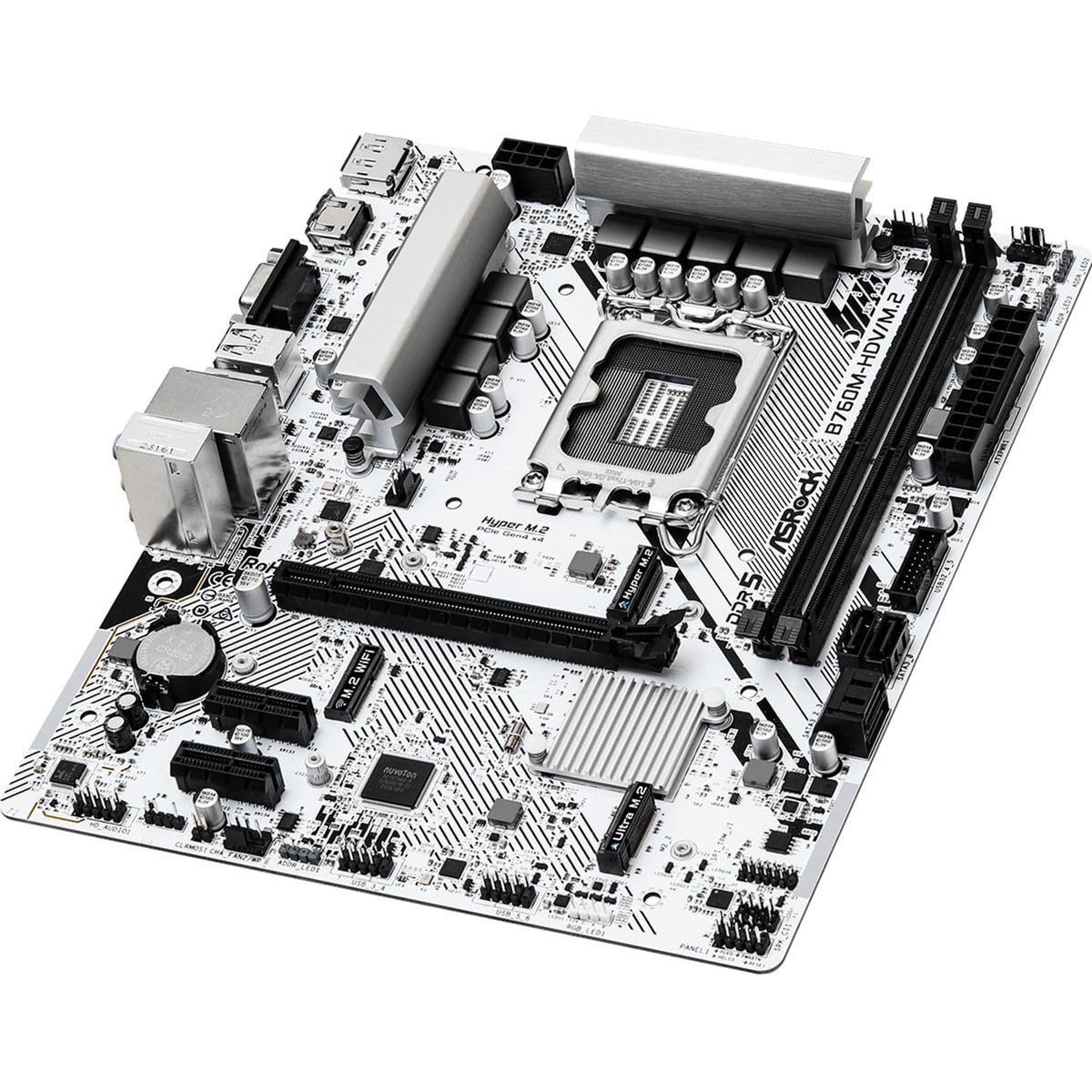

The ASRock B760M-HDV/M.2 is a Micro-ATX motherboard for LGA1700 processors, with DDR5 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model ASRock B760M-HDV/M.2
Chipset Intel B760
CPU socket LGA1700
Supported processors Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Form factor / dimensions Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

Memory

Memory slots 2 × DDR5 DIMM; dual channel
Maximum capacity 128 GB
Memory data rate Up to DDR5-7200 (OC); depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles Intel XMP

Expansion & Storage

Expansion slots CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Supports NVMe SSD as boot disks
Storage connections Chipset:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes
4 x SATA3 6.0 Gb/s Connectors

Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks

Network & Audio

Ethernet 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Wi-Fi / Bluetooth No onboard wireless module listed by the manufacturer. Any optional Wi-Fi module, antennas and Bluetooth functionality require separate compatible hardware.
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

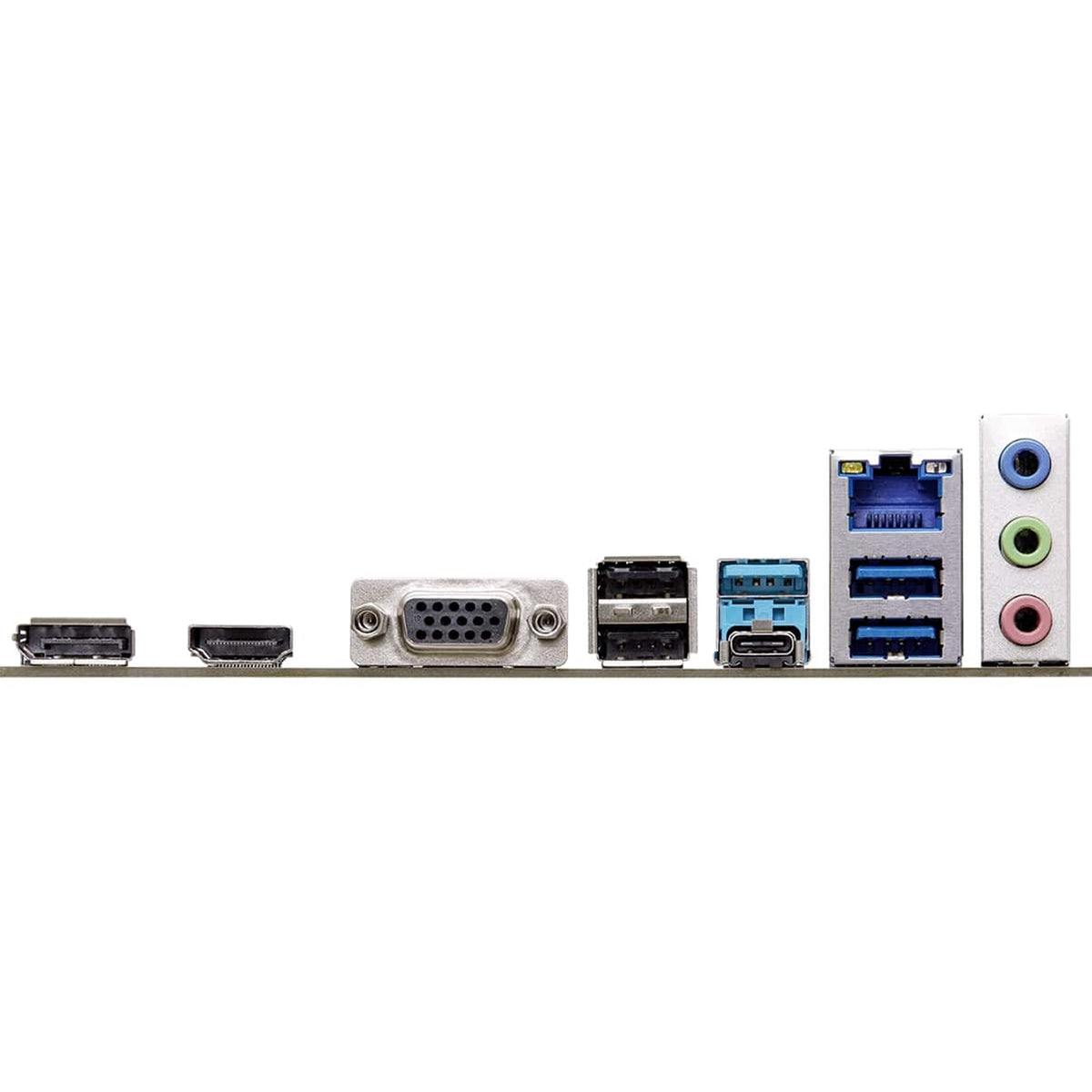

Rear Connections

Rear I/O 2 x Antenna Mounting Points
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Internal Connections

Internal USB headers 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Power connectors 1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
Fan / pump headers 1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
Lighting headers 1 x RGB LED Header
3 x Addressable LED Headers

Compatibility Notes

CPU and BIOS Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.

Package & Identification

Manufacturer-listed accessories 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
GTIN / EAN 4710483943485
