Name: ASRock B550 Phantom Gaming 4 ATX DDR4 AM4 Motherboard
Brand: ASROCK
SKU: TF-MBASR-B550PG4
Price: 84.99 GBP
Availability: InStock

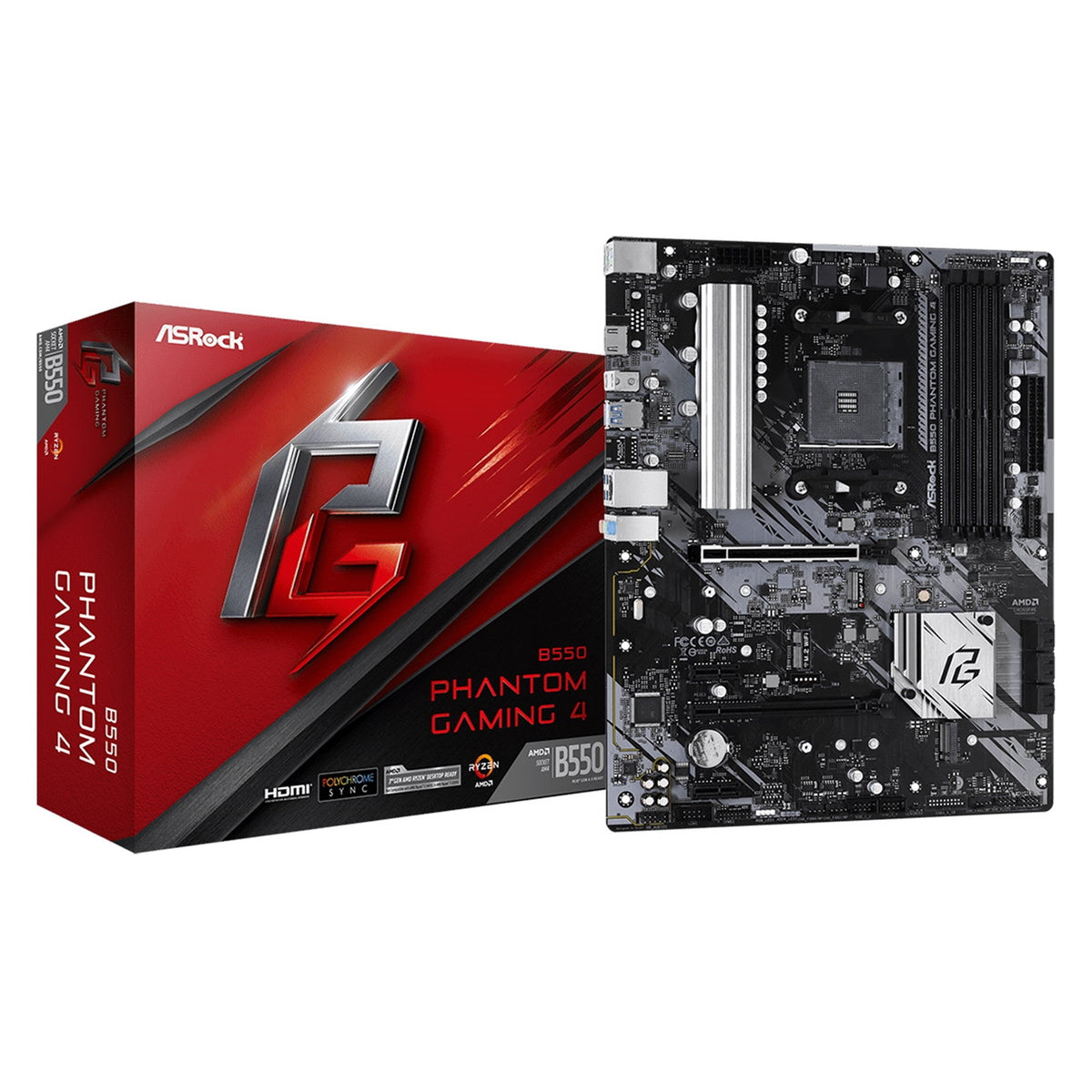

ASRock B550 Phantom Gaming 4 Super Alloy AMD AM4 Socket Motherboard

ASRock B550 Phantom Gaming 4 ATX DDR4 AM4 Motherboard

£84.99 Inc. VAT

The ASRock B550 PHANTOM GAMING 4 is a desktop motherboard for AM4 processors, with DDR4 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model	ASRock B550 PHANTOM GAMING 4
Chipset	AMD B550
CPU socket	AM4
Supported processors	Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

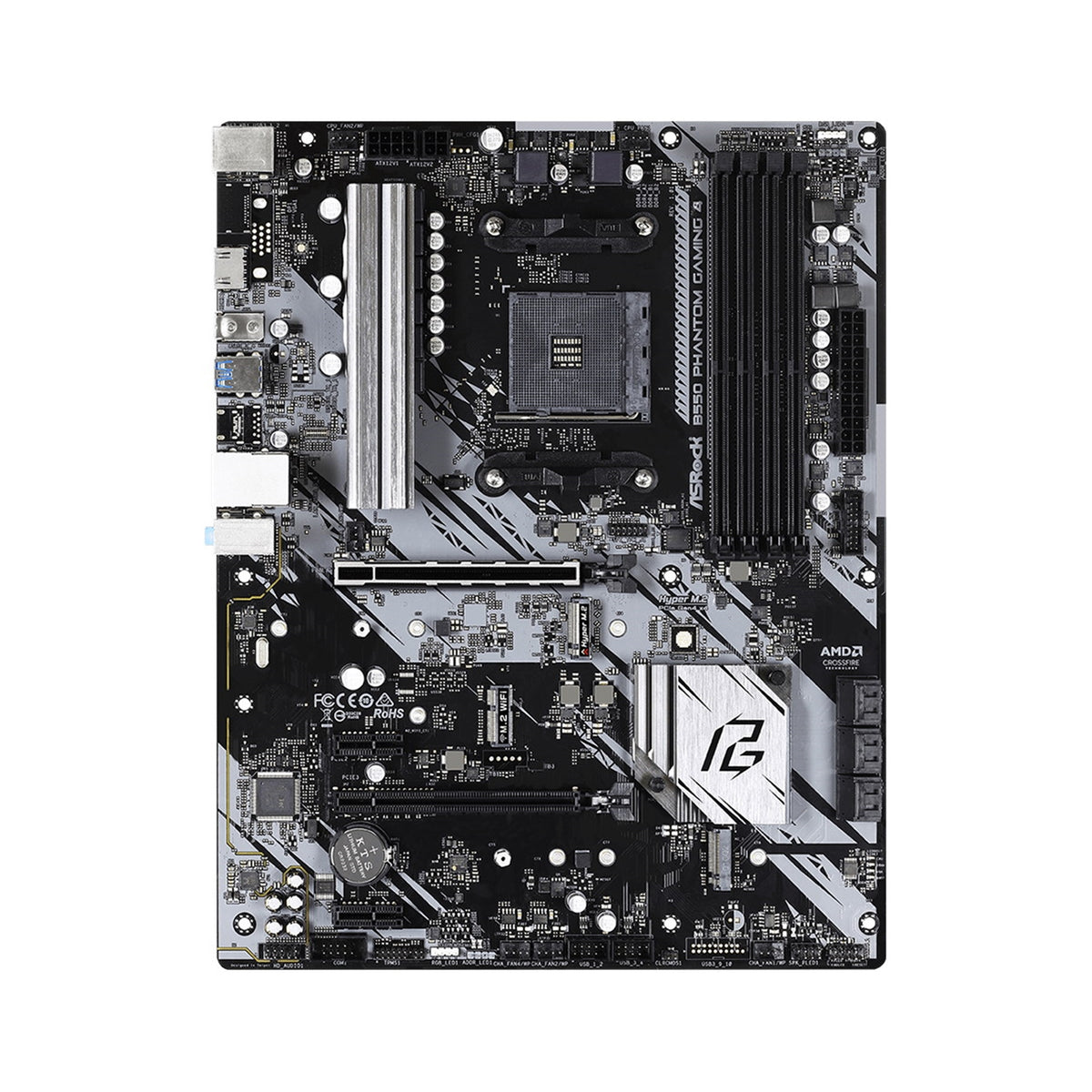

Form factor / dimensions	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Memory

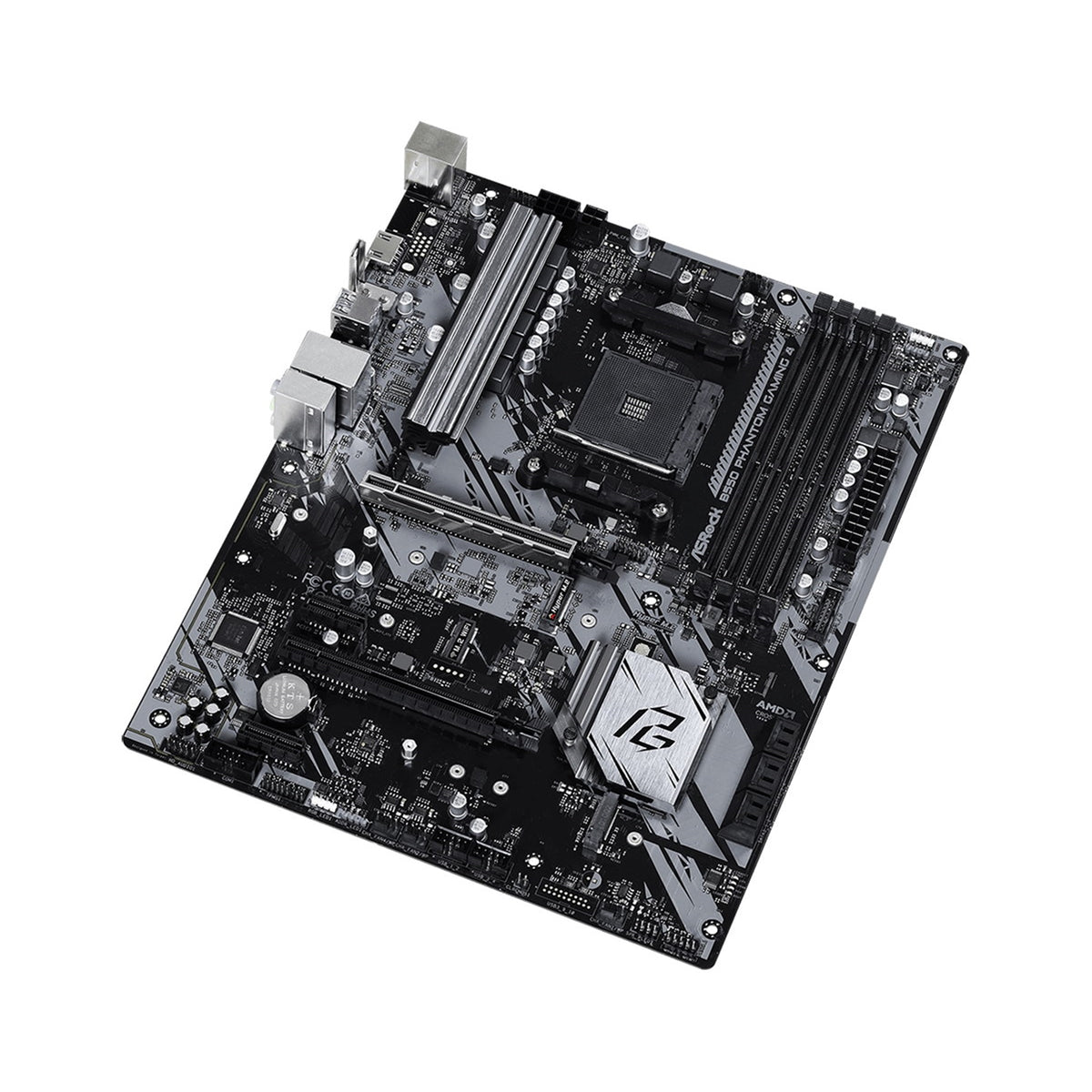

Memory slots	4 × DDR4 DIMM; dual channel
Maximum capacity	128 GB
Memory data rate	Up to DDR4-4733 (OC); depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles	Intel XMP

Expansion & Storage

Expansion slots

AMD Ryzen series CPUs (Vermeer and Matisse)
2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
AMD Ryzen series APUs (Cezanne and Renoir)
2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)
AMD Ryzen series APUs (Picasso)
2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)
2 x PCI Express 3.0 x1 Slots
Supports AMD Quad CrossFireX and CrossFireX
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Supports NVMe SSD as boot disks

Storage connections

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

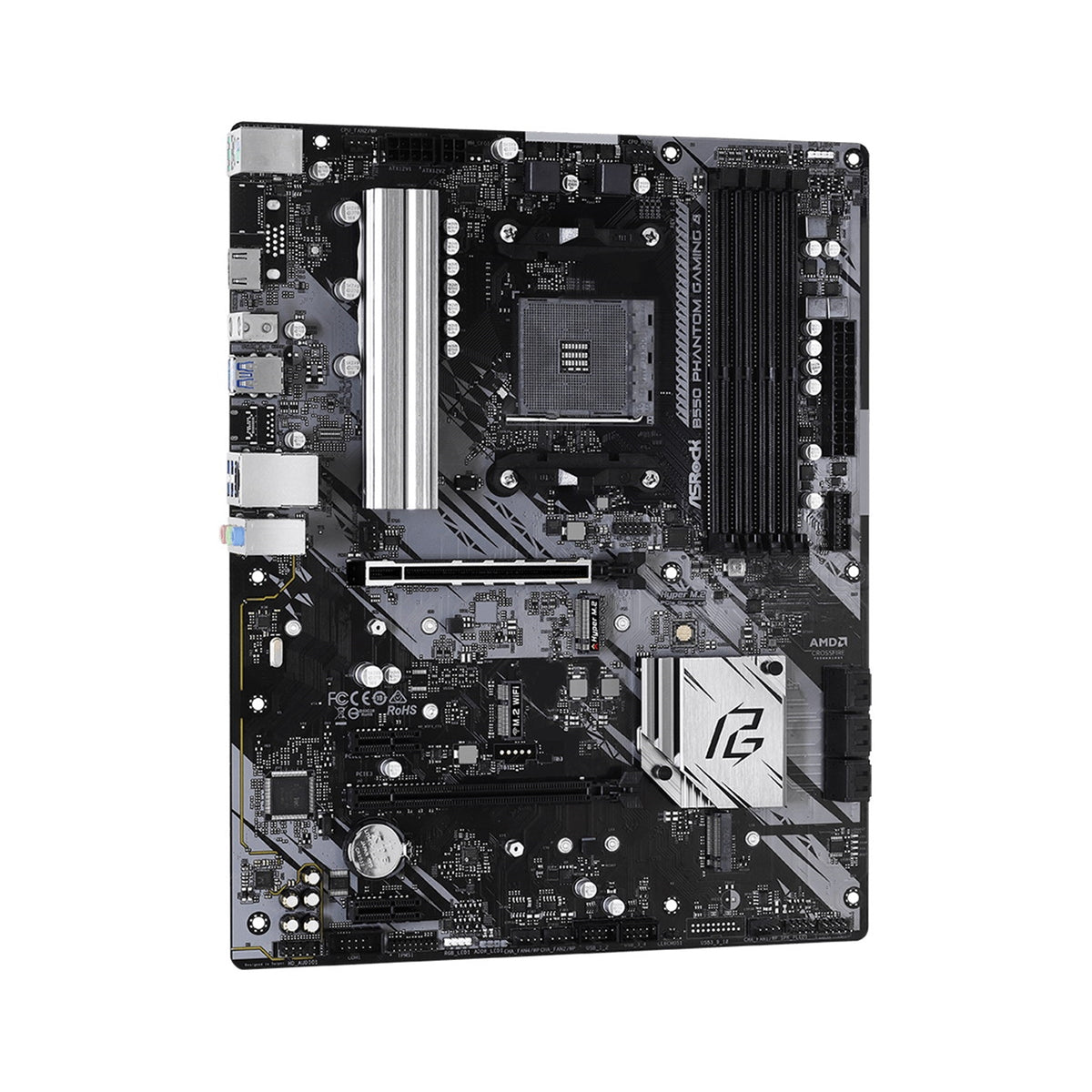

1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)
1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
M2_3 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.
Supports NVMe SSD as boot disks
NVMe SSD is not supported with AMD Athlon 3000G Processors
Supports ASRock U.2 Kit

Network & Audio

Ethernet	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
Wi-Fi / Bluetooth	No onboard wireless module listed by the manufacturer. Any optional Wi-Fi module, antennas and Bluetooth functionality require separate compatible hardware.
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220/ALC1200 Audio Codec) Nahimic Audio

Rear Connections

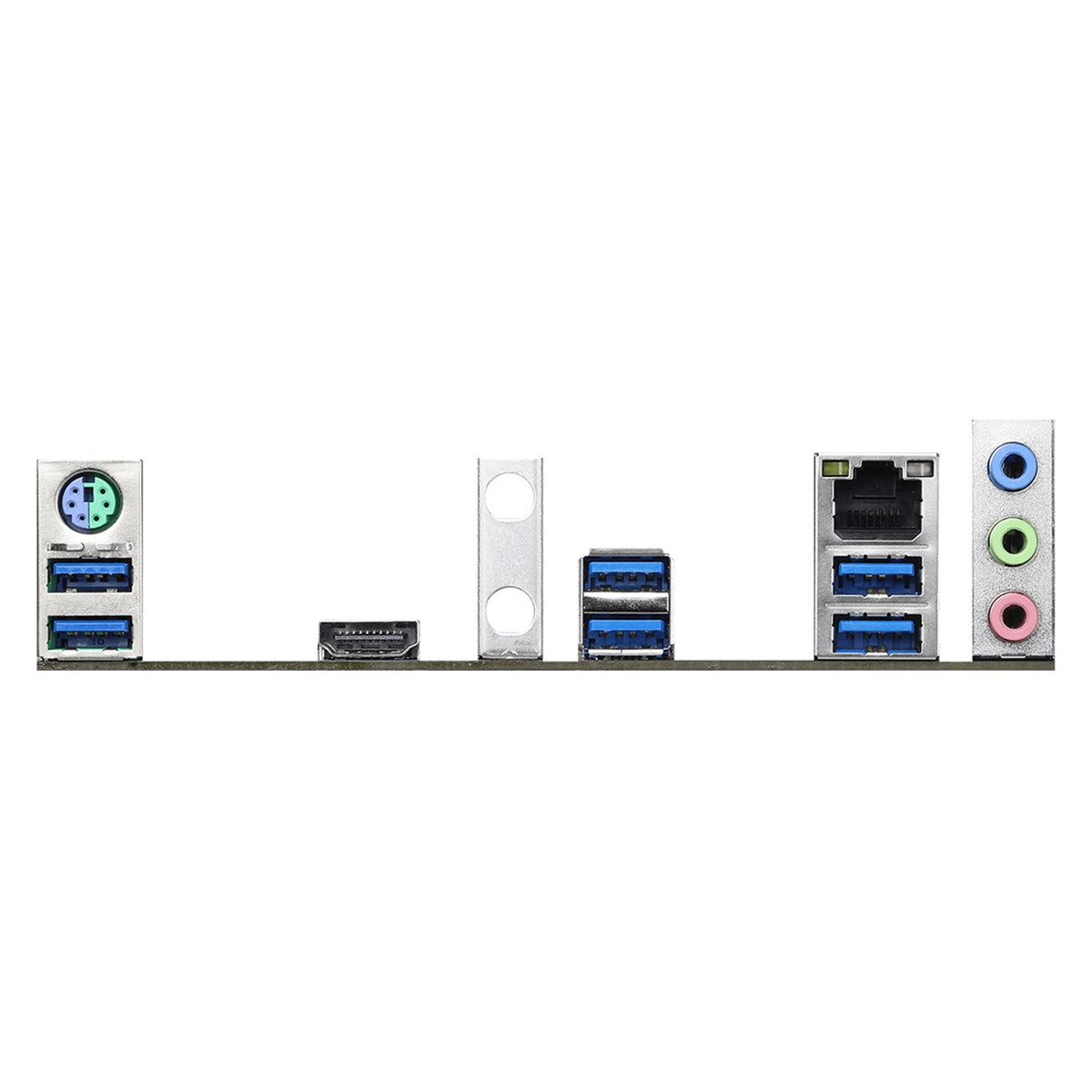

Rear I/O	2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

Internal Connections

Internal USB headers	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Power connectors	1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x 4 pin 12V Power Connector
Fan / pump headers	1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
Lighting headers	1 x Power LED and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers

Compatibility Notes

CPU and BIOS	Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs	Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion	DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.
Manufacturer restrictions	M2_3 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled. NVMe SSD is not supported with AMD Athlon 3000G Processors

Package & Identification

Manufacturer-listed accessories	I/O Shield 2 x SATA Data Cables 3 x Screw for M.2 Socket
GTIN / EAN	4710483931499
