Name: ASRock A520M-HVS Micro-ATX DDR4 AM4 Motherboard
Brand: ASROCK
SKU: TF-MBASR-A520MHVS
Price: 53.99 GBP
Availability: InStock

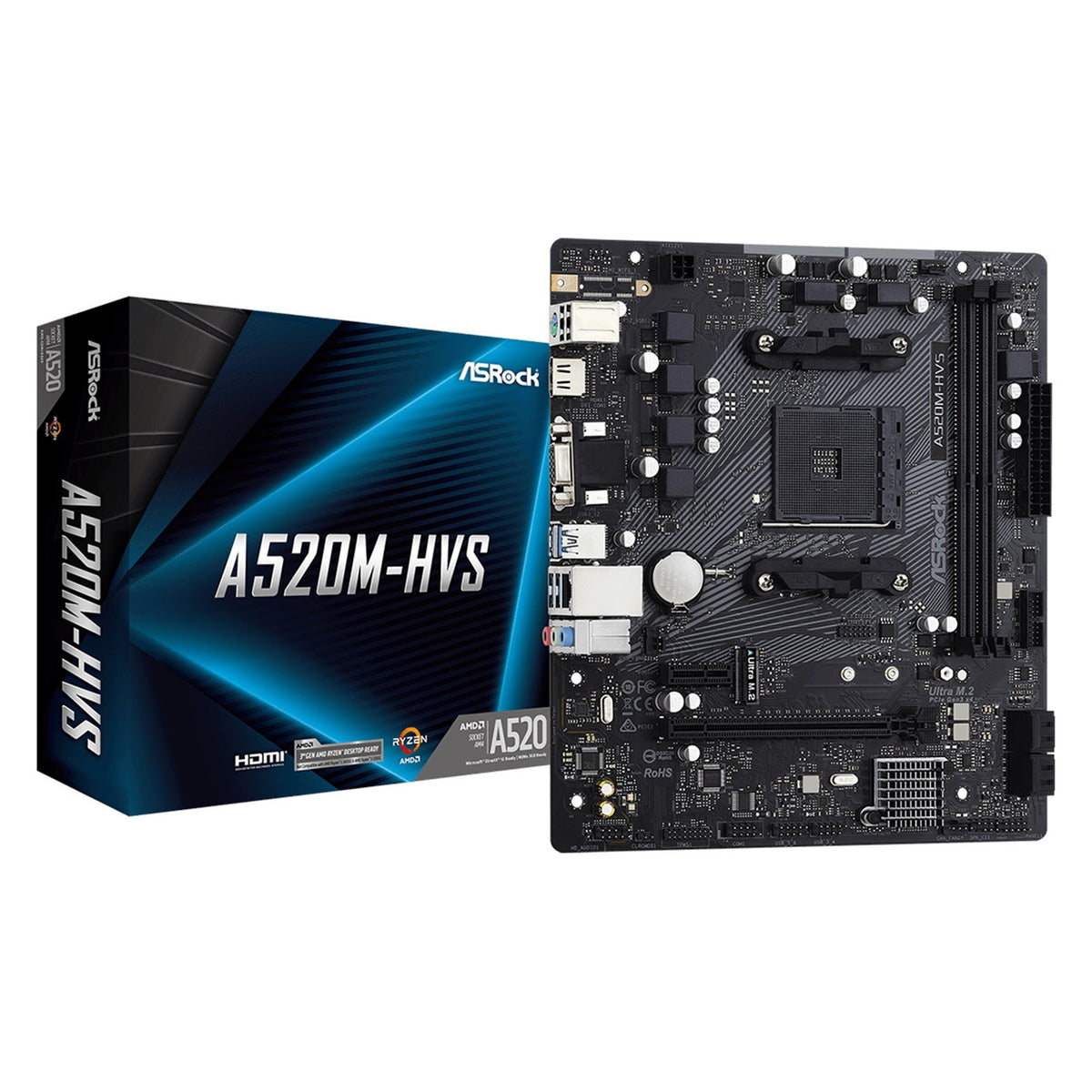

ASRock A520M-HVS Super Alloy AMD AM4 Socket Motherboard

ASRock A520M-HVS Micro-ATX DDR4 AM4 Motherboard

£53.99 Inc. VAT

The ASRock A520M-HVS is a Micro-ATX motherboard for AM4 processors, with DDR4 memory support. The specifications below distinguish storage sockets, expansion slots and rear connections.

Specifications

Model & Compatibility

Model	ASRock A520M-HVS
Chipset	AMD A520
CPU socket	AM4
Supported processors	Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

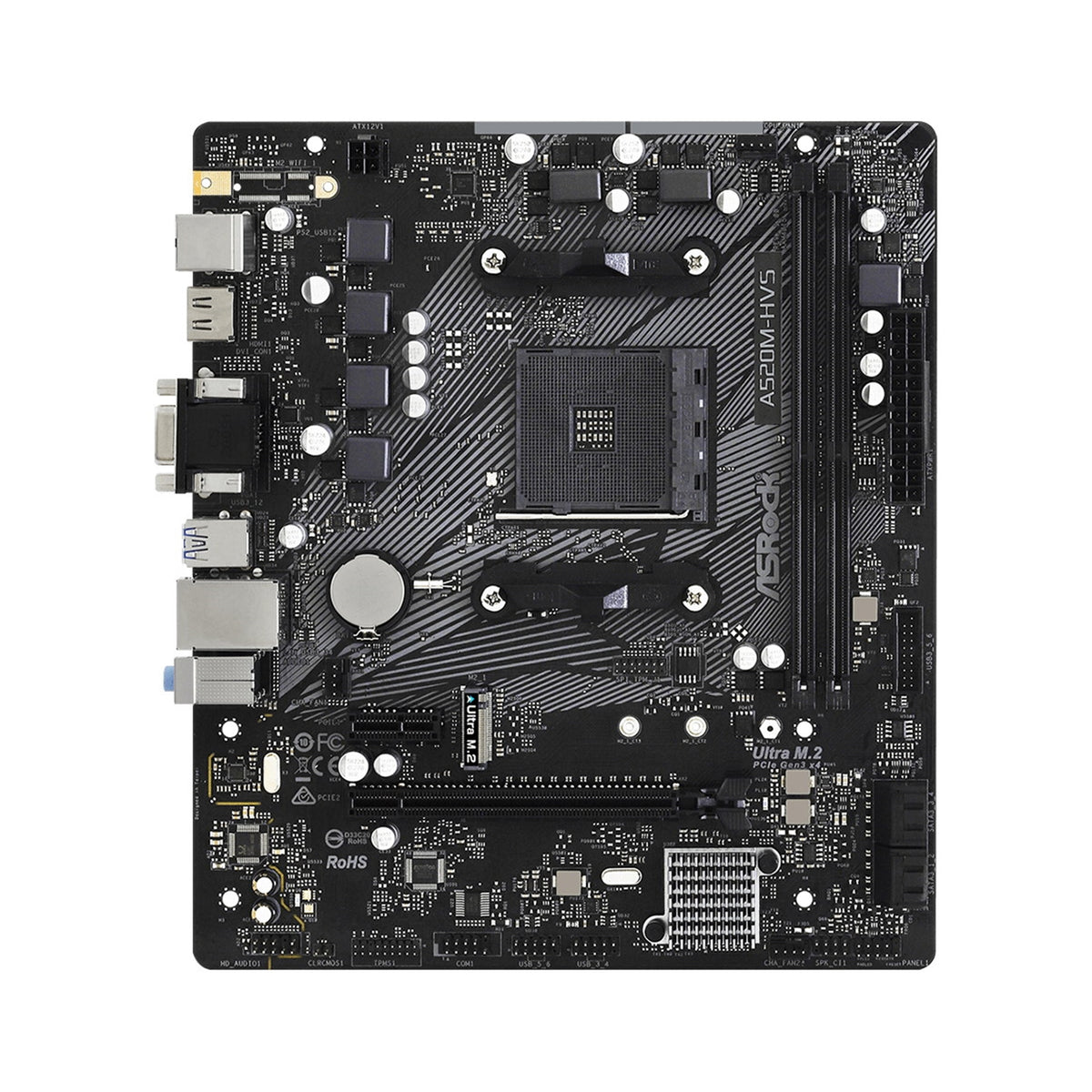

Form factor / dimensions	Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm

Memory

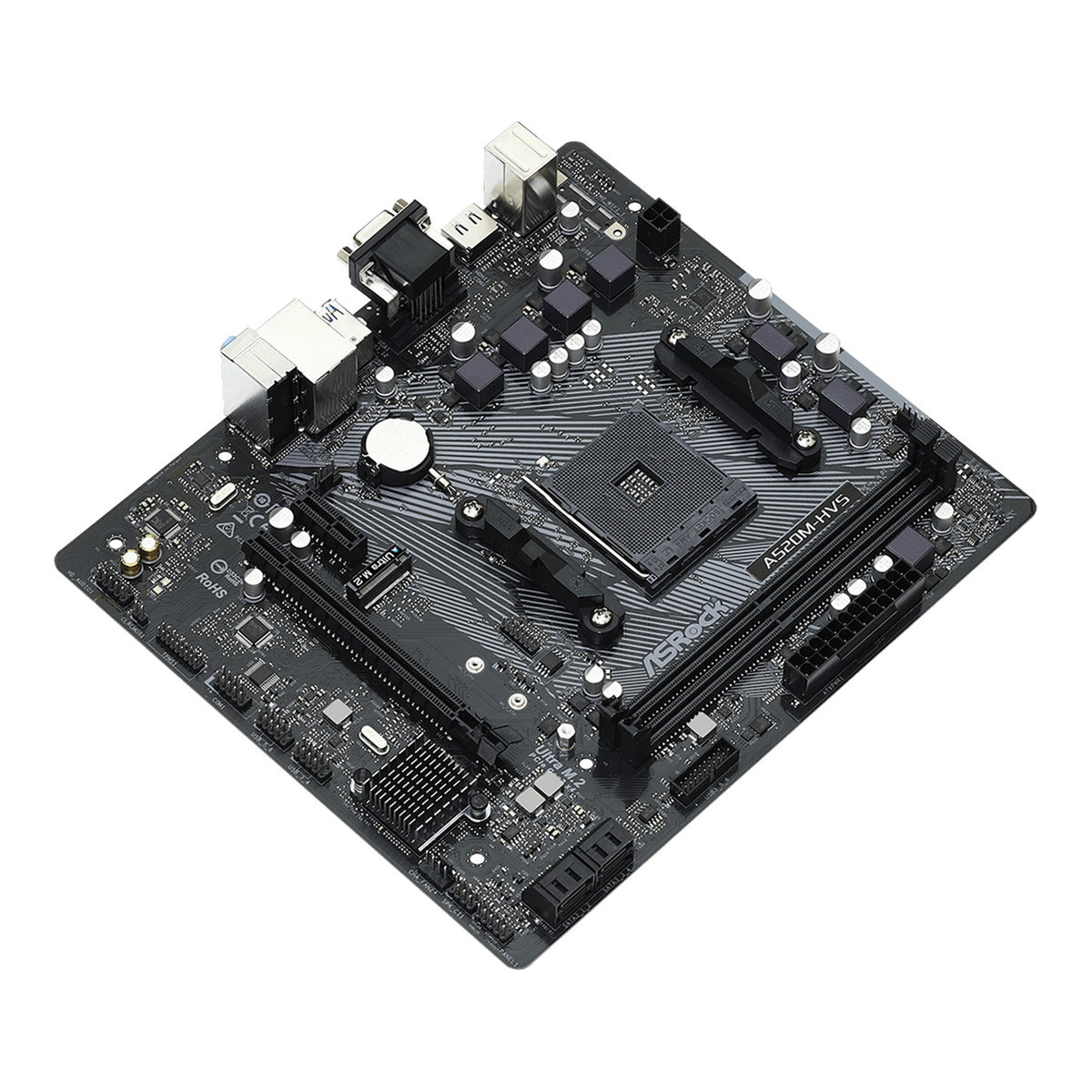

Memory slots	2 × DDR4 DIMM; dual channel
Maximum capacity	64 GB
Memory data rate	Up to DDR4-4733 (OC); depends on the CPU, memory modules, DIMM configuration and BIOS. Check the manufacturer's memory QVL.
Memory profiles	Intel XMP

Expansion & Storage

Expansion slots	1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot Supports NVMe SSD as boot disks

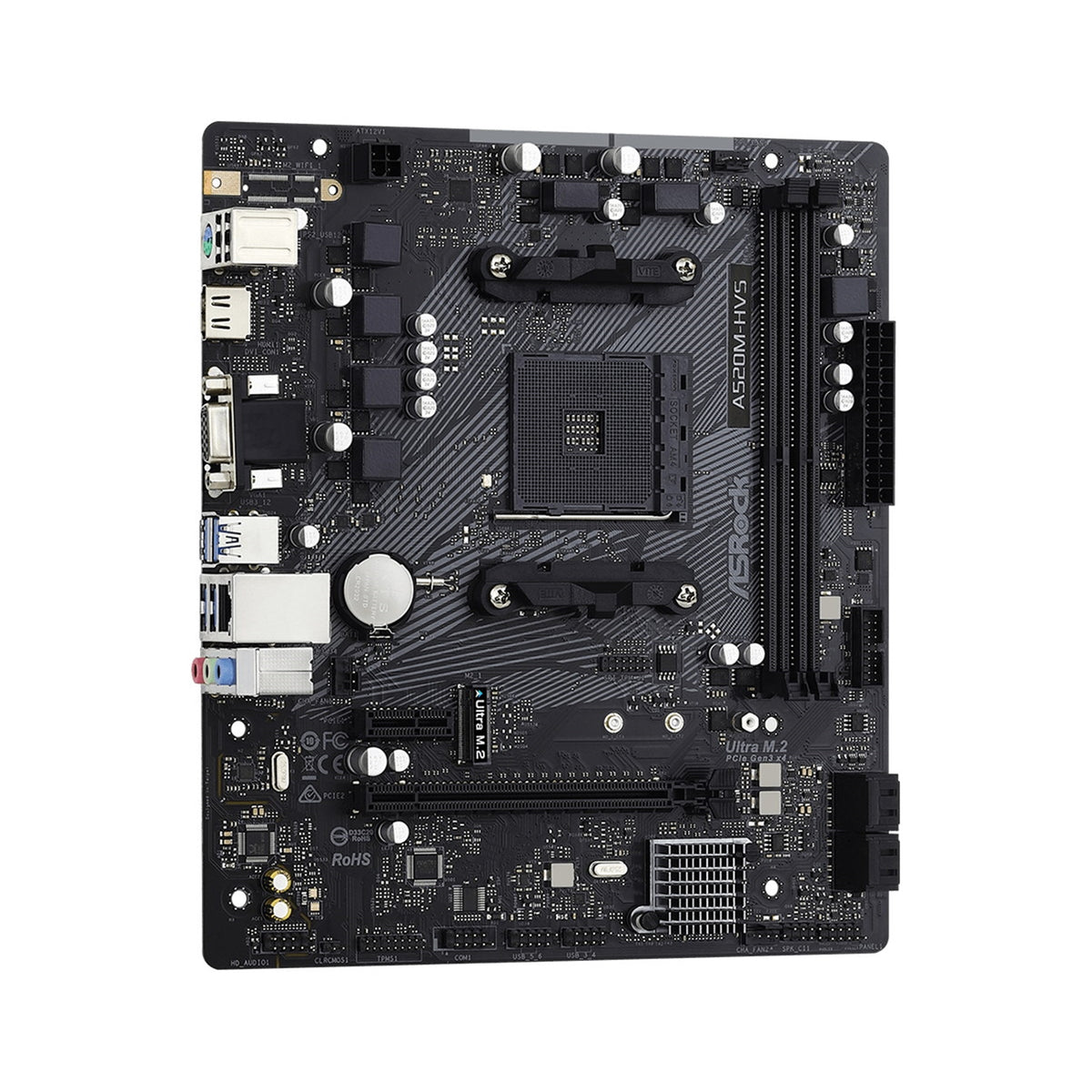

Storage connections	CPU: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes Chipset: 4 x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon 3000G Processors Supports ASRock U.2 Kit

Network & Audio

Ethernet	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
Wi-Fi / Bluetooth	No onboard wireless module listed by the manufacturer. Any optional Wi-Fi module, antennas and Bluetooth functionality require separate compatible hardware.
Audio	7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

Rear Connections

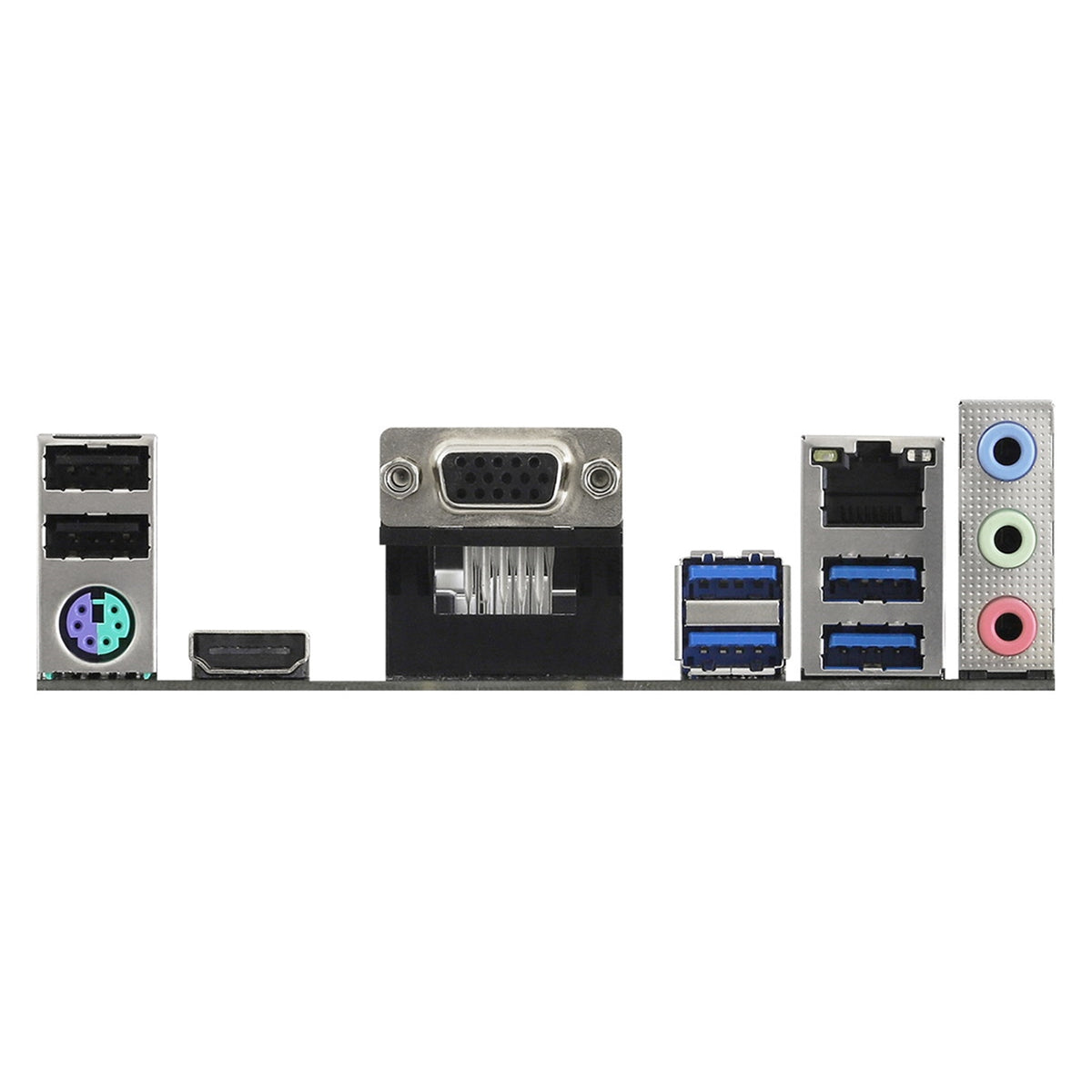

Rear I/O	1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

Internal Connections

Internal USB headers	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Power connectors	1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector
Fan / pump headers	1 x CPU Fan Connector (4-pin) 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

Compatibility Notes

CPU and BIOS	Check the manufacturer's CPU support list and the minimum BIOS version for your exact processor before ordering. A BIOS update may be required.
Display outputs	Motherboard display outputs require a compatible processor with integrated graphics. Their availability and maximum resolution depend on the processor.
Memory and expansion	DDR4 and DDR5 are not interchangeable. Overclocked memory speeds are not guaranteed. PCIe lane allocation and storage availability can depend on the CPU and installed devices; check the board manual.
Manufacturer restrictions	NVMe SSD is not supported with AMD Athlon 3000G Processors

Package & Identification

Manufacturer-listed accessories	I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket
GTIN / EAN	4710483932311
